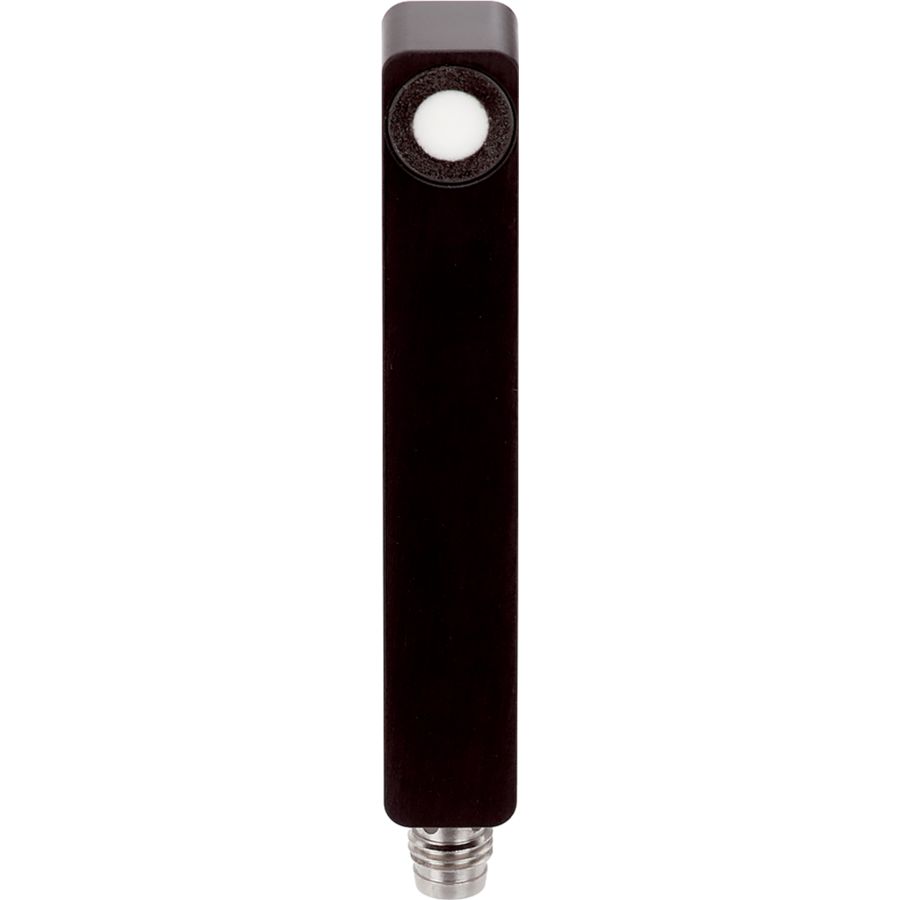

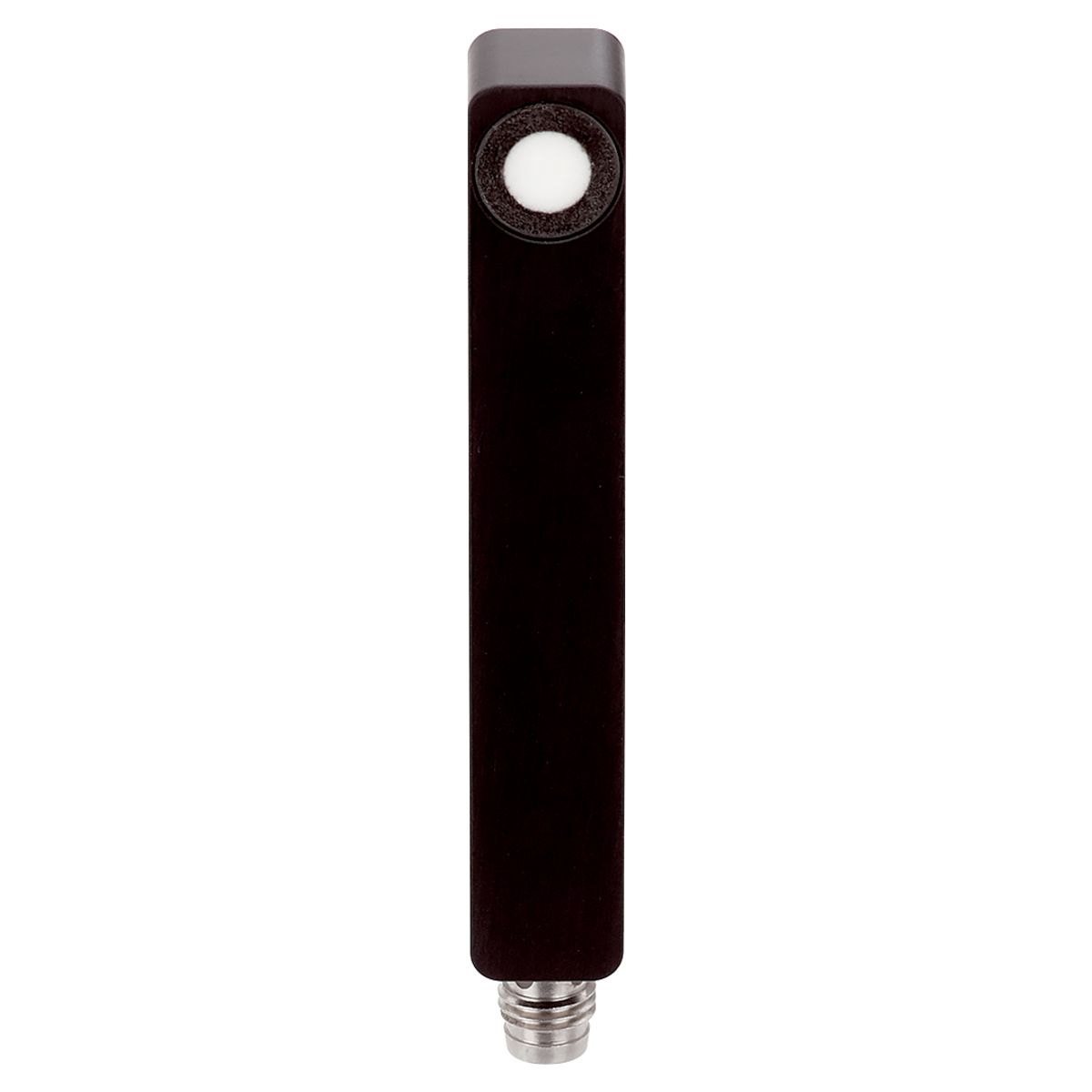

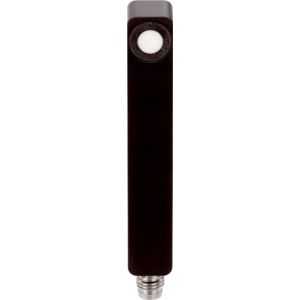

Ultrasonic Sensor - US Q12 M 200 IU-T4
Part Number: US Q12 M 200 IU-T4
Article Number: 210963
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Ultrasonic sensor, Ultrasonic sensor |
|---|---|
| Nominal switching distance (Sn) | 200 mm |
| Assembly distance (sensor to sensor) | 60 mm |
| Service voltage | 18 … 30 V DC |
| Switching output | Push-pull, 150 mA, NO/NC |
| Analog output voltage | 0 … 10 V |
| Analog output current | 4 … 20 mA |
| Voltage drop (max.) | 2 V |
| Housing material | Aluminum (Anodized) |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 4-pin |
