Label Sensors

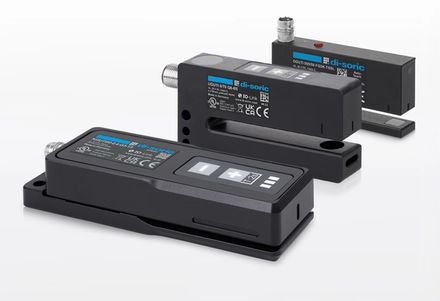

The number of labels used in the market is steadily increasing. The range varies from transparent labels “non-label-look”, printed and partially metallized label up to booklets with integrated operating manual. In order to safely detect this variety of labels, mostly just to have one physical function principle for label sensors is not sufficient. Therefore, di-soric is offering a large program regarding that range.



Filter:
Code Operating Principle Fork Opening Leg Length Internal Switching Output Connection
OGUTI 002 G4K-TSSL Optical 2 mm 40 mm Push-pull, 200 mA, NO/NC Connector, M8, 4-pin
OGU 02 N3K-TSSL Optical 2 mm 40 mm npn, 200 mA, NO/NC Connector, M8, 3-pin
OGU 02 P3K-TSSL Optical 2 mm 40 mm pnp, 200 mA, NO/NC Connector, M8, 3-pin
OGU 02 PN3K-TSSL Optical 2 mm 40 mm pnp+npn, 200 mA, NO/NC Connector, M8, 4-pin
OGU 05/100 P3K-TSSL Optical 5 mm 100 mm pnp, 200 mA, NO/NC Connector, M8, 3-pin
OGU 05/100 PN3K-TSSL Optical 5 mm 100 mm pnp+npn, 200 mA, NO/NC Connector, M8, 4-pin
OGUTI 002 P3K-TSSL Optical 2 mm 40 mm pnp, 200 mA, NO/NC Connector, M8, 3-pin
OGUTI 002 PN3K-TSSL Optical 2 mm 40 mm pnp+npn, 200 mA, NO/NC Connector, M8, 4-pin
OGUTI 002 FP3K-TSSL Optical 2 mm 40 mm pnp, 200 mA, NO/NC Connector, M8, 4-pin
OGUTI 005/100 P3K-TSSL Optical 5 mm 100 mm pnp, 200 mA, NO/NC Connector, M8, 3-pin
OGUTI 005/100 PN3K-TSSL Optical 5 mm 100 mm pnp+npn, 200 mA, NO/NC Connector, M8, 4-pin
OGUTI 005/100 FP3K-TSSL Optical 5 mm 100 mm pnp, 200 mA, NO/NC Connector, M8, 4-pin
OGUTI 005/50 G3K-TSSL Optical 5 mm 50 mm Push-pull, 200 mA, NO/NC Connector, M8, 3-pin
OGUTI 005/50 FG3K-TSSL Optical 5 mm 50 mm Push-pull, 200 mA, NO/NC Connector, M8, 4-pin
OGUTI 005 G3K-TSSL Optical 5 mm 40 mm Push-pull, 200 mA, NO/NC Connector, M8, 3-pin
OGUTI 005 G4K-TSSL Optical 5 mm 40 mm Push-pull, 200 mA, NO/NC Connector, M8, 4-pin
OGUTI 005 FG3K-TSSL Optical 5 mm 40 mm Push-pull, 200 mA, NO/NC Connector, M8, 4-pin
UGUTI 6/70 G6-B5 Ultrasonic through-beam sensor 6 mm 70 mm Push-pull, NO/NC Connector, M12, 5-pin
UGUTI 6/70 G6-RB5 Ultrasonic through-beam sensor 6 mm 70 mm Push-pull, NO/NC Connector, M12, 5-pin
KSSTI 400 G3K-TSSL Capacitive 0,4 mm 50 mm Push-pull, 200 mA, NO/NC Connector, M8, 3-pin
KSSTI 600 G3K-TSSL Capacitive 0,6 mm 50 mm Push-pull, 200 mA, NO/NC Connector, M8, 3-pin
KSSTI 400 FG3K-TSSL Capacitive 0,4 mm 50 mm Push-pull, 200 mA, NO/NC Connector, M8, 4-pin
KSSTI 600 FG3K-TSSL Capacitive 0,6 mm 50 mm Push-pull, 200 mA, NO/NC Connector, M8, 4-pin
KSSTI 1000 G3K-TSSL Capacitive 1 mm 50 mm Push-pull, 200 mA, NO/NC Connector, M8, 3-pin

Optical label sensors

are features by a very high switching frequency, a short response time and a high resolution. Large fork openings offer enough room for thicker label material. Versions with a very flat lower branch enable the detection of labels directly on the dispenser edge, guaranteeing a considerably increased precision of dispensing.

Capacitive label sensors

detect very thin as well as transparent labels and allow their exact positioning. Capacitive label sensors can also be used for the detection of double-layers as well as bonding points.

Ultrasonic label sensors

detect, despite their large fork opening, very thin and transparent film labels and offer enough space for thicker, folded labels. A clear operating menu with integrated display enables an intuitive adjustment of the sensor functions without operating manual.

Ultrasonic label sensors do not just detect very thin and transparent foil labels. They also reliably detect metalized labels and provide sufficient clearance for thicker, folded booklets. The innovative dual operation concept-optionally implemented using IO-Link or teach-in with manual threshold value adjustment-makes it possible to put the sensor into operation quickly.

OPTICAL LABEL SENSORS

  • Detection of metallized and paper labels
  • For thin or thick labels and booklets
  • Easy operation: Teach-In
  • For maximum dispensing precision at the labeler
  • For maximum belt speeds (500 m/min)
  • Versions available for direct positioning on the dispenser edge
  • Very high switching frequency
  • Autoteach / remote teach /key-lock function
  • Large openings for booklets
  • Versions available with integrated memory location for up to 63 different labels

CAPACITIVE LABEL SENSORS

  • Detection of thin, transparent and paper labels
  • Easy operation: Teach-In
  • Short activation time, high reproducibility
  • High switching frequency
  • Autoteach / remote teach / key-lock function
  • Separable casing for simple cleaning
  • Versions available with integrated
  • memory location for up to 39 different labels

ULTRASONIC LABEL SENSORS

  • Detection of virtually all label materials
  • For thin or thick labels and booklets
  • Easy operation: Teach-in with manual threshold value adjustment
  • Auto-teach / Remote teach / Key-lock
  • IO-Link for diagnostics and recipe management
  • Short activation time, high reproducibility
  • Detection of most different labels
  • Detection of splices, double layers
  • Autoteach / remote teach / key-lock function
  • Integrated display for intuitive adjustment
  • Visible material values and thresholds
  • Extensive adjustment possibilities
