Frame And Light Barriers

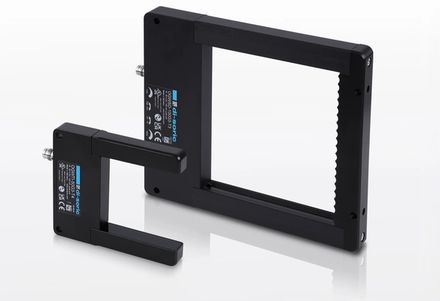

di-soric frame and ring light barriers are the optimal solution for detecting metallic or non-metallic parts. A number of photocells form a light curtain (light corridor) and detect small parts from a size of 0,7 mm.
Typical applications include counting very small parts, the length measurement of parts at a constant feed speed and checking for the ejection of parts to protect tools on presses and punches. Patented technical specialties, sturdy casings and height protection classes feature these di-soric sensors.
| Code | Operating Principle | Detection Range | Switching Output |
|---|---|---|---|
| OGWSD 100 N3K-TSSL | Dynamic/static switchable | 100, 92 mm | npn, 200 mA, NO/NC |
| OGWSD 100 P3K-TSSL | Dynamic/static switchable | 100, 92 mm | pnp, 200 mA, NO/NC |
| OGWSD 150 N3K-TSSL | Dynamic/static switchable | 150, 142 mm | npn, 200 mA, NO/NC |
| OGWSD 150 P3K-TSSL | Dynamic/static switchable | 150, 142 mm | pnp, 200 mA, NO/NC |
| OGWSD 25 P3K-TSSL | Dynamic/static switchable | 25, 23 mm | pnp, 200 mA, NO/NC |
| OGWSD 250 N3K-TSSL | Dynamic/static switchable | 250, 242 mm | npn, 200 mA, NO/NC |
| OGWSD 250 P3K-TSSL | Dynamic/static switchable | 250, 242 mm | pnp, 200 mA, NO/NC |
| OGWSD 300 N3K-TSSL | Dynamic/static switchable | 300, 397,5 mm | npn, 200 mA, NO/NC |
| OGWSD 300 P3K-TSSL | Dynamic/static switchable | 300, 397,5 mm | pnp, 200 mA, NO/NC |
| OGWSD 4055 N3K-TSSL | Dynamic/static switchable | 40, 49 mm | npn, 200 mA, NO/NC |
| OGWSD 4055 P3K-TSSL | Dynamic/static switchable | 40, 49 mm | pnp, 200 mA, NO/NC |
| OGWSD 70 P3K-TSSL | Dynamic/static switchable | 70, 62 mm | pnp, 200 mA, NO/NC |
| OGWSD V 4055 P3K-TSSL | Dynamic/static switchable | 40, 49 mm | pnp, 200 mA, NO/NC |
| OGWSD 70 N3K-TSSL | Dynamic/static switchable | 70, 62 mm | npn, 200 mA, NO/NC |
| OGWSD 25 N3K-TSSL | Dynamic/static switchable | 25, 23 mm | npn, 200 mA, NO/NC |
| ORSD 20 P2K-IBS | Dynamic/static switchable, Optical | pnp, 200 mA, NO |
- 1
FRAME LIGHT BARRIERS
- High resolution from 0,7 mm diameter
- Dynamic/static operating principle switchable
- Removable crossbar without change of resolution
- Compressed air connection on crossbar
- NO/NC switchable
- Different active zones available
- Short response time from 0,1 ms
- Sensitivity and pulse stretching adjustable
- Robust casing
RING LIGHT BARRIERS
- Compact designResolution 1 mm
- Working principle static/dynamic switchable
- Pulse streching adjustable
- Short response time
- Versions with external amplifier available
