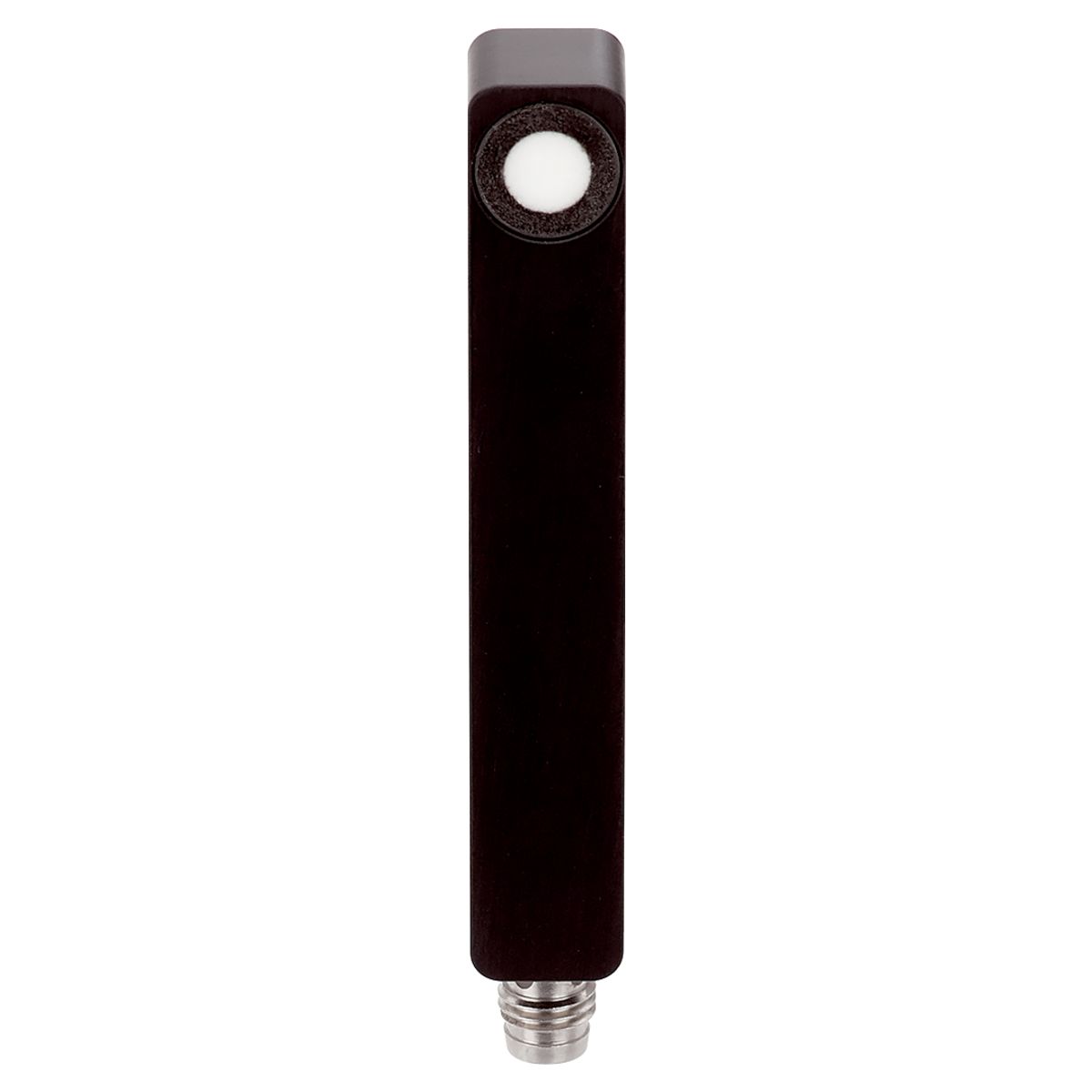

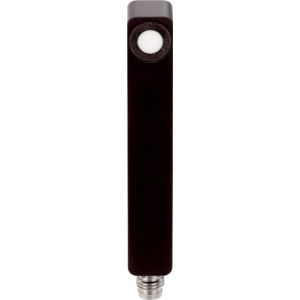

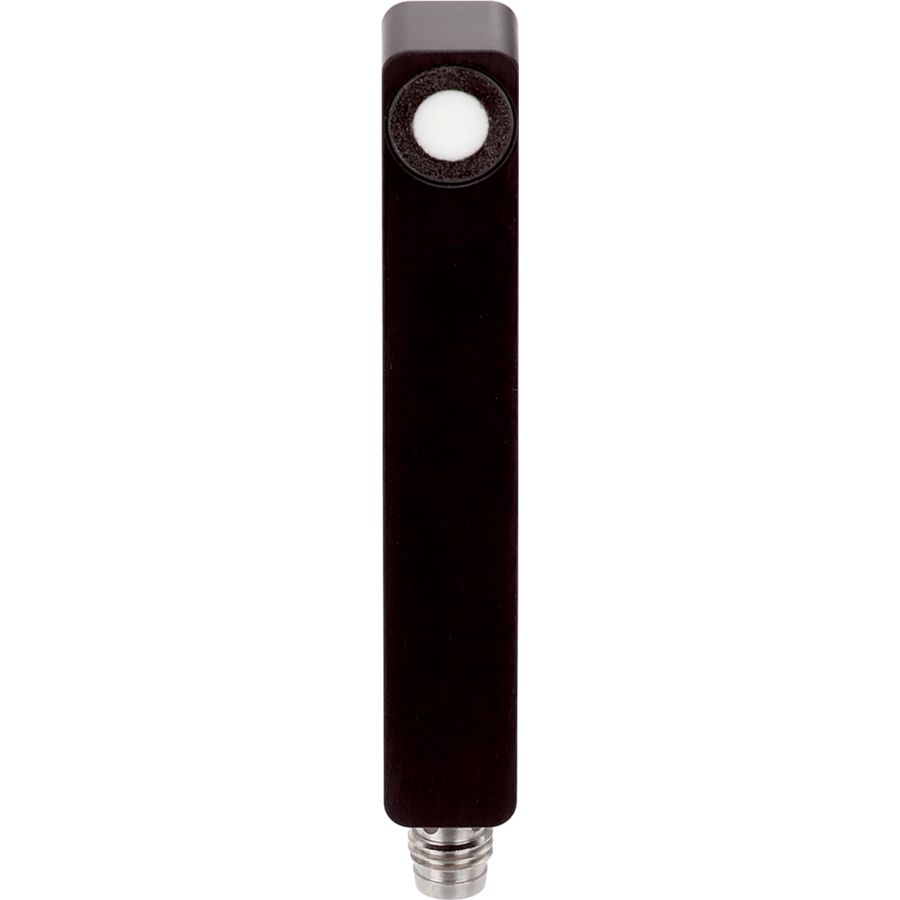

Ultrasonic Sensor - US Q12 M 200 G3-T4

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Ultrasonic sensor, Ultrasonic sensor
Nominal switching distance (Sn)	200 mm
Assembly distance (sensor to sensor)	60 mm
Service voltage	18 … 30 V DC
Switching output	Push-pull, 150 mA, NO/NC
Voltage drop (max.)	2 V
Housing material	Aluminum (Anodized)
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67

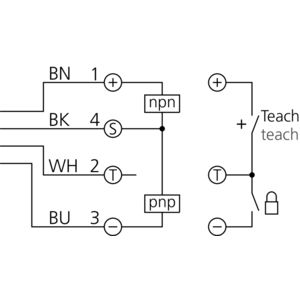

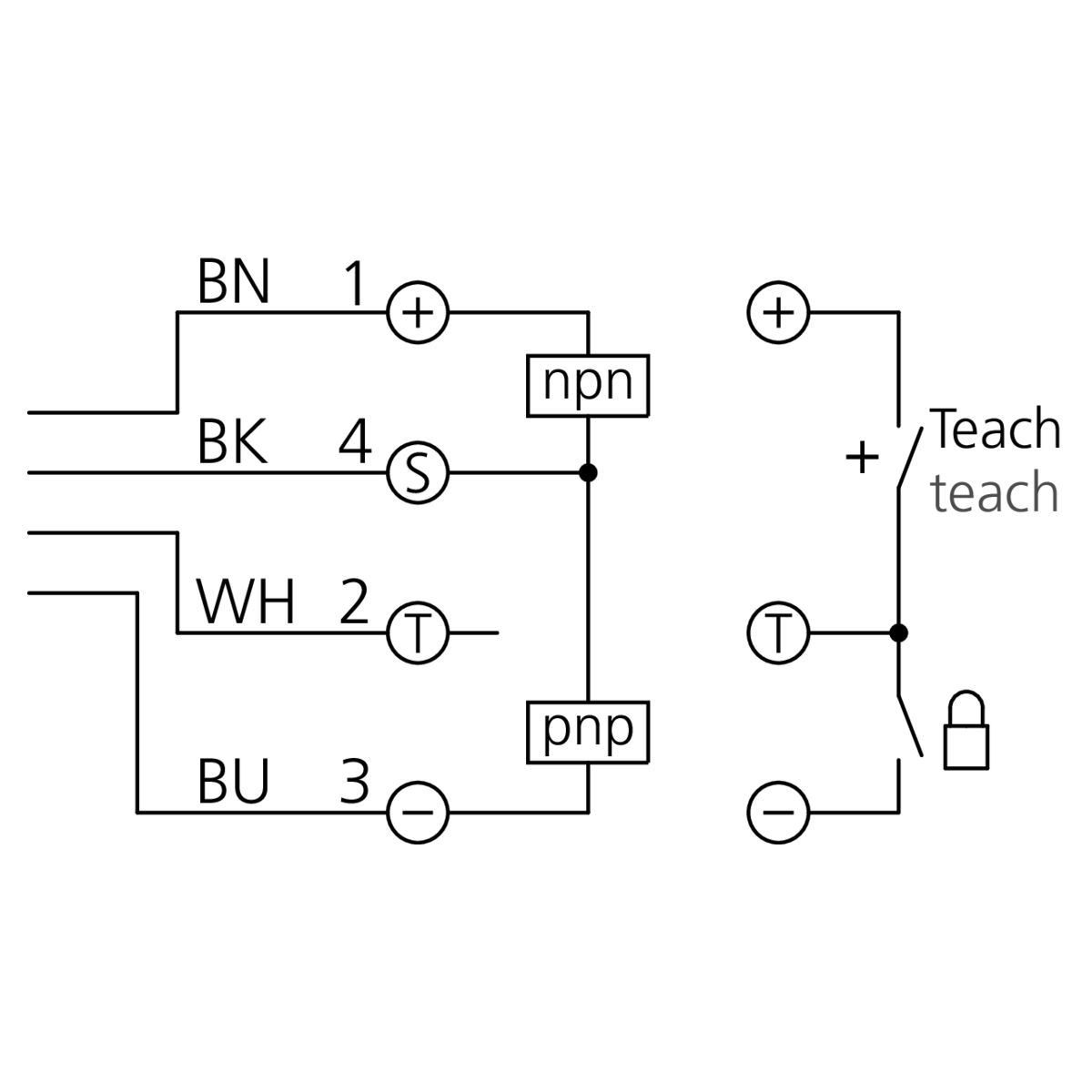

Connection	Connector, M8, 4-pin
