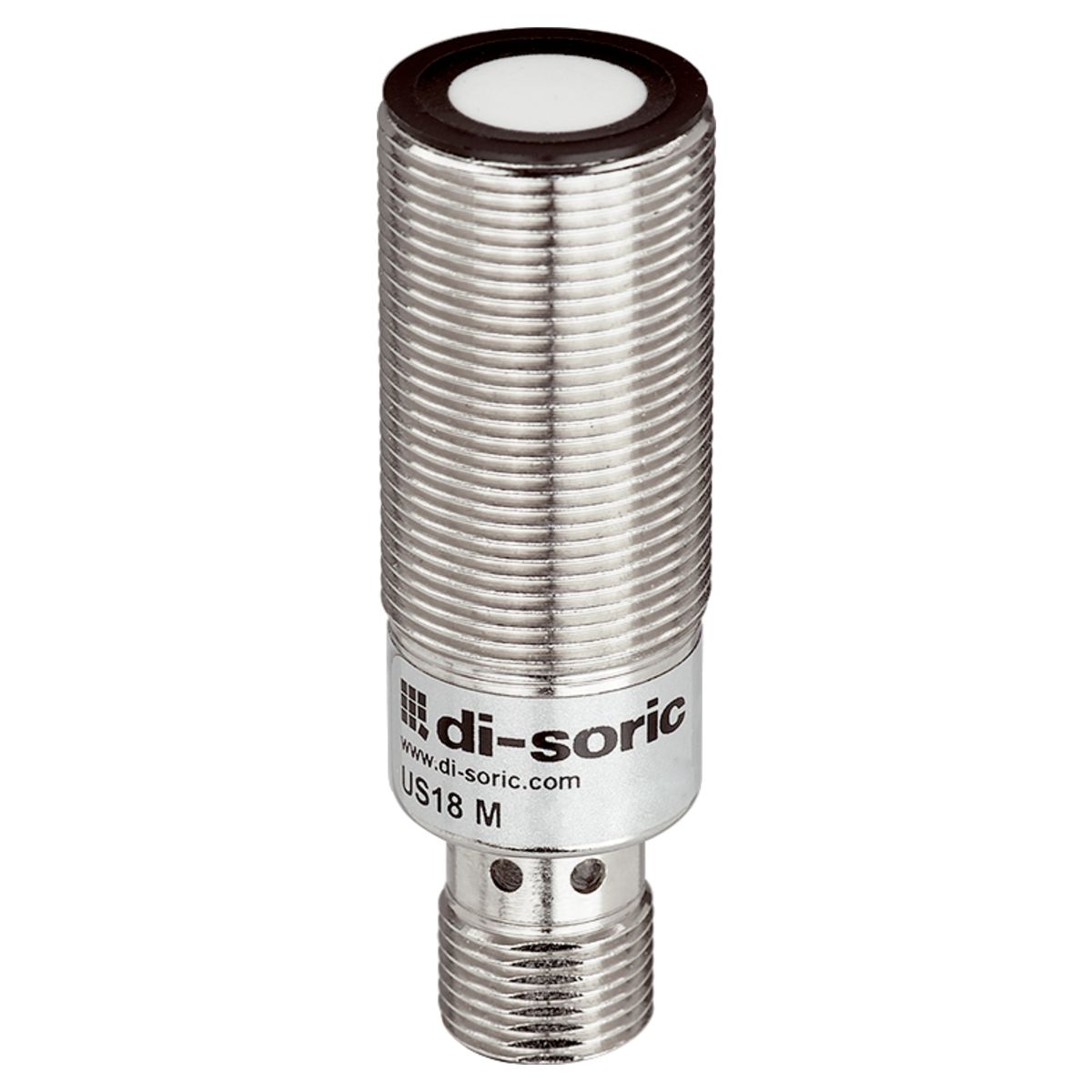

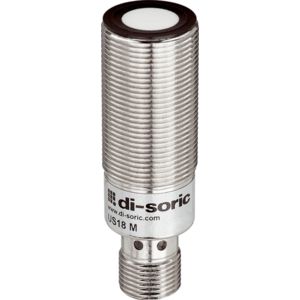

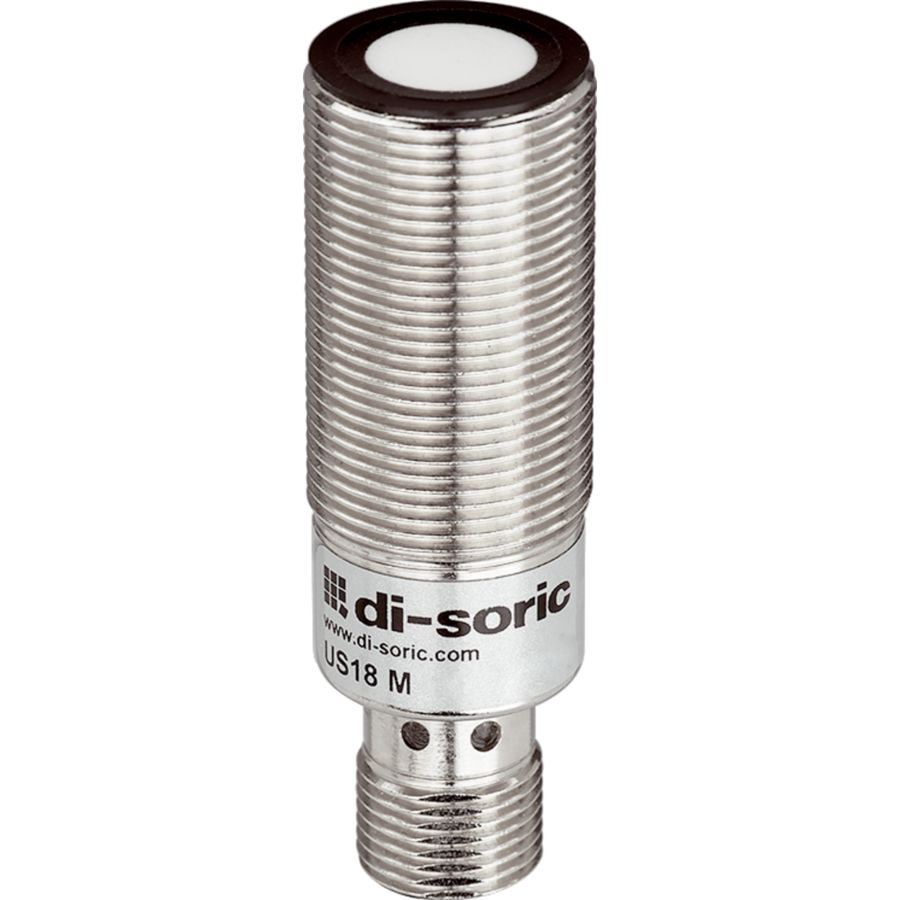

Ultrasonic Sensor - US 18 M 800 IU-B4
Part Number: US 18 M 800 IU-B4
Article Number: 210060
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Ultrasonic sensor |
|---|---|
| Nominal switching distance (Sn) | 800 mm |
| Assembly distance (sensor to sensor) | 300 mm |
| Service voltage | 18 … 30 V DC |
| Switching output | Push-pull, 150 mA |
| Analog output voltage | 0 … 10 V |
| Analog output current | 4 … 20 mA |
| Interface | IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile) |
| Voltage drop (max.) | 2 V |
| Housing material | Brass (nickel-plated) |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Connector, M12, 4-pin |
