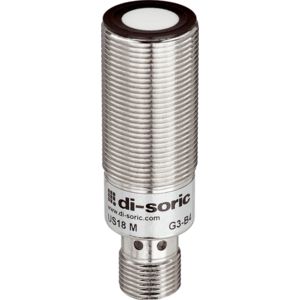

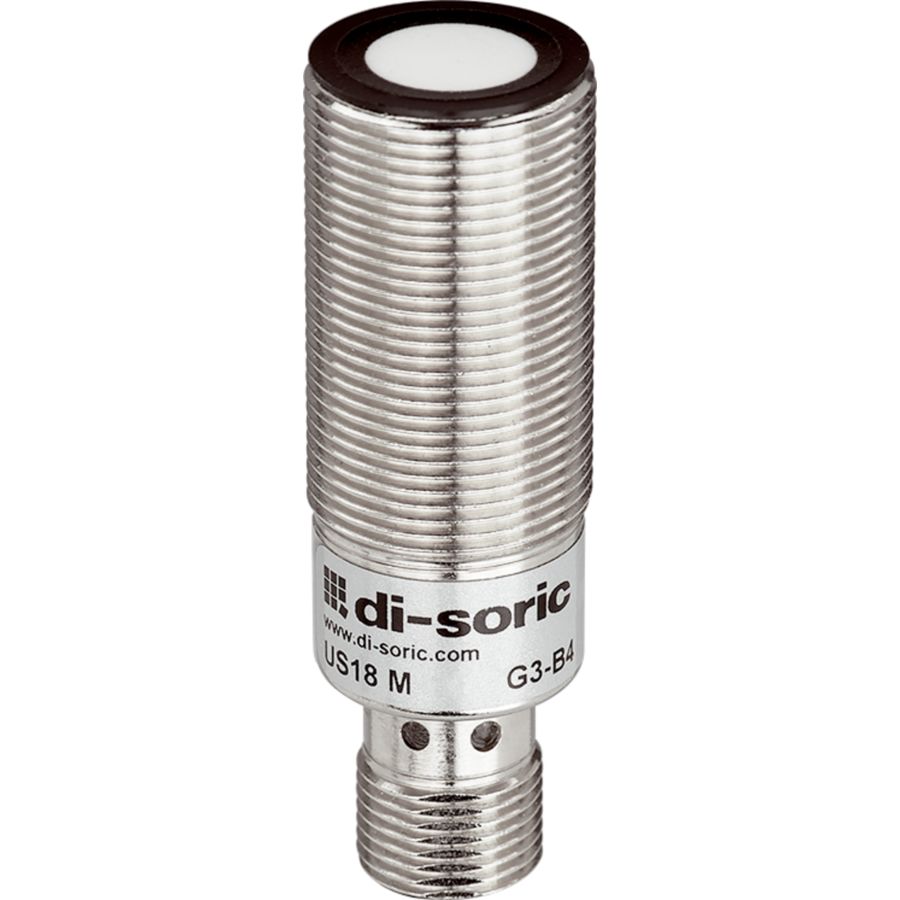

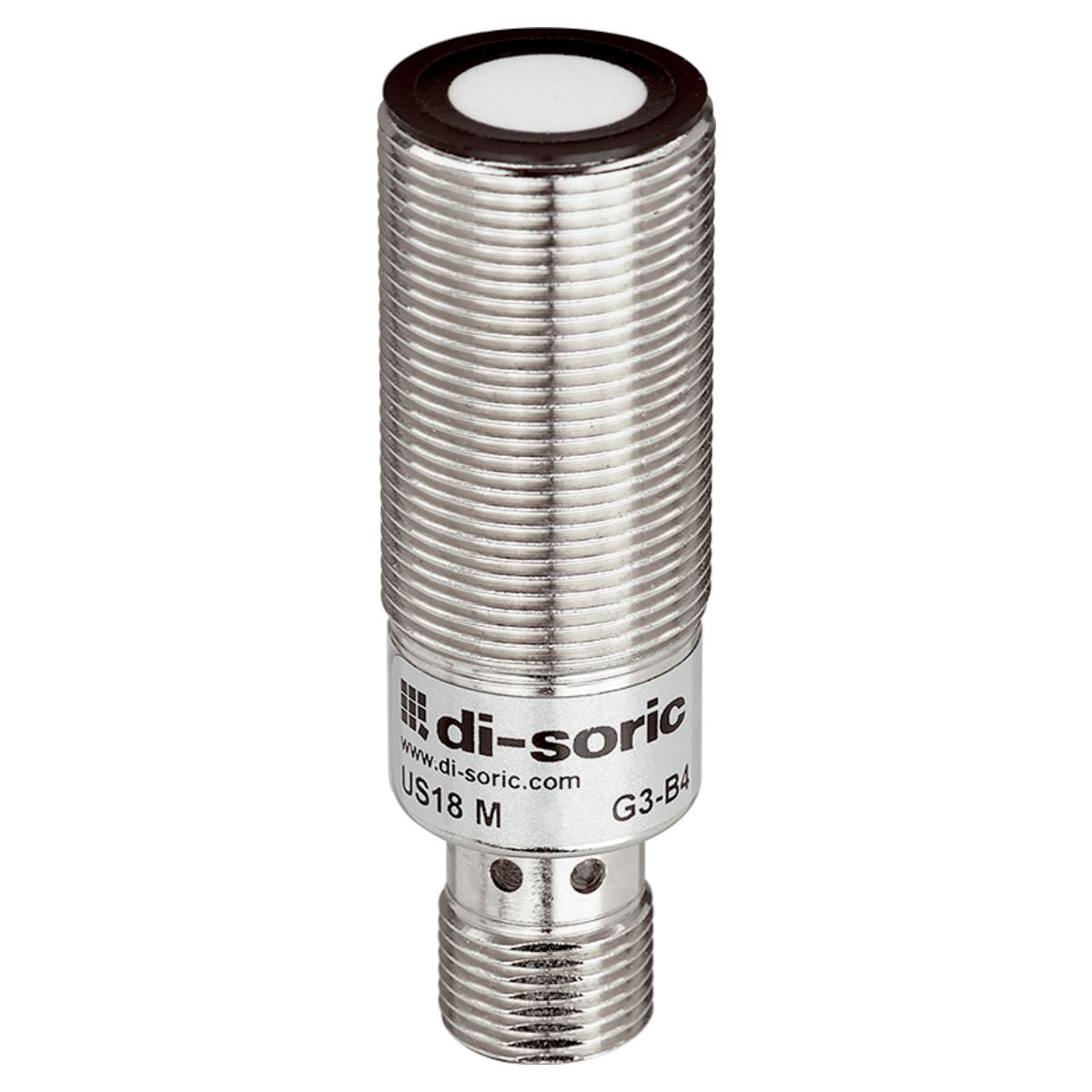

Ultrasonic Sensor - US 18 M 1500 G3-B4

Part Number: US 18 M 1500 G3-B4

Article Number: 213064

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Ultrasonic sensor
Nominal switching distance (Sn) 1.500 mm
Assembly distance (sensor to sensor) 700 mm
Service voltage 18 … 30 V DC
Switching output Push-pull, 150 mA, NO/NC
Interface V1.1, COM2 (38.4kBd) Smart Sensor Profile
Voltage drop (max.) 2 V
Housing material Brass (nickel-plated)
Ambient temperature during operation -25 … +70 °C
Protection type IP 67

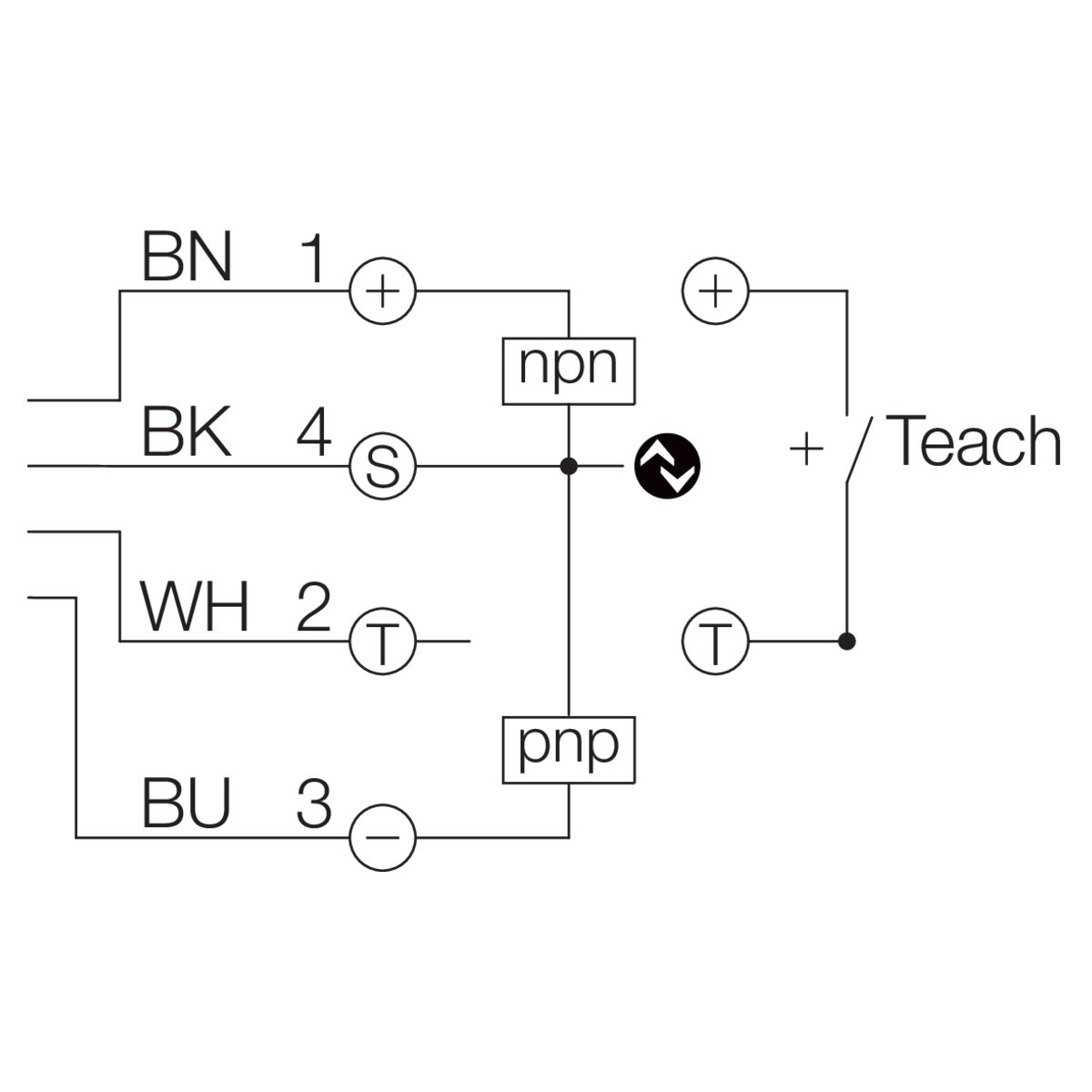

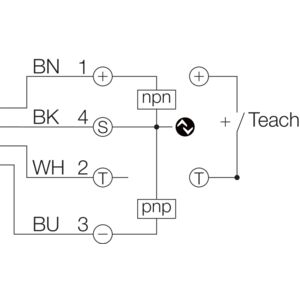

Connection Connector, M12, 4-pin
