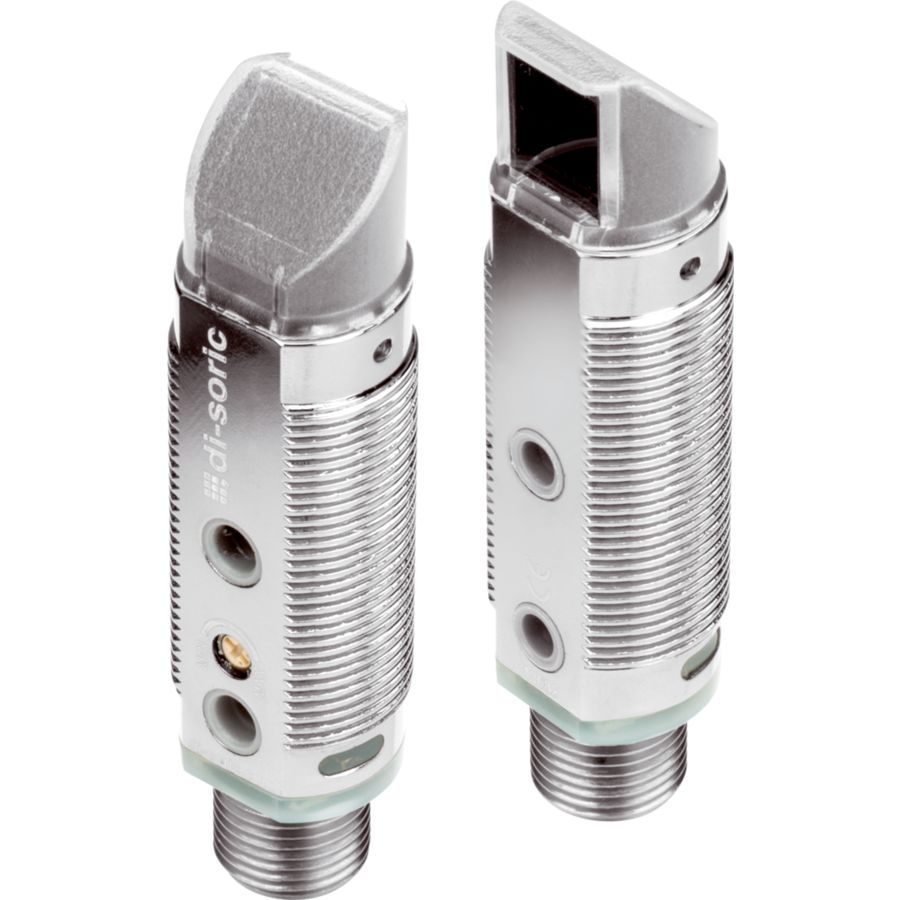

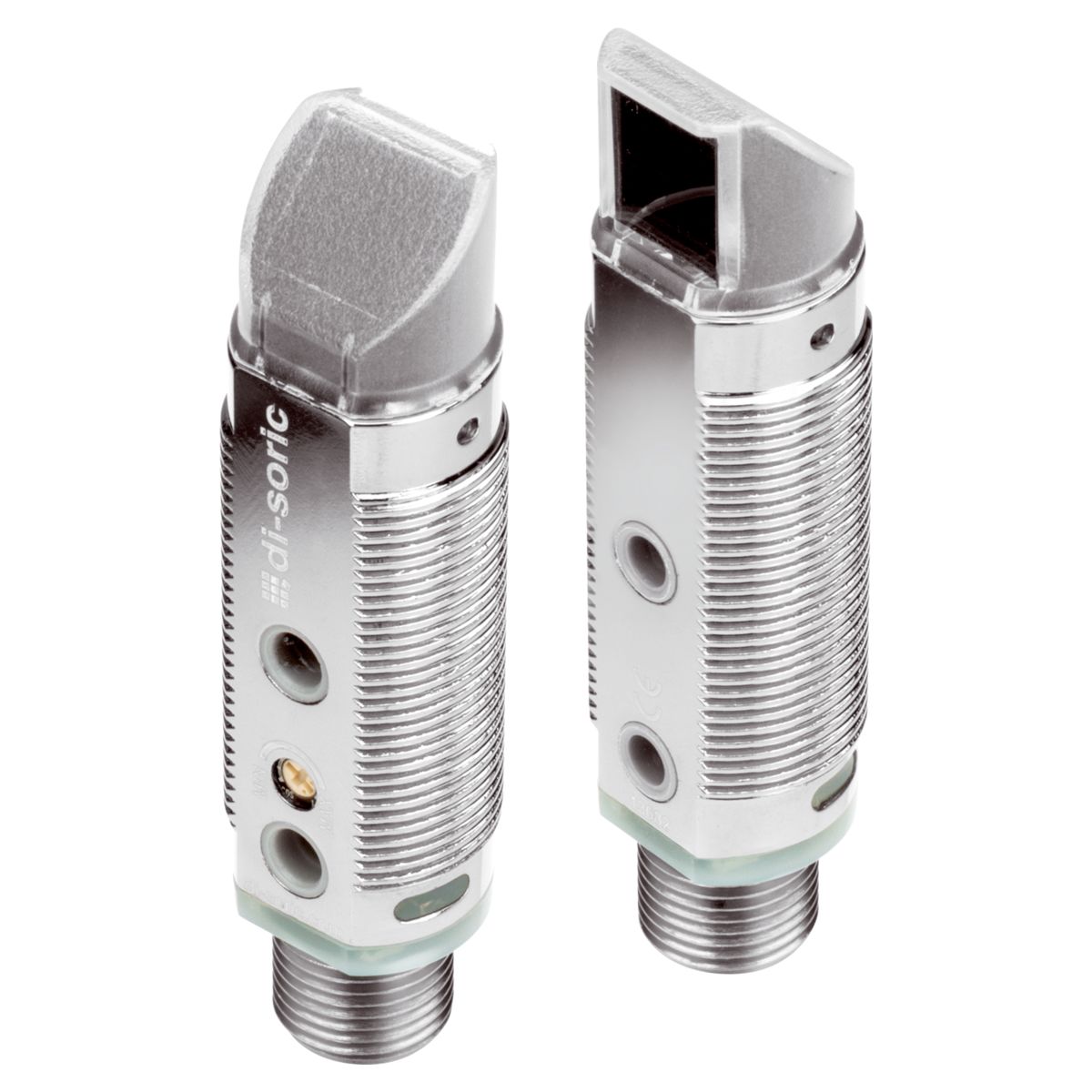

Through-beam Sensor, Transmitter / Receiver - OES 18 FMR 8000 P3-B4

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Through-beam sensor
Transmitter light source	LED
Light color	Infrared / 880 nm
Range	0 … 8.000 mm
Service voltage	10 … 30 V DC
Switching output	pnp, 100 mA, NO/NC
Ambient temperature during operation	-25 … +55 °C
Protection class	III, operation on protective low voltage
Connection	Connector, M12, 4-pin
