Spotlight - BEK-P7-G5T-IBS
Part Number: BEK-P7-G5T-IBS
Article Number: 212924
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Transmitter light source | LED |
---|---|
Light color | White, 6.500 K |
Deflection angle FWHM | 7° |
Service voltage | 18 … 30 V DC |
No-load current (max.) | 145 mA (24 V DC) |
Housing material | Aluminum, Black (Anodized) |
Ambient temperature during operation | 0 … +40 °C |
Protection type | IP 67 |
Protection class | III, operation on protective low voltage |

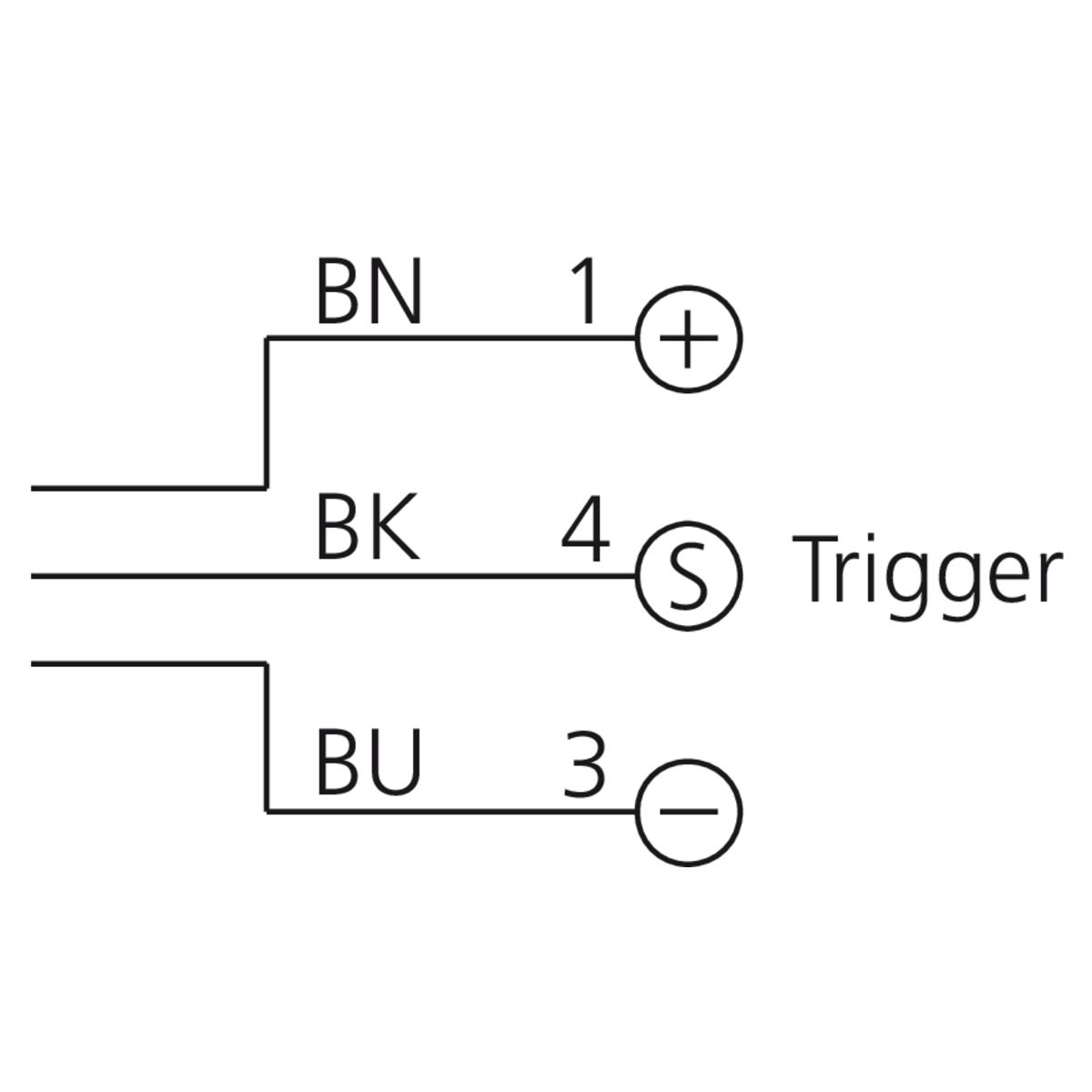

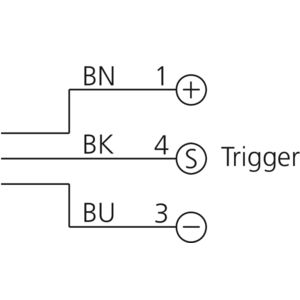

Connection | Connector, M12, 3-pin |
