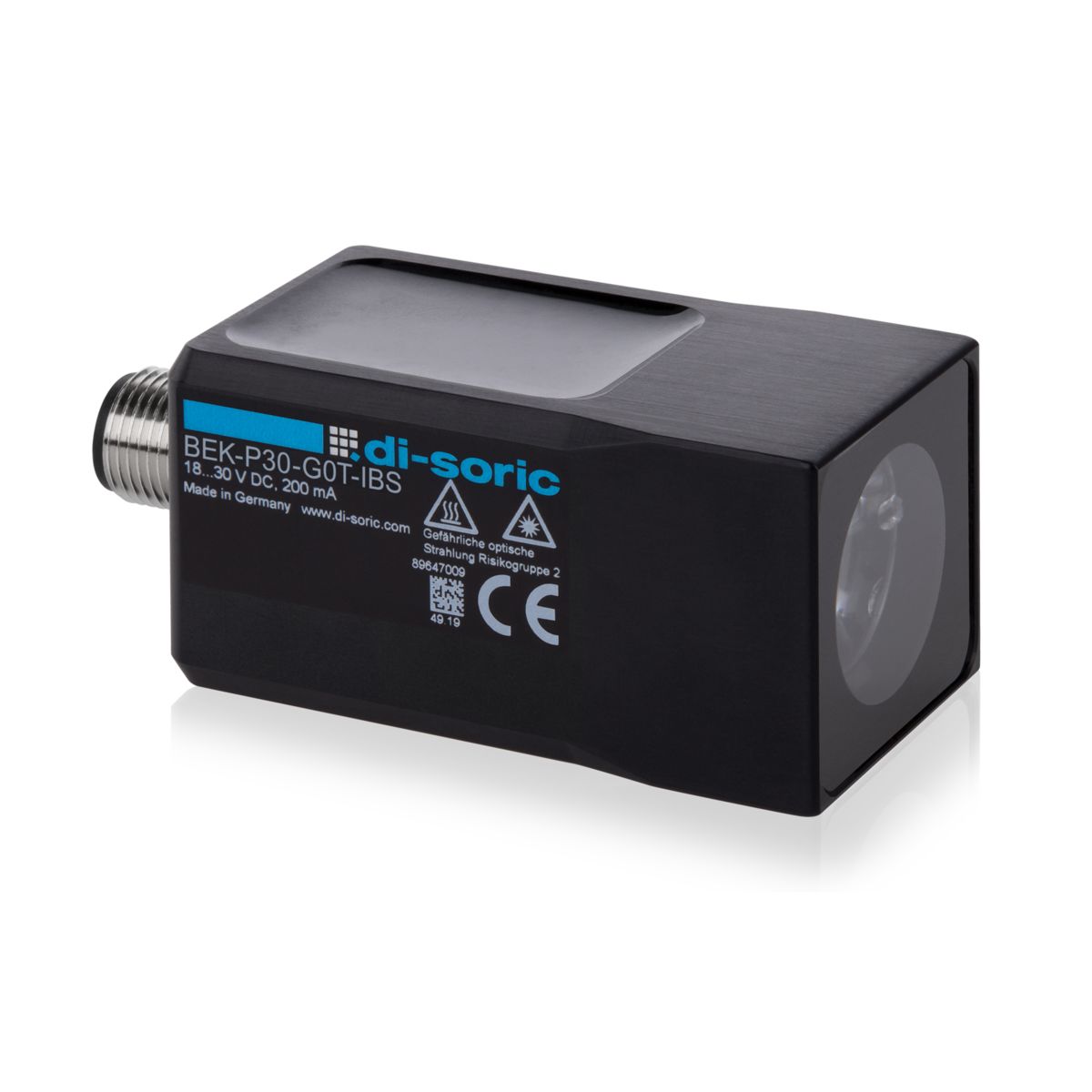

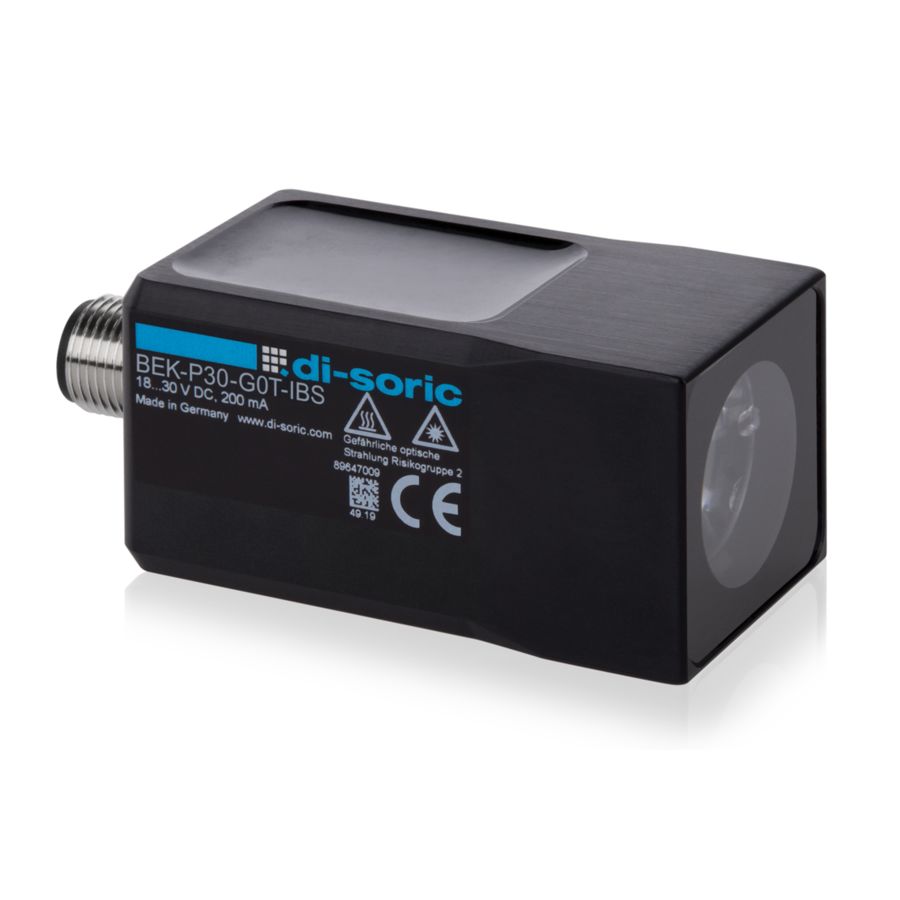

Spotlight - BEK-P30-G0T-IBS
Part Number: BEK-P30-G0T-IBS
Article Number: 212916
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Transmitter light source | LED |
---|---|
Light color | Infrared, 860 nm |
Deflection angle FWHM | 30° |
Service voltage | 18 … 30 V DC |
No-load current (max.) | 85 mA (24 V DC) |
Housing material | Aluminum, Black (Anodized) |
Ambient temperature during operation | 0 … +40 °C |
Protection type | IP 67 |
Protection class | III, operation on protective low voltage |

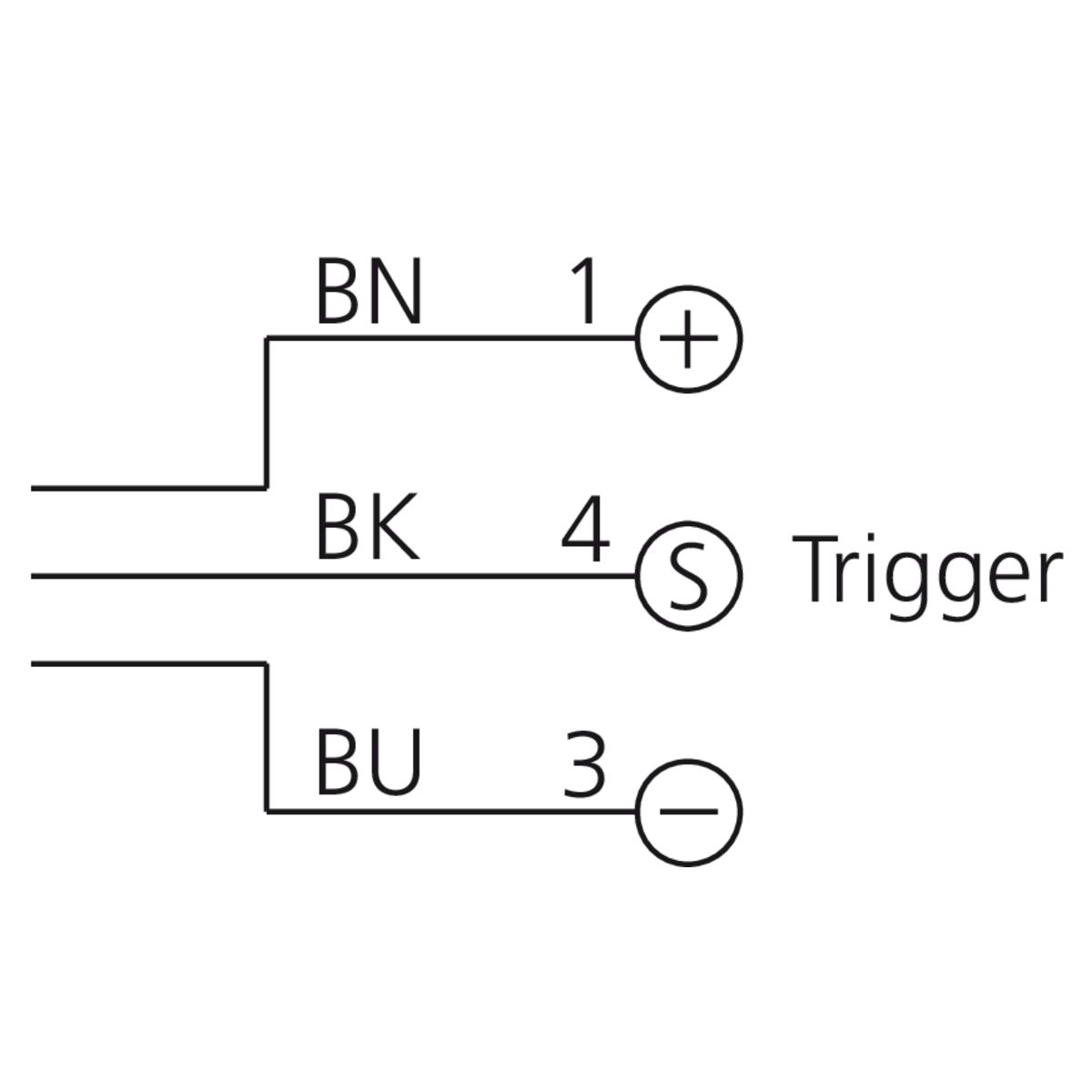

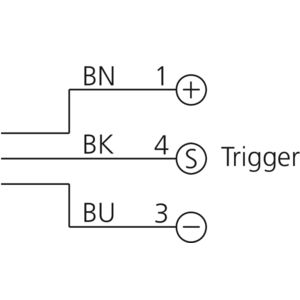

Connection | Connector, M12, 3-pin |
