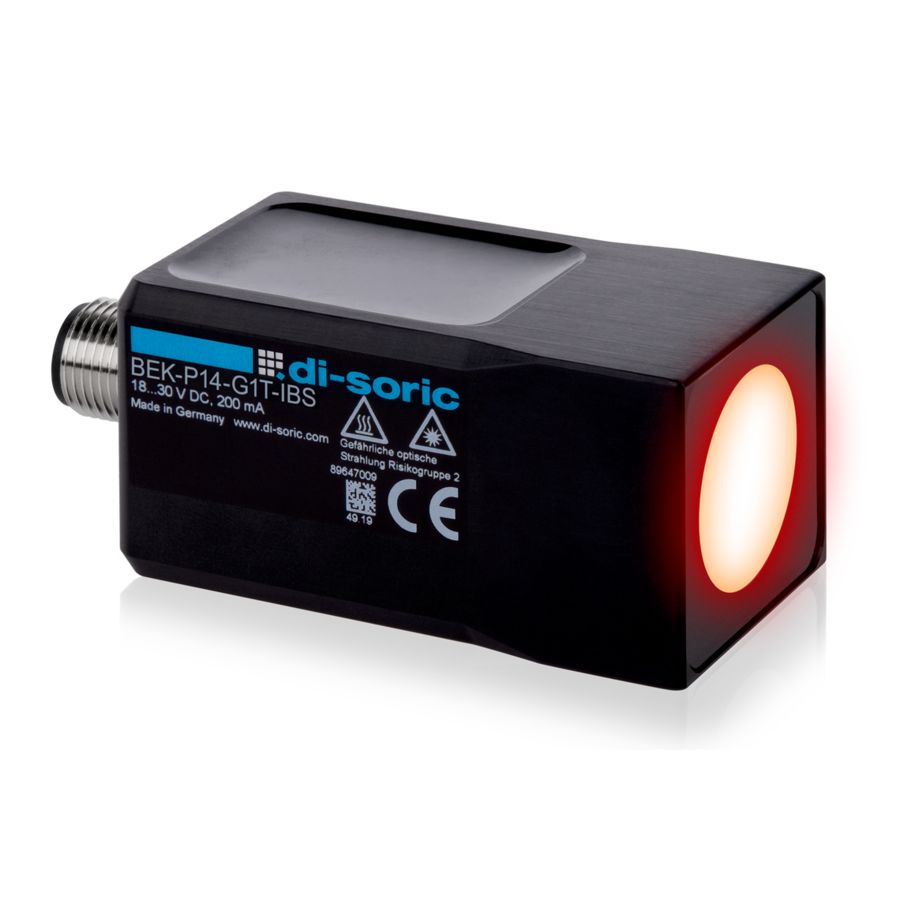

Spotlight - BEK-P14-G1T-IBS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Transmitter light source	LED
Light color	red, 465 nm
Deflection angle FWHM	14°
Service voltage	18 … 30 V DC
No-load current (max.)	140 mA (24 V DC)
Housing material	Aluminum, Black (Anodized)
Ambient temperature during operation	0 … +40 °C
Protection type	IP 67
Protection class	III, operation on protective low voltage

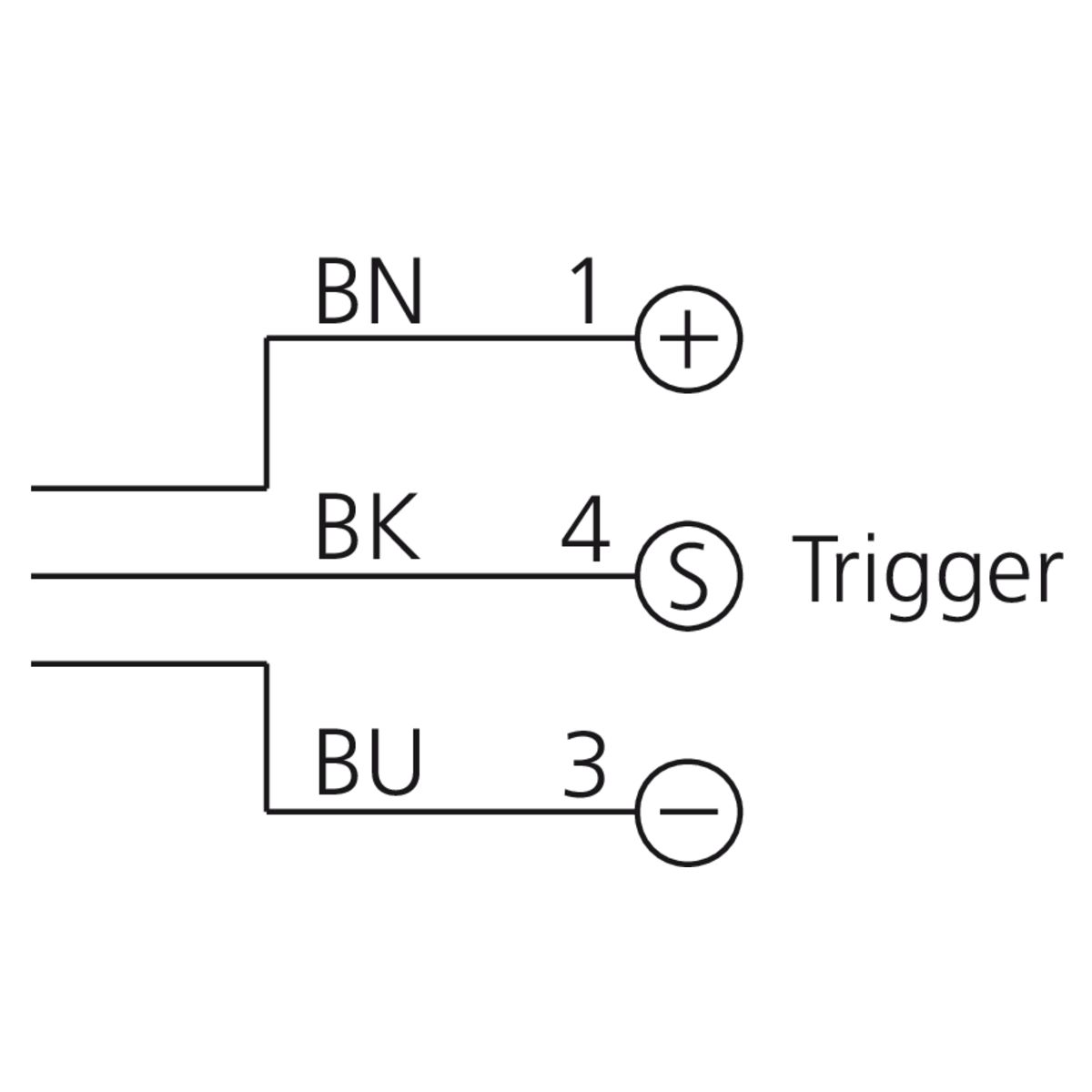

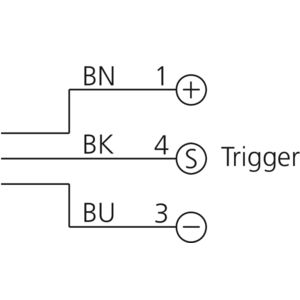

Connection	Connector, M12, 3-pin
