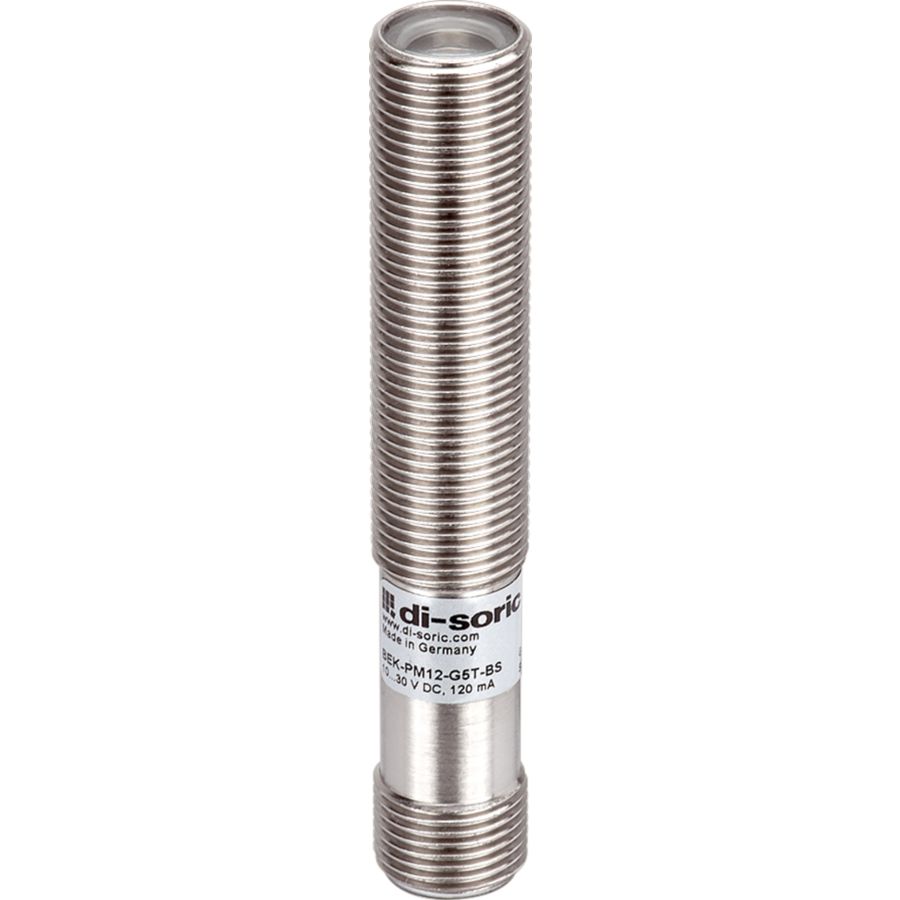

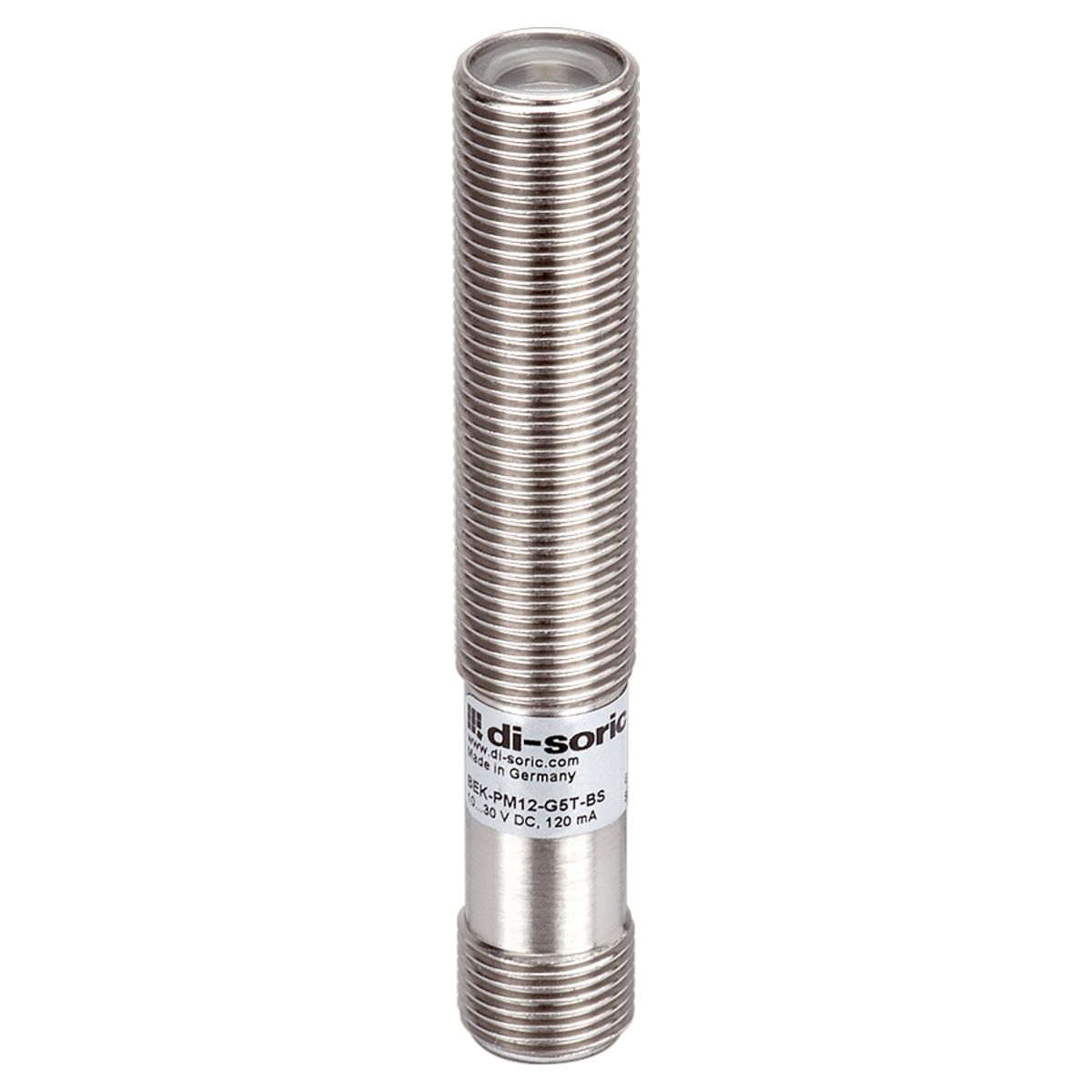

Spot Light - BEK-PM12-G5T-BS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Transmitter light source	LED
Light color	White, 6.000 K
Deflection angle FWHM	25°
Service voltage	10 … 30 V DC (Supply Class 2)
No-load current (max.)	120 mA (10 V DC)
Housing material	Brass (nickel-plated)

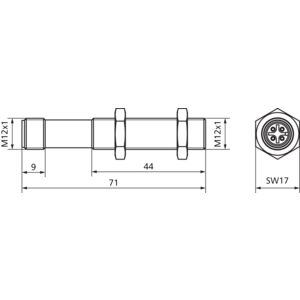

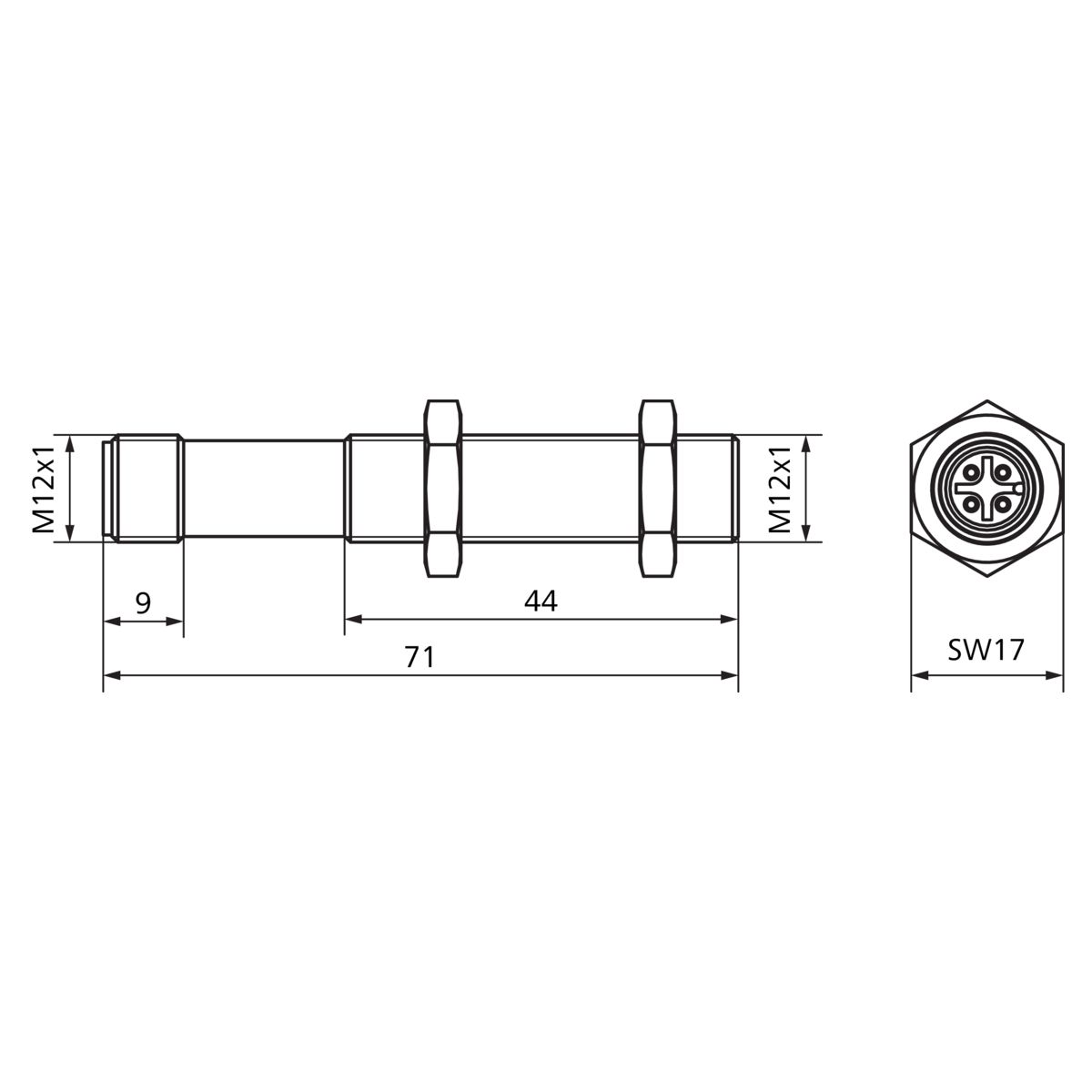

Size	M12 x 1
Ambient temperature during operation	0 … +40 °C
Protection type	IP 65, IP 67
Protection class	III, operation on protective low voltage

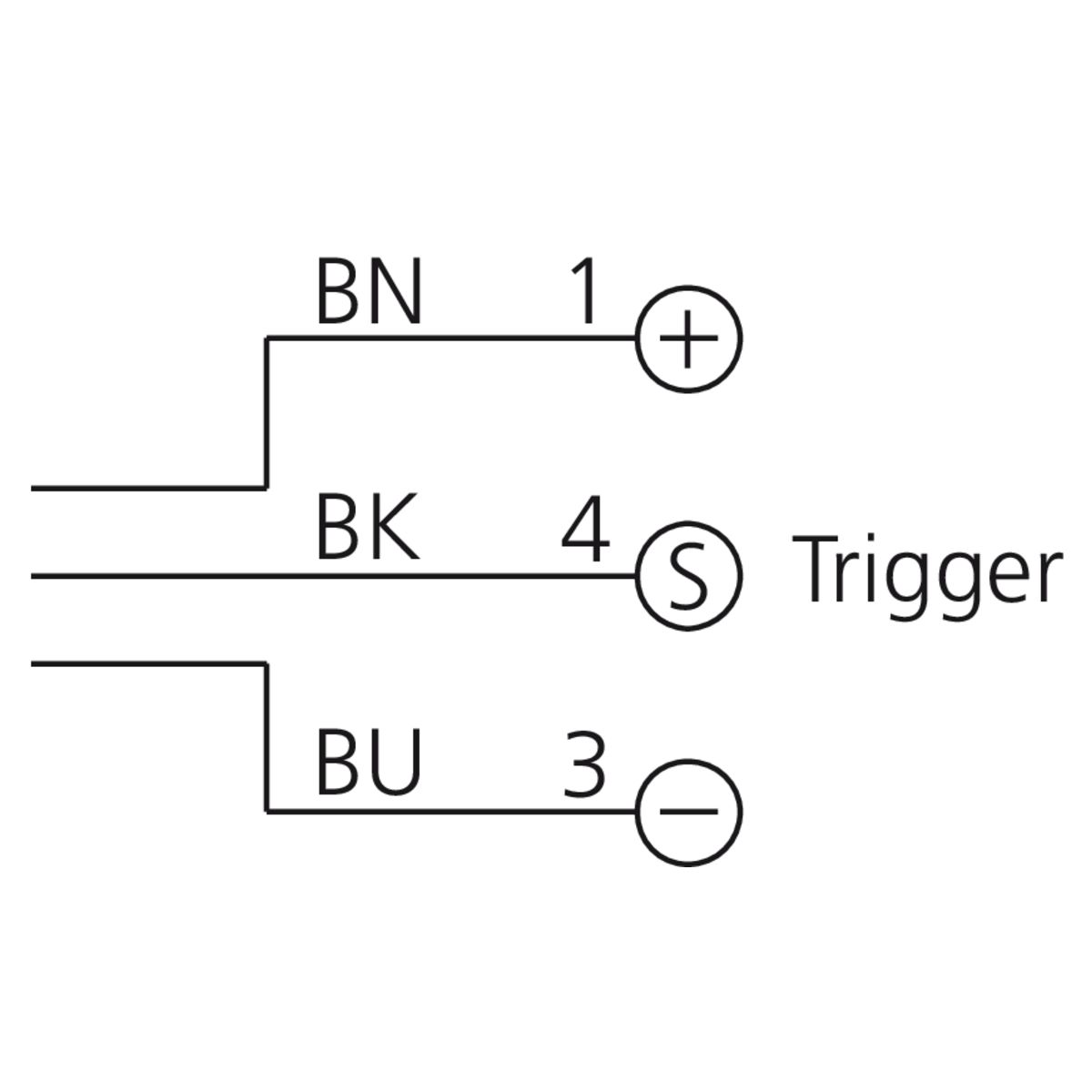

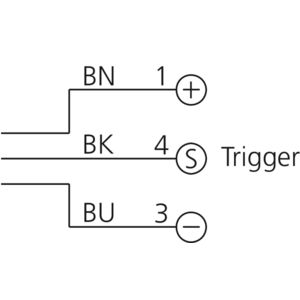

Connection	Connector, M12 x 1, 4-pin
