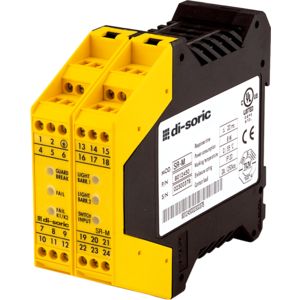

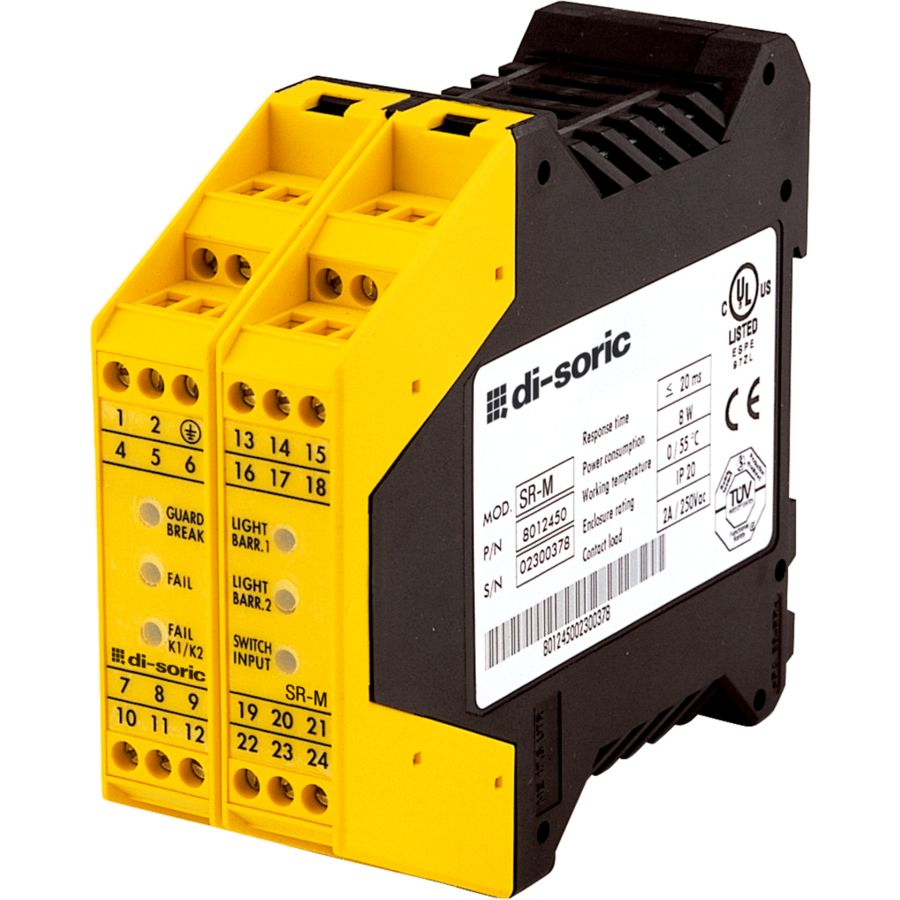

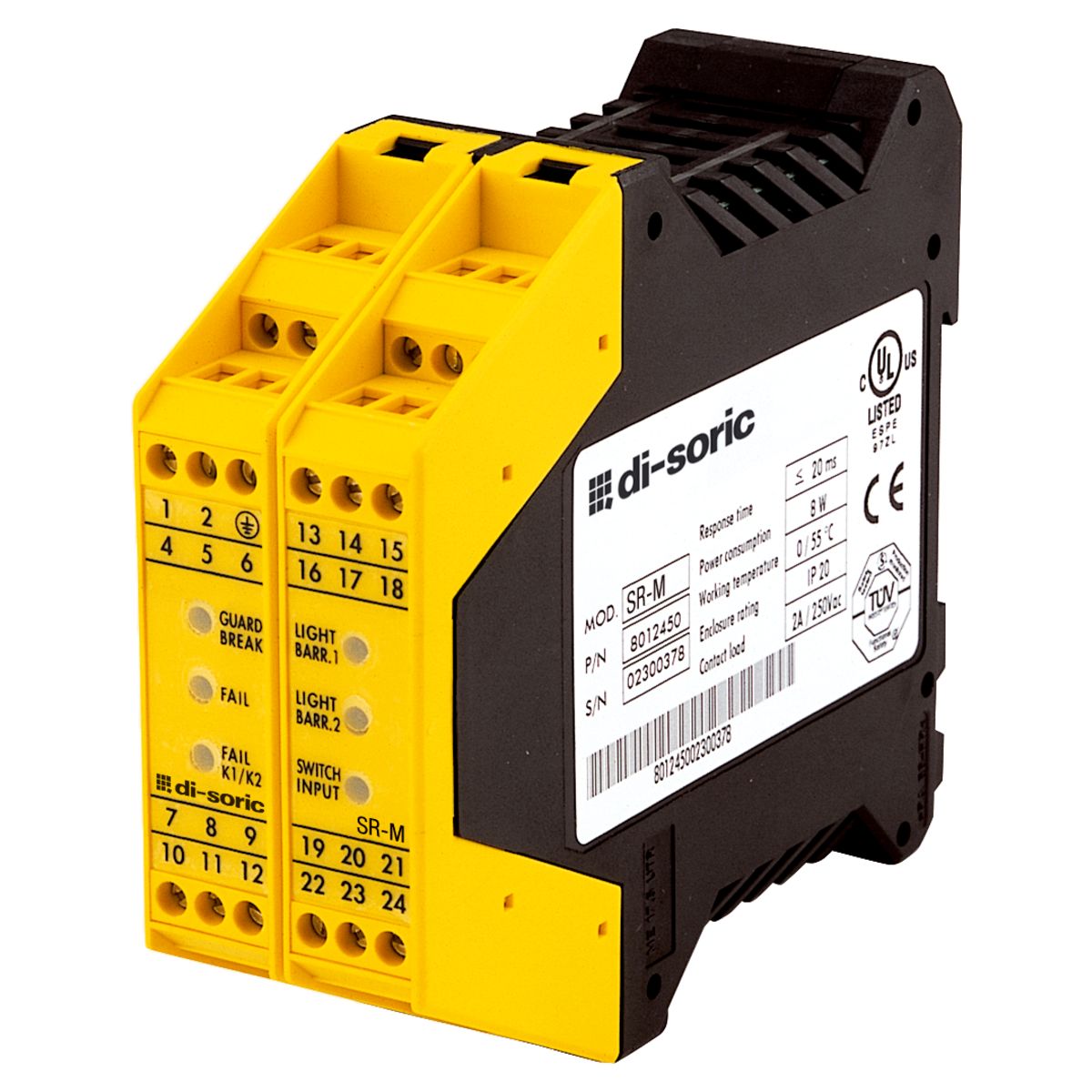

Safety Relay - SR-M

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Characteristic variables	Typ 4 (IEC/TS 61496-2), SILCL 3 (IEC 62061) PL e - Kat. 4 (EN ISO 13849-1)
to be used for	all safety light curtains / grids
External device (relay) monitoring - EDM	Feedback input, selectable release
Mounting	on DIN-rail in accordance with EN 50022-35 standard
Operating principle	Safety relay with muting function
Safety relay outputs	NO, 2 A (250 V AC)
Service voltage	19,2 … 28,8 V DC
Start / restart	Automatic / manual (selectable on terminal block), Interlock
Connection	on terminal blocks
Scope of delivery	Multi-language operating instructions
