Safety Light Grid - SLBH4-4B

Part Number: SLBH4-4B

Article Number: 208581

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Characteristic variables Typ 4 (IEC/TS 61496-2), SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Kat. 4 (EN ISO 13849-1)
Protective function Access control

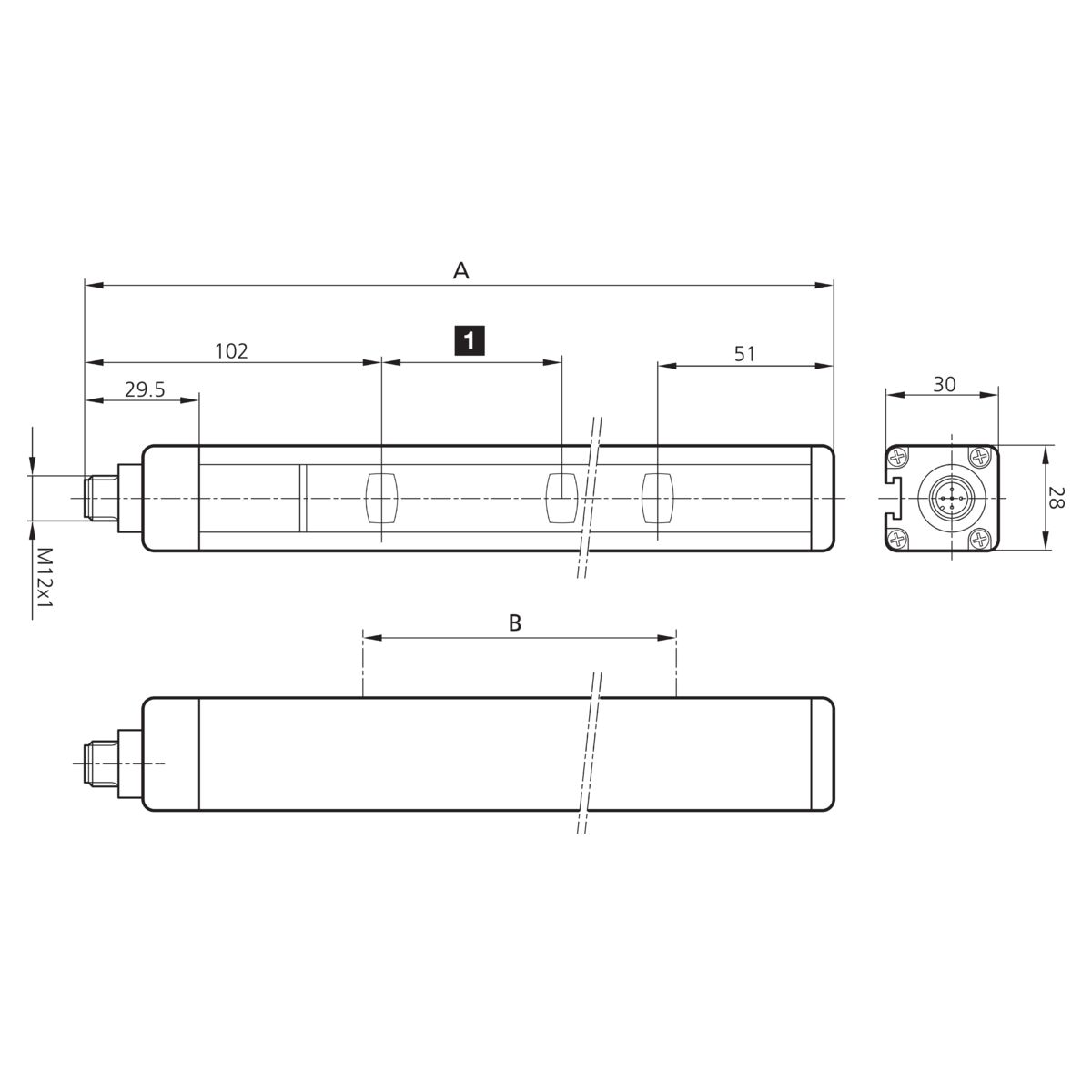

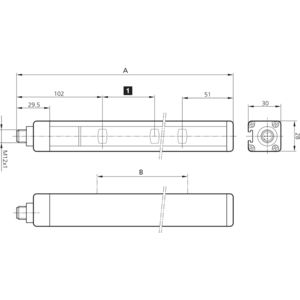

Total height (A) 1.053 mm
Protective field height (B) 910 mm
Number of beams 4
Model Basic, extended range
Safety output pnp (2x), 400 mA / 24 V DC
Service voltage 19,2 … 28,8 V DC
Range 10.000 mm, 20.000 mm
Protection type IP 65, IP 67
Connection Connector, M12, 5-pin
Connection 2 Connector, M12, 5-pin (Receiver)
Scope of delivery Transmitter + receiver, one set of standard fixing brackets SA 4, CD-ROM containing the multi-language operating instructions, Quick installation guide
