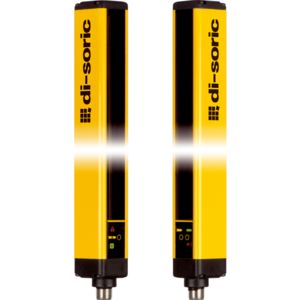

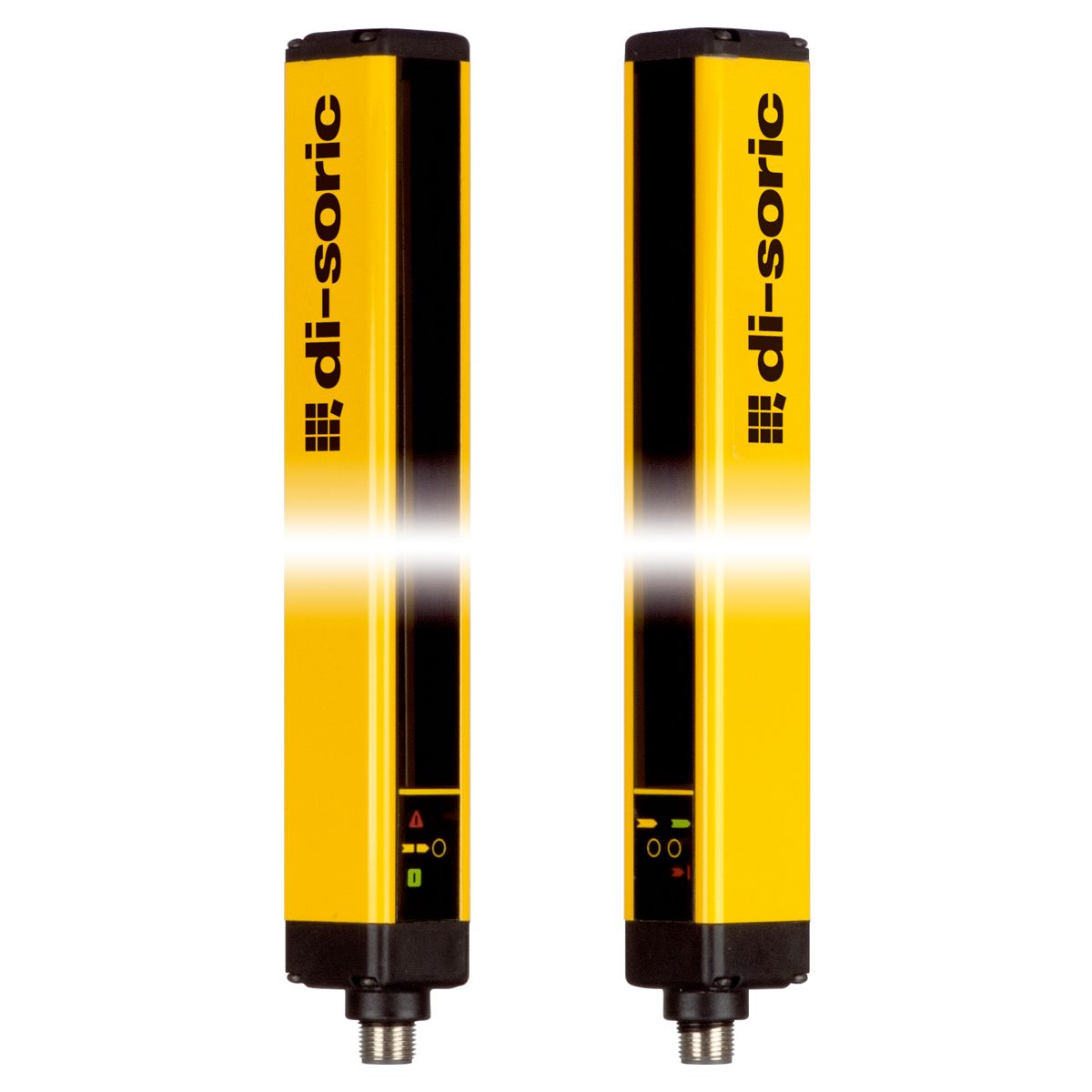

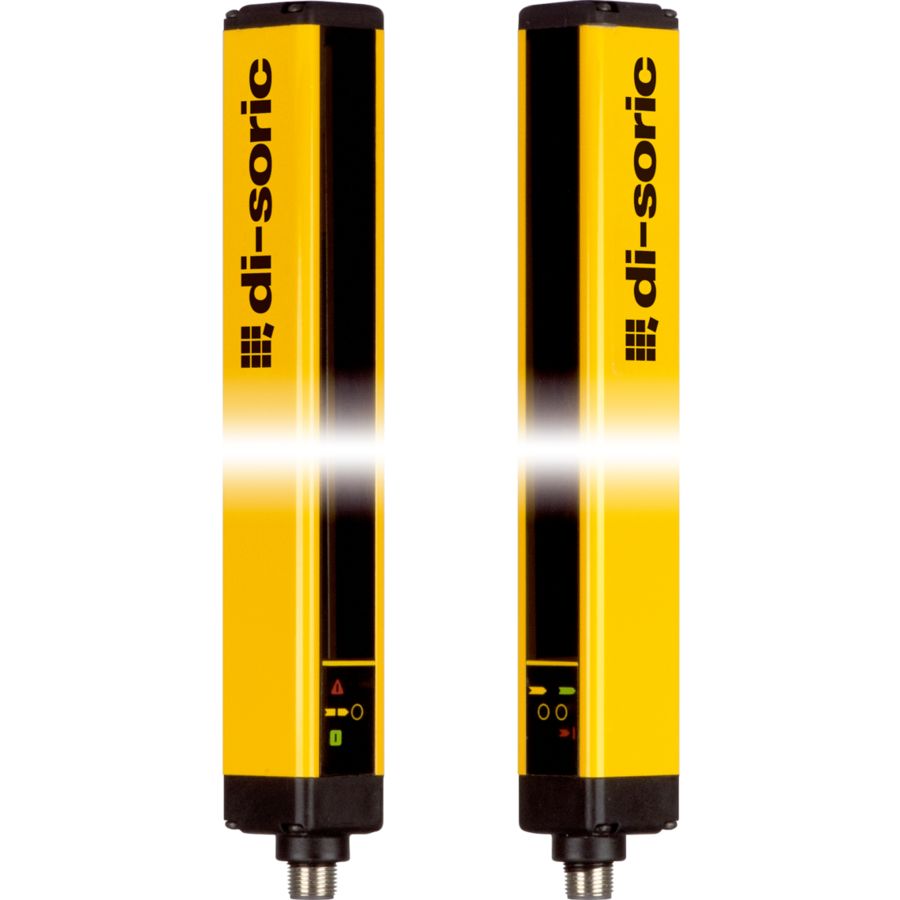

Safety Light Curtain - SLBH4-302

Part Number: SLBH4-302

Article Number: 208570

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Characteristic variables Typ 4 (IEC/TS 61496-2), SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Kat. 4 (EN ISO 13849-1)
Protective function Hand protection
Total height (A) 363 mm
Protective field height (B) 310 mm
Resolution 20 mm
Number of beams 30
Model Basic, extended range
Safety output pnp (2x), 400 mA / 24 V DC
Service voltage 19,2 … 28,8 V DC
Range 10.000 mm, 20.000 mm
Protection type IP 65, IP 67
Connection Connector, M12, 5-pin
Connection 2 Connector, M12, 5-pin (Receiver)
Scope of delivery Transmitter + receiver, one set of standard fixing brackets SA 4, CD-ROM containing the multi-language operating instructions, Quick installation guide
