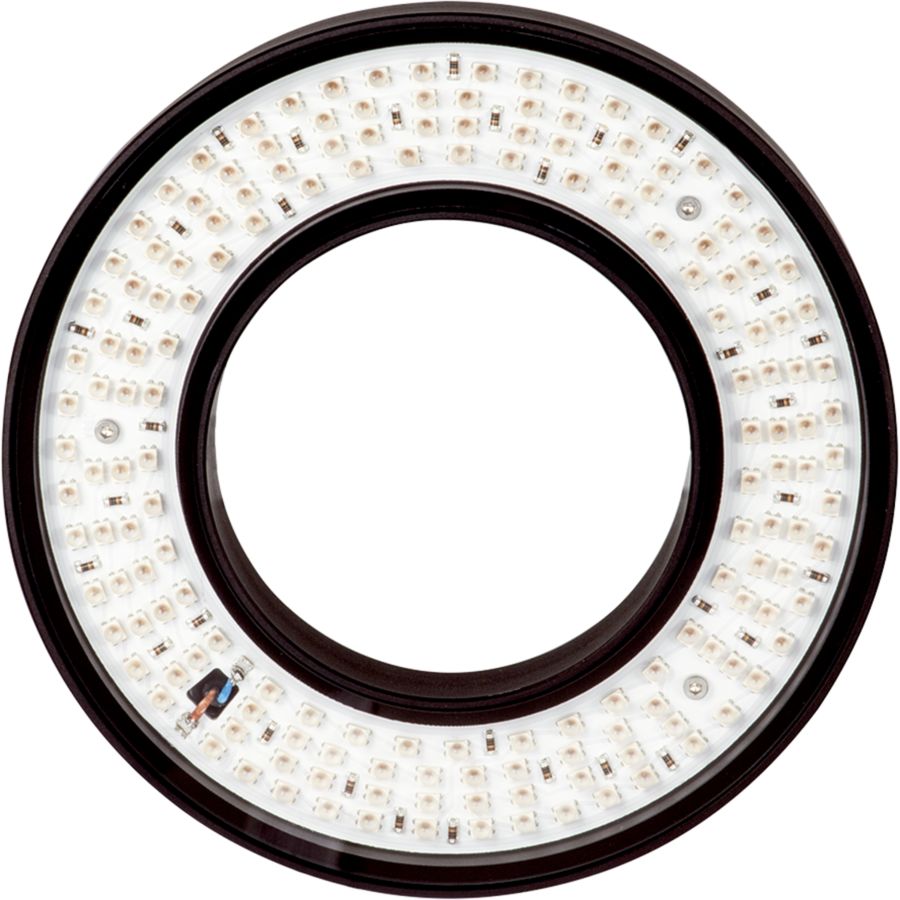

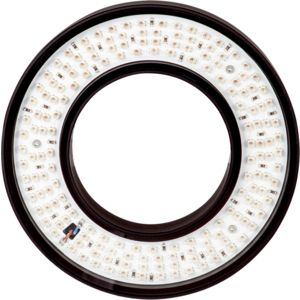

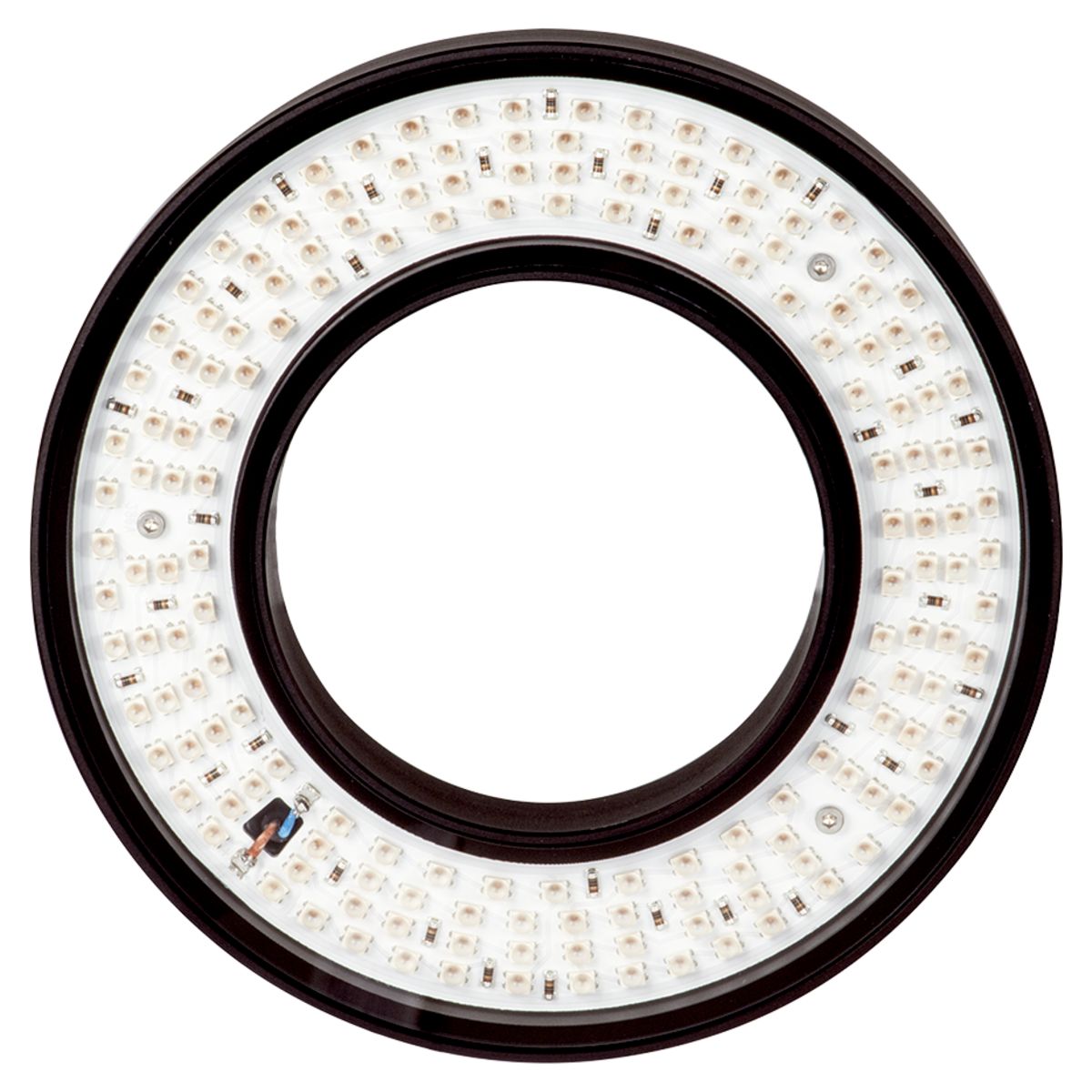

Ringlight For Flash Controller - BE-R70-F1-K-CLR
Part Number: BE-R70-F1-K-CLR
Article Number: 207145
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Power consumption (in pulse / max.) | 96 W |
|---|---|
| Energization (in pulse / max.) | 6.000 mA |
| Transmitter light source | LED |
| Light color | red |
| Service voltage | No constant voltage! |
| Housing material | Aluminum, Black (Anodized) |

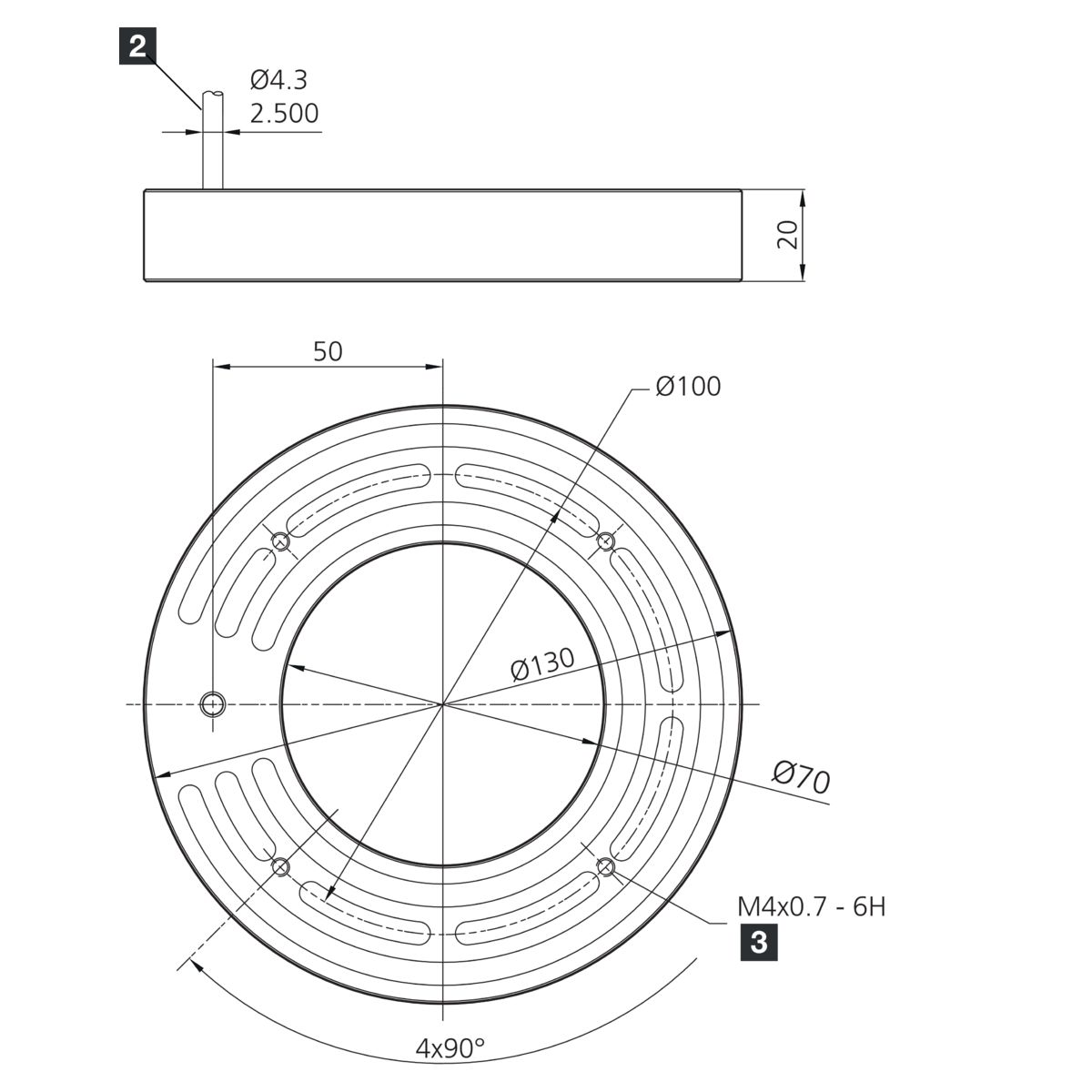

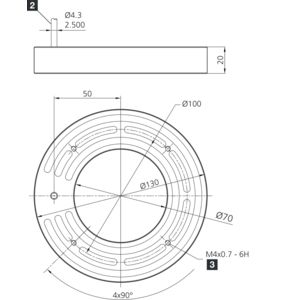

| Size | Ø 70 mm, 130 mm |
| Ambient temperature during operation | 0 … +40 °C |
| Protection type | IP 67 |
| Risk group (DIN EN 62471) | Free group |

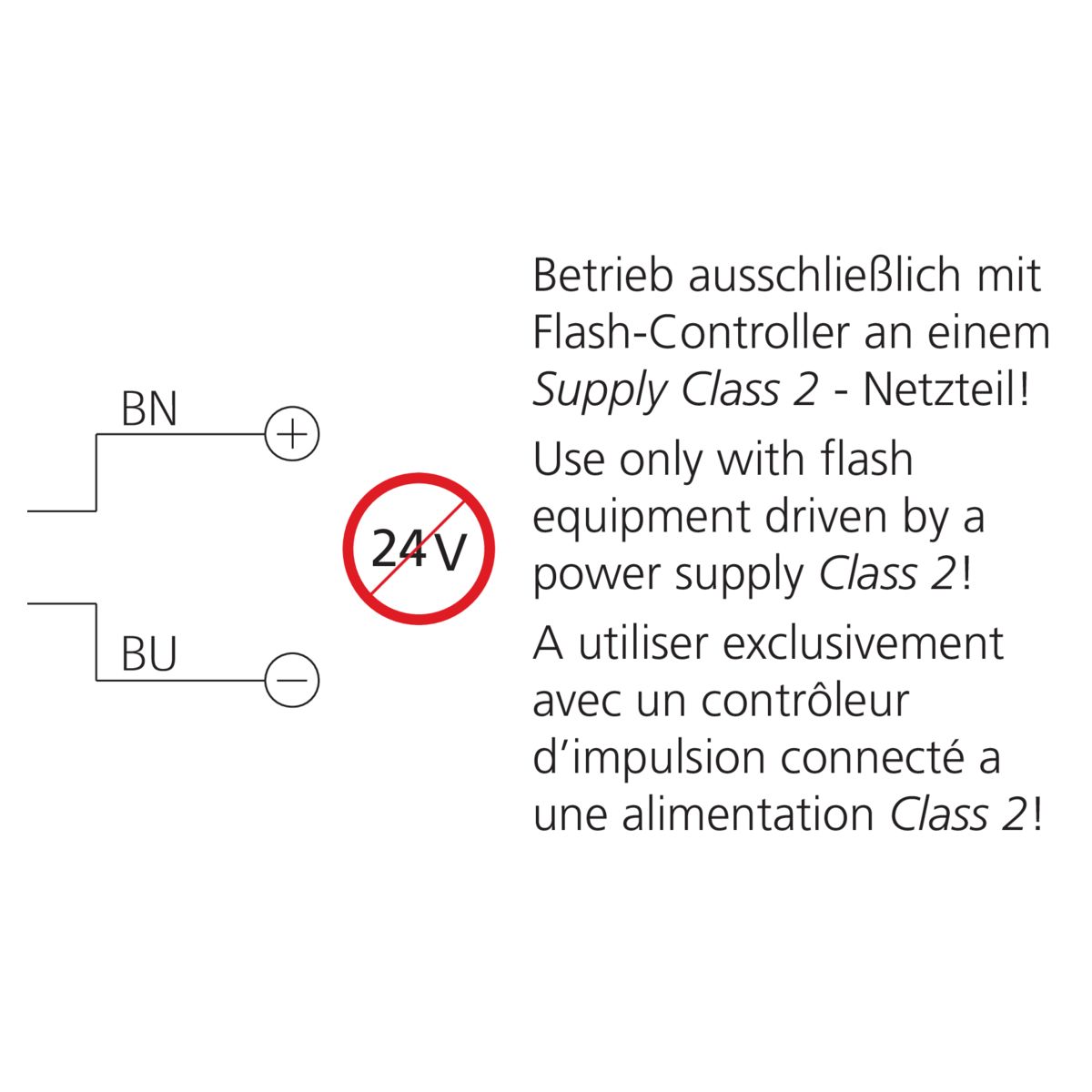

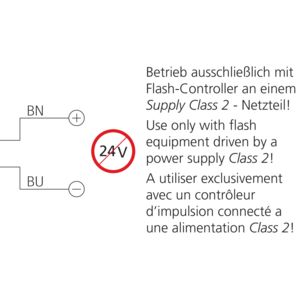

| Connection | Cable, 2,5 m |
