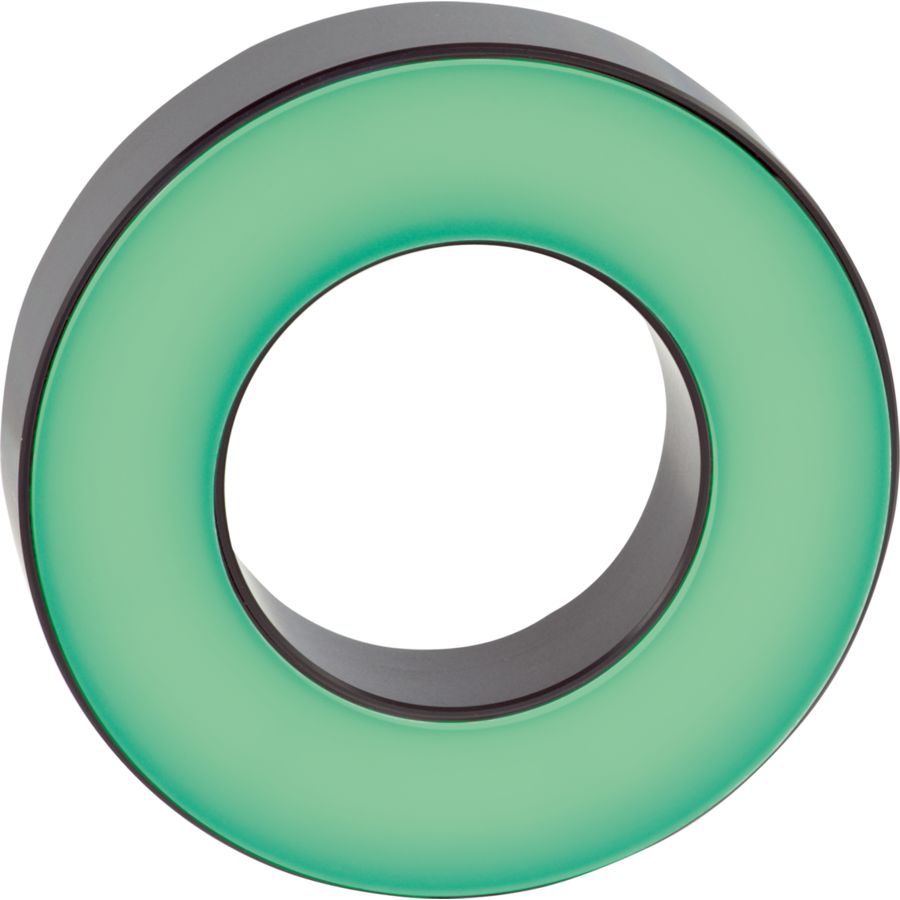

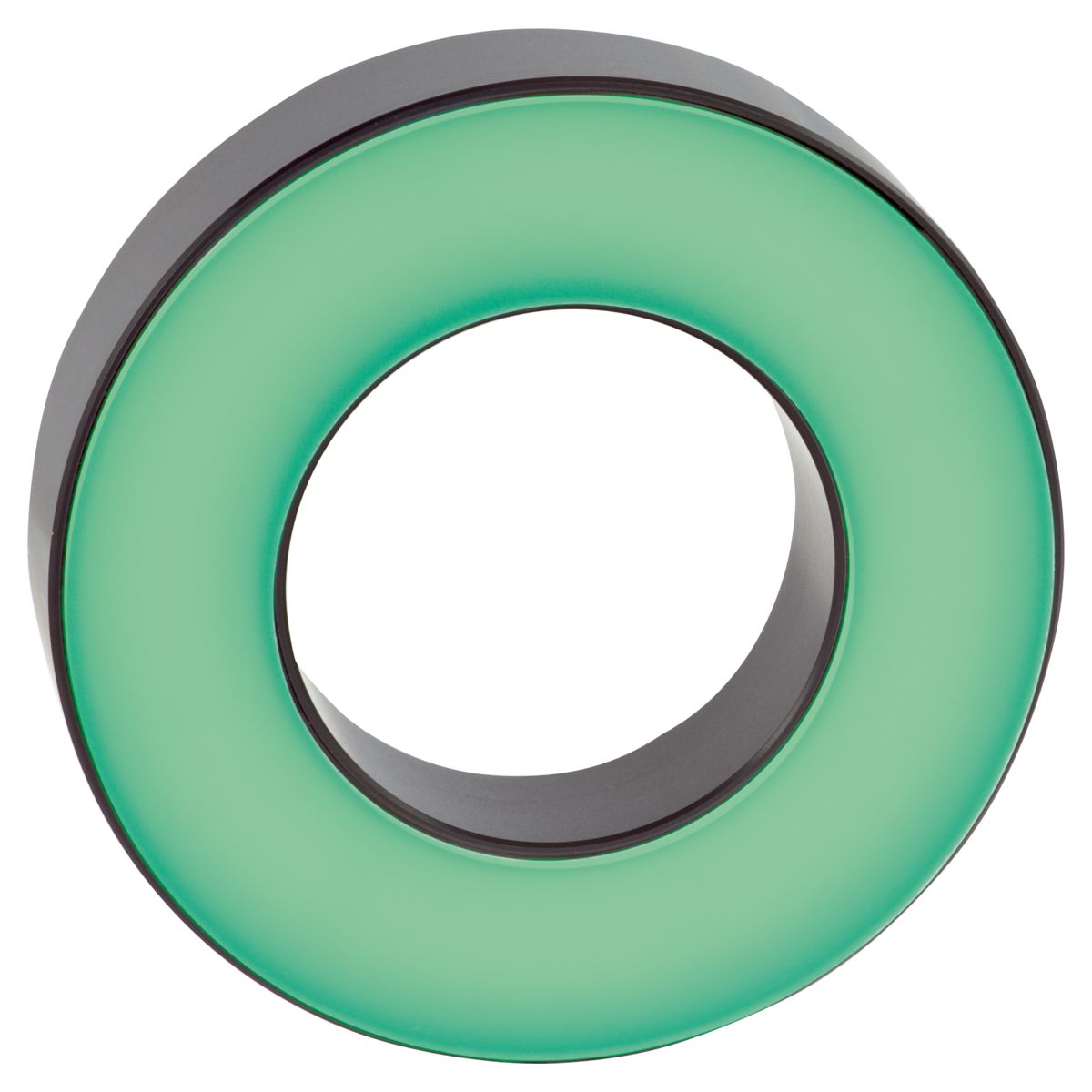

Ringlight - BEK-R70/20-G2TI-IBS-DIF

Part Number: BEK-R70/20-G2TI-IBS-DIF

Article Number: 206394

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Transmitter light source LED
Light color green
Service voltage 18 … 35 V DC (Supply Class 2)
No-load current (max.) 450 mA
Housing material Aluminum (Anodized)

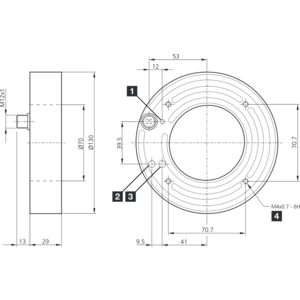

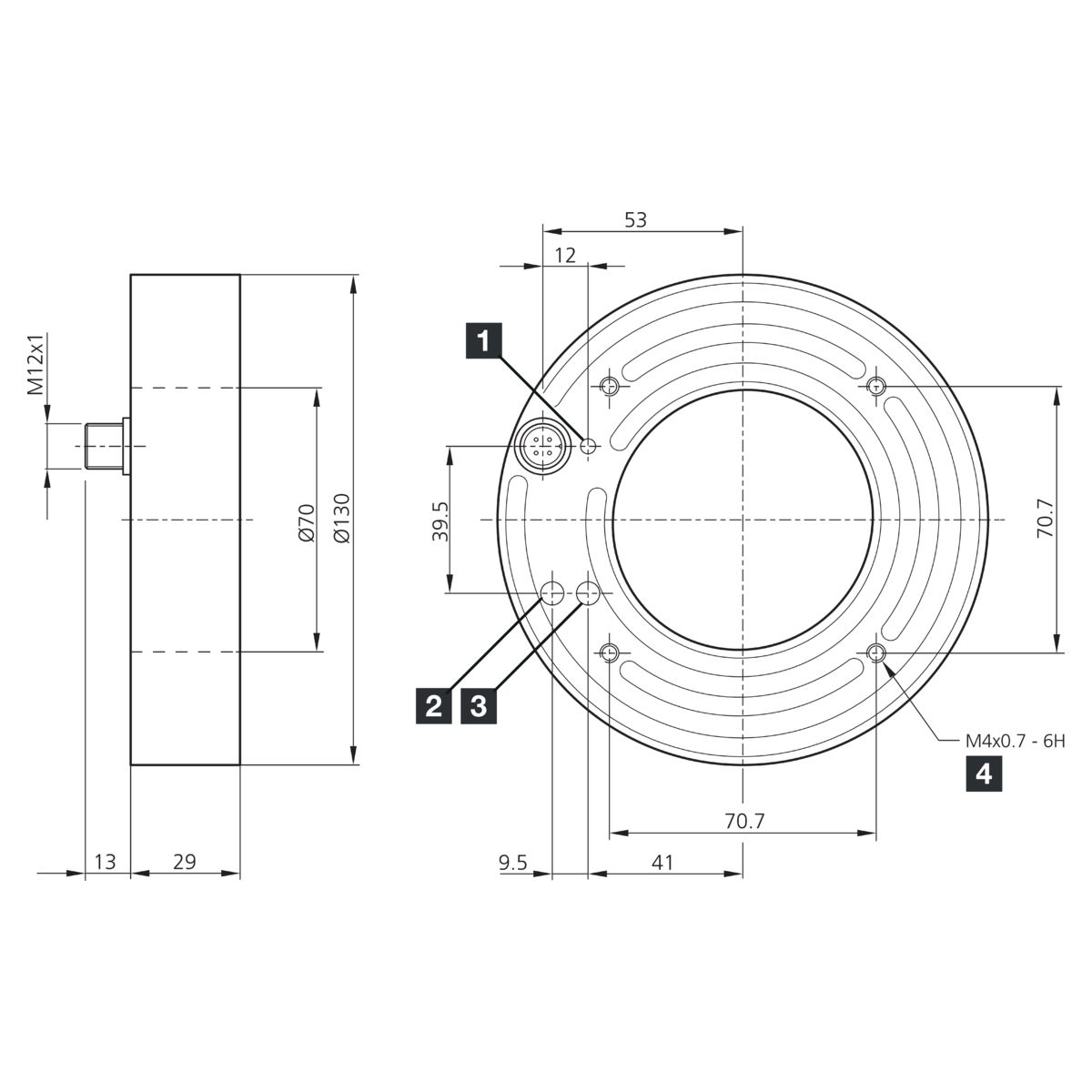

Size Ø 130 mm, 70 mm
Ambient temperature during operation 0 … +40 °C
Protection type IP 67
Risk group (DIN EN 62471) Free group
Protection class III, operation on protective low voltage

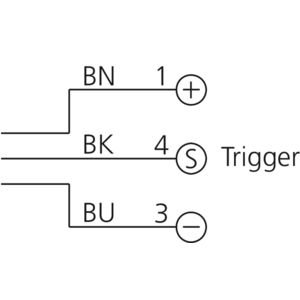

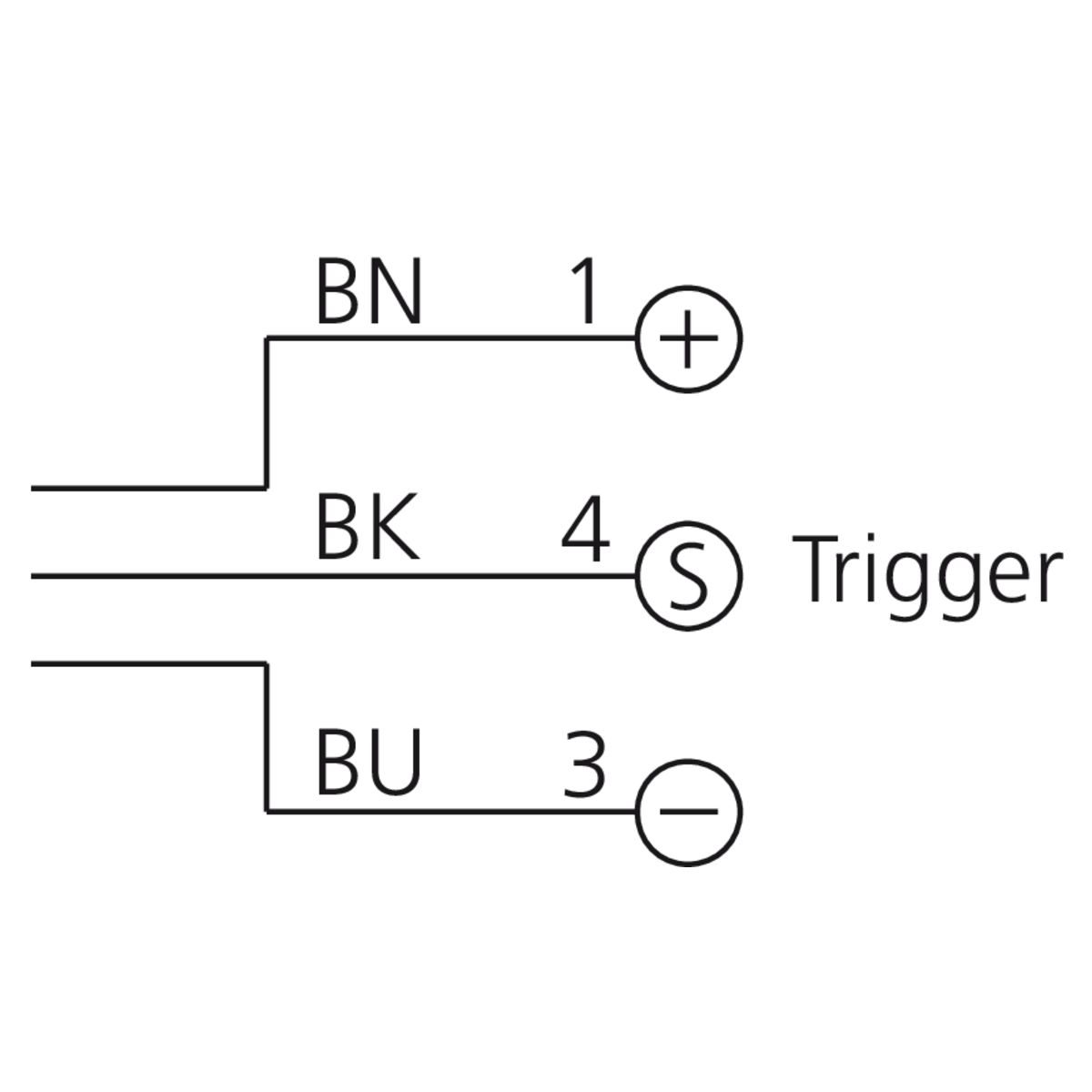

Connection Connector, M12, 3-pin
