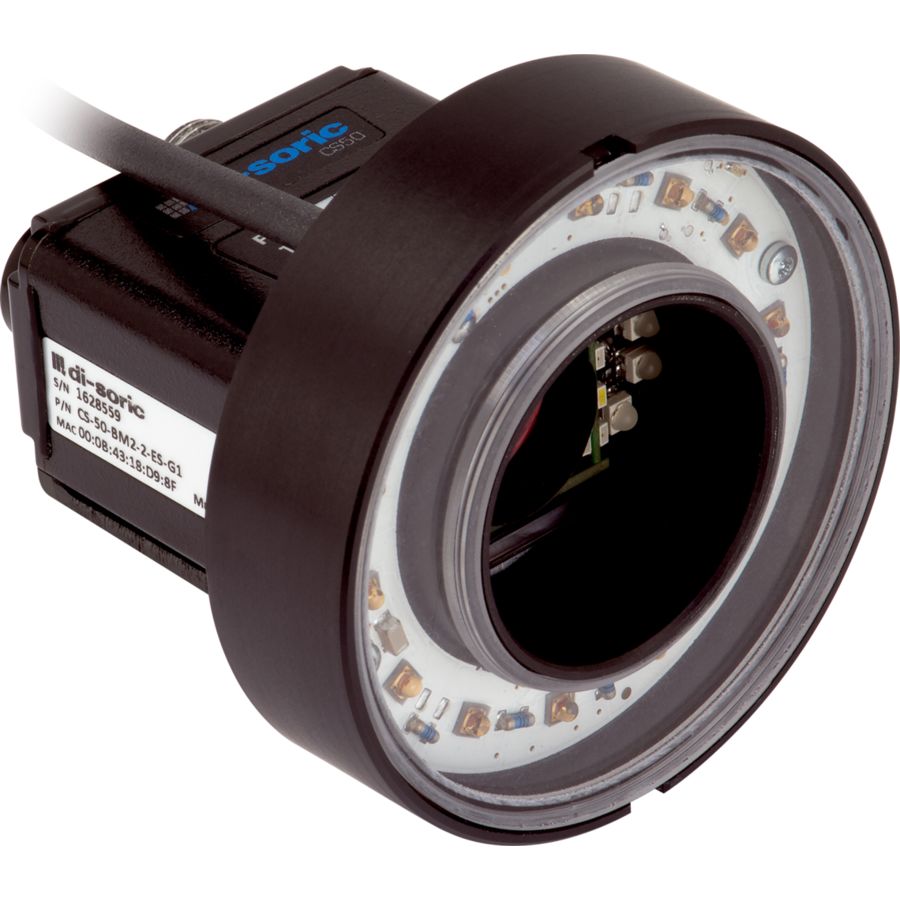

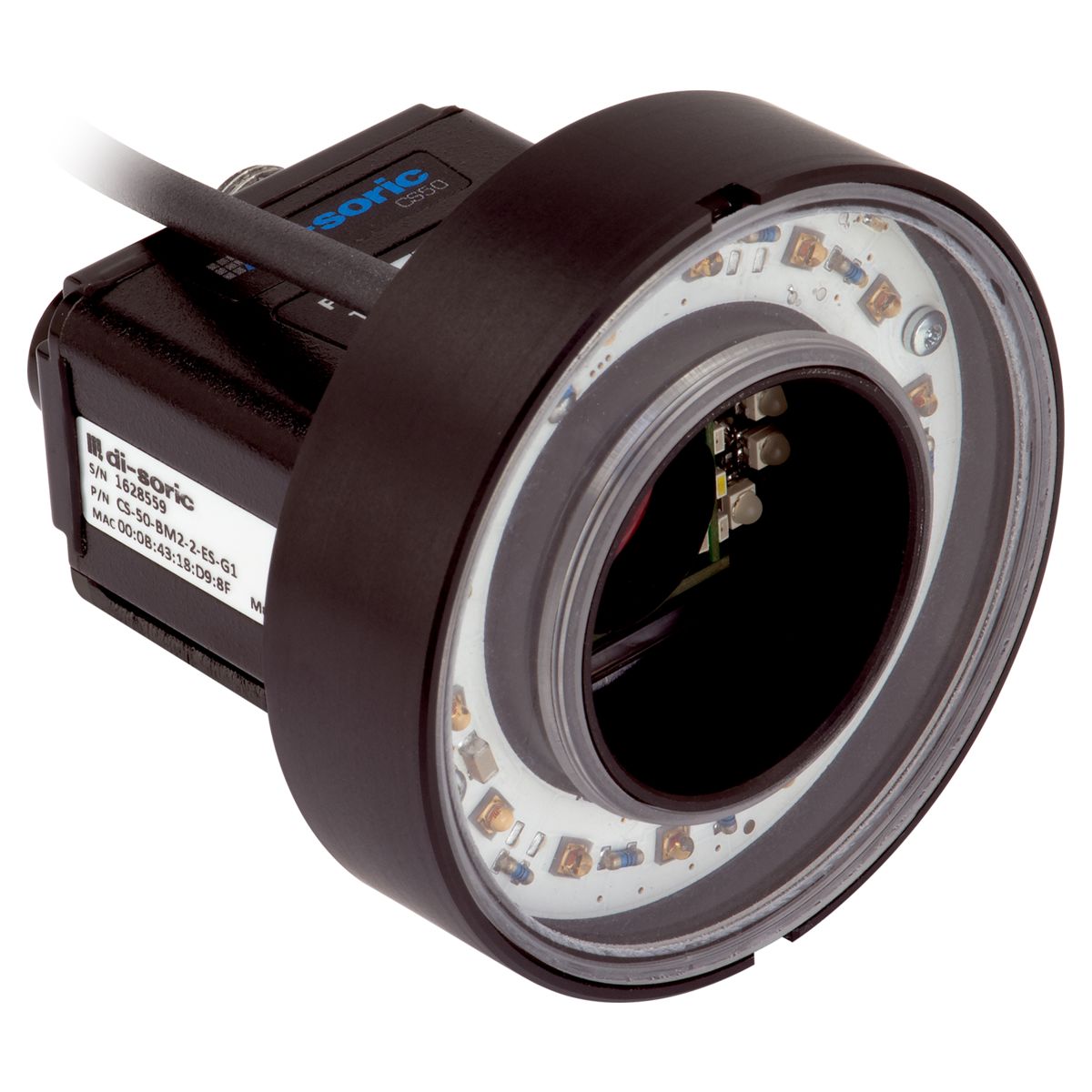

Ringlight - BEK-R33-E0T-K-BS
Part Number: BEK-R33-E0T-K-BS
Article Number: 210516
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Transmitter light source | LED |
---|---|
Light color | Infrared |
Service voltage | 22,8 … 25,2 V DC |
No-load current (max.) | 10 mA Readiness / 950 mA Impulse |
Housing material | Aluminum, Black (Anodized) |

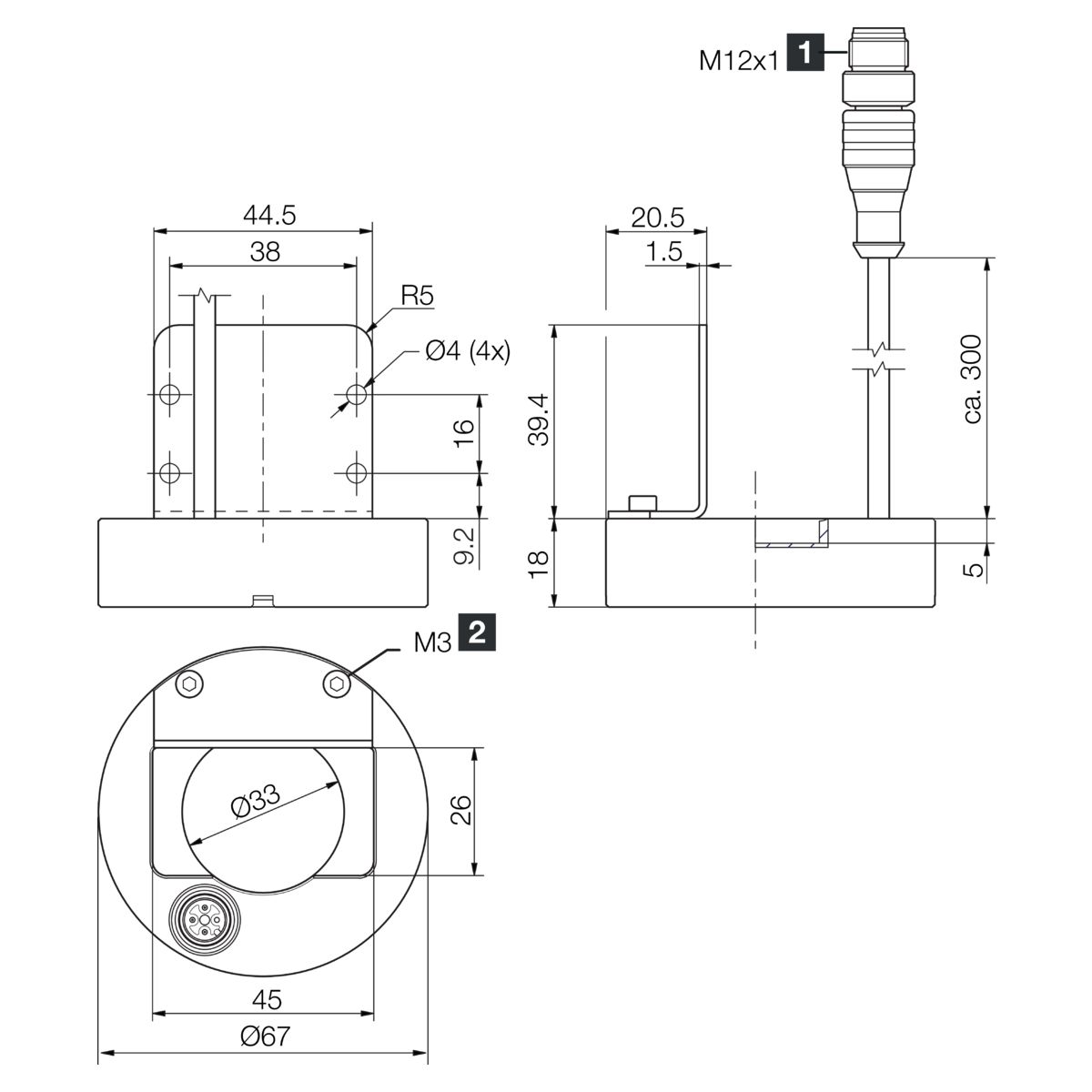

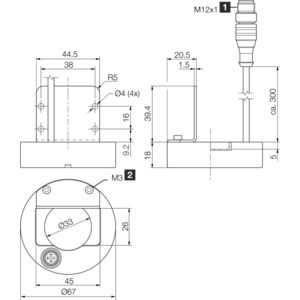

Size | Ø 67 mm, 33 mm |
Ambient temperature during operation | 0 … +40 °C |
Protection type | IP 67 |
Risk group (DIN EN 62471) | Free group |
Protection class | III, operation on protective low voltage |

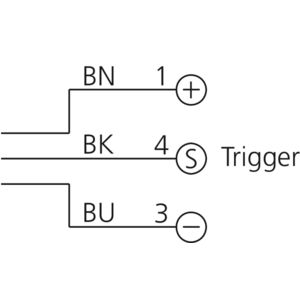

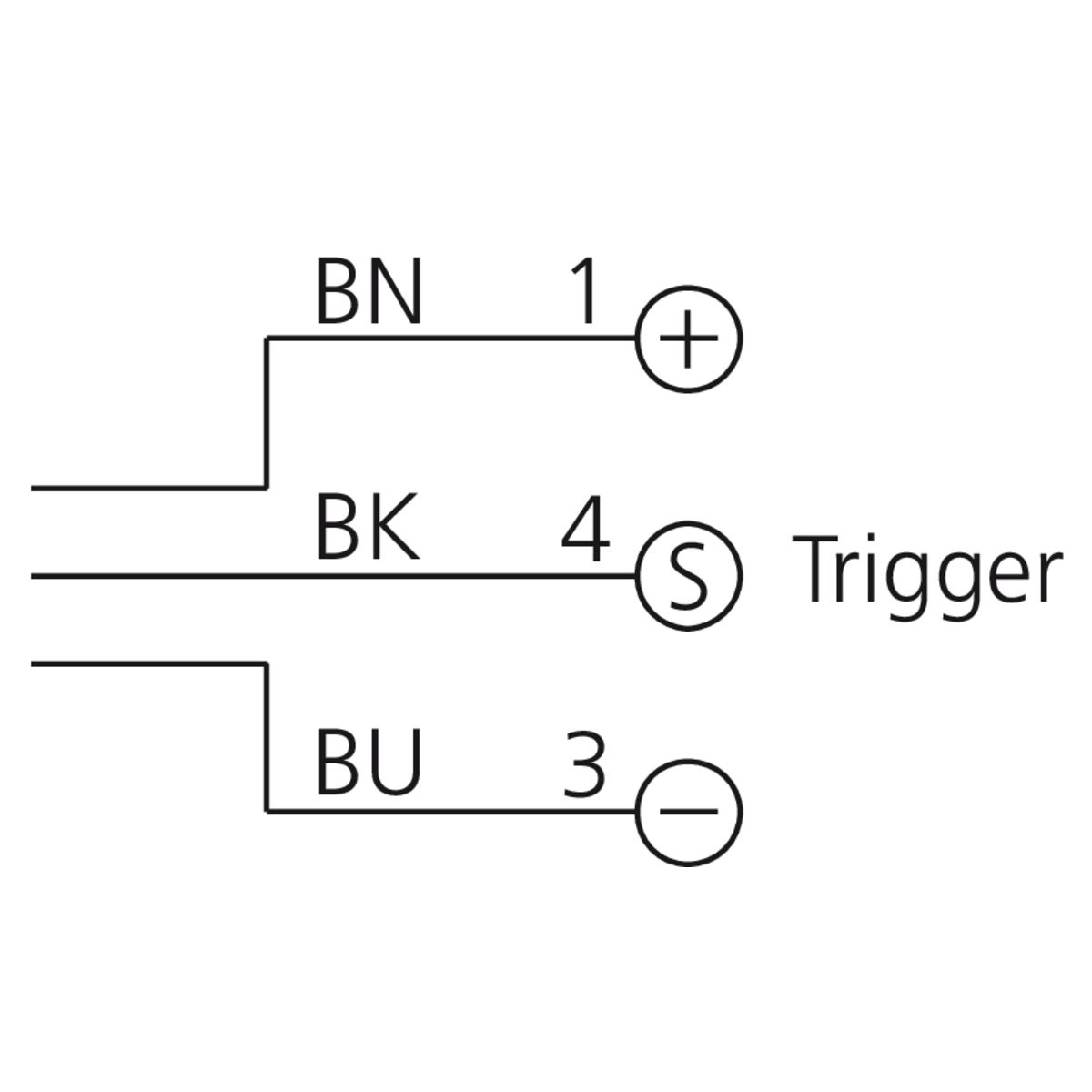

Connection | Cable/connector, 0,3 m, M12, 3-pin |
