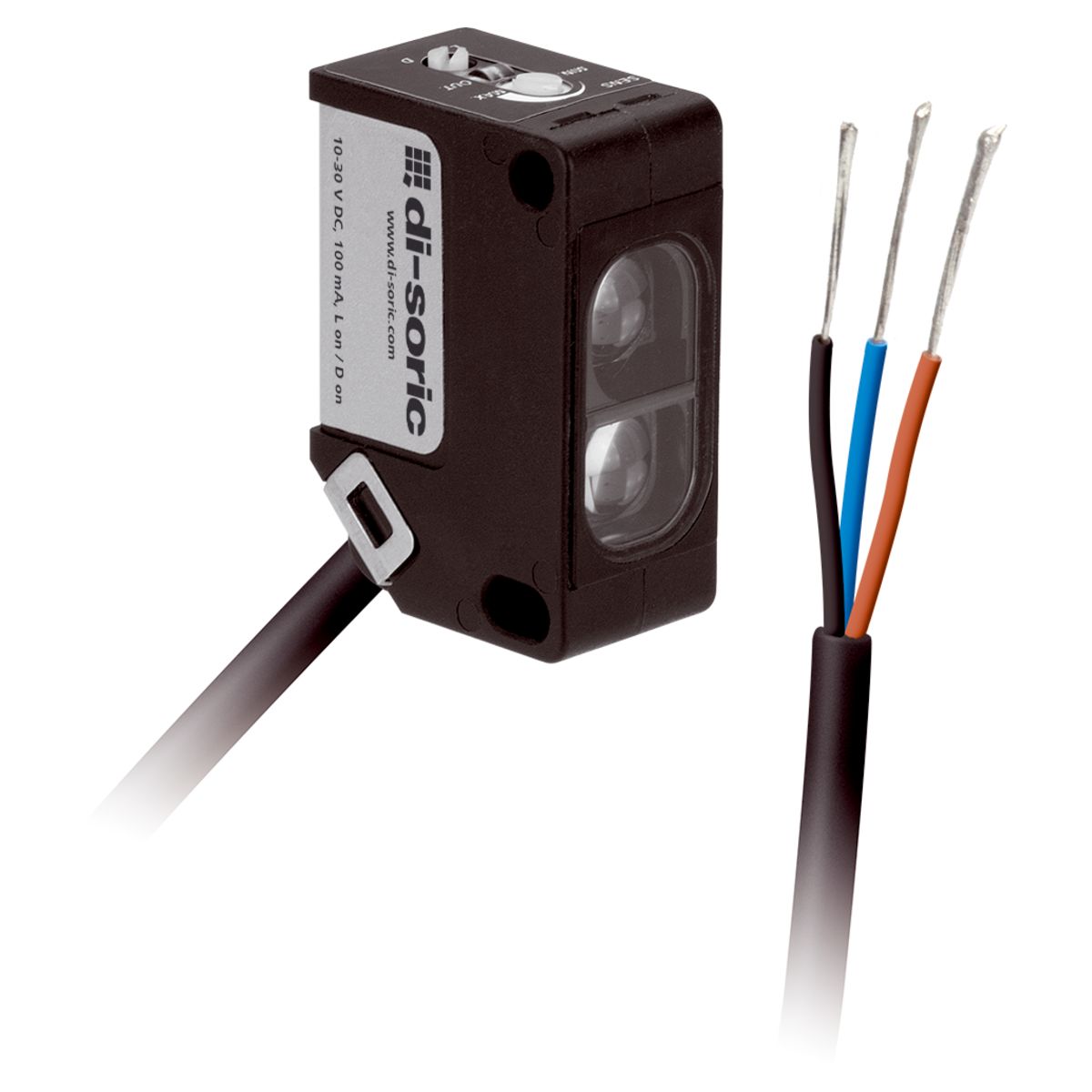

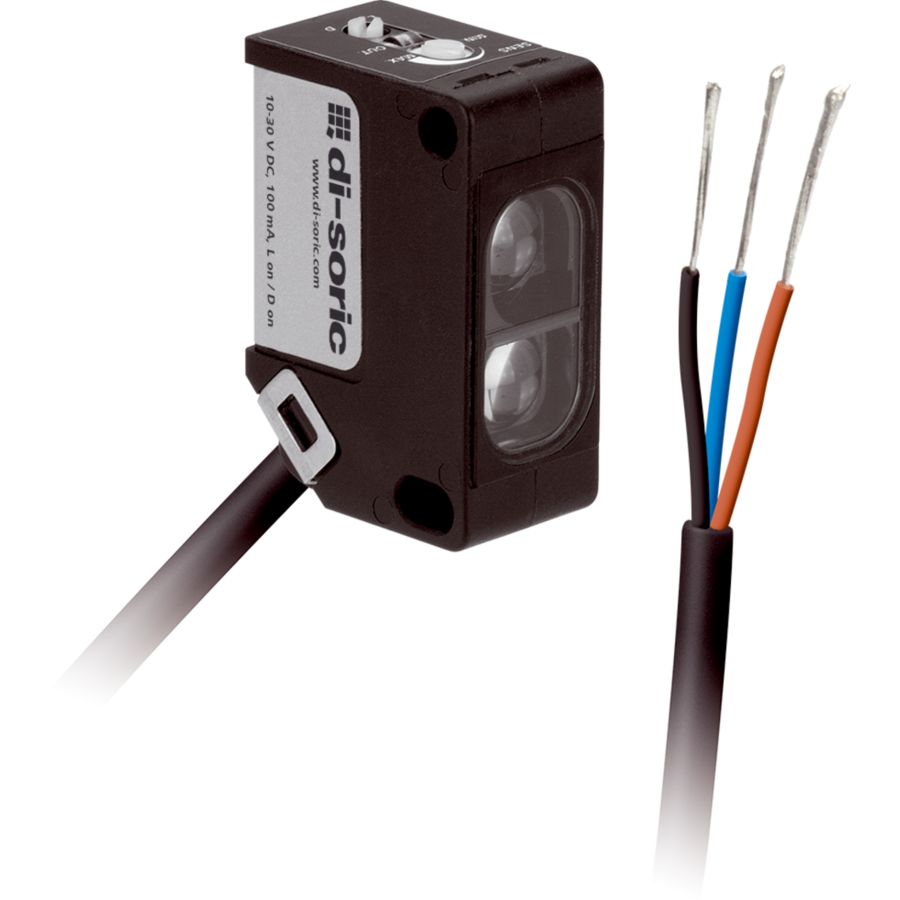

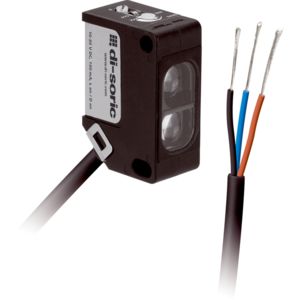

Retroreflective Sensor - OR 31 K 1500 N3-3
Part Number: OR 31 K 1500 N3-3
Article Number: 209265
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Retroreflective sensor |
|---|---|
| Transmitter light source | LED |
| Light color | red / 630 nm |
| Range | 50 … 1.500 mm |
| Referring reflector | Ø 84 mm, R 84 |
| Service voltage | 10 … 30 V DC |
| Switching output | npn, 100 mA, NO/NC |
| Ambient temperature during operation | -25 … +70 °C |
| Protection class | III, operation on protective low voltage |
| Connection | Cable, 2 m, 3-pin |
