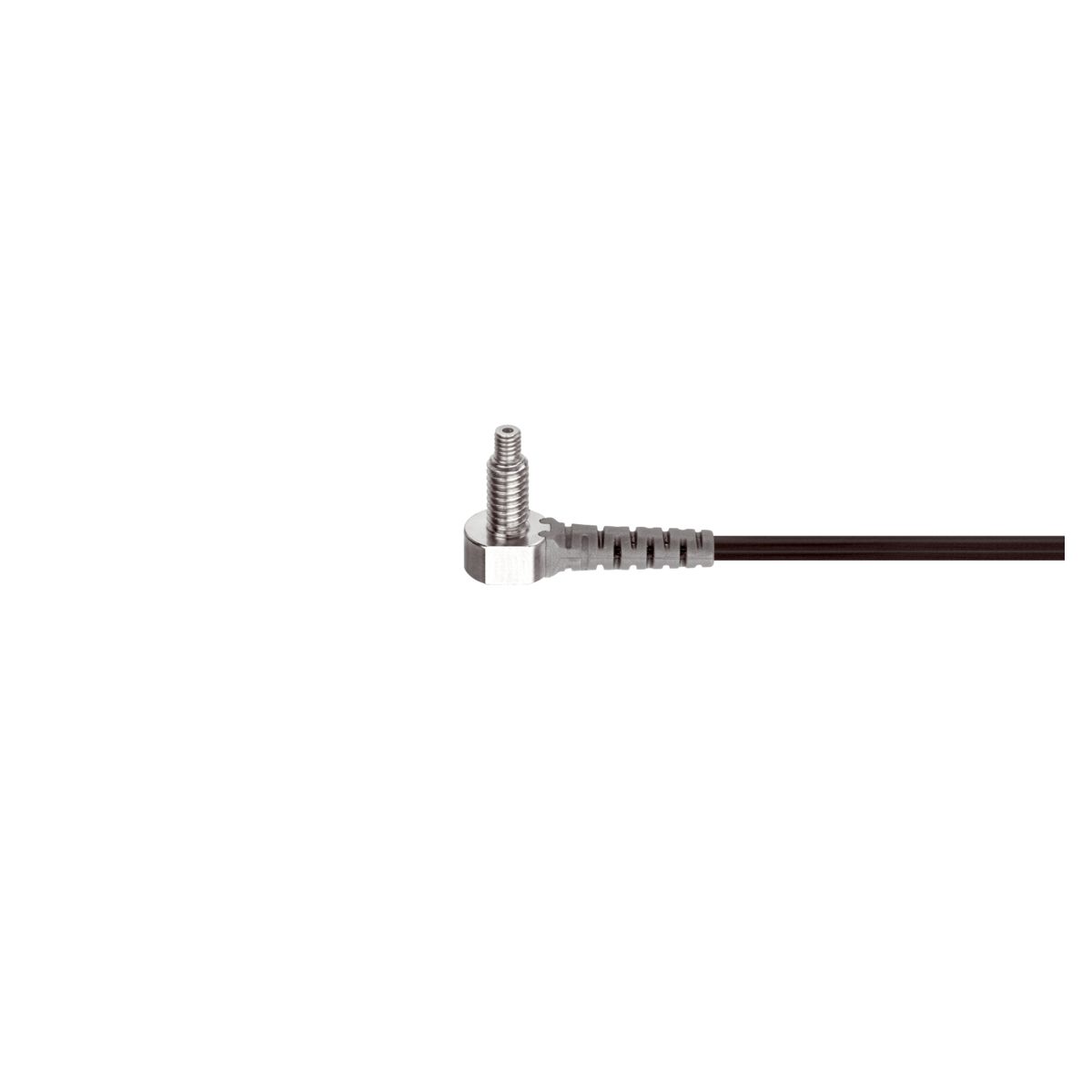

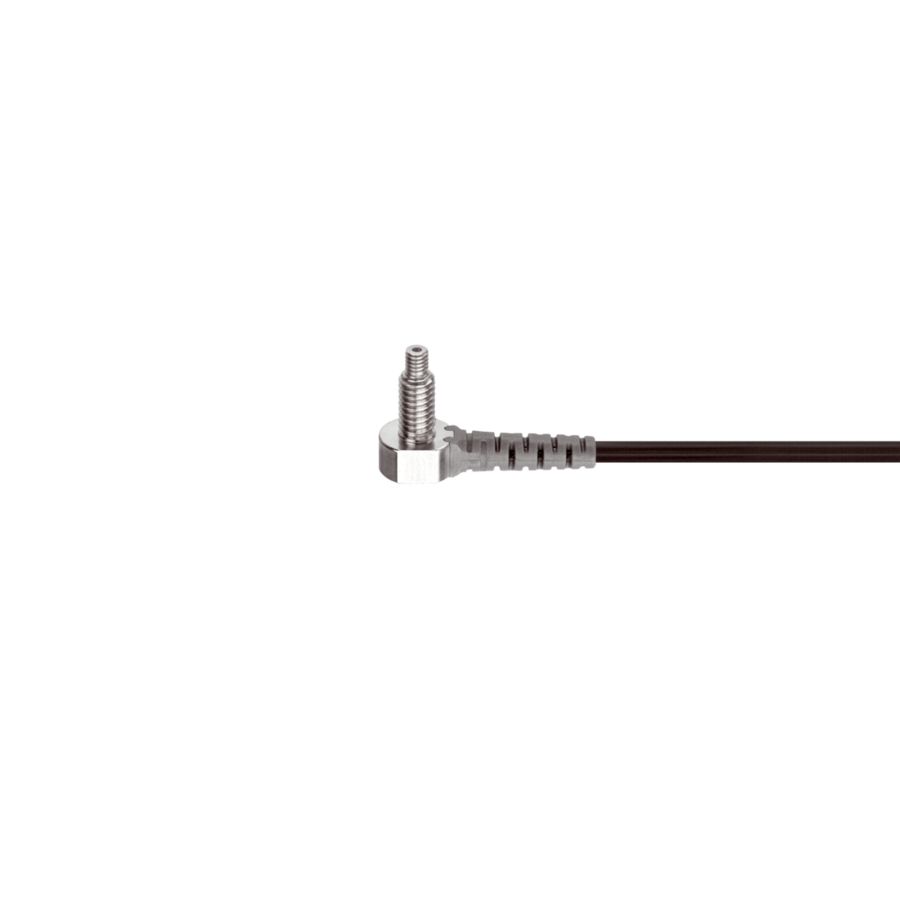

Plastic Fiber Optic - KLTR-M4-T2-0.5K
Part Number: KLTR-M4-T2-0.5K
Article Number: 209955
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Diffuse sensor |
|---|---|
| Length of fiber optics | 2.000 mm |
| Light aperture | radial |
| Range | 90 mm |
| Bending radius | > 15 mm |
| Fiber | Coaxial, 0,25 mm, 0,25 mm, 1, 10 |
| Resolution | Ø 0,05 mm |
