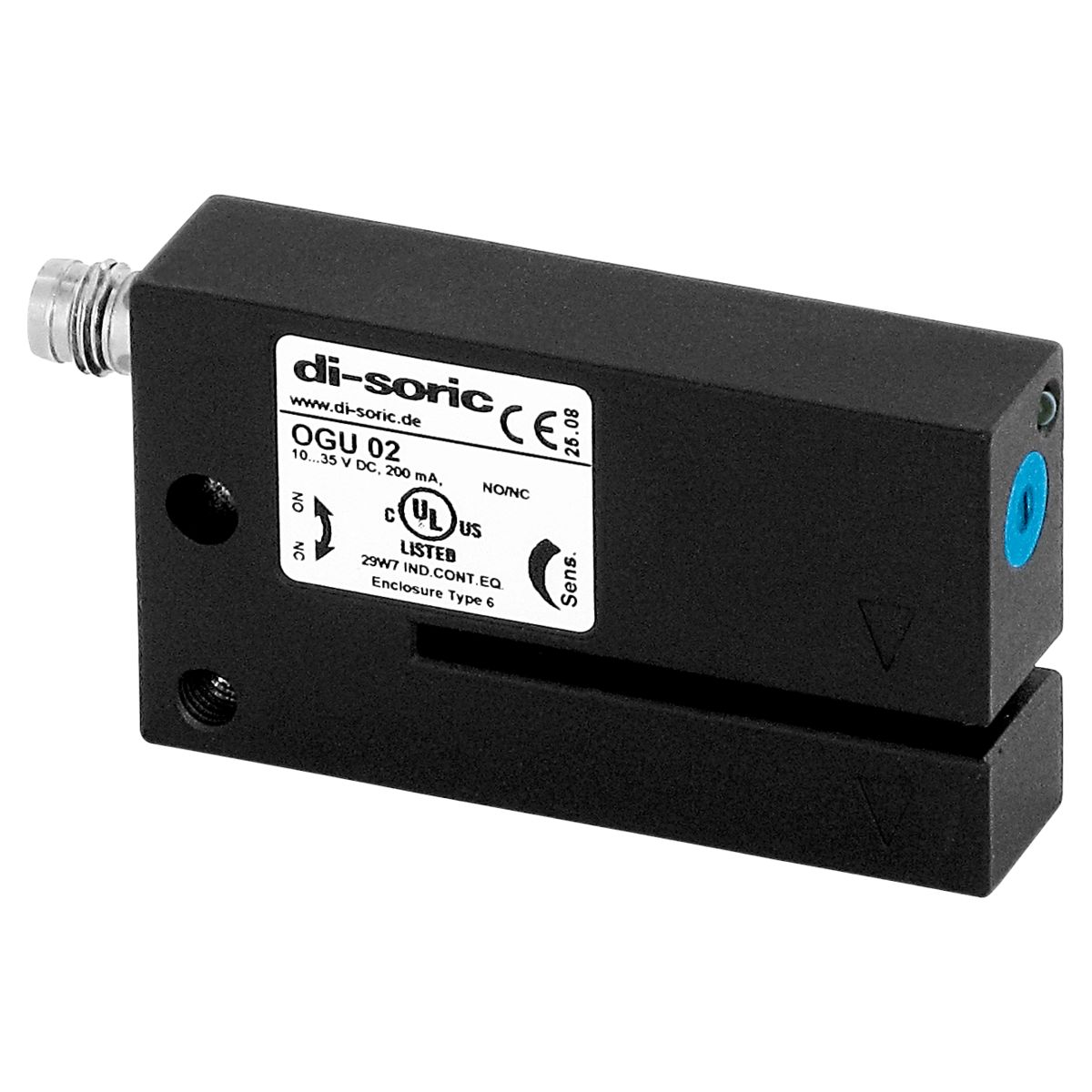

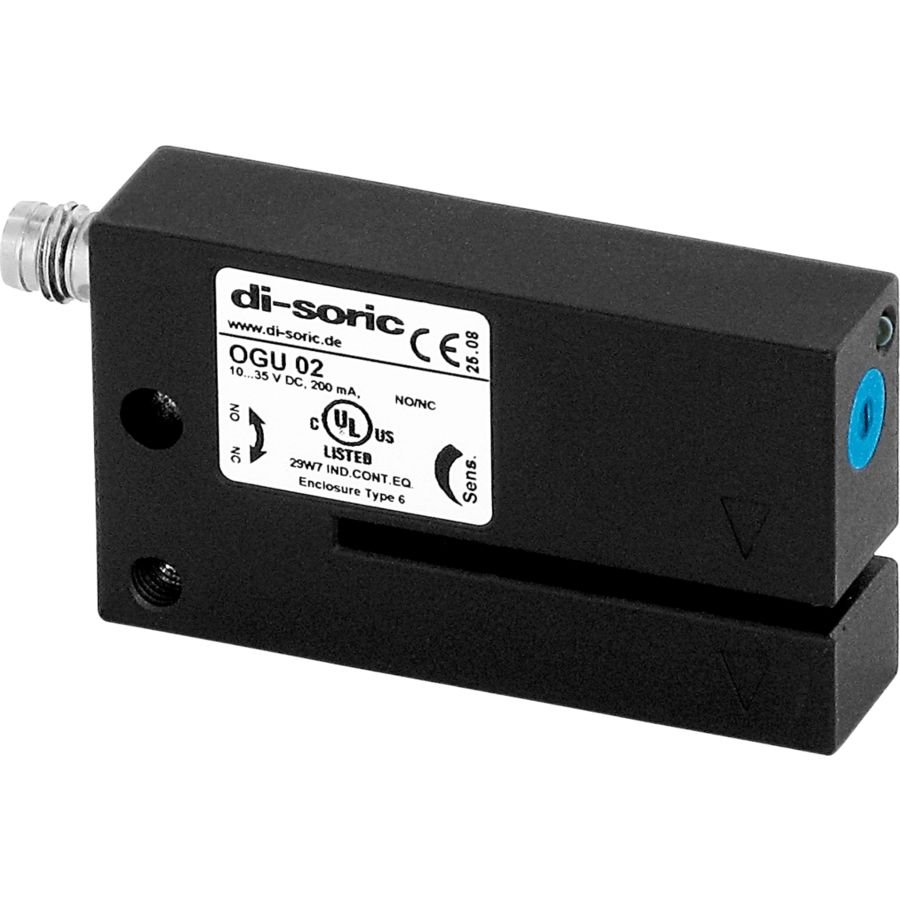

Optical Label Sensor - OGU 02 PN3K-TSSL

Part Number: OGU 02 PN3K-TSSL

Article Number: 201242

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Optical
Transmitter light source LED
Sensitivity adjustment Potentiometer
Light color Infrared / 880 nm
Fork opening 2 mm
Leg length internal 40 mm
Service voltage 10 … 35 V DC (Supply Class 2)
No-load current (max.) 30 mA

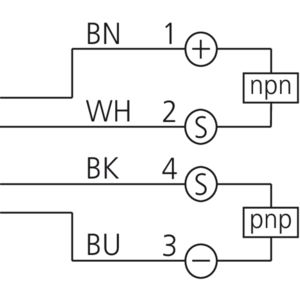

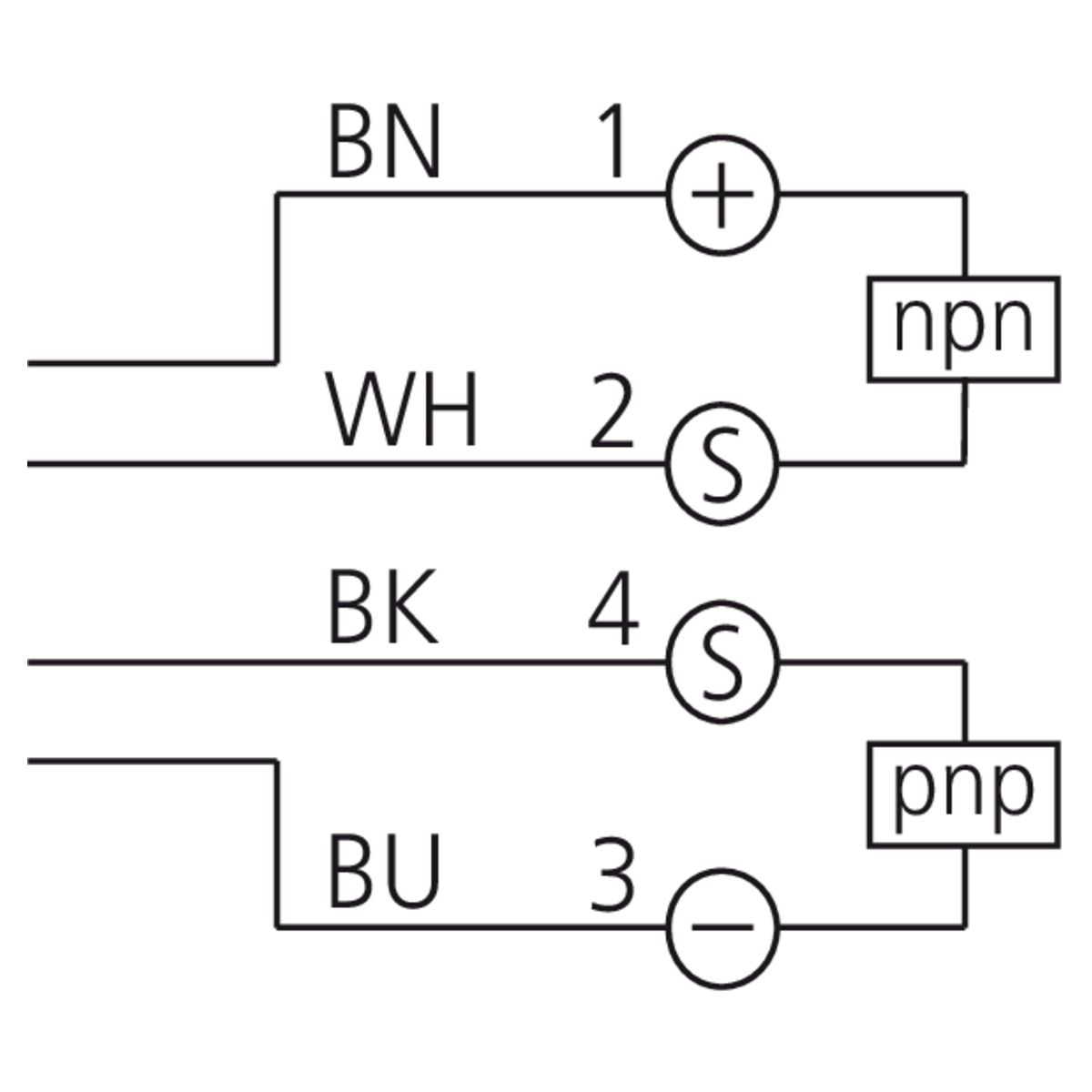

Switching output pnp+npn, 200 mA, NO/NC
Ambient temperature during operation -10 … +60 °C
Protection type IP 67
Connection Connector, M8, 4-pin
