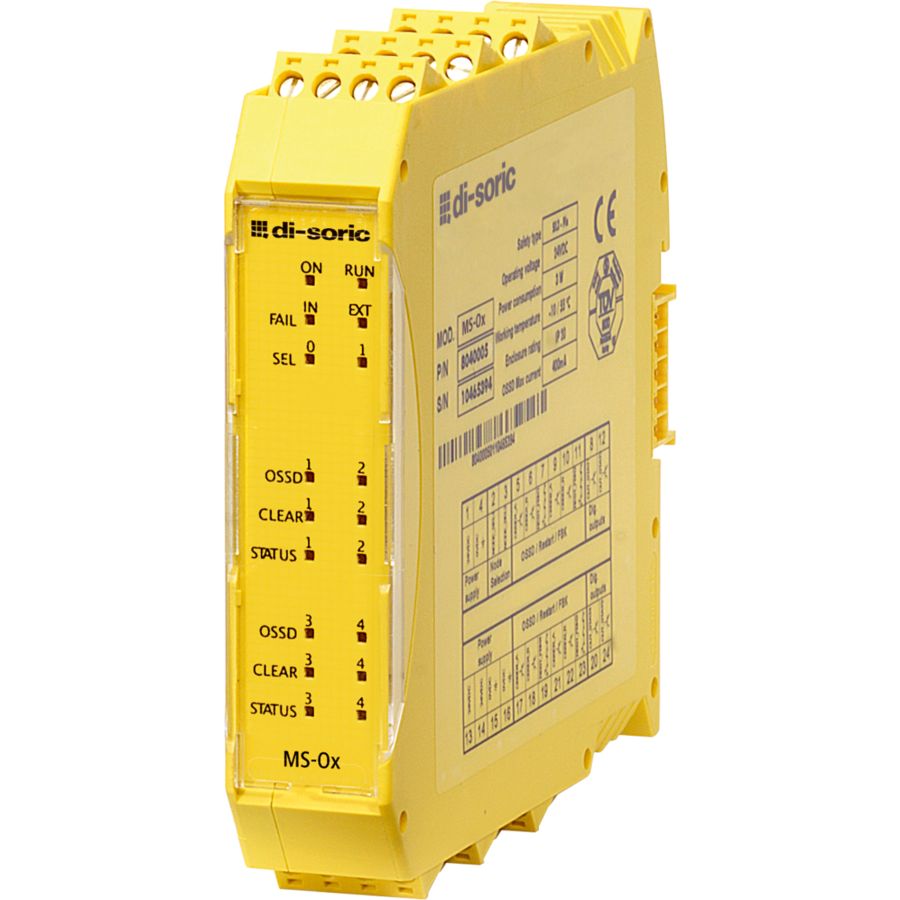

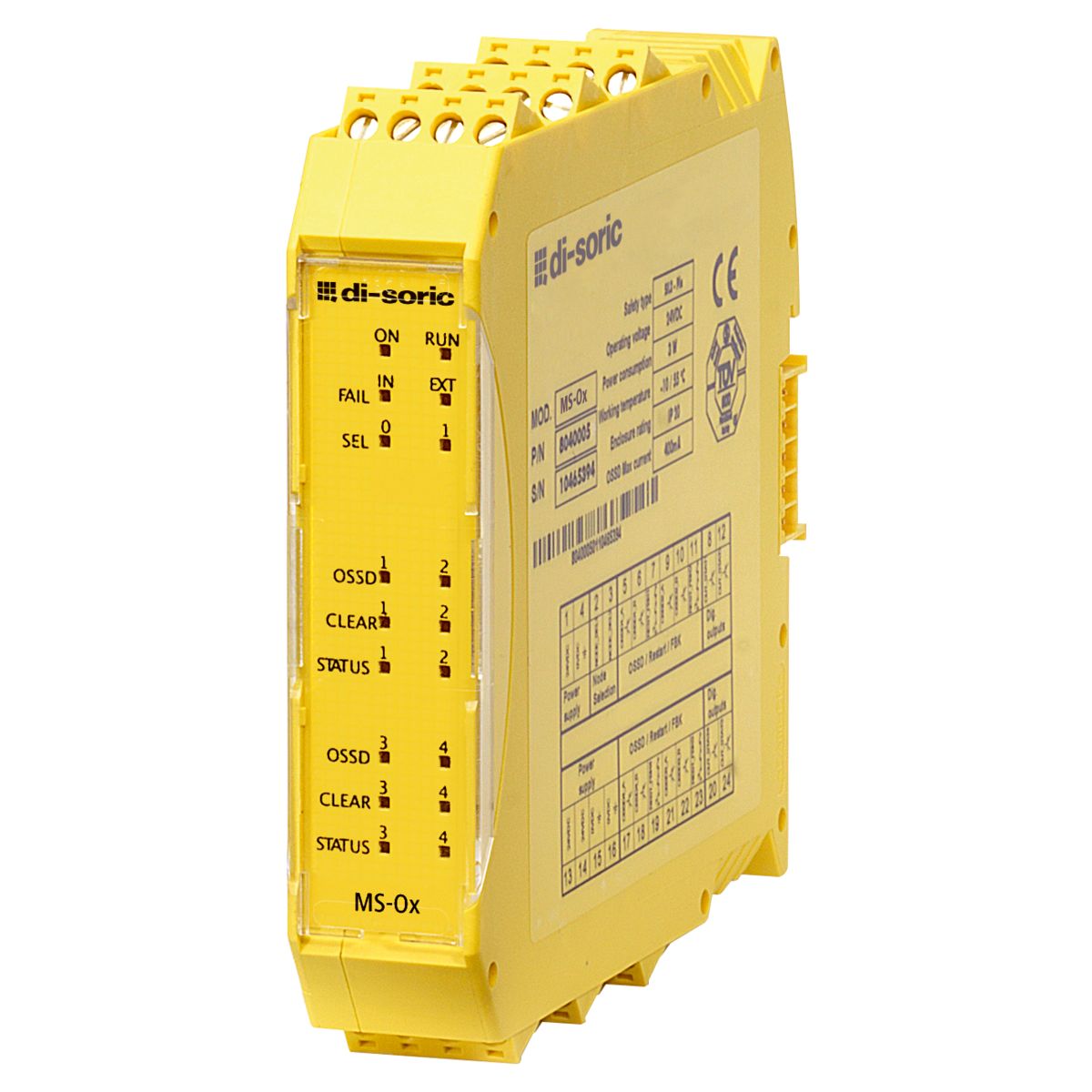

Ms - Expansion Unit - MS-O4

Part Number: MS-O4

Article Number: 208391

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Characteristic variables SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Kat. 4 (EN ISO 13849-1)
Mounting on DIN-rail in accordance with EN 50022-35 standard
Operating principle Output expansion unit
Safety output pnp (4 pairs OSSD), 400 mA / 24 V DC
Service voltage 19,2 … 28,8 V DC
Signal outputs pnp, 100 mA (24 V DC)
Communication 5-way high-speed bus 5.0
Display Input / output status and error diagnostics
Start / restart 4 inputs (EDM)
Connection removable terminal blocks, Screw contacts
Communication 5-way high-speed bus 5.0
Scope of delivery multi-language installation sheet, MS - Plug Connector MS-SC
