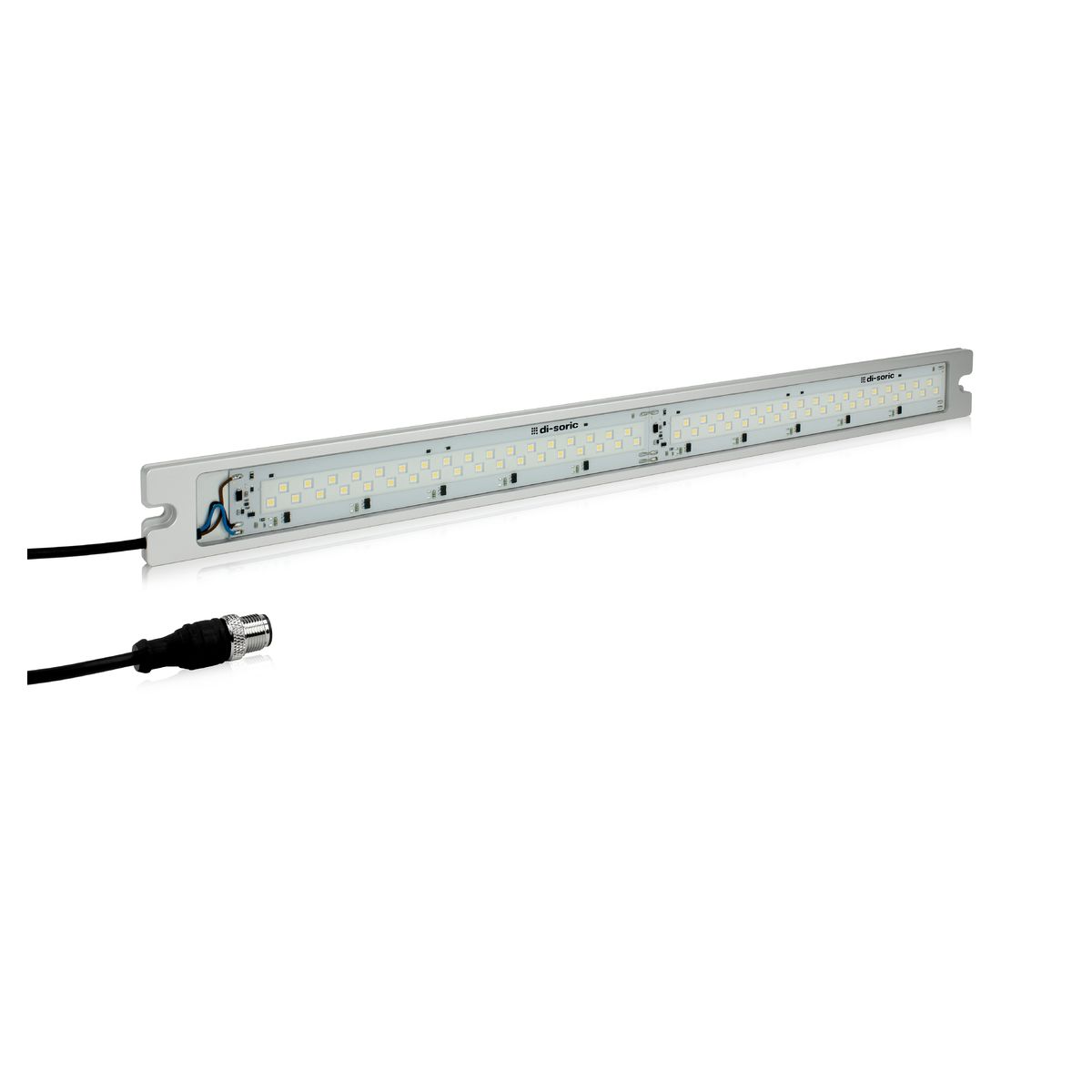

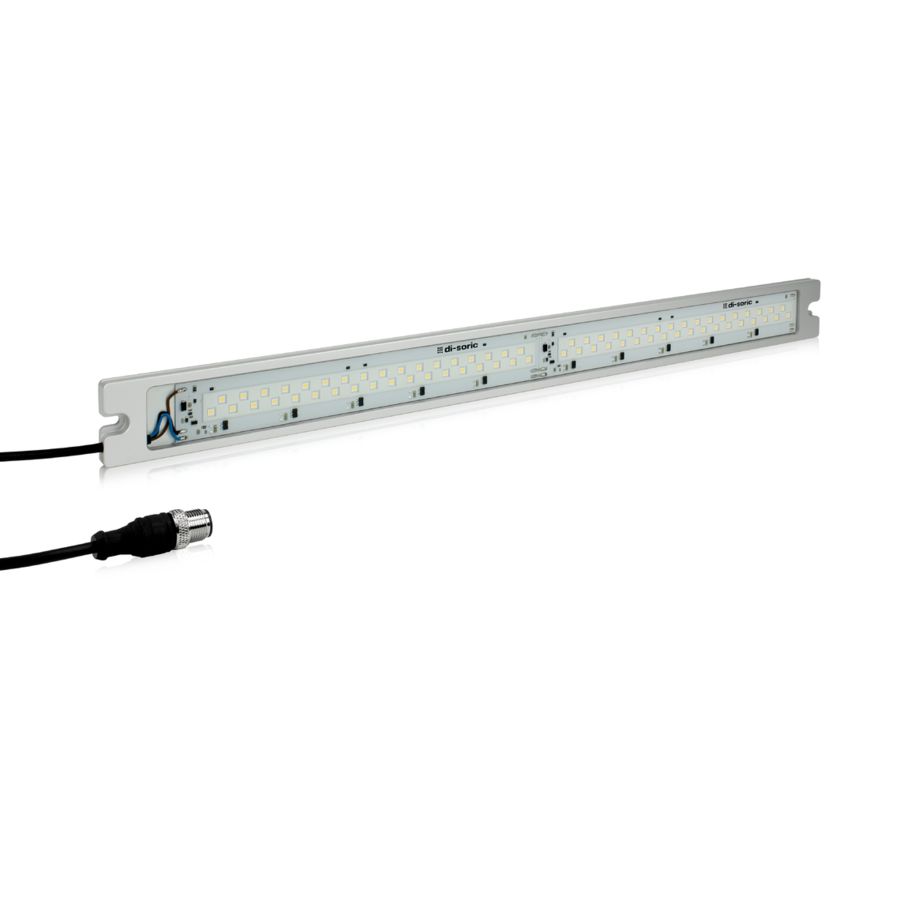

Machine Lighting - MB-N-481-K-B3

Part Number: MB-N-481-K-B3

Article Number: 210197

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Transmitter light source LED
Light color White
Deflection angle FWHM 120°
Color rendering index Ra 85
Service voltage 24 V DC (± 5%, Supply Class 2)
No-load current (max.) 900 mA (24 V DC)
Housing material Aluminum, natural (Anodized)
Protection type IP 67
Risk group (DIN EN 62471) Free group
Protection class III, operation on protective low voltage

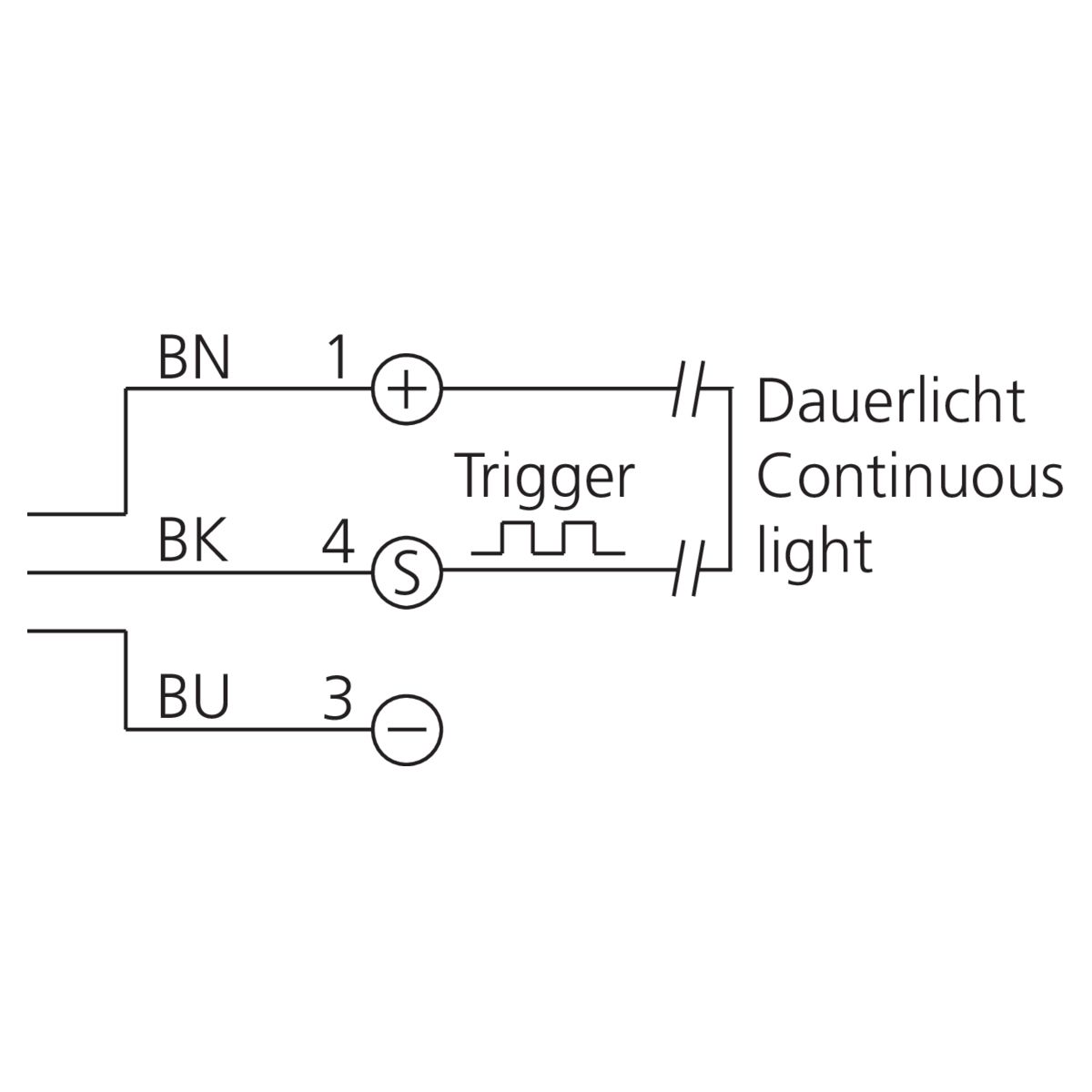

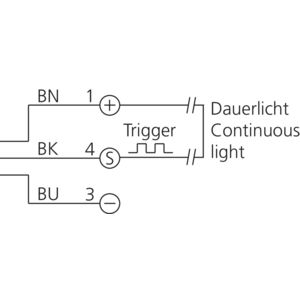

Connection Cable/connector, 0,3 m, M12, 3-pin
