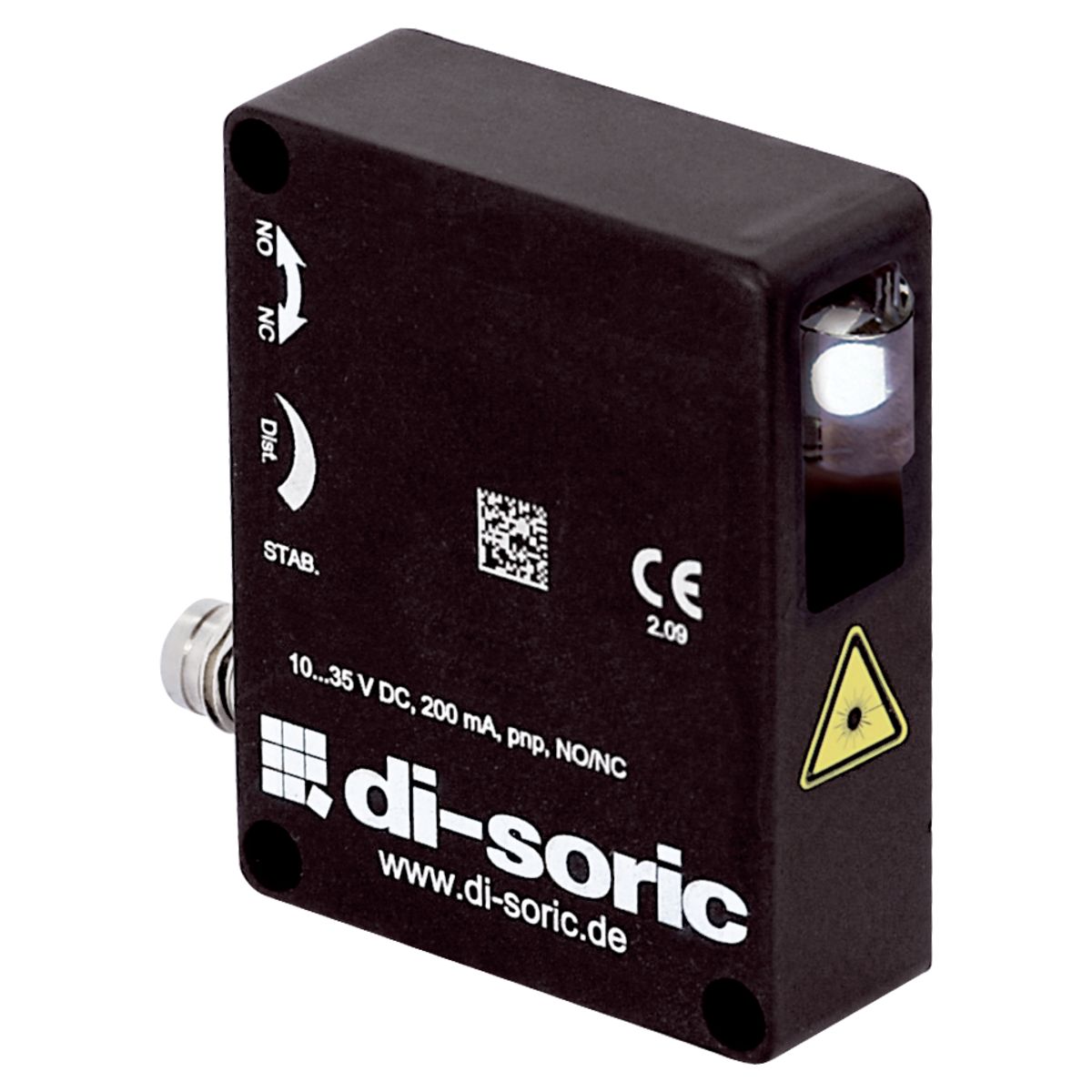

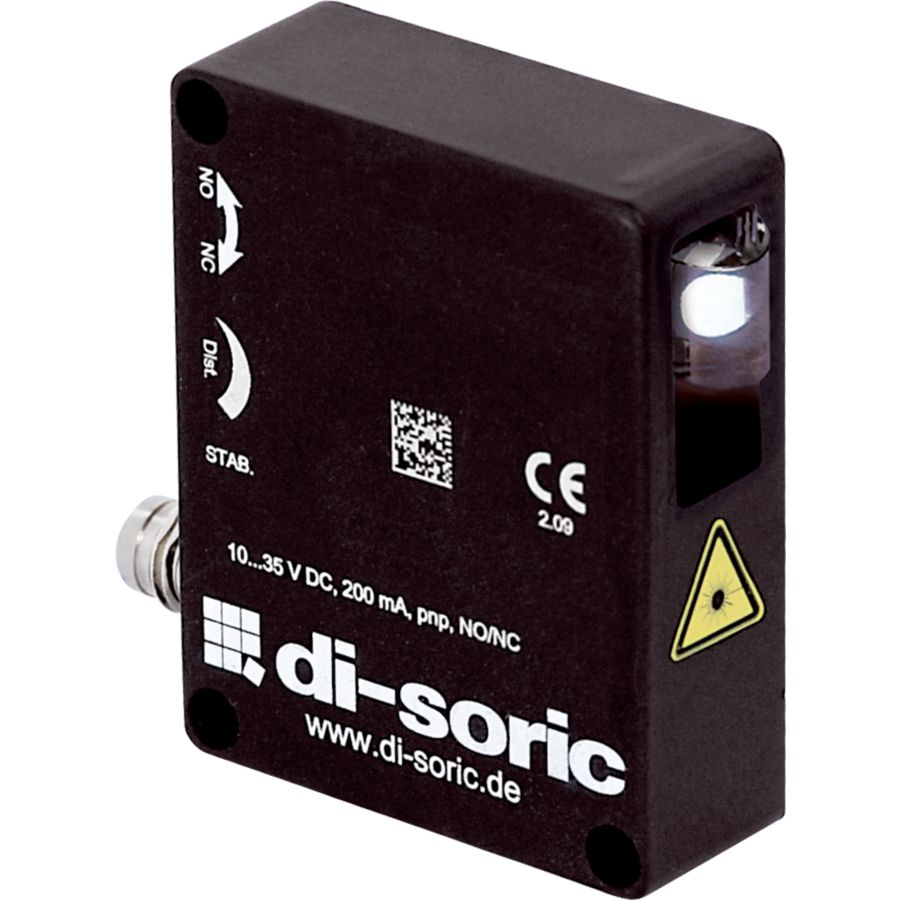

Line Laser Retroreflective Sensor - LLRV 51 M 500 P3K-TSSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Retroreflective sensor
Transmitter light source	Laser
Light color	red / 670 nm
Laser class	1 (IEC 60825-1)
Range	50 … 500 mm
Service voltage	10 … 35 V DC
Switching output	pnp, 200 mA, NO/NC
Ambient temperature during operation	+5 … +50 °C
Protection class	III, operation on protective low voltage
Connection	Connector, M8, 3-pin
