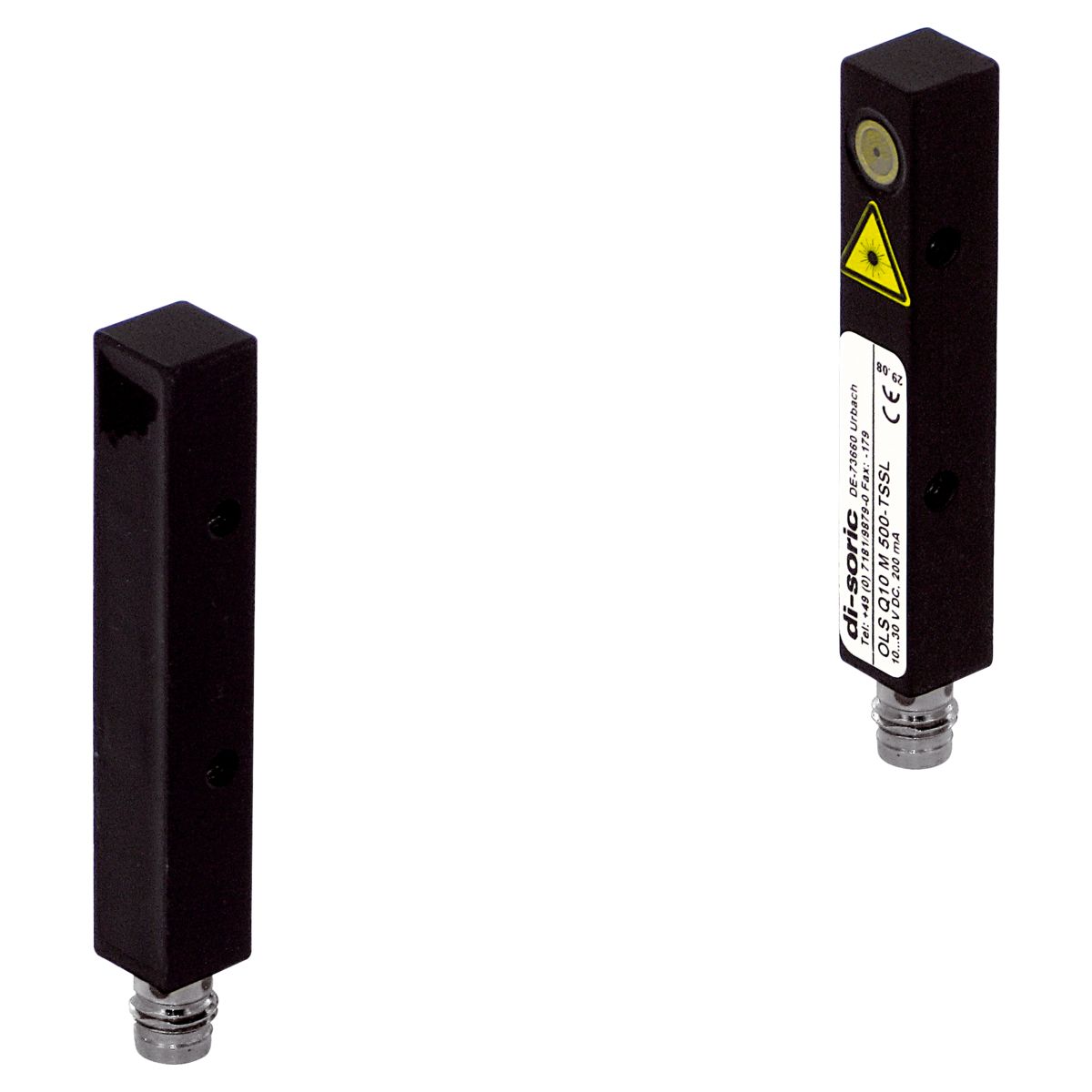

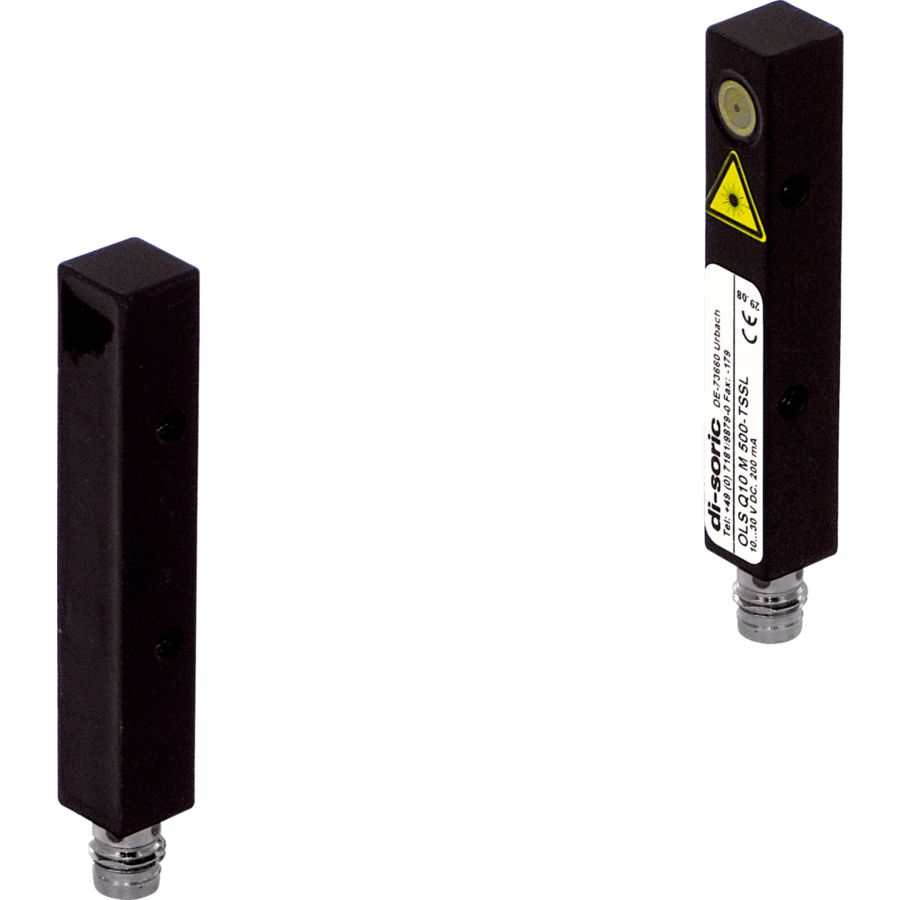

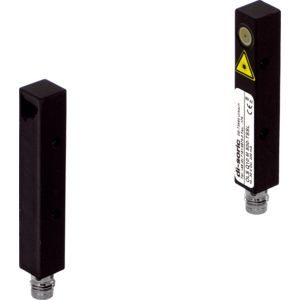

Laser Through-beam Sensor, Receiver - OLE Q10 M 500 P2K-TSSL

Part Number: OLE Q10 M 500 P2K-TSSL

Article Number: 202933

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Through-beam sensor
Transmitter light source Laser
Range 0 … 500 mm
Service voltage 10 … 35 V DC
Switching output pnp, 200 mA, NO
Ambient temperature during operation 0 … +50 °C
Protection class III, operation on protective low voltage
Connection Connector, M8, 3-pin
