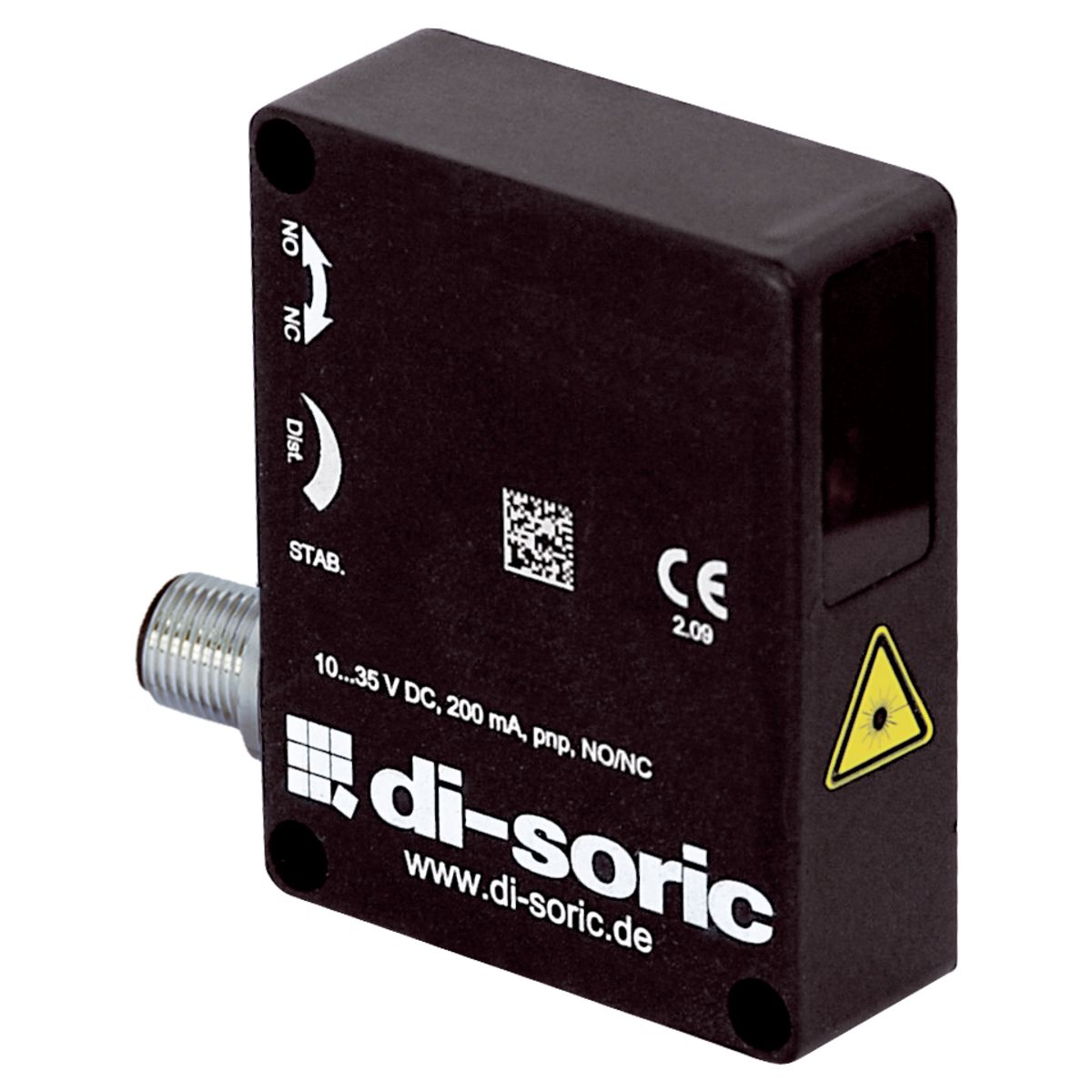

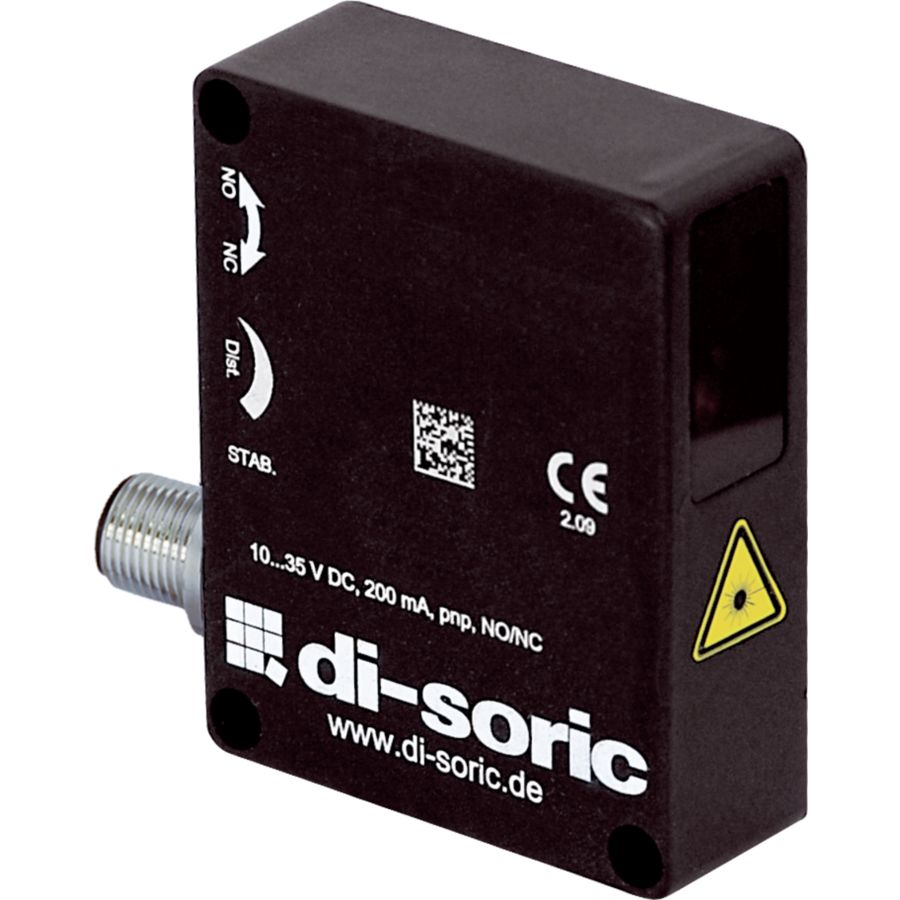

Laser Retroreflective Sensor - LRV 51 M 2000 P3K-IBS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Retroreflective sensor
Transmitter light source	Laser
Light color	red / 650 nm
Laser class	1 (IEC 60825-1)
Range	2.000 mm
Referring reflector	RL 13 x 17 mm
Service voltage	10 … 35 V DC
Switching output	pnp, 200 mA, NO/NC
Ambient temperature during operation	0 … +50 °C
Protection class	III, operation on protective low voltage
Connection	Connector, M12, 3-pin
