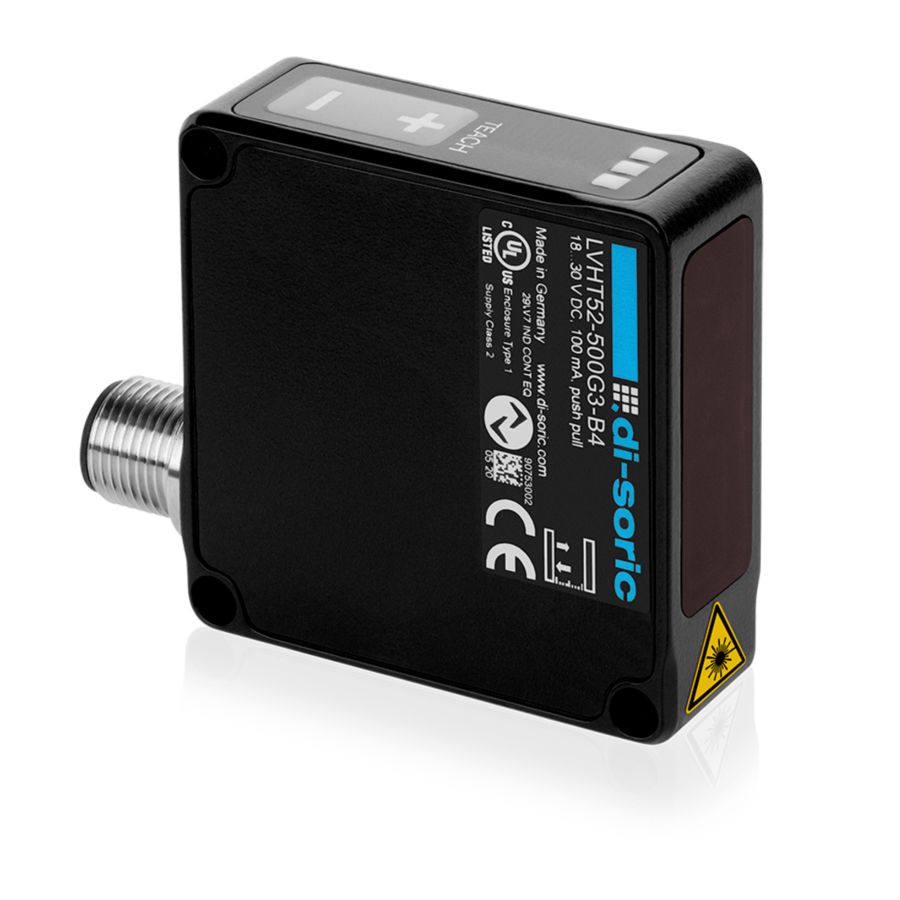

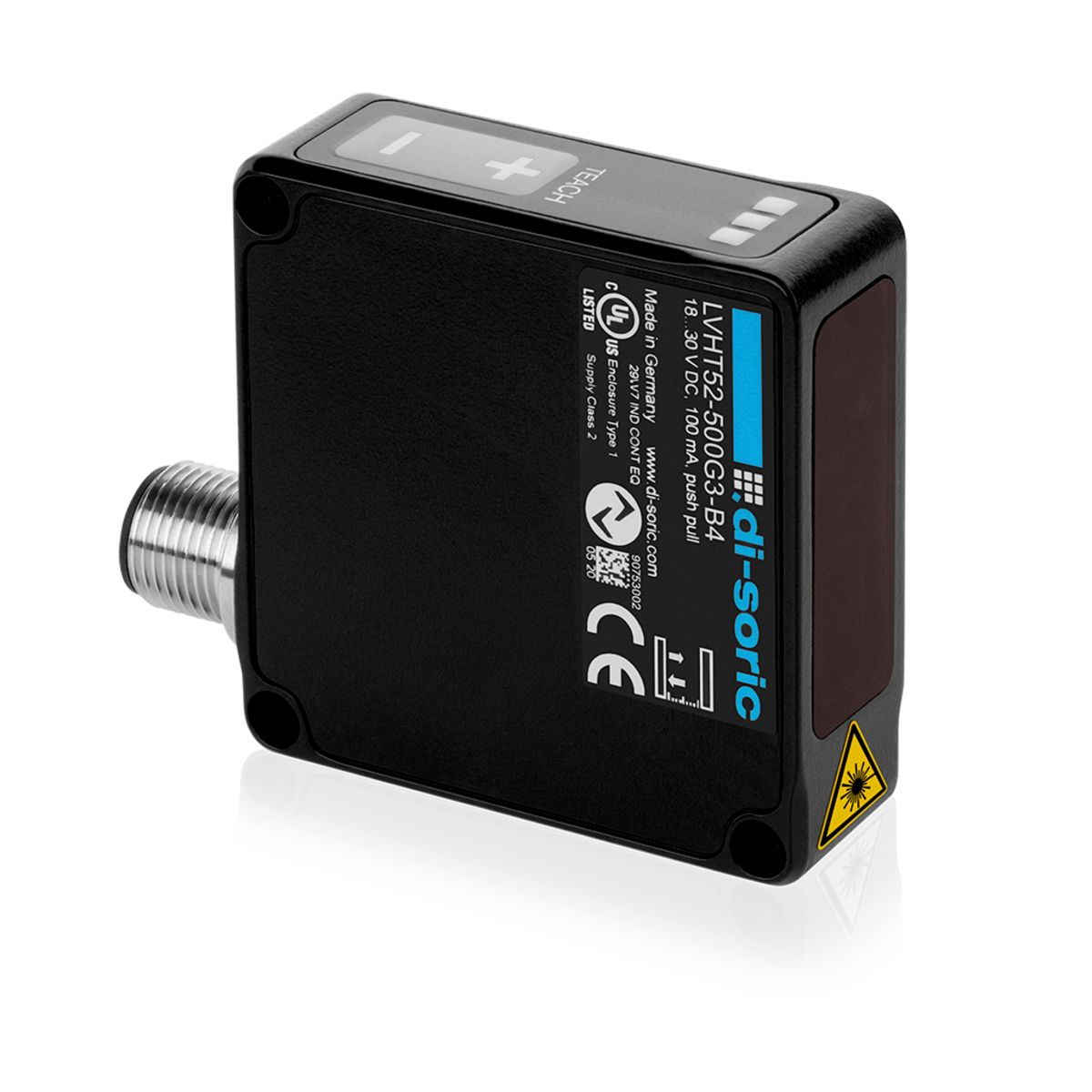

Laser Distance Sensor - LVHT52-500G3-B4

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Transmitter light source	Laser
Laser class	1 (IEC 60825-1)
Detection range	50 … 500 mm
Service voltage	18 … 30 V DC
Switching output	Push-pull, 100 mA
Housing material	Aluminum, Black (Anodized)
Ambient temperature during operation	0 … +50 °C
Protection type	IP 67

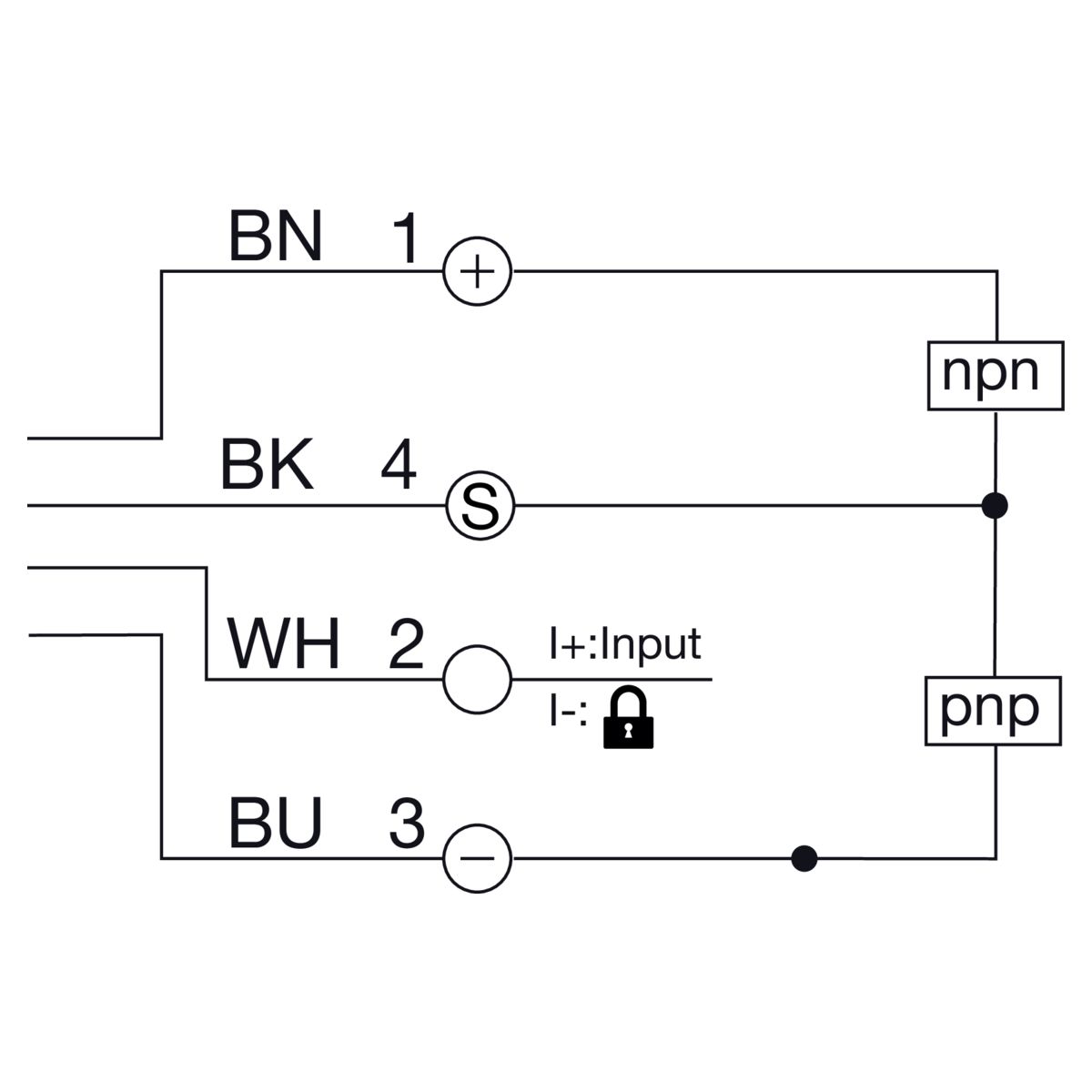

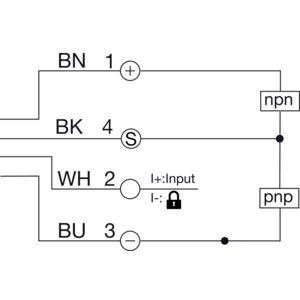

Connection	Connector, M12, 4-pin
