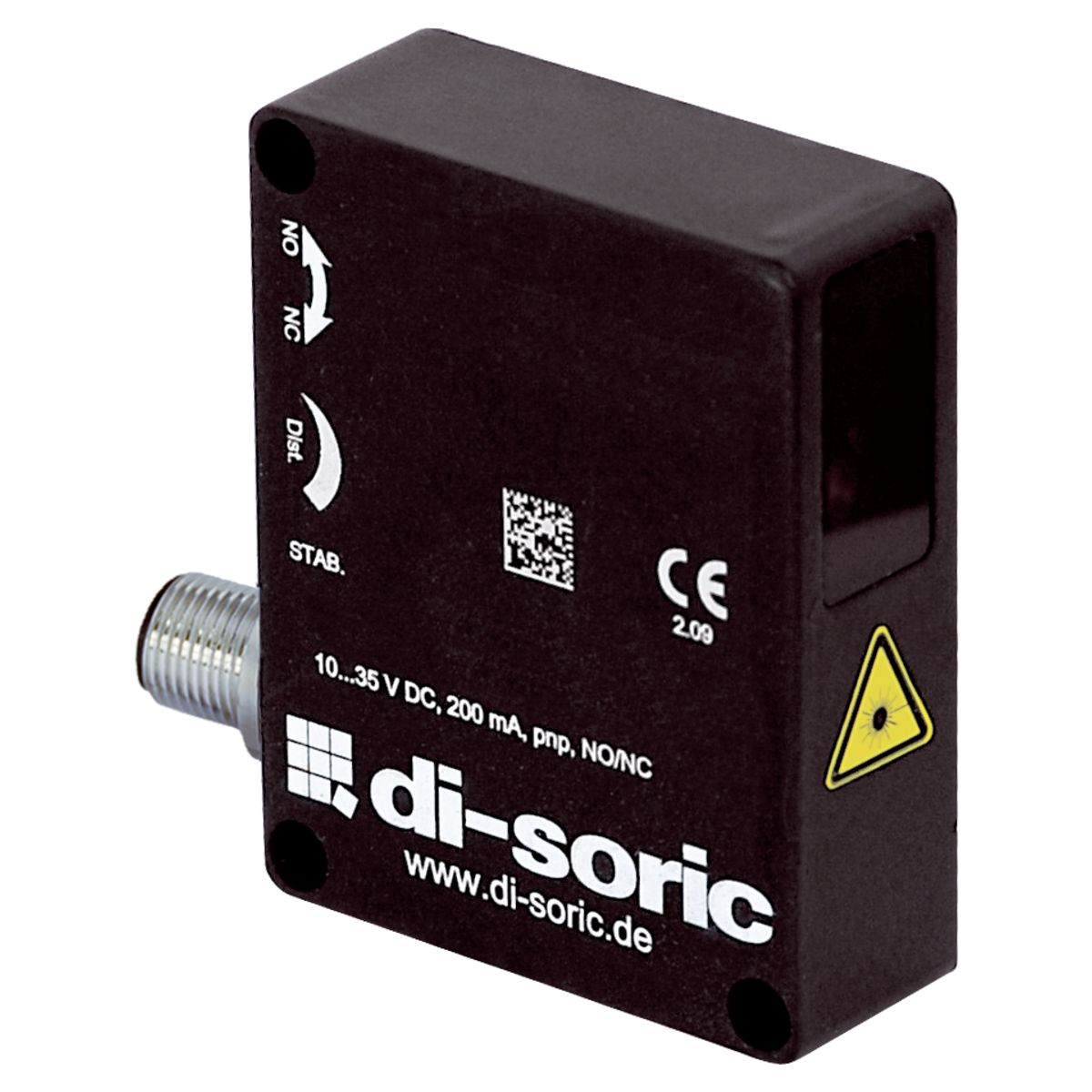

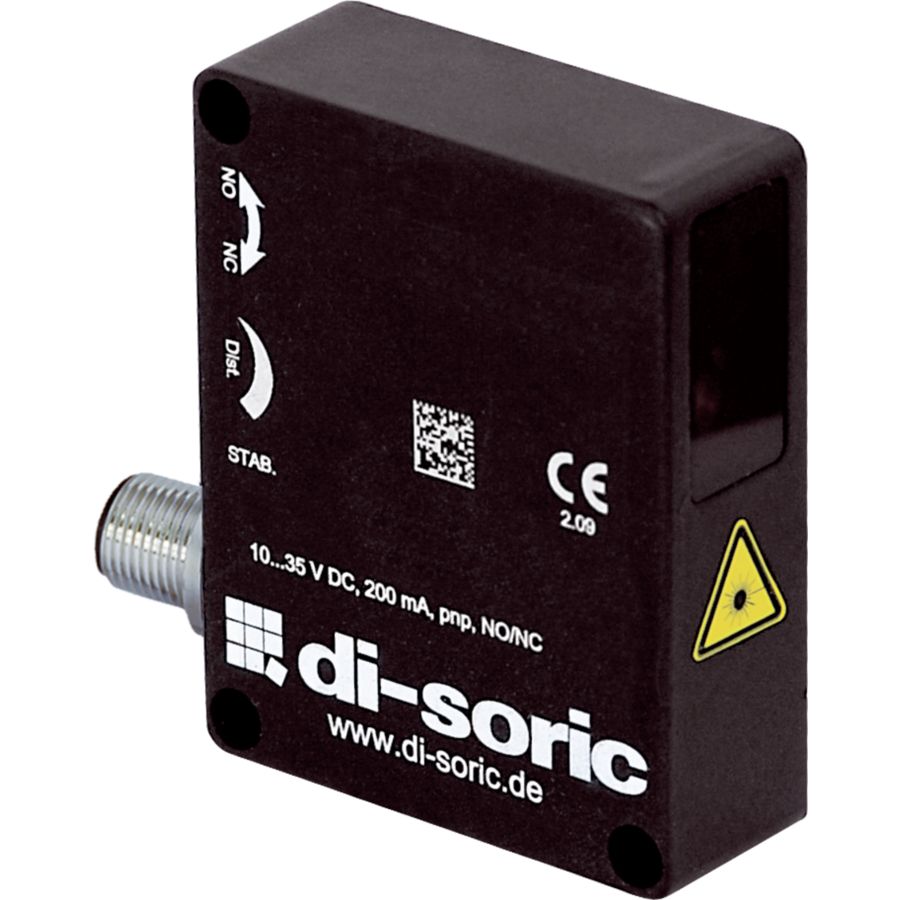

Laser Diffuse Sensor With Background Suppression - LHTTI 51 M 200 FG3-B4

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Diffuse sensor with background suppression
Transmitter light source	Laser
Light color	red / 650 nm
Laser class	1 (IEC 60825-1)
Scanning range	50 … 200 mm
Service voltage	10 … 35 V DC
Switching output	Push-pull, 200 mA, NO/NC
Ambient temperature during operation	-10 … +50 °C
Protection class	III, operation on protective low voltage

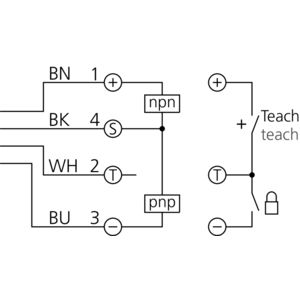

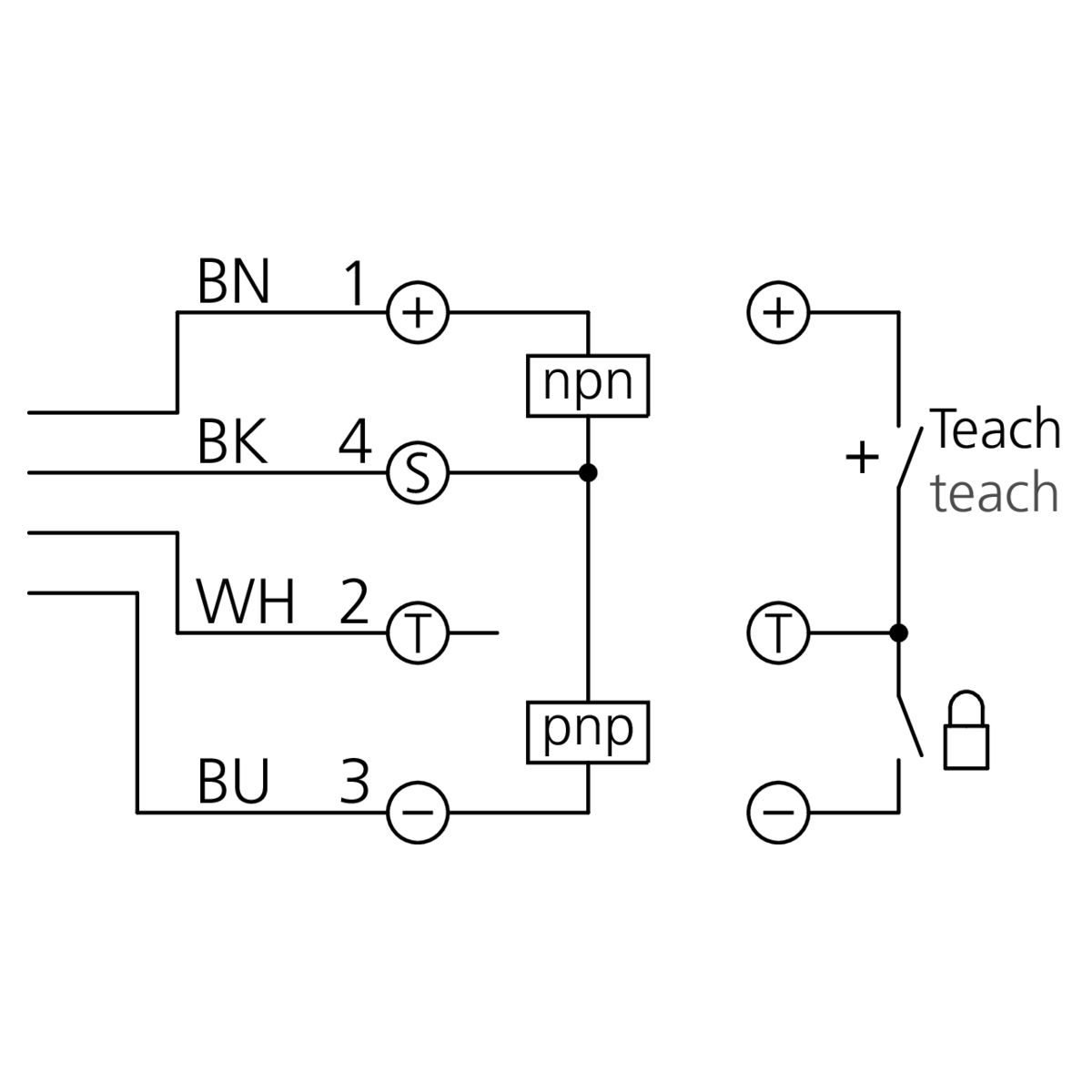

Connection	Connector, M12, 4-pin
