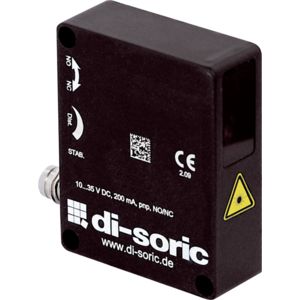

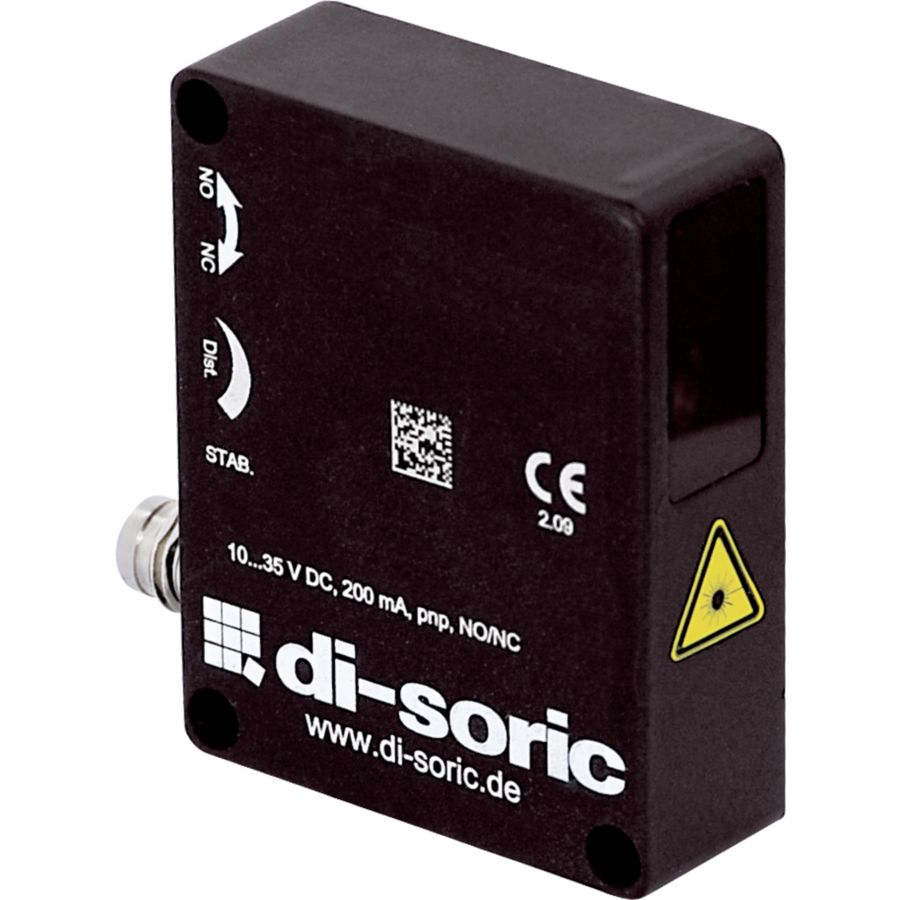

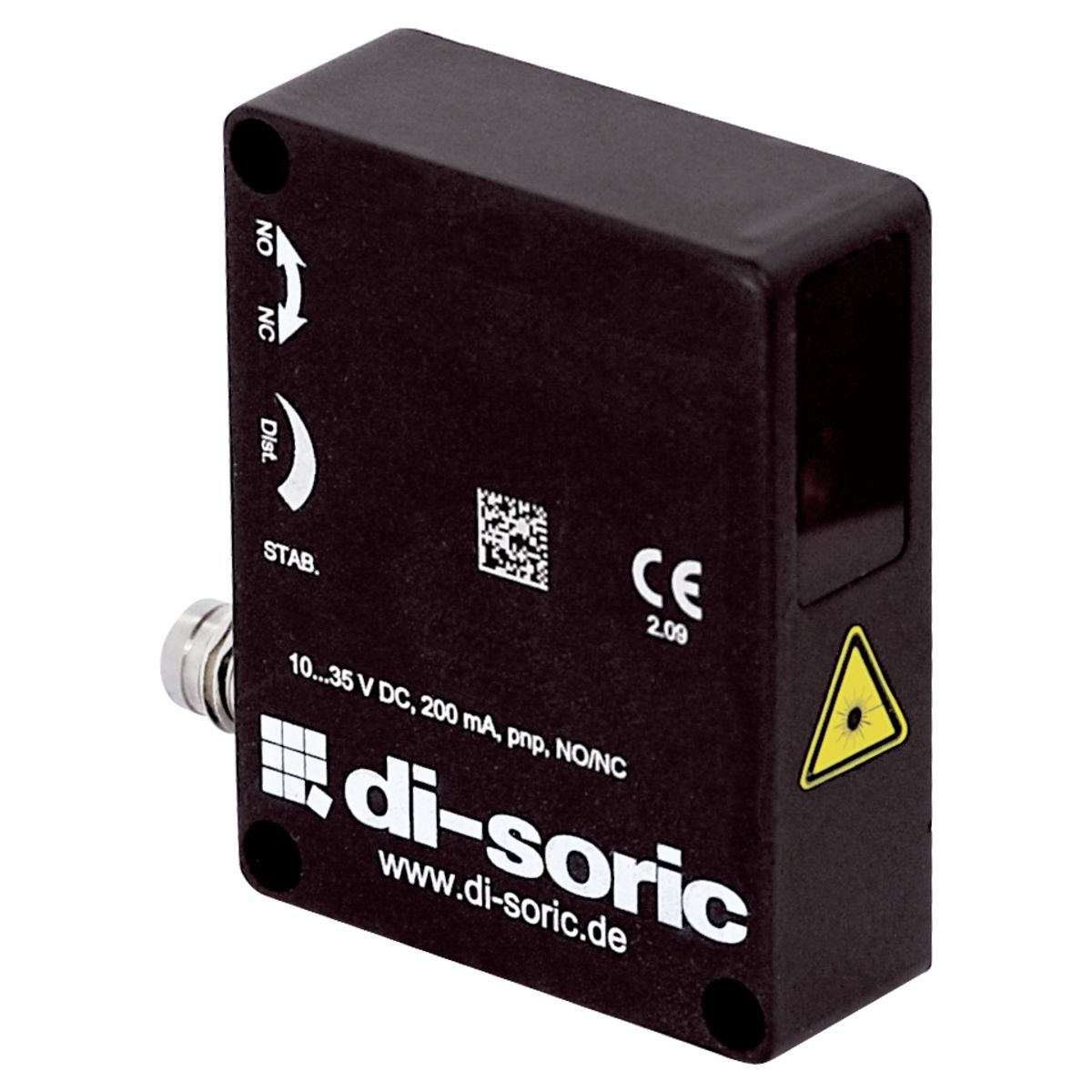

Laser Diffuse Sensor With Background Suppression - LHT 51 M 200 G3-T3

Part Number: LHT 51 M 200 G3-T3

Article Number: 208132

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Diffuse sensor with background suppression
Transmitter light source Laser
Light color red / 650 nm
Laser class 1 (IEC 60825-1)
Scanning range 50 … 200 mm
Service voltage 10 … 35 V DC
Switching output Push-pull, 200 mA, NO/NC
Ambient temperature during operation -10 … +50 °C
Protection class III, operation on protective low voltage
Connection Connector, M8, 3-pin
