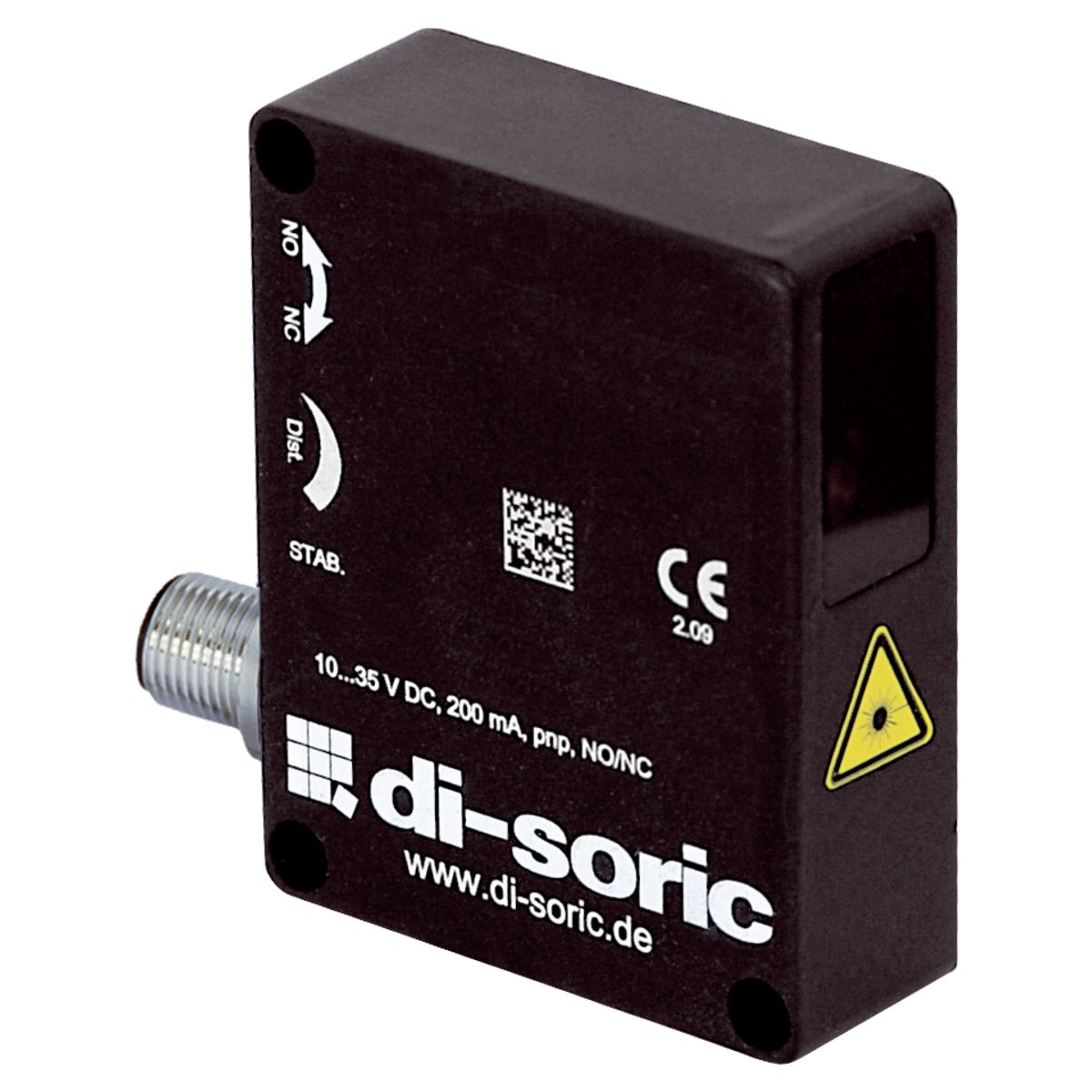

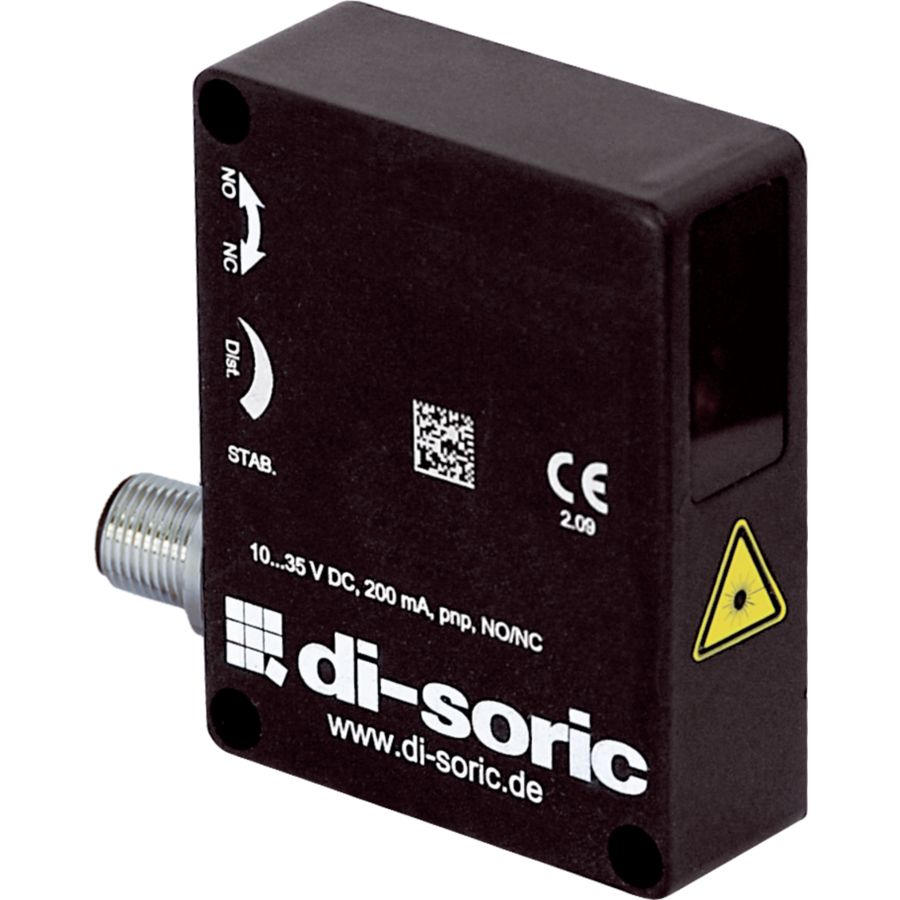

Laser Diffuse Sensor - LTV 51 M 600 P3K-IBS

Part Number: LTV 51 M 600 P3K-IBS

Article Number: 204056

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Diffuse sensor
Transmitter light source Laser
Light color red / 650 nm
Laser class 1 (IEC 60825-1)
Scanning range 100 … 600 mm
Service voltage 10 … 35 V DC
Switching output pnp, 200 mA, NO/NC
Ambient temperature during operation -10 … +50 °C
Protection class III, operation on protective low voltage
Connection Connector, M12, 3-pin
