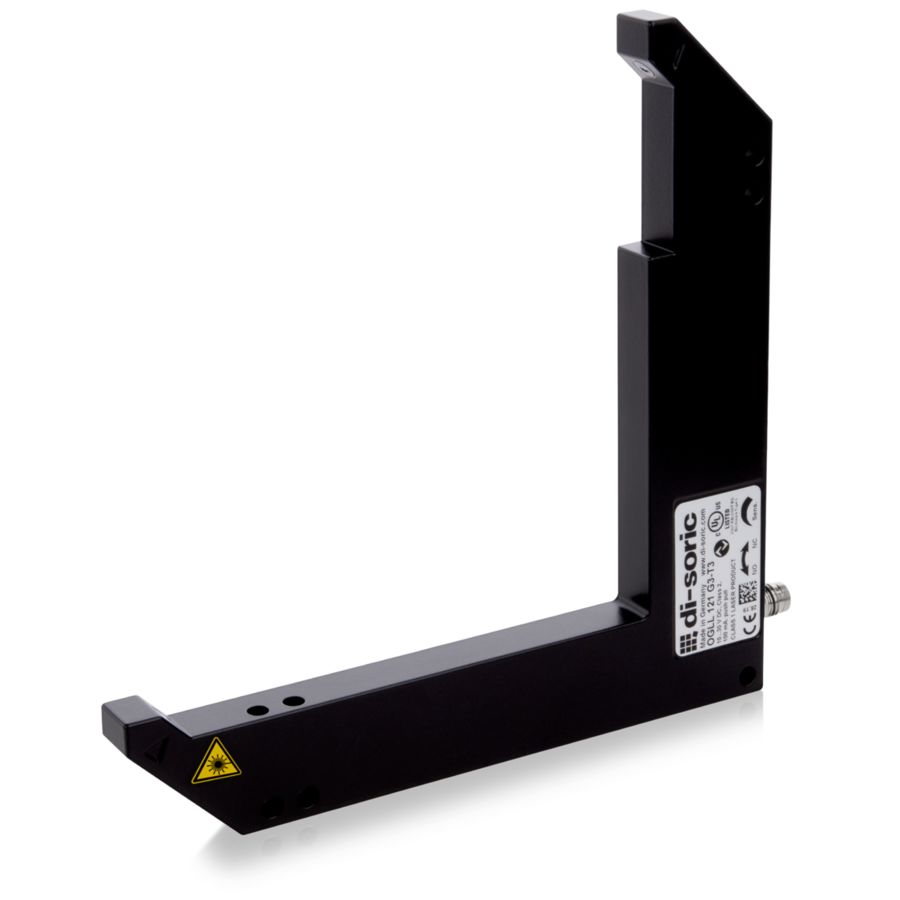

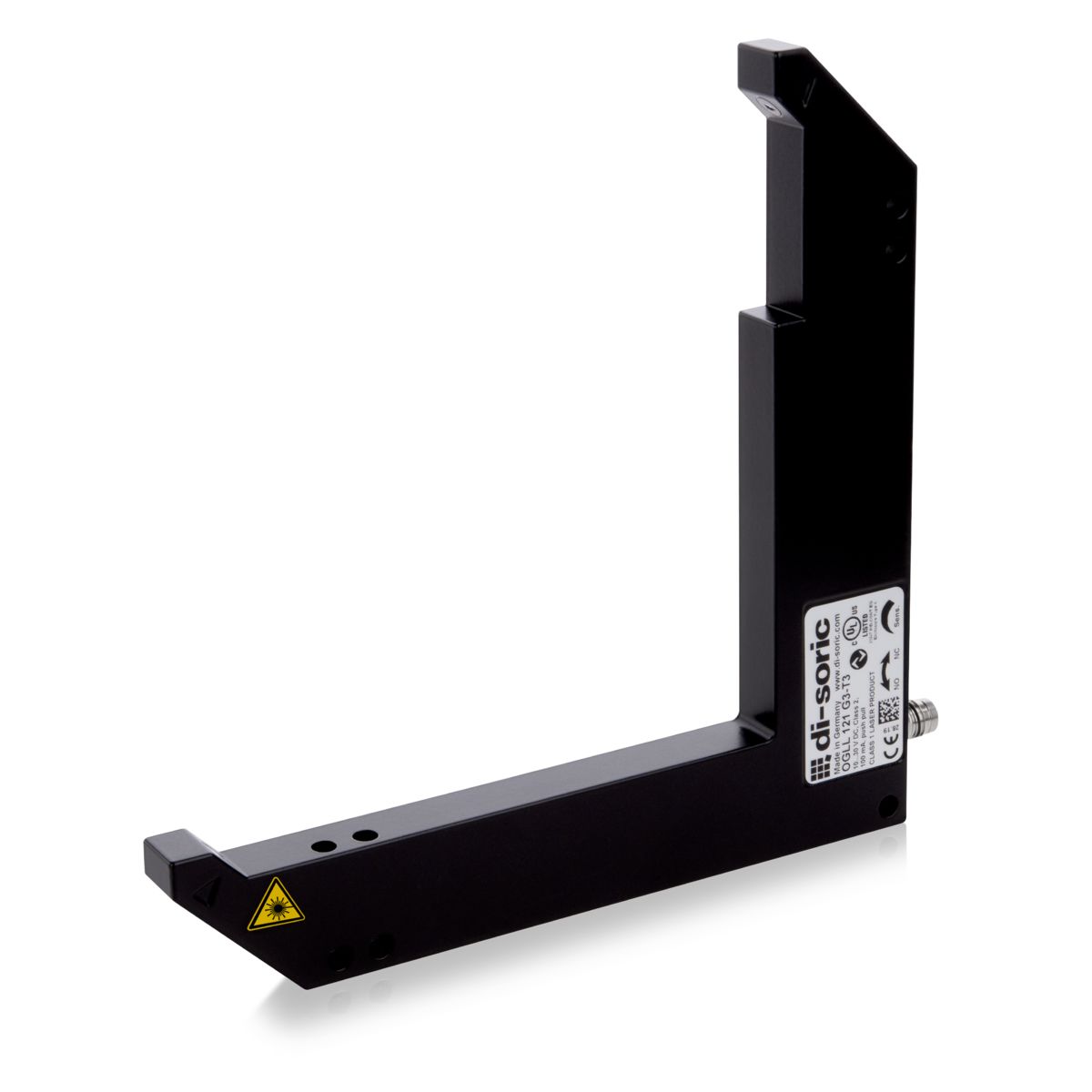

Laser Angled Light Barrier - OGLL 121 G3-T3
Part Number: OGLL 121 G3-T3
Article Number: 211050
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Operating principle | Optical |
---|---|
Transmitter light source | Laser |
Light color | red / 655 nm |
Leg length internal | 120 mm, 120 mm |
Service voltage | 10 … 30 V DC |
No-load current (max.) | 30 mA |
Housing material | Die-cast zinc, Black (powder-coated) |

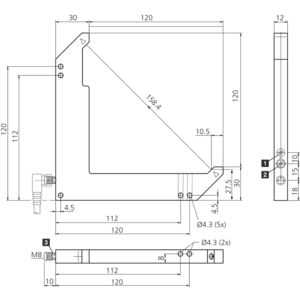

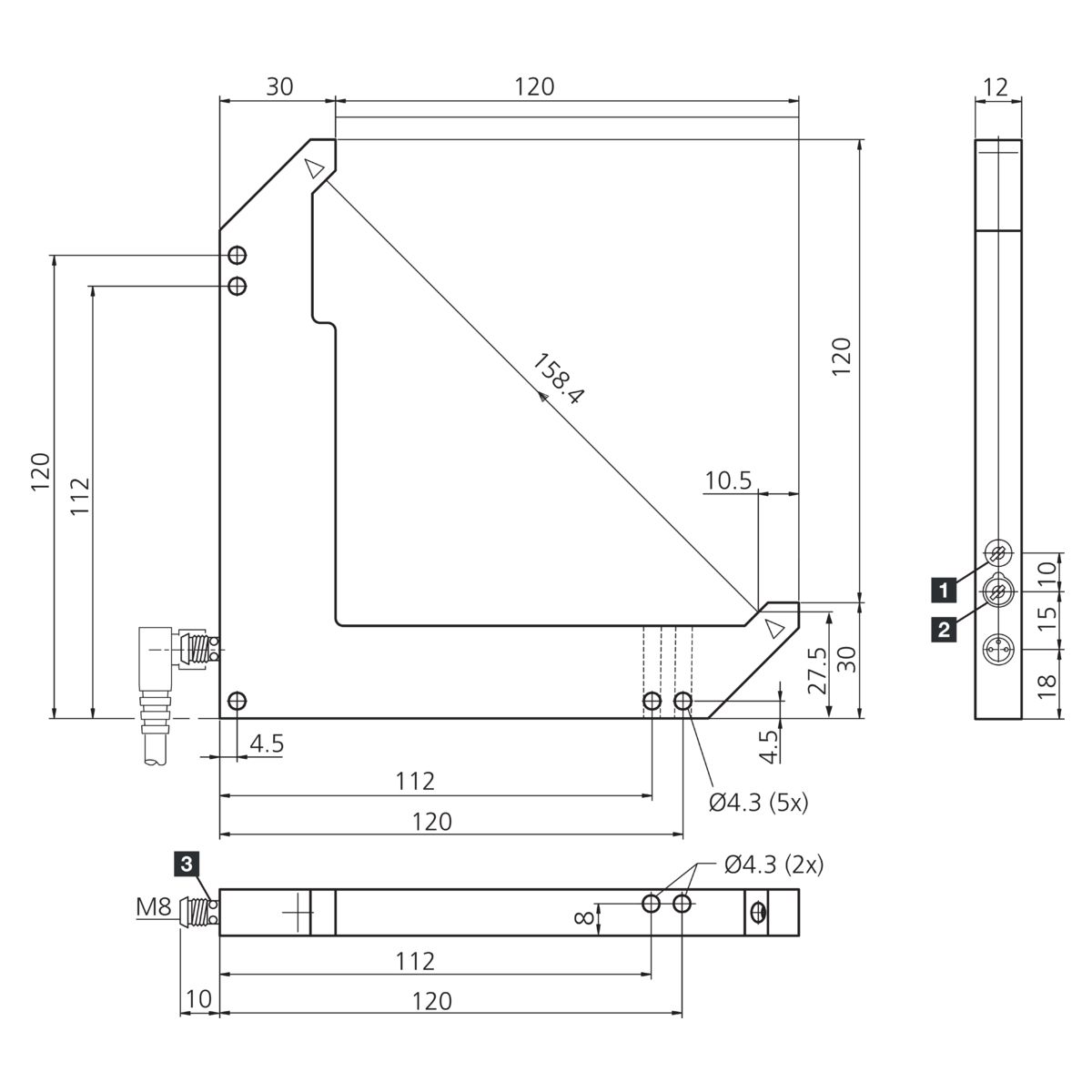

Size | 150 x 150 x 12 mm |
Ambient temperature during operation | -10 … +60 °C |
Connection | Connector, M8, 3-pin |
