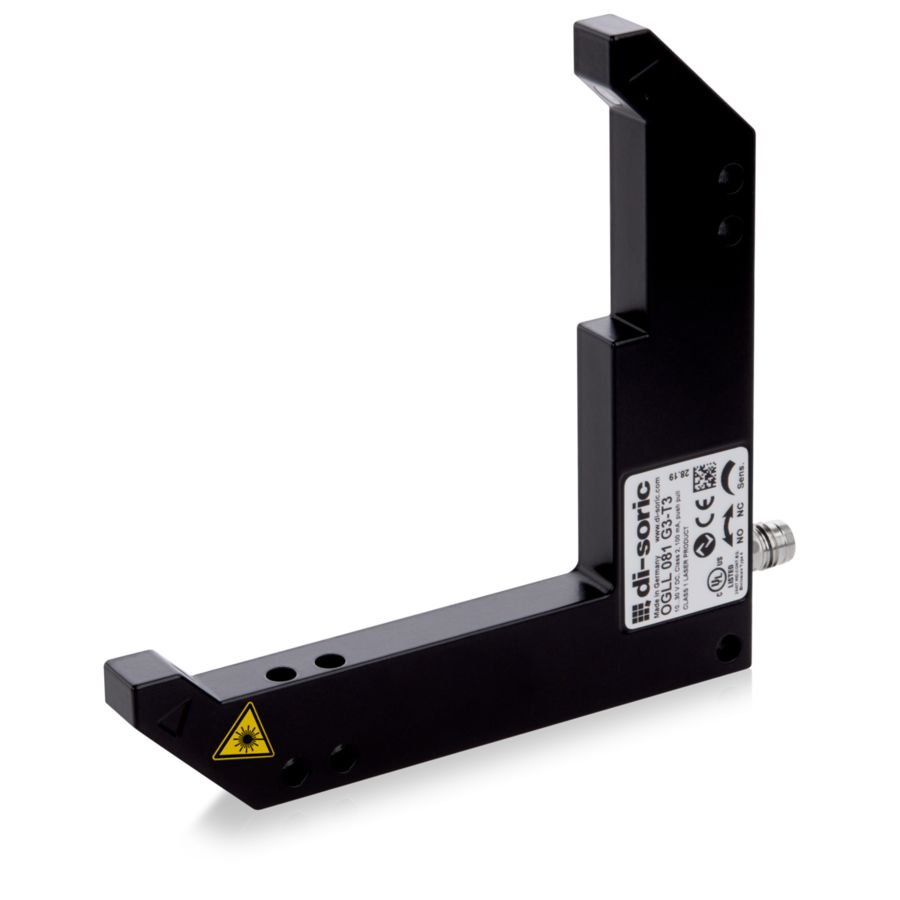

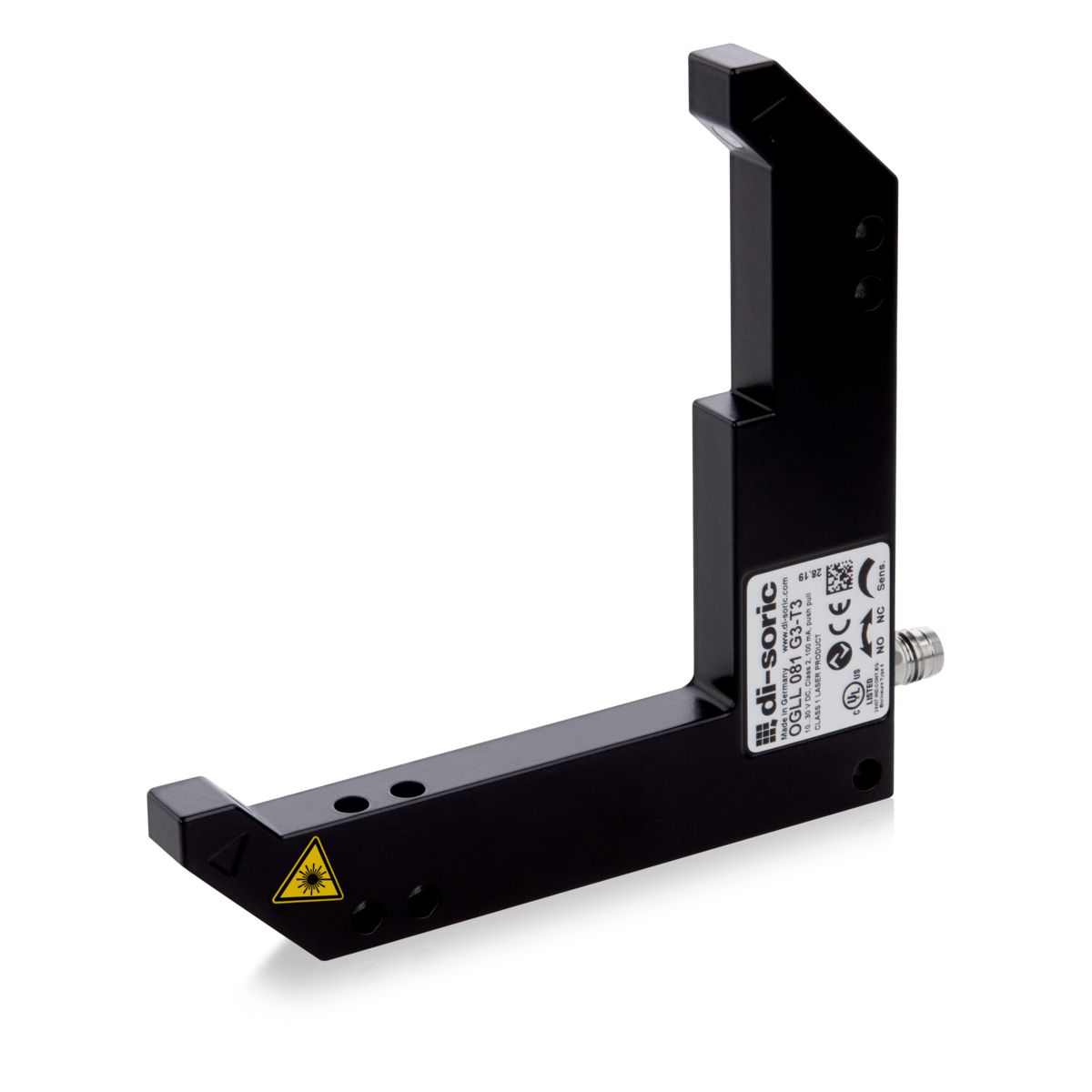

Laser Angled Light Barrier - OGLL 081 G3-T3
Part Number: OGLL 081 G3-T3
Article Number: 211049
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Operating principle | Optical |
---|---|
Transmitter light source | Laser |
Light color | red / 655 nm |
Leg length internal | 80 mm, 80 mm |
Service voltage | 10 … 30 V DC |
No-load current (max.) | 30 mA |
Switching output | (Push-pull), 200 mA, NO/NC |
Interface | IO-Link |
Housing material | Die-cast zinc, Black (powder-coated) |
Size | 105 x 105 x 10 mm |
Ambient temperature during operation | -10 … +60 °C |
Connection | Connector, M8, 3-pin |
