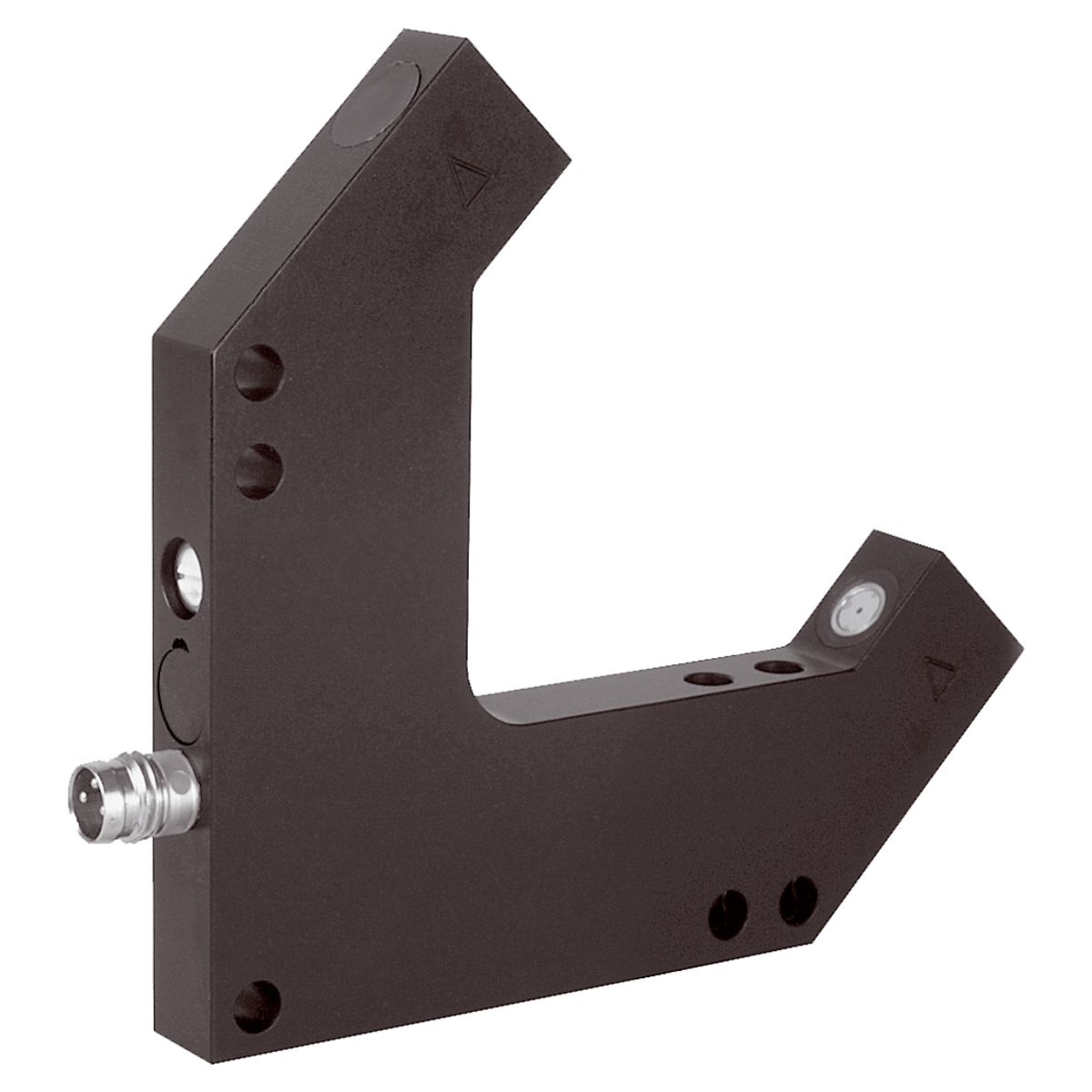

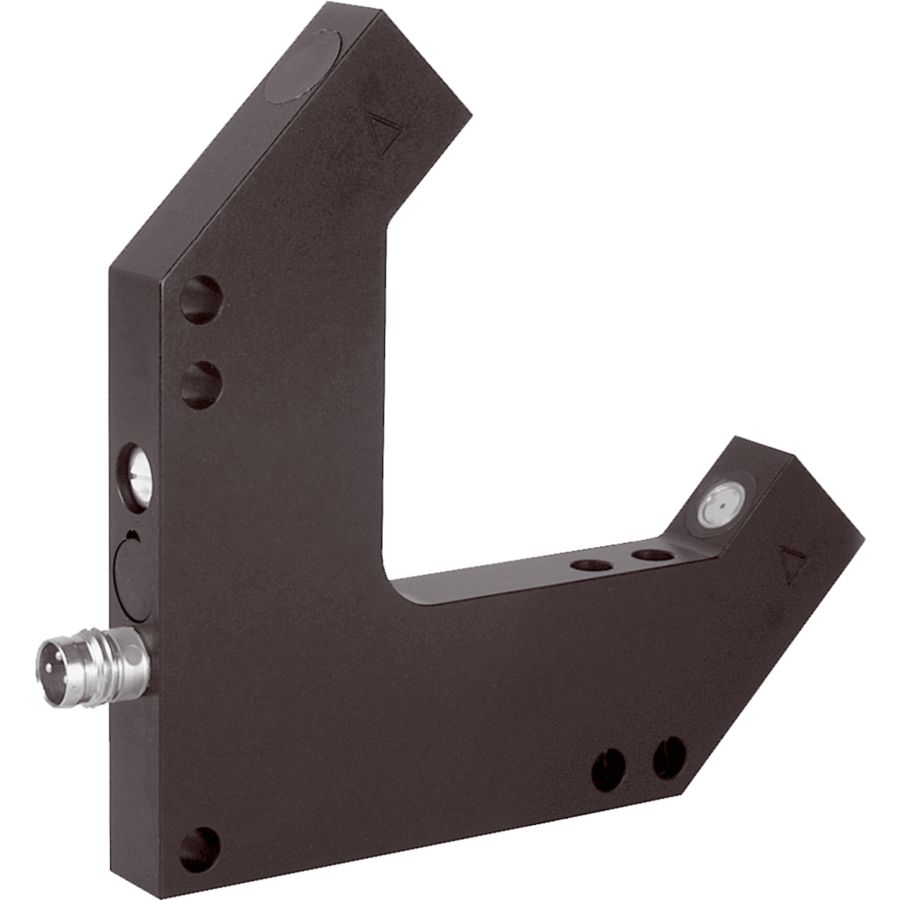

Laser Angled Light Barrier - LGL 051 P3K-TSSL

Part Number: LGL 051 P3K-TSSL

Article Number: 200975

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Optical
Transmitter light source Laser
Light color red / 650 nm
Leg length internal 50 mm, 50 mm
Service voltage 10 … 35 V DC (Supply Class 2)
No-load current (max.) 30 mA
Switching output (pnp), 200 mA, NO/NC
Housing material Aluminum, Black (Anodized)

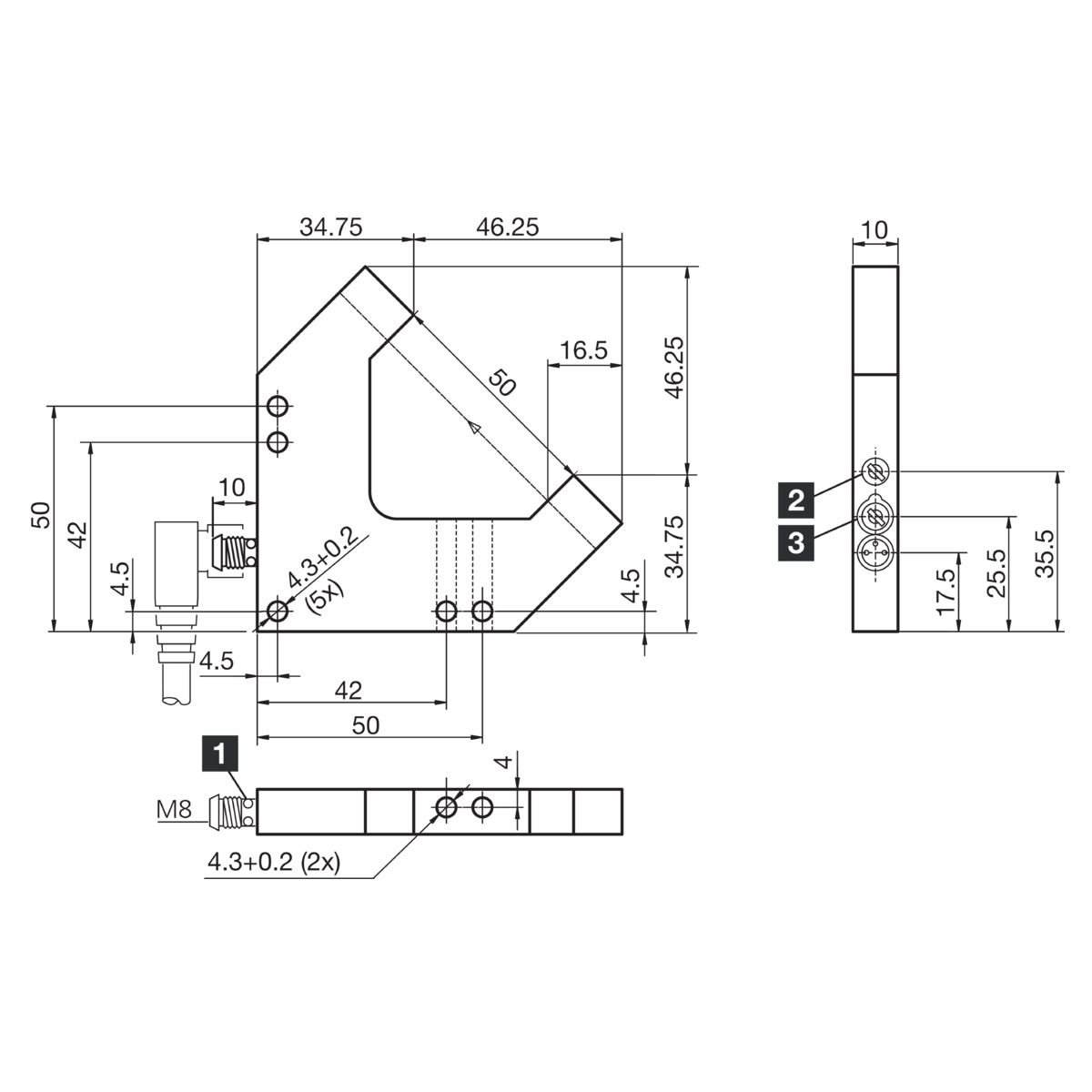

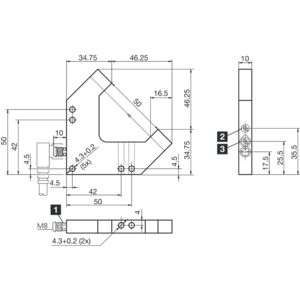

Size 81 x 81 x 10 mm
Ambient temperature during operation +5 … +45 °C
Protection type IP 67
Connection Connector, M8, 3-pin
