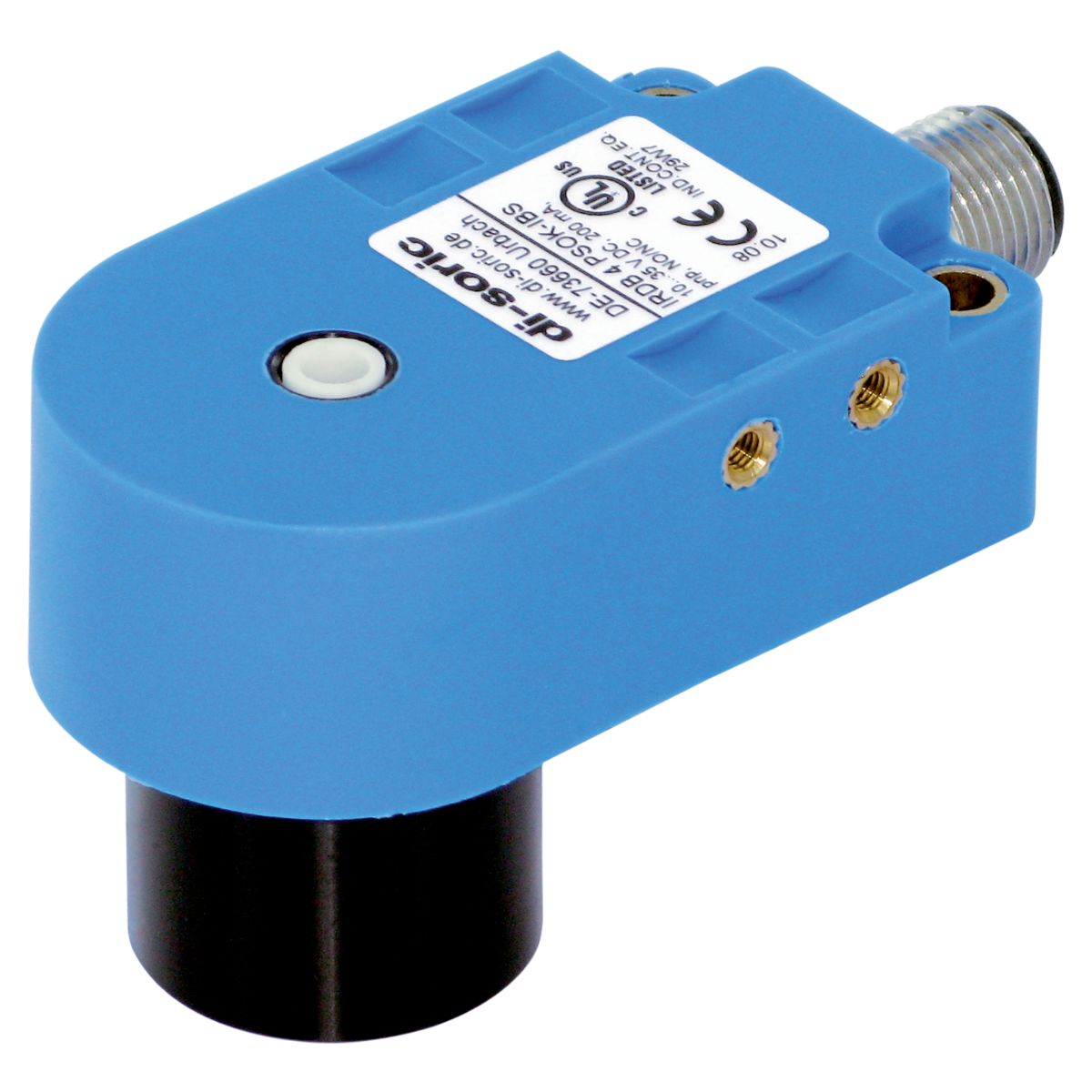

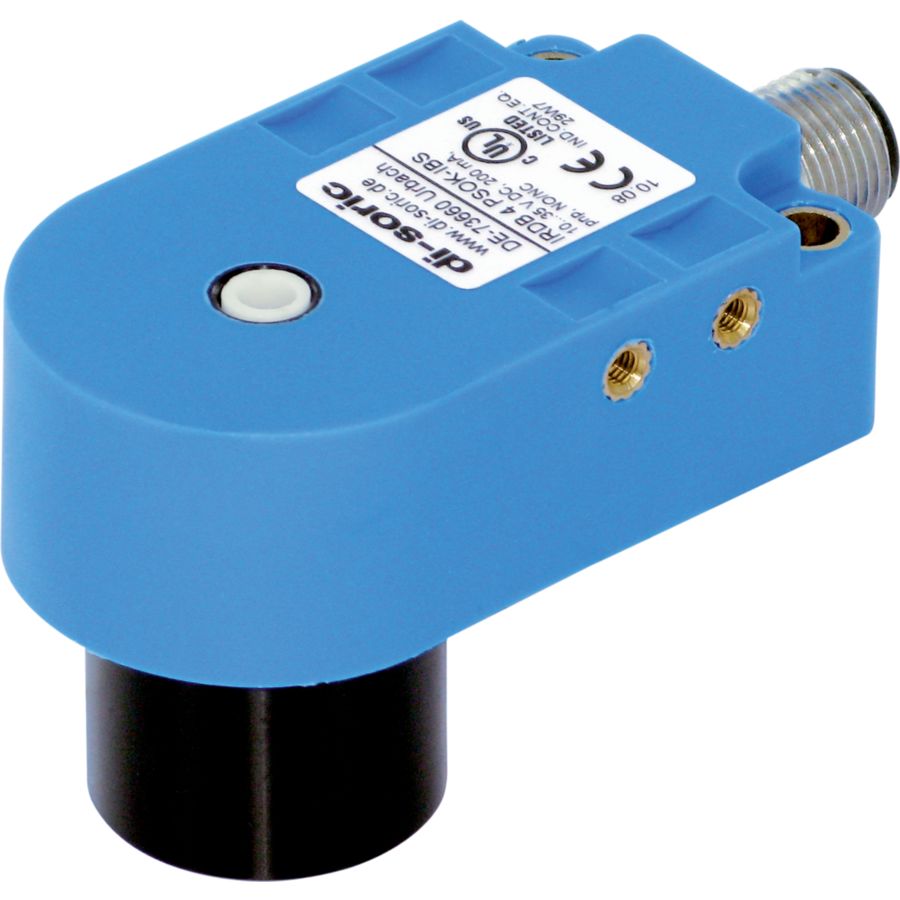

Inductive Wire Break Sensor - IRDBD 4 NSOK-IBS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Dynamic
Internal diameter	4 mm
Assembly distance to metal (min.)	2 mm
Service voltage	10 … 35 V DC (Supply Class 2)
Switching output	npn, 200 mA, NO/NC
No-load current (max.)	20 mA
Speed of parts (max.)	35 m/s
Pulse stretching	0,1 … 150 ms
Housing material	Plastic
Protection type	IP 67
Ambient temperature during operation	-25 … +70 °C
Connection	Connector, M12, 4-pin
