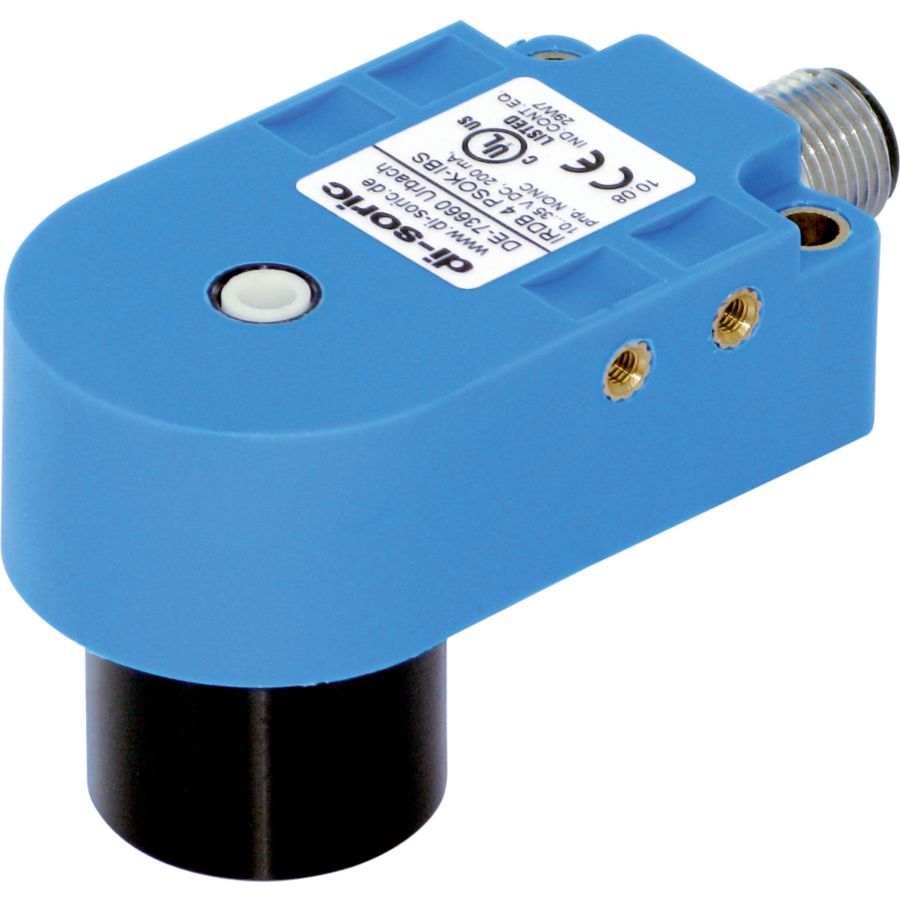

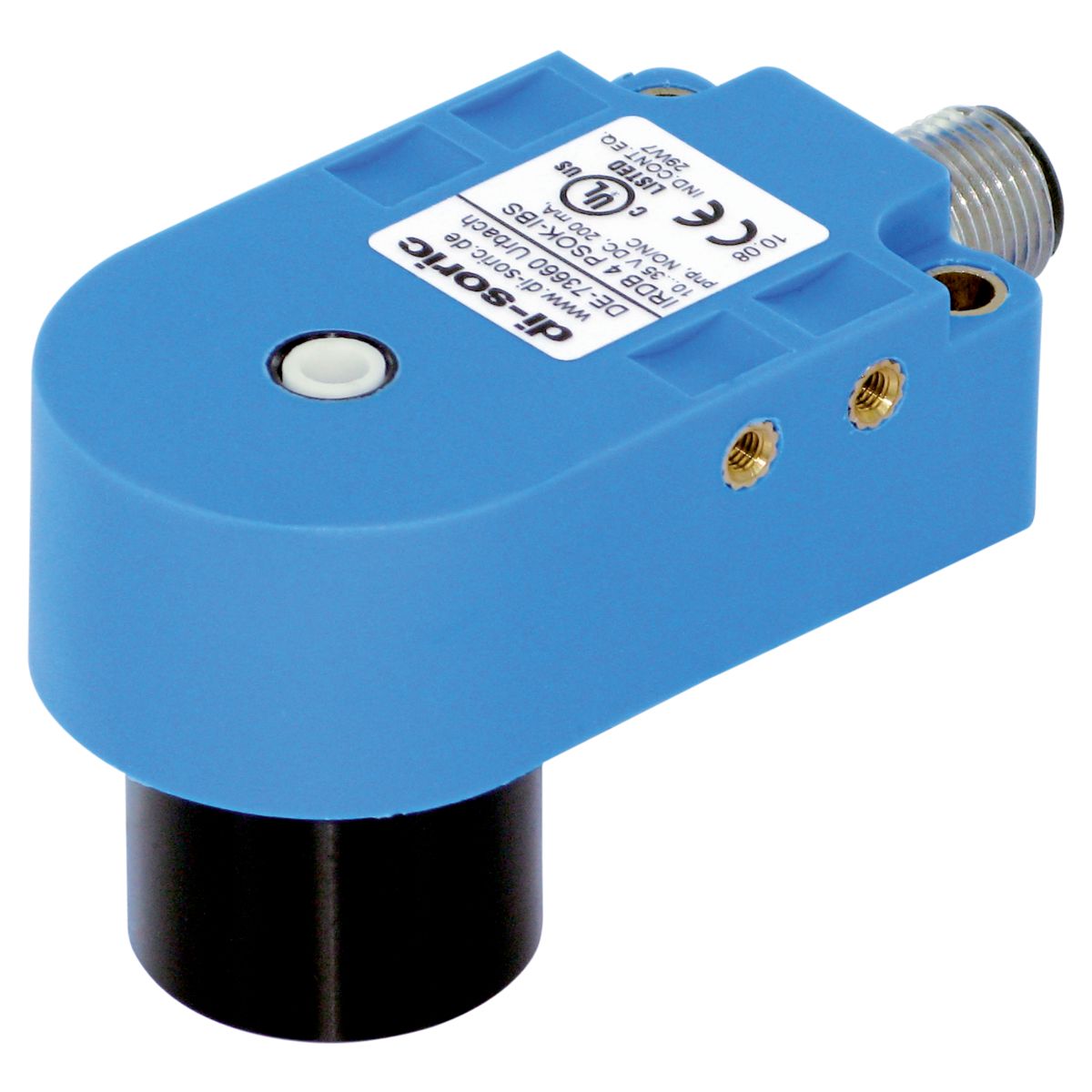

Inductive Wire Break Sensor - IRDB 4 NSOK-IBS

Part Number: IRDB 4 NSOK-IBS

Article Number: 204975

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Static
Internal diameter 4 mm
Assembly distance to metal (min.) 5 mm
Service voltage 10 … 35 V DC (Supply Class 2)
Switching output npn, 200 mA, NO/NC
No-load current (max.) 11 mA
Speed of parts (max.) 35 m/s
Pulse stretching 10 … 150 ms
Housing material Plastic
Protection type IP 67
Ambient temperature during operation -25 … +70 °C
Connection Connector, M12, 4-pin
