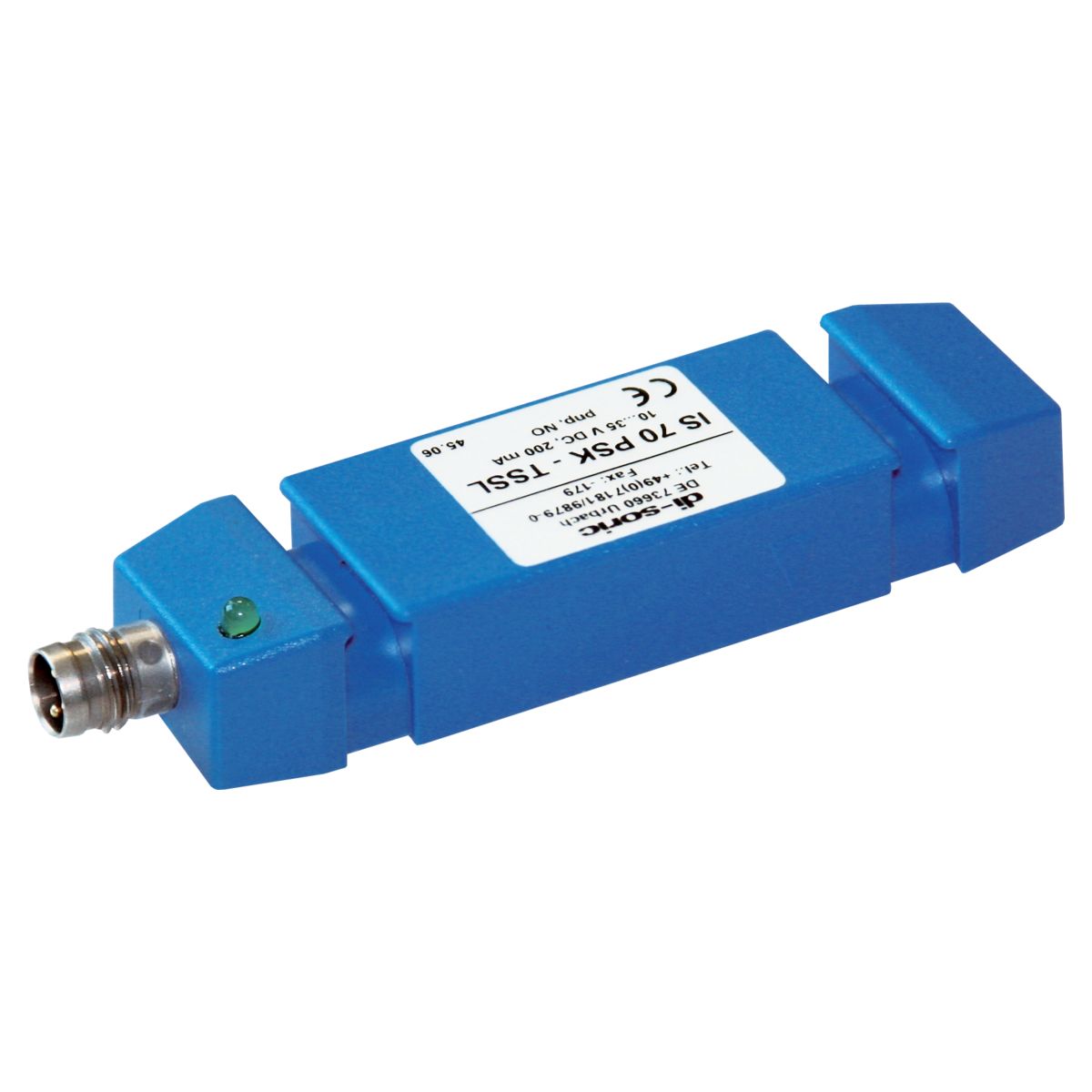

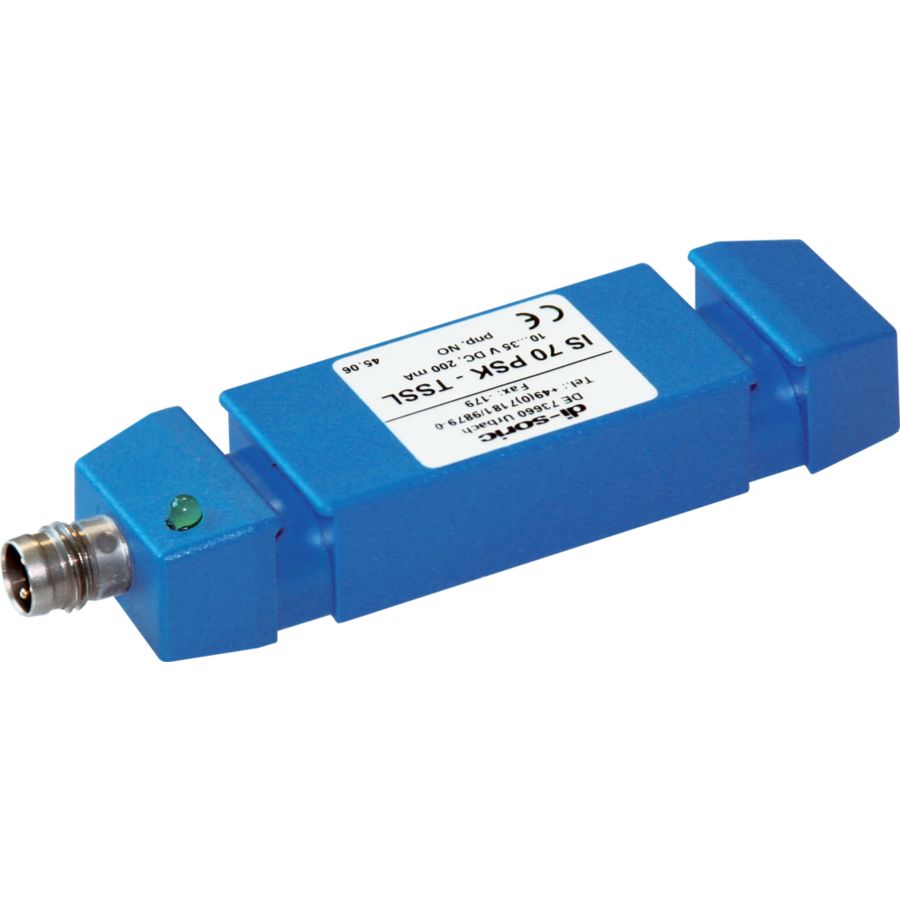

Inductive Tube Sensor - IS 70 NSK-TSSL
Part Number: IS 70 NSK-TSSL
Article Number: 203674
Inductive tube sensors are the perfect solution for the detection of metallic parts in automated feeding systems. These sensors are featured by a high resolution and short response time and will be mainly applied for parts detection and stow control.
- Static or dynamic working principle
- High-resolution and insensitive versions available
- Compact design
- High resolution
- Low weight
- Metal connector M8 or pig tail with connector M12
- Slot for quick mounting
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Static |
|---|---|
| Max. operating distance | 14 mm |
| Service voltage | 10 … 35 V DC (Supply Class 2) |

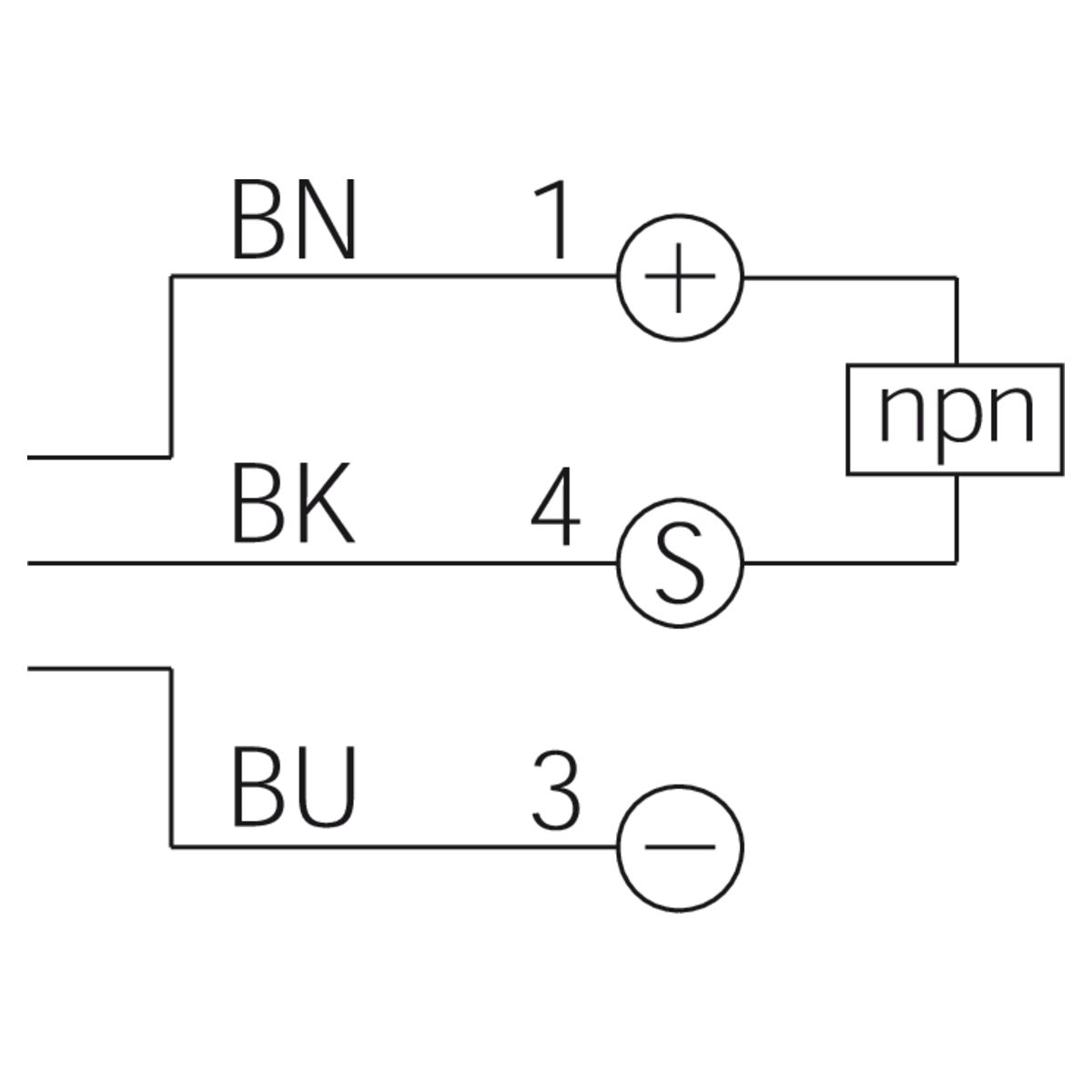

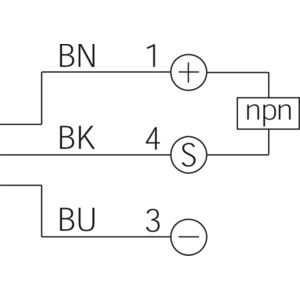

| Switching output | npn, 200 mA, NO |
| No-load current (max.) | 15 mA |
| Speed of parts (max.) | 35 m/s |
| Activation time | 100 ms |
| Housing material | Plastic |
| Protection type | IP 67 |
| Ambient temperature during operation | -25 … +70 °C |
| Connection | Connector, M8, 3-pin |
