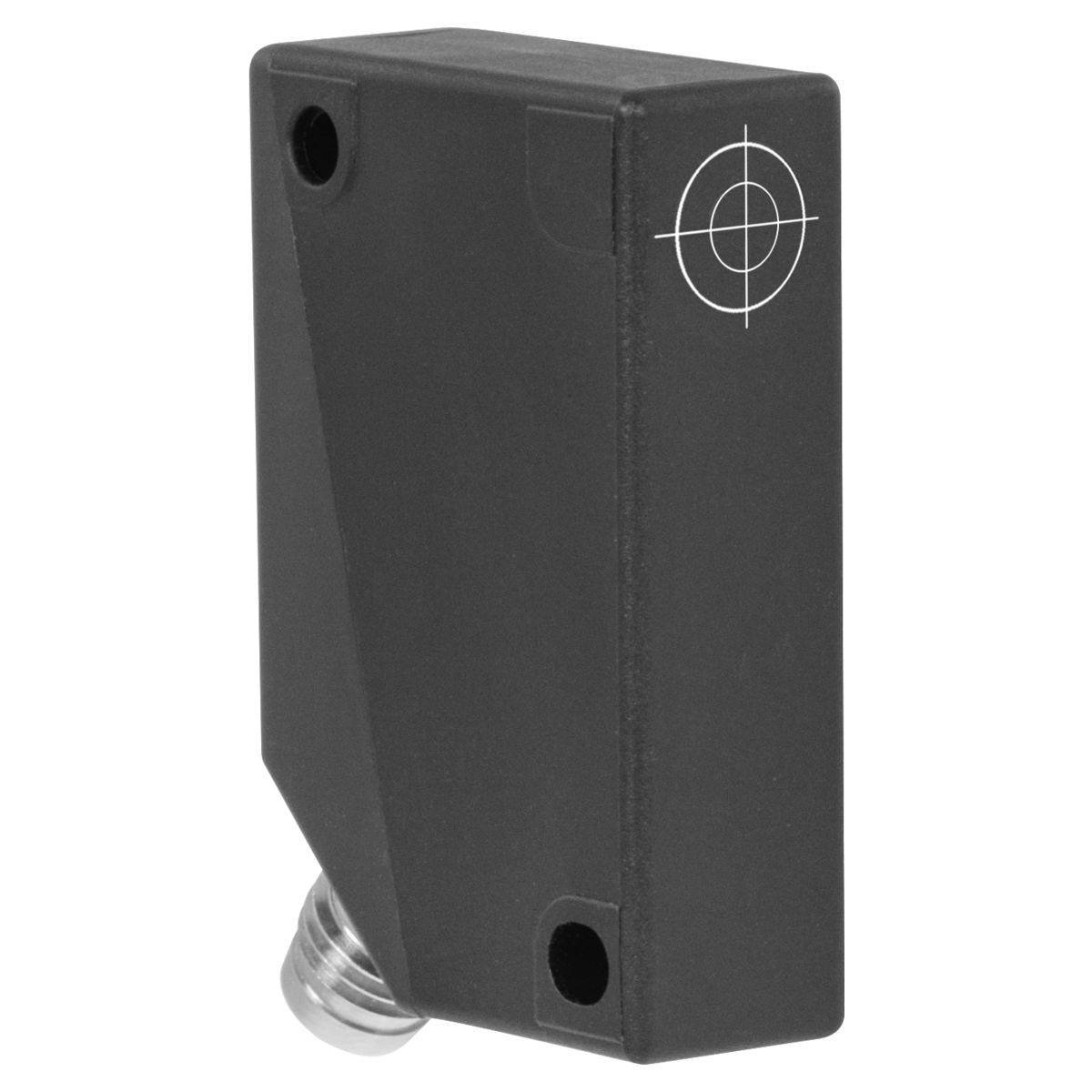

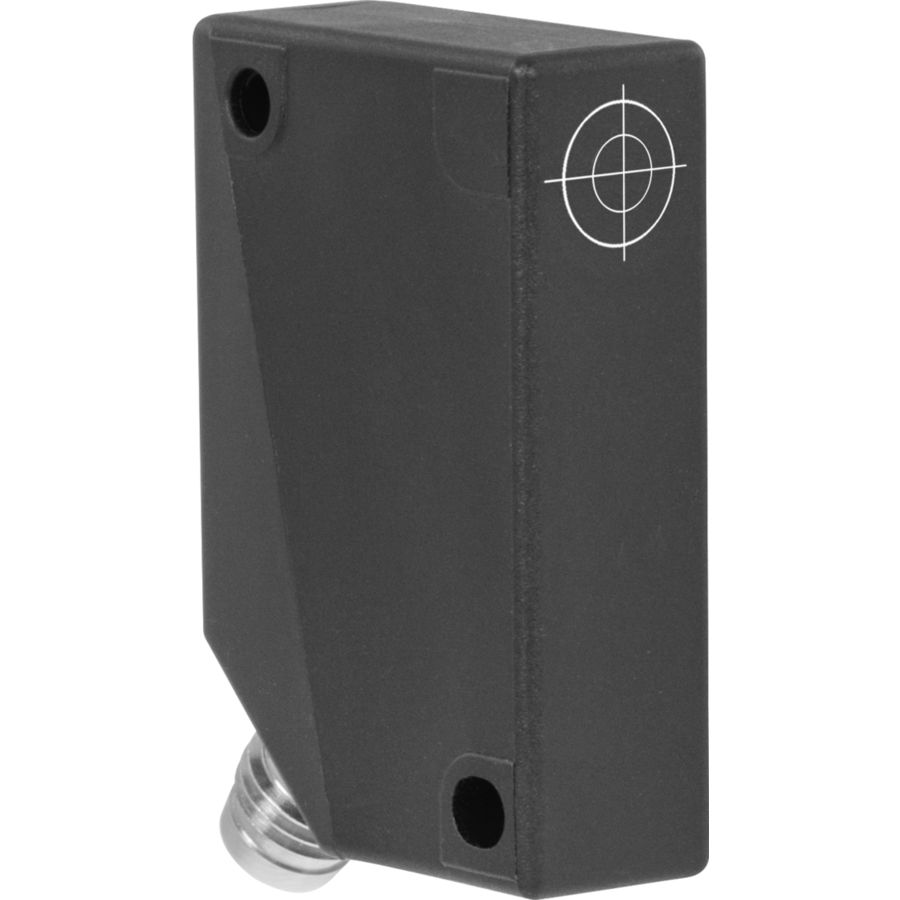

Inductive Proximity Sensor - DCR 40 K 04 POK-TSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	non-flush
Switching distance	4 mm
Service voltage	10 … 35 V DC
Switching output	pnp, 200 mA, NC
No-load current (max.)	10 mA
Evaluation	digital
Design	Cuboid design
Housing material	Plastic

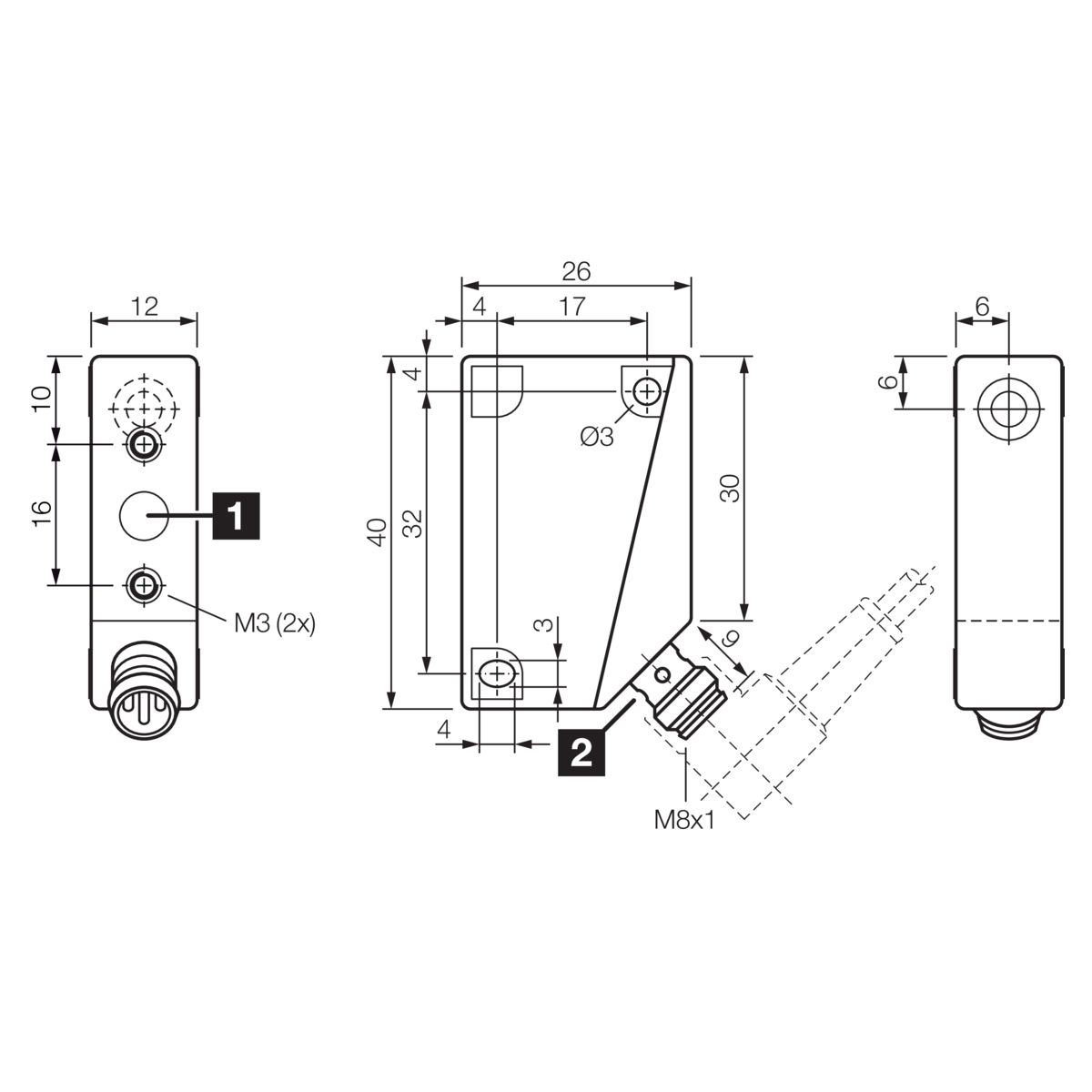

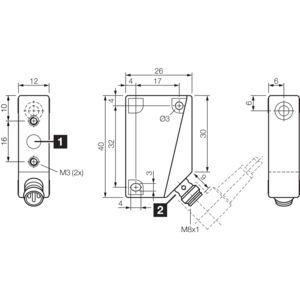

Size	40 x 26 x 12 mm
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
