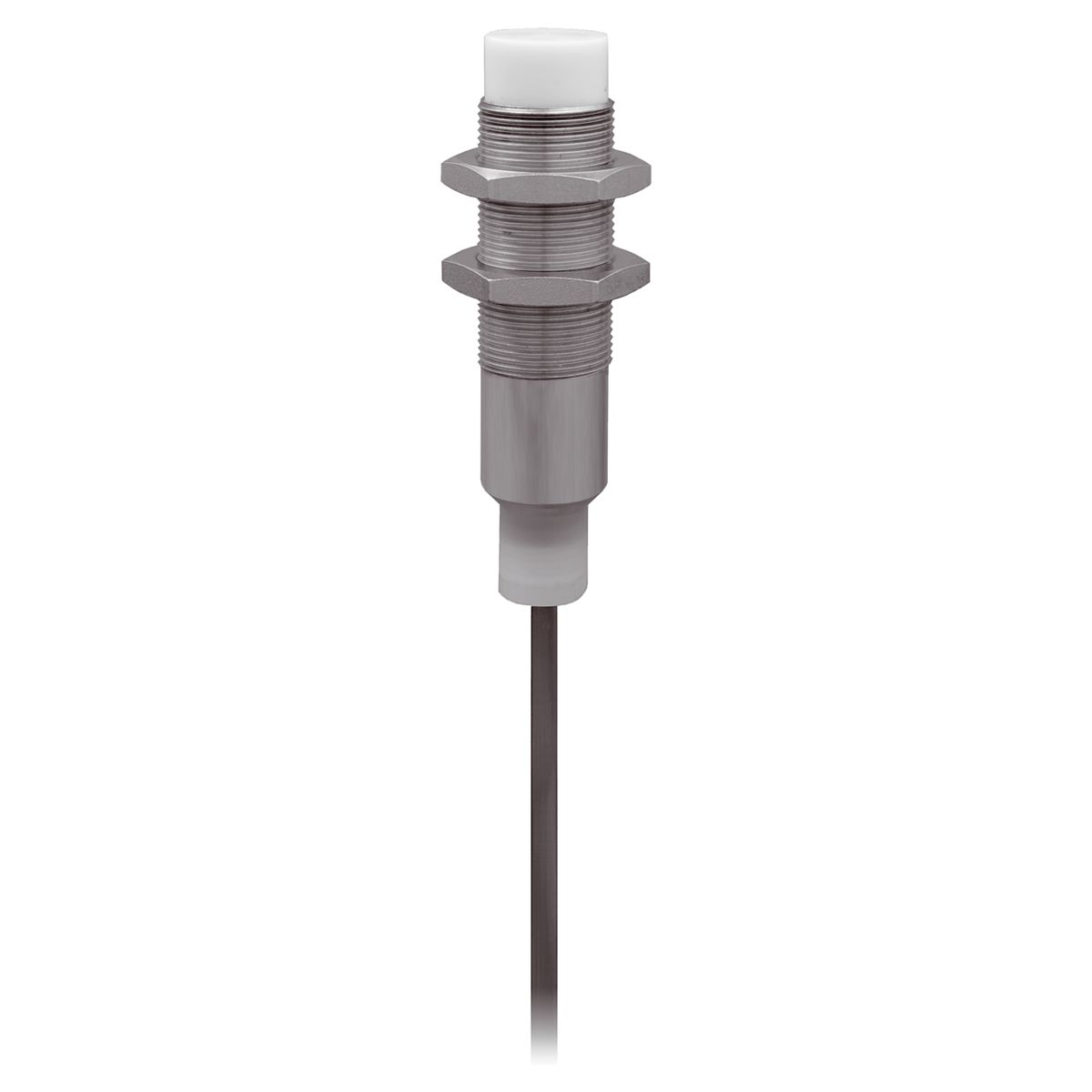

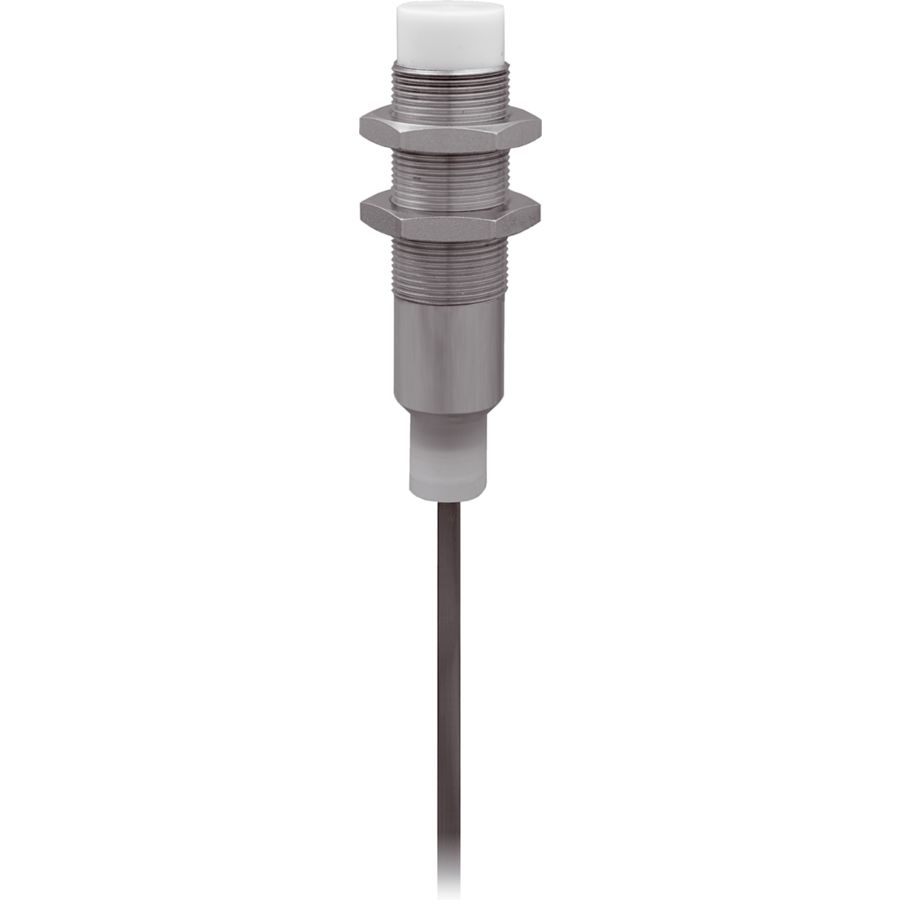

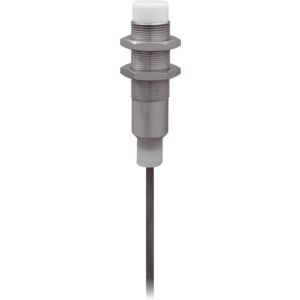

Inductive Proximity Sensor - DCE 18 VH 07 PSLK
Part Number: DCE 18 VH 07 PSLK
Article Number: 200540
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | non-flush |
| Switching distance | 7 mm |
| Service voltage | 10 … 33 V DC |
| Switching output | pnp, 200 mA, NO |
| No-load current (max.) | 4 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | < 10 bar, < 120°, high-temperature resistant and pressure resistant |
| Housing material | Stainless steel, Plastic, V4A 1.4571 / AISI 316Ti, PTFE |
| Size | M18 x 1 |
| Ambient temperature during operation | -25 … +120 °C |
| Protection type | IP 68 |
| Connection | Cable, 2 m |
