Inductive Proximity Sensor - DCCR 44 K 40 PSOL-IBS
Part Number: DCCR 44 K 40 PSOL-IBS
Article Number: 207280
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Operating principle | inductive |
---|---|
Installation type | non-flush |
Switching distance | 40 mm |
Service voltage | 10 … 30 V DC |

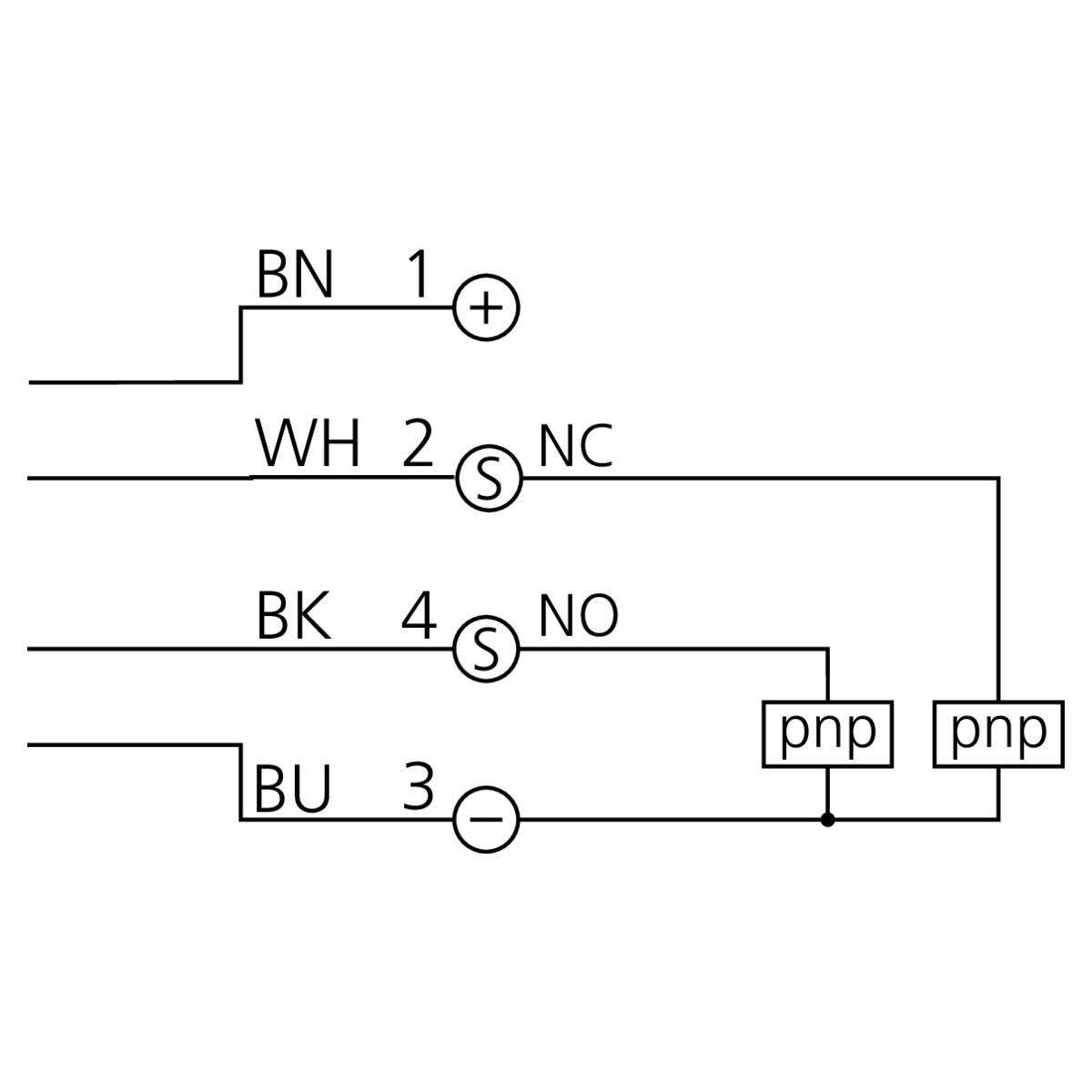

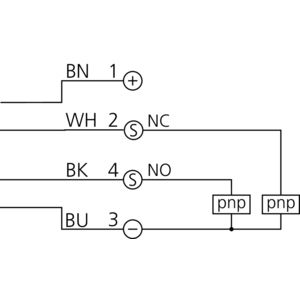

Switching output | pnp, 200 mA, antivalent |
No-load current (max.) | 20 mA |
Evaluation | digital |
Design | Cuboid design |
Housing material | Plastic, PA |

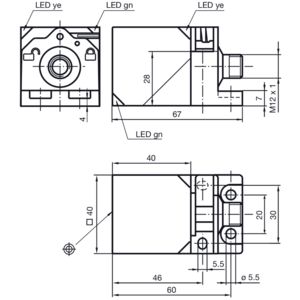

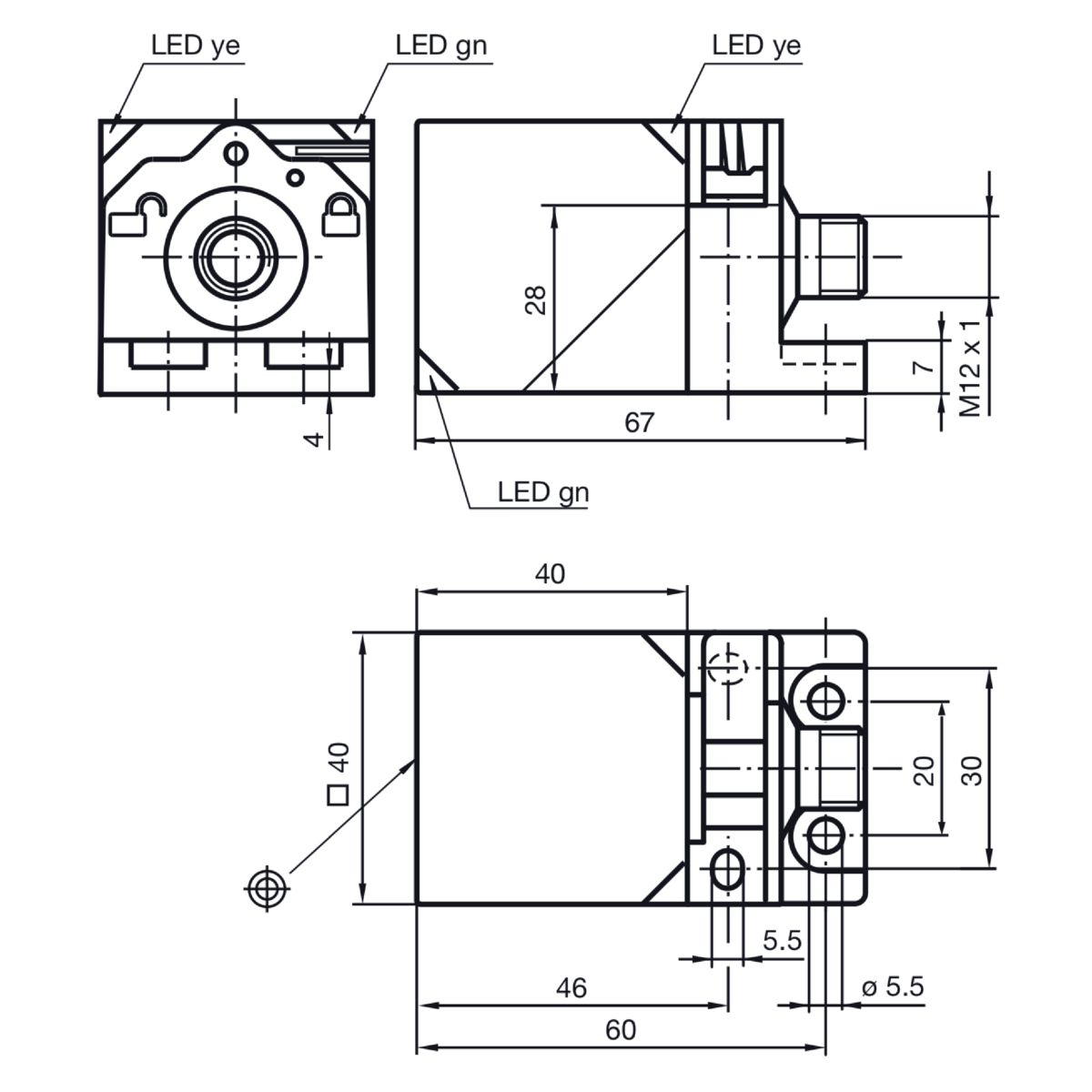

Size | 40 x 40 x 67 mm |
Ambient temperature during operation | -25 … +85 °C |
Protection type | IP 69K |
Connection | Connector, M12 x 1 |
