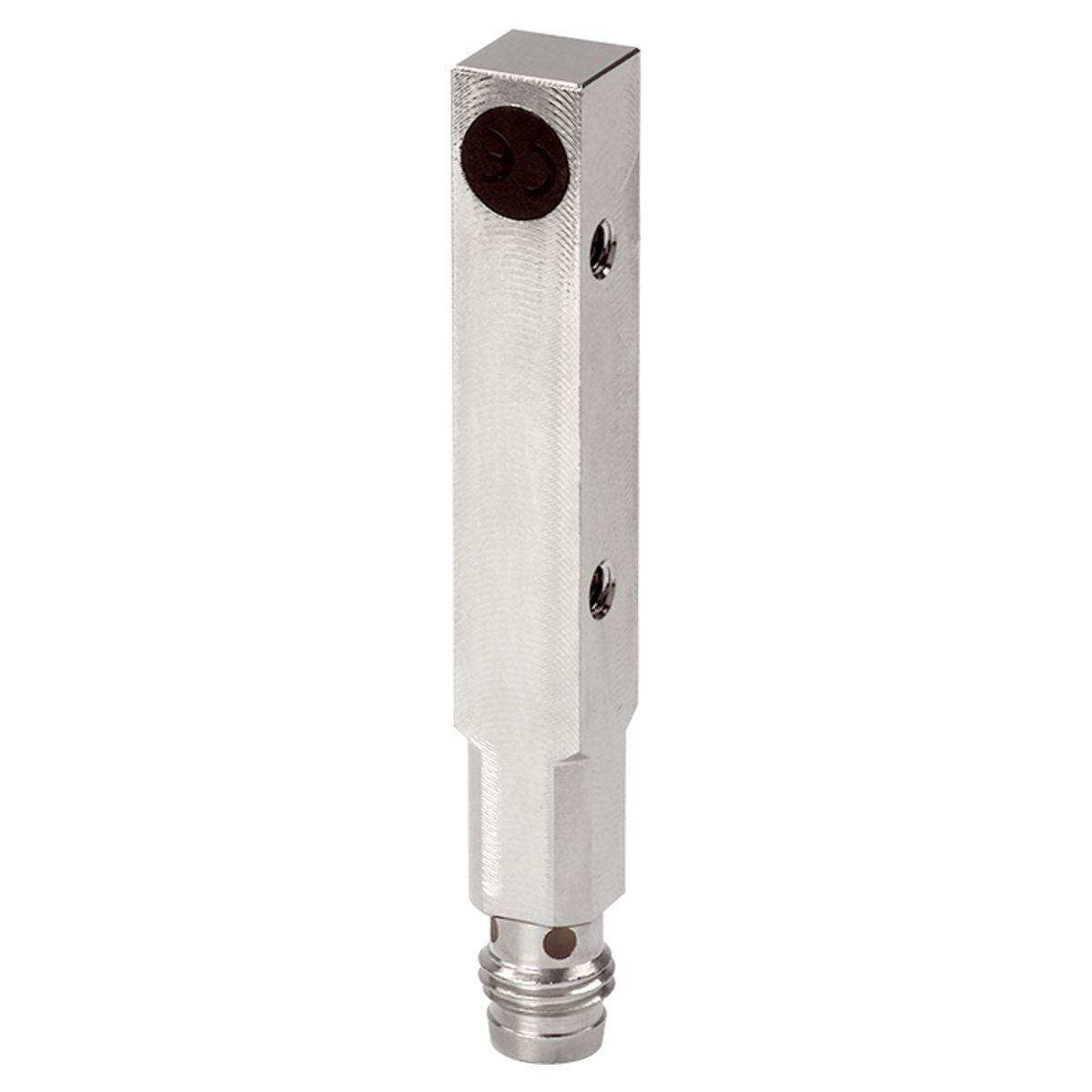

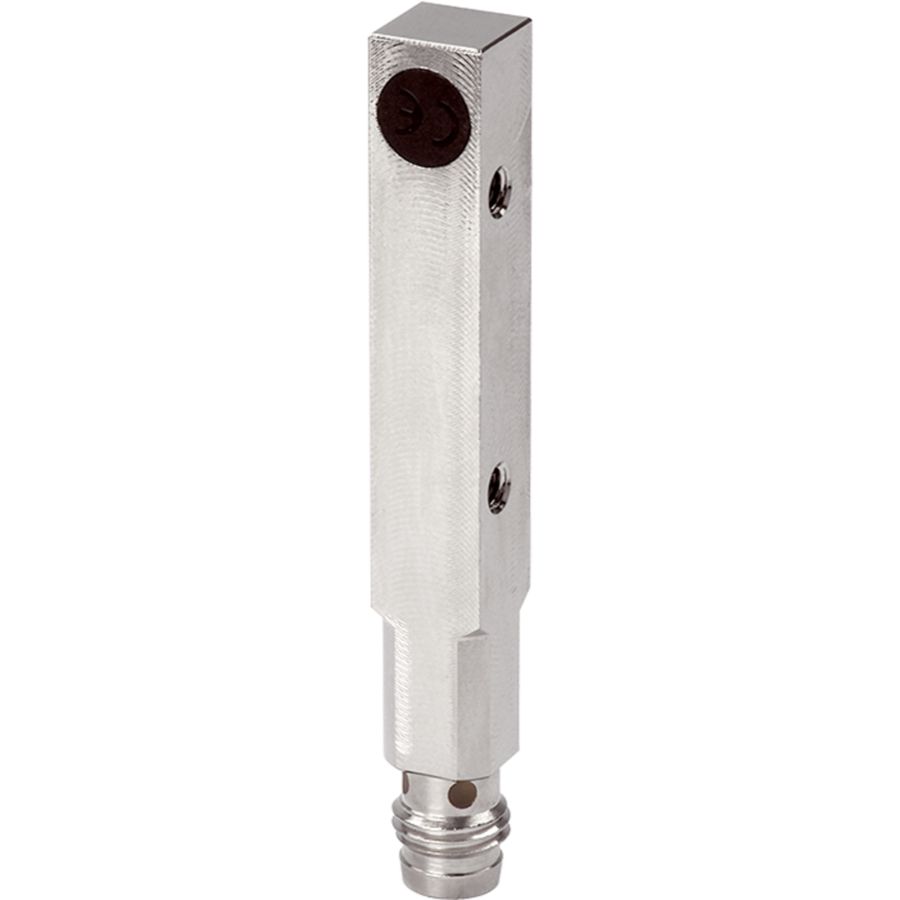

Inductive Proximity Sensor - DCCQ 08 M 03 PSK-TSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	quasi-flush
Switching distance	3 mm
Service voltage	10 … 30 V DC
Switching output	pnp, 200 mA, NO
No-load current (max.)	10 mA
Evaluation	digital
Design	Cuboid design
Characteristics	extremely high operating distance
Housing material	Brass, CuZn

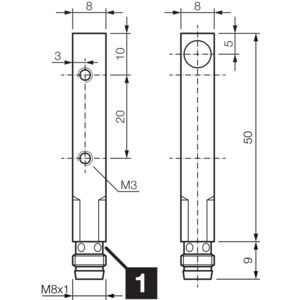

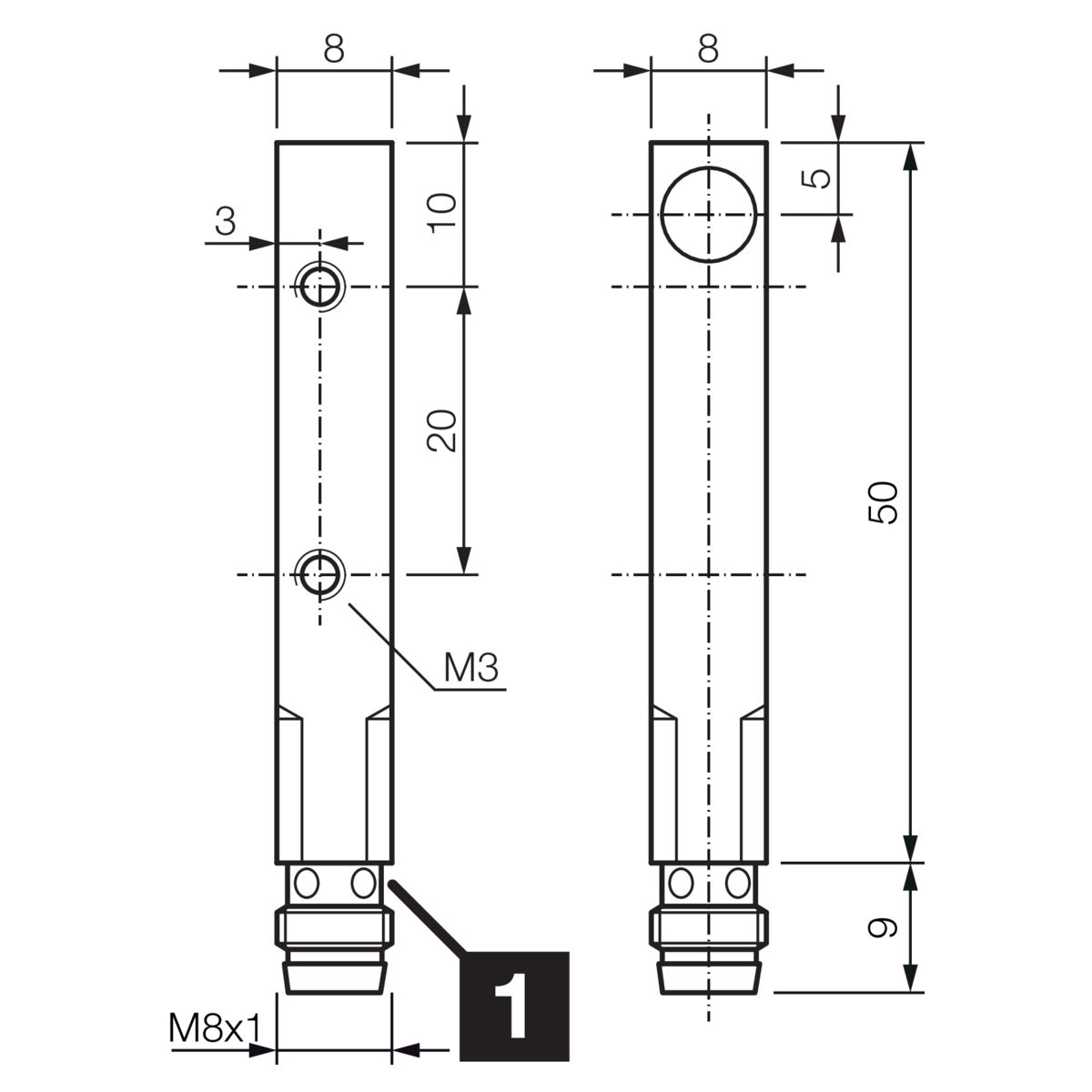

Size	8 x 8 x 50 mm
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
