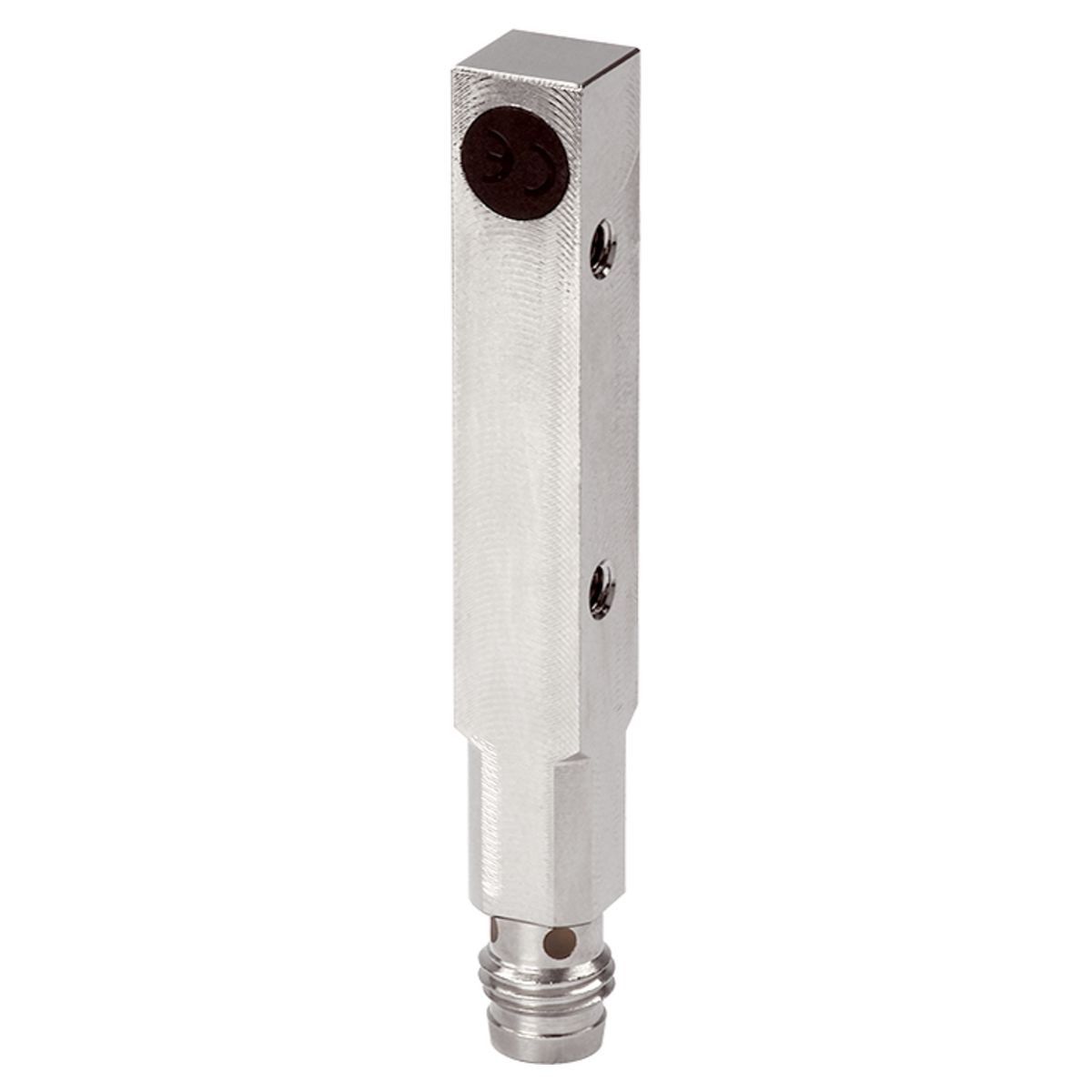

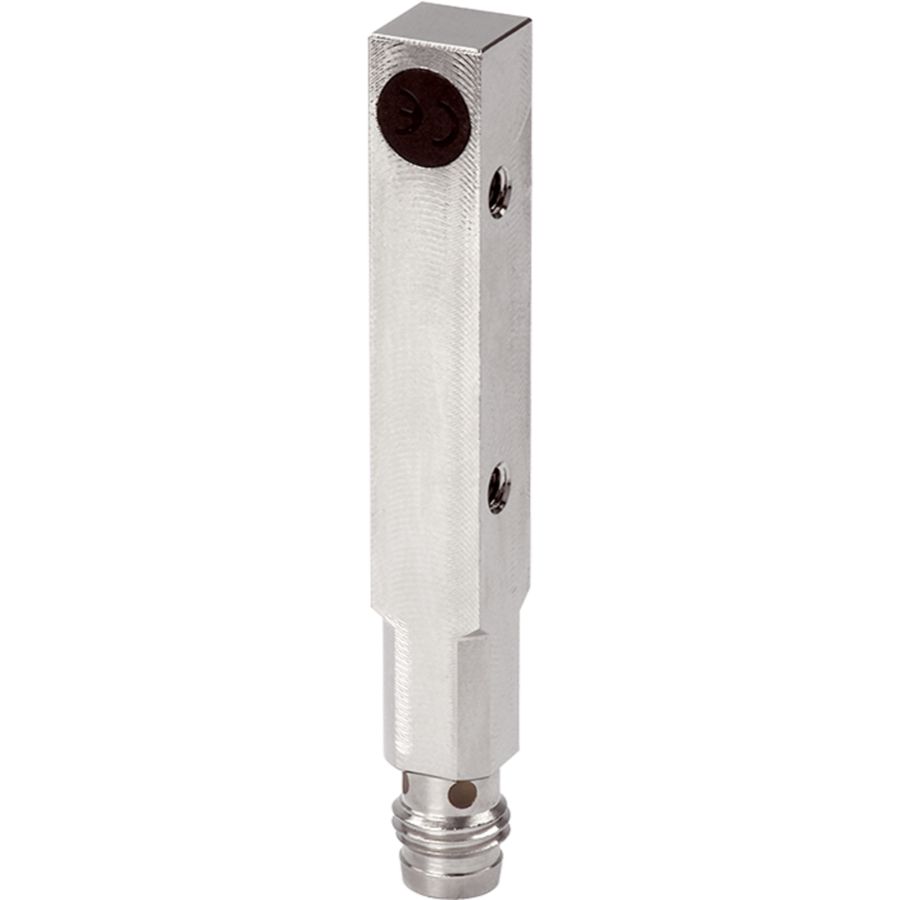

Inductive Proximity Sensor - DCCQ 08 M 02 POK-TSL

Part Number: DCCQ 08 M 02 POK-TSL

Article Number: 207043

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle inductive
Installation type Flush
Switching distance 2 mm
Service voltage 10 … 30 V DC
Switching output pnp, 200 mA, NC
No-load current (max.) 10 mA
Evaluation digital
Design Cuboid design
Characteristics increased operating distance
Housing material Brass, CuZn

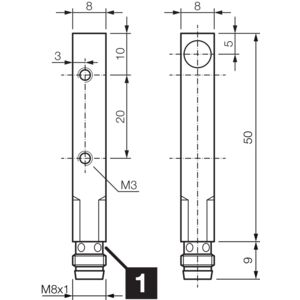

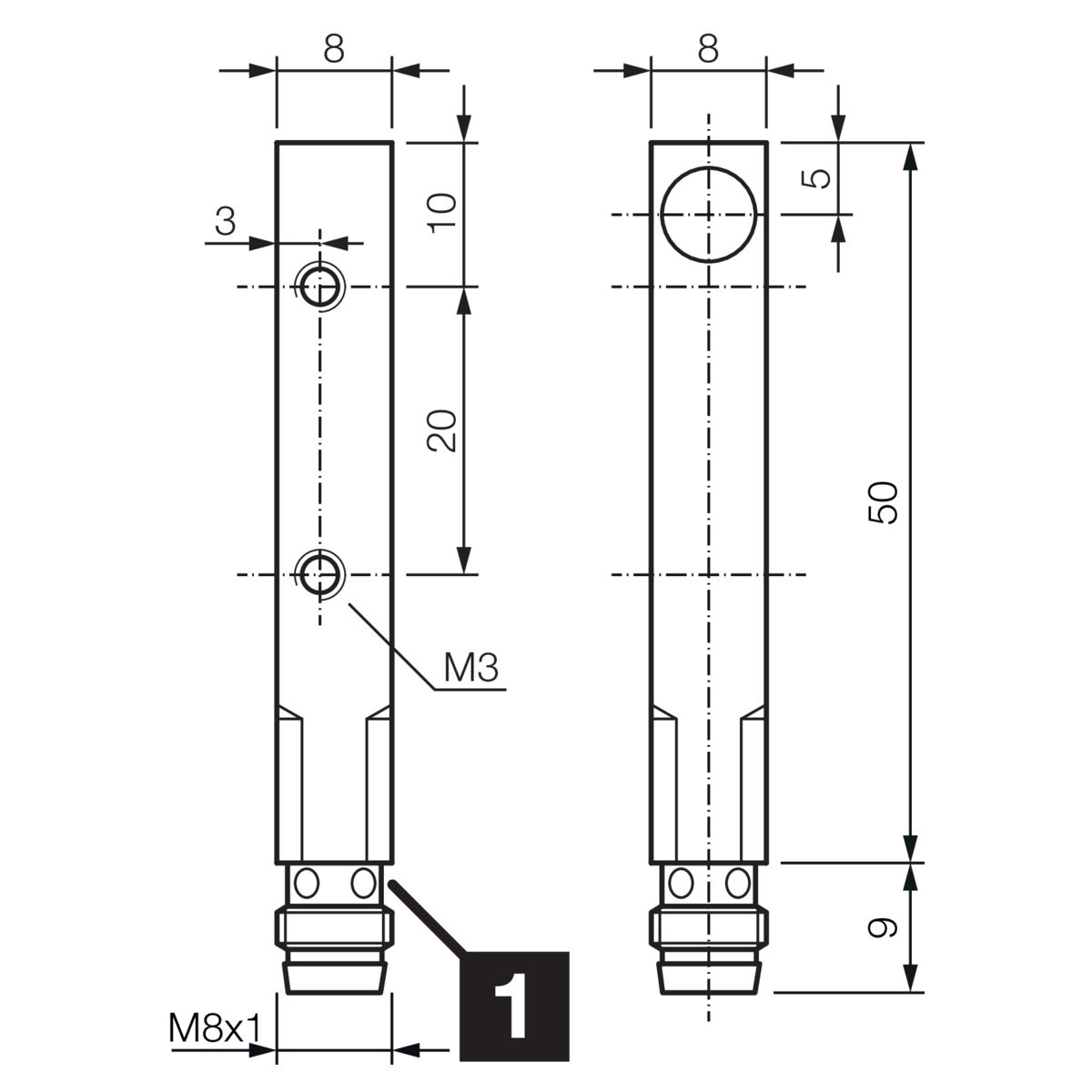

Size 8 x 8 x 50 mm
Ambient temperature during operation -25 … +70 °C
Protection type IP 67
Connection Connector, M8, 3-pin
