Inductive Proximity Sensor - DCCK 18 M 20 POK-IBSL
Part Number: DCCK 18 M 20 POK-IBSL
Article Number: 203636
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | non-flush |
| Switching distance | 20 mm |
| Service voltage | 10 … 30 V DC |

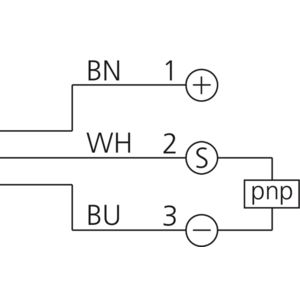

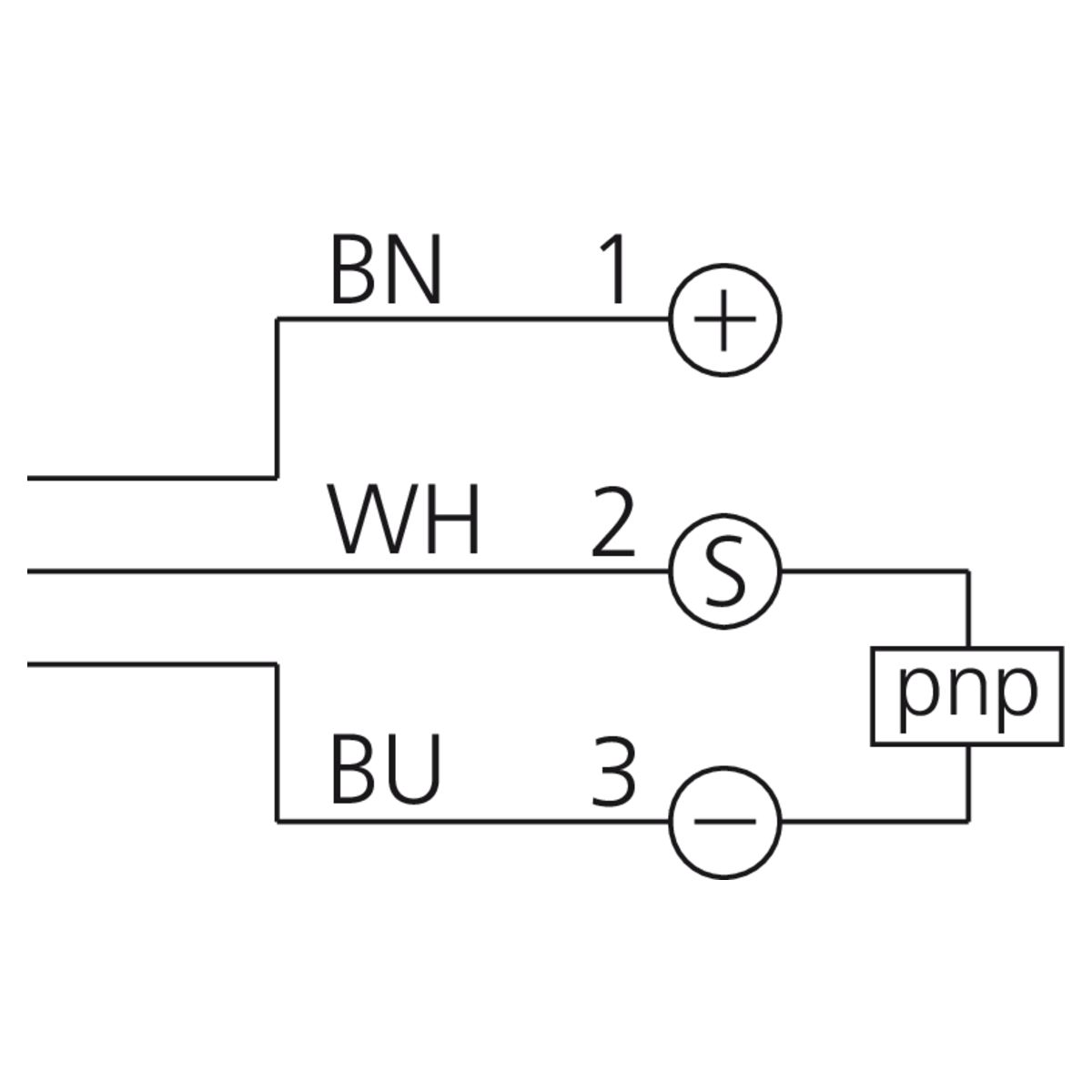

| Switching output | pnp, 200 mA, NC |
| No-load current (max.) | 10 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | extremely high operating distance |
| Housing material | Brass, CuZn |
| Size | M18 x 1 |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Connector, M12, 4-pin |
