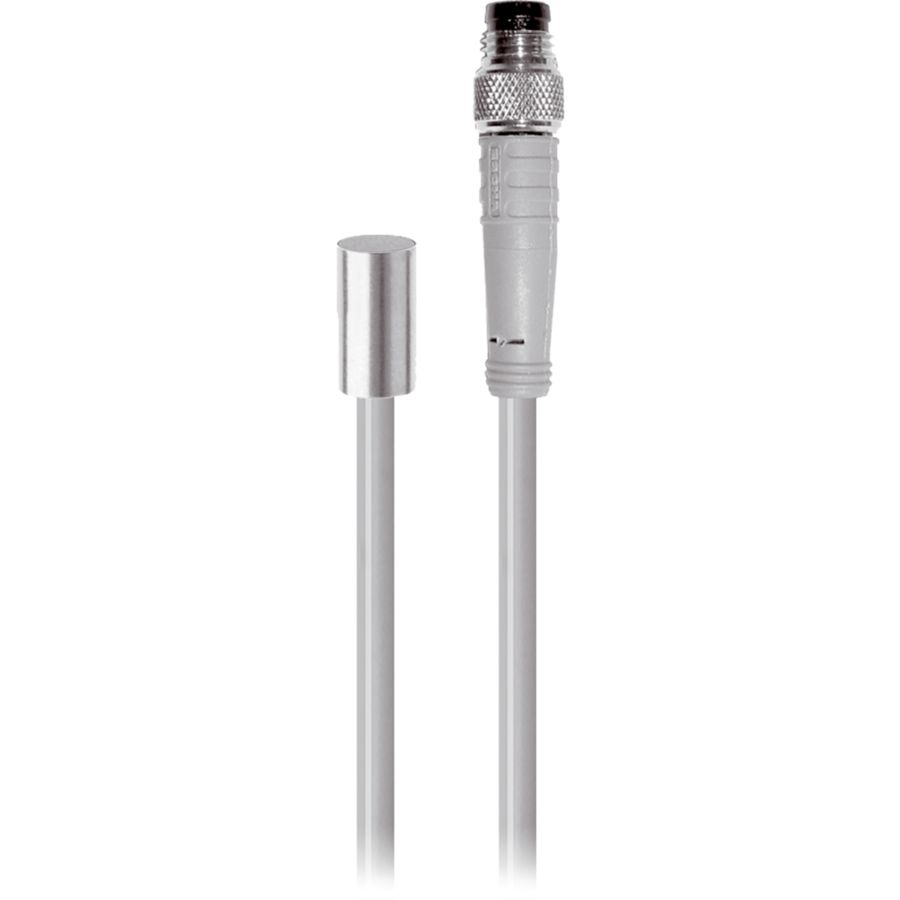

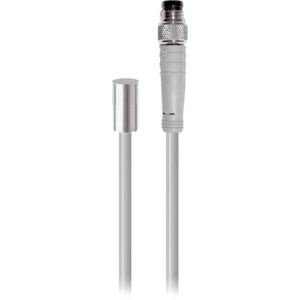

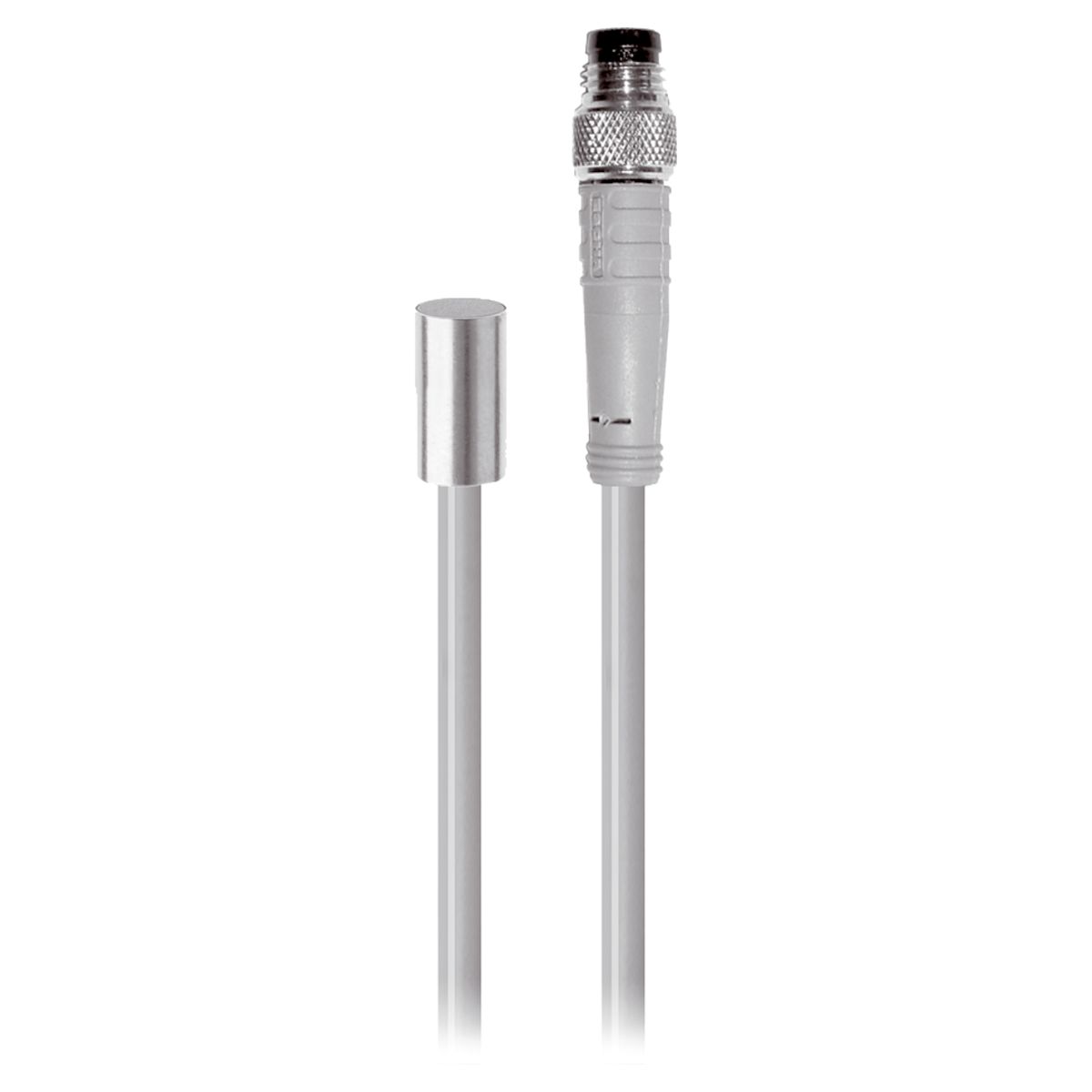

Inductive Proximity Sensor - DCC 8.0 M 02 PSK-KR-TSL
Part Number: DCC 8.0 M 02 PSK-KR-TSL
Article Number: 203474
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 2 mm … 2 mm |
| Service voltage | 10 … 30 V DC |
| No-load current (max.) | 10 mA |
| Evaluation | digital |
| Design | Cylinder |
| Characteristics | increased operating distance |
| Housing material | Metal |

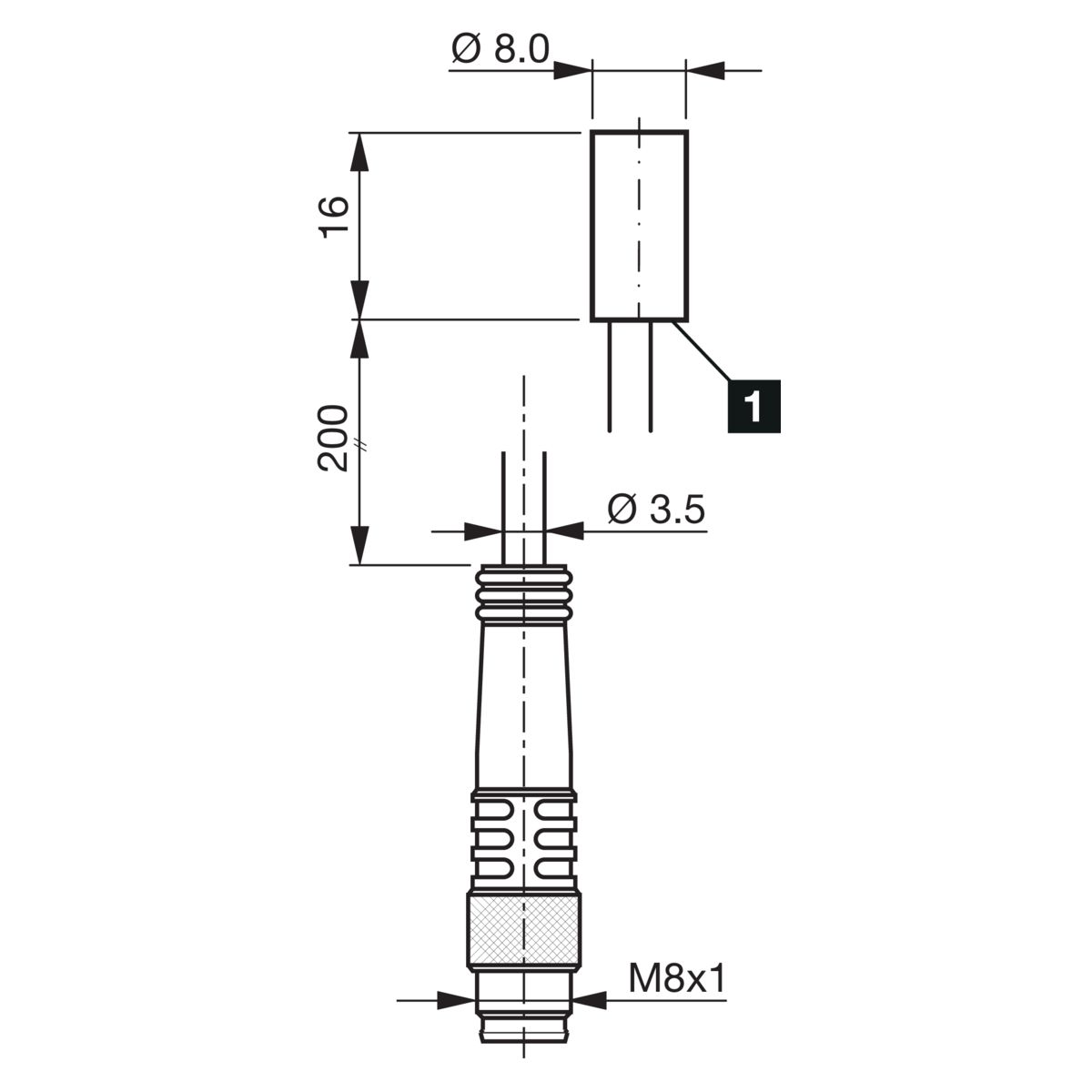

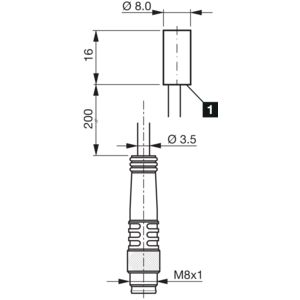

| Size | Ø 8 mm |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Cable/connector, 0,2 m, M8, 3-pin |
