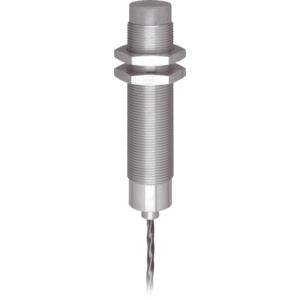

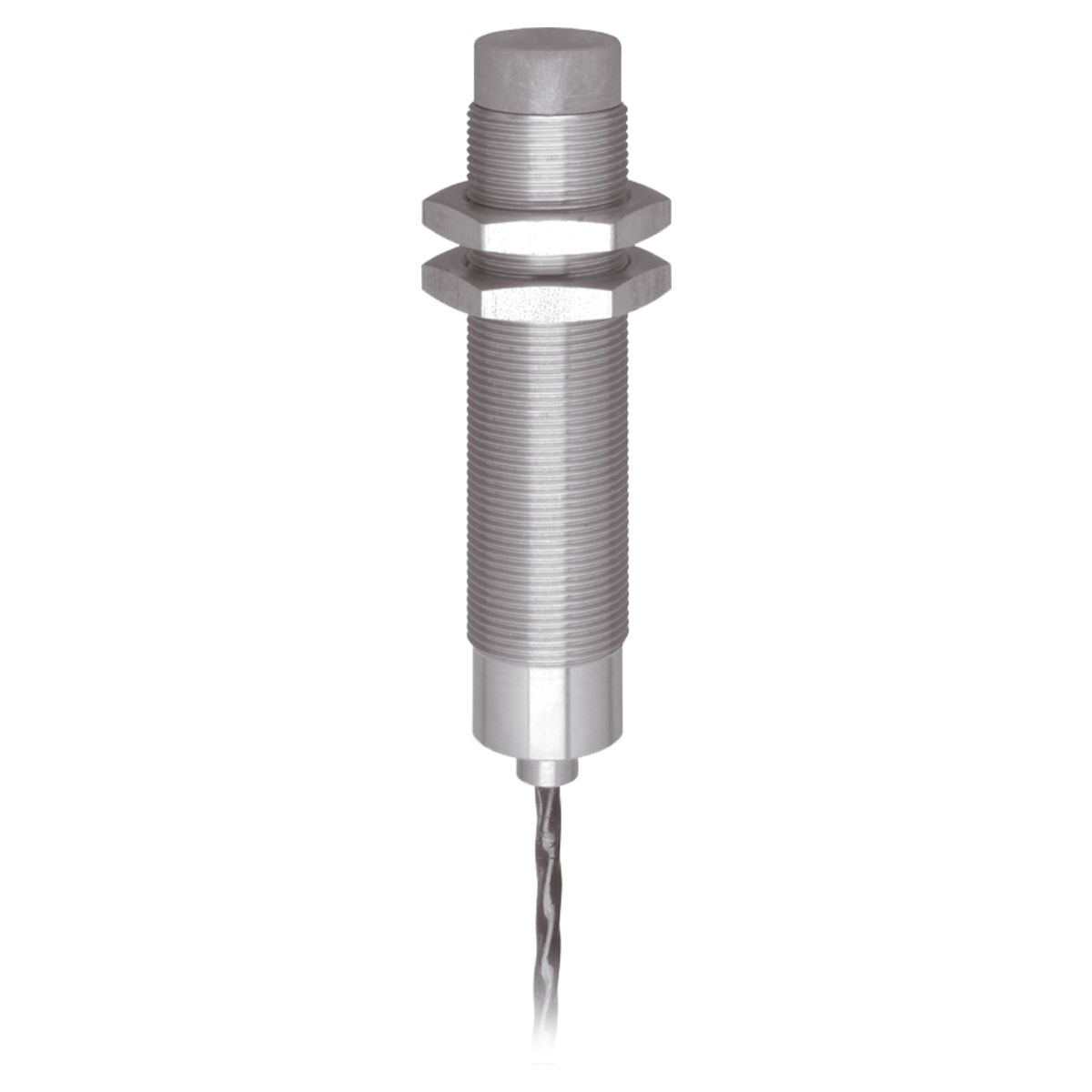

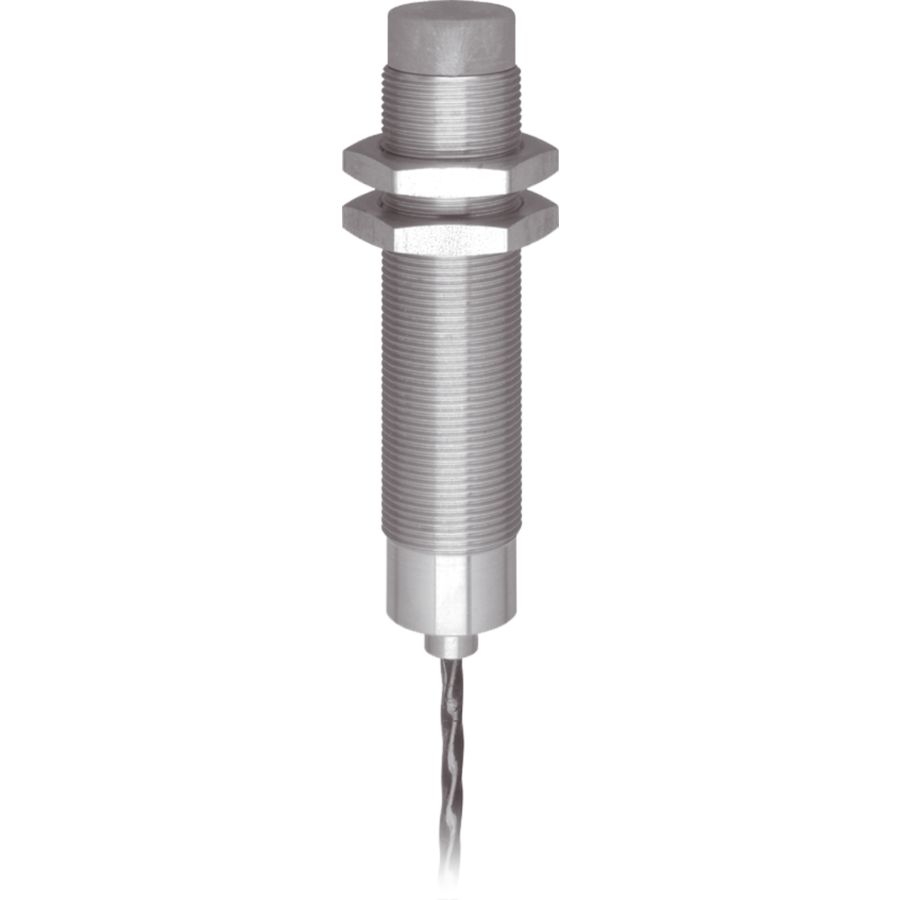

Inductive Proximity Sensor - DCC 18 VH 08 PSK/180

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	non-flush
Switching distance	8 mm
Service voltage	10 … 30 V DC
Switching output	pnp, 150 mA, NO
No-load current (max.)	10 mA
Evaluation	digital
Design	Thread
Characteristics	< +180 °C, high-temperature resistant
Housing material	Stainless steel

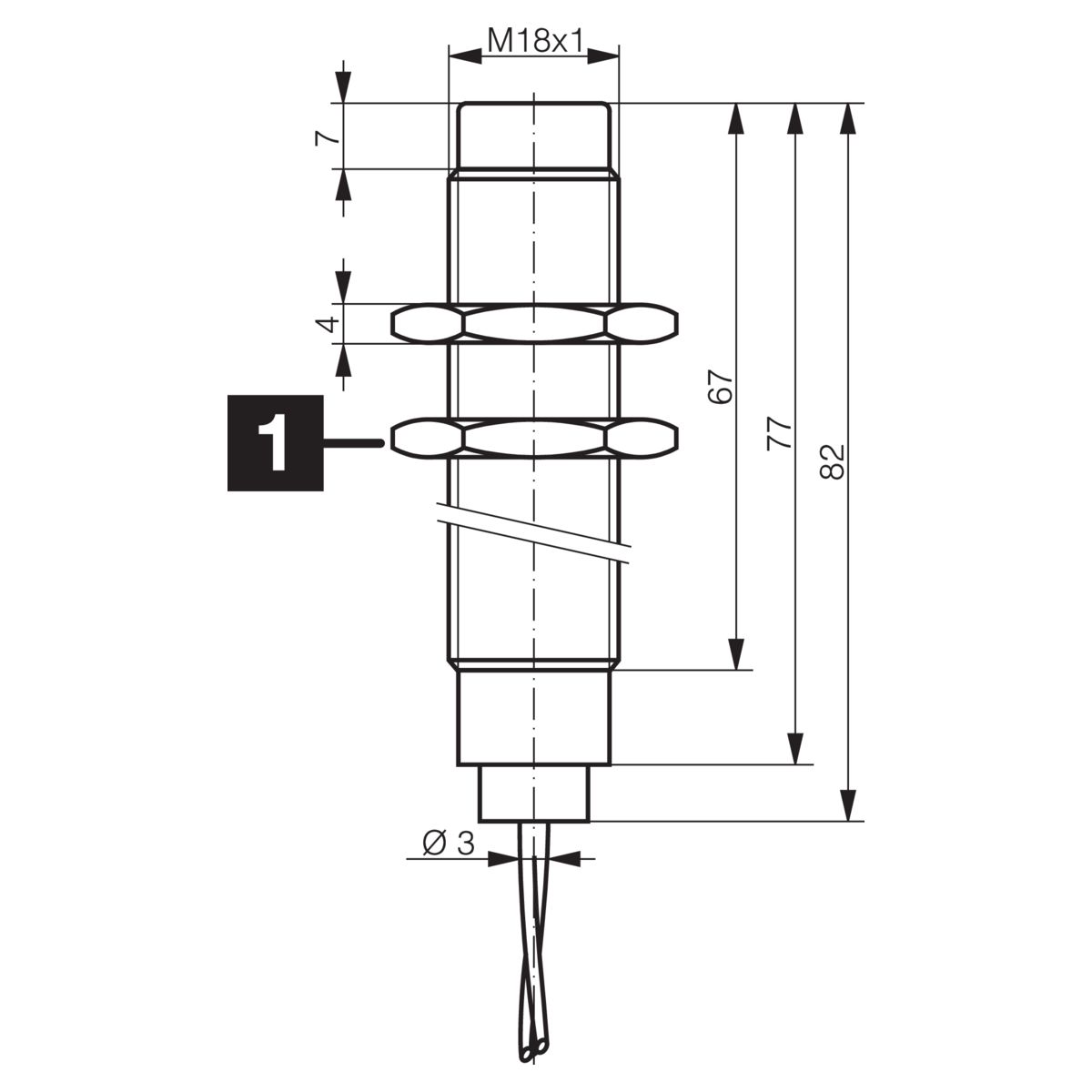

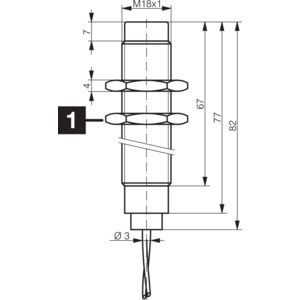

Size	M18 x 1
Ambient temperature during operation	0 … +180 °C
Protection type	IP 65
Connection	Cable, 2 m
