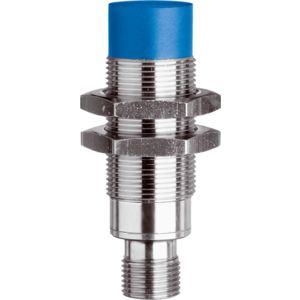

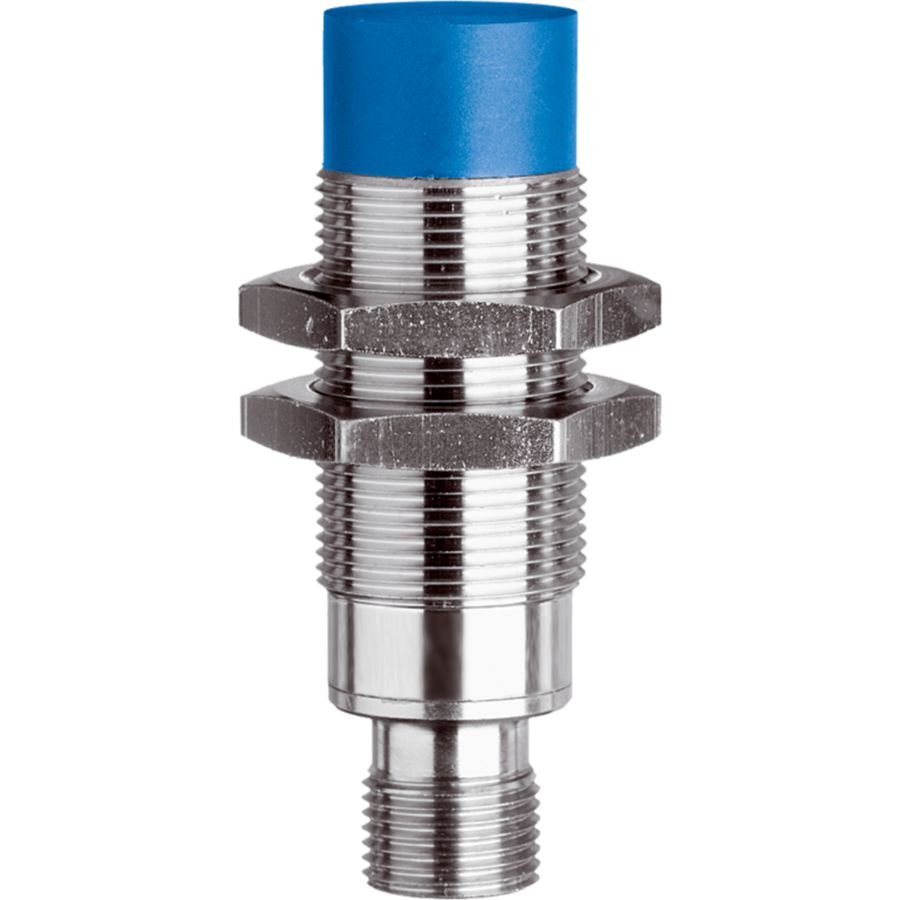

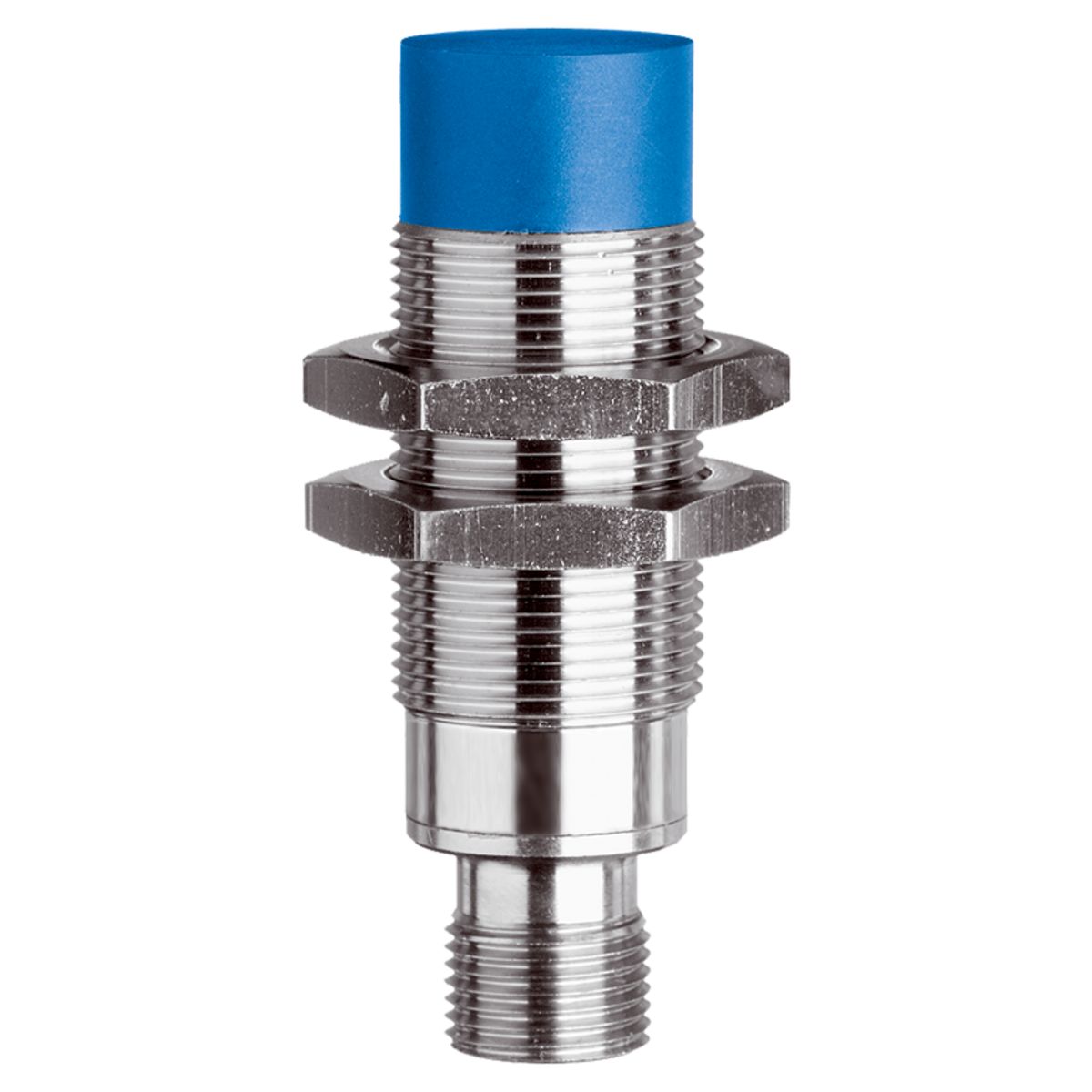

Inductive Proximity Sensor - DCC 18 M 20/10 AIK-IBS
Part Number: DCC 18 M 20/10 AIK-IBS
Article Number: 206291
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | non-flush |
| Switching distance | 0 mm … 20 mm |
| Service voltage | 15 … 30 V DC |
| Analog output voltage | 0 … 10 V (unlinearized) |
| Analog output current | 4 … 20 mA (unlinearized) |
| No-load current (max.) | 12 mA |
| Evaluation | analog |
| Design | Thread |
| Characteristics | extremely high operating distance |
| Housing material | Brass, CuZn |

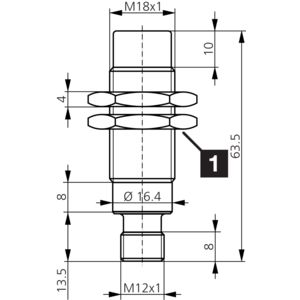

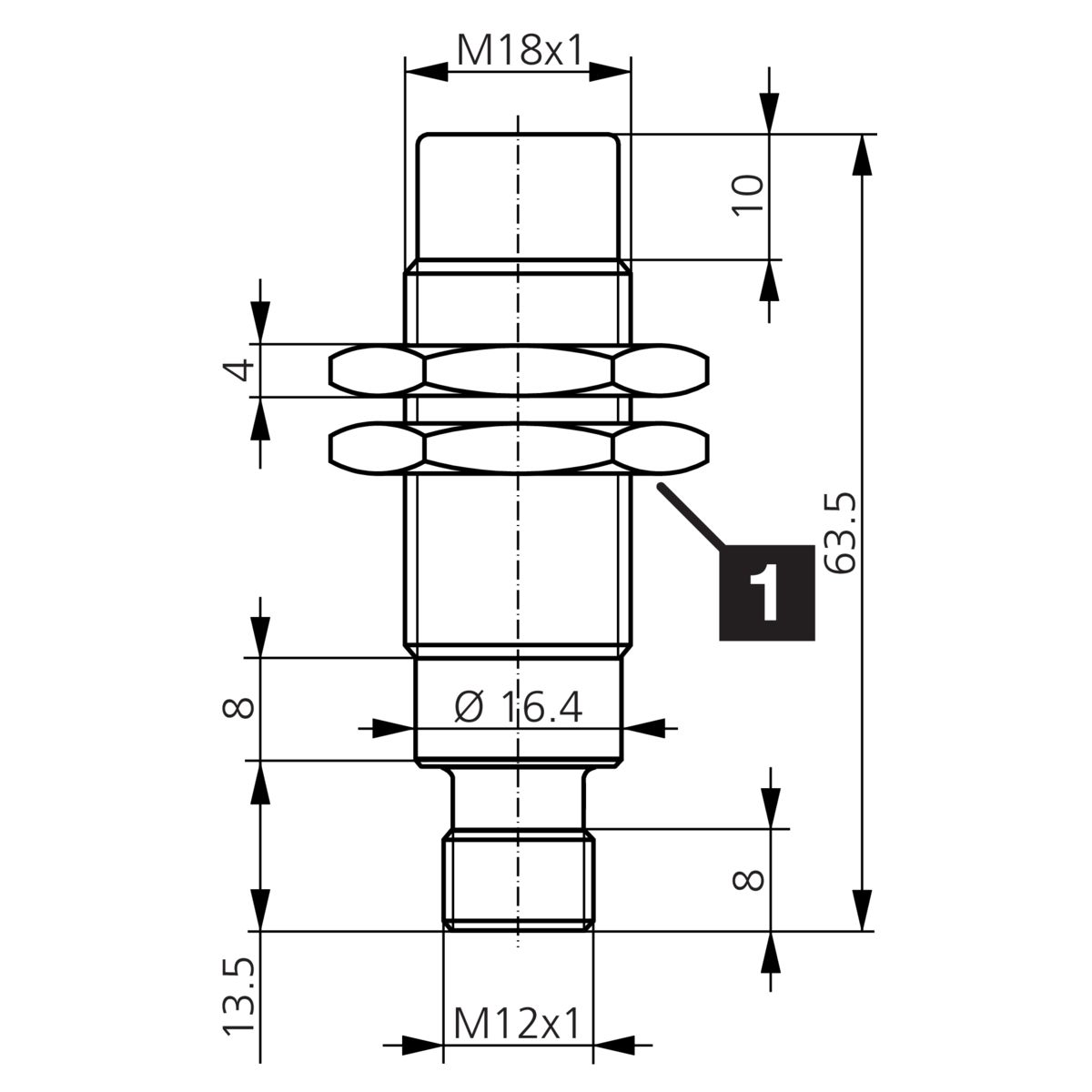

| Size | M18 x 1 |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Connector, M12, 4-pin |
