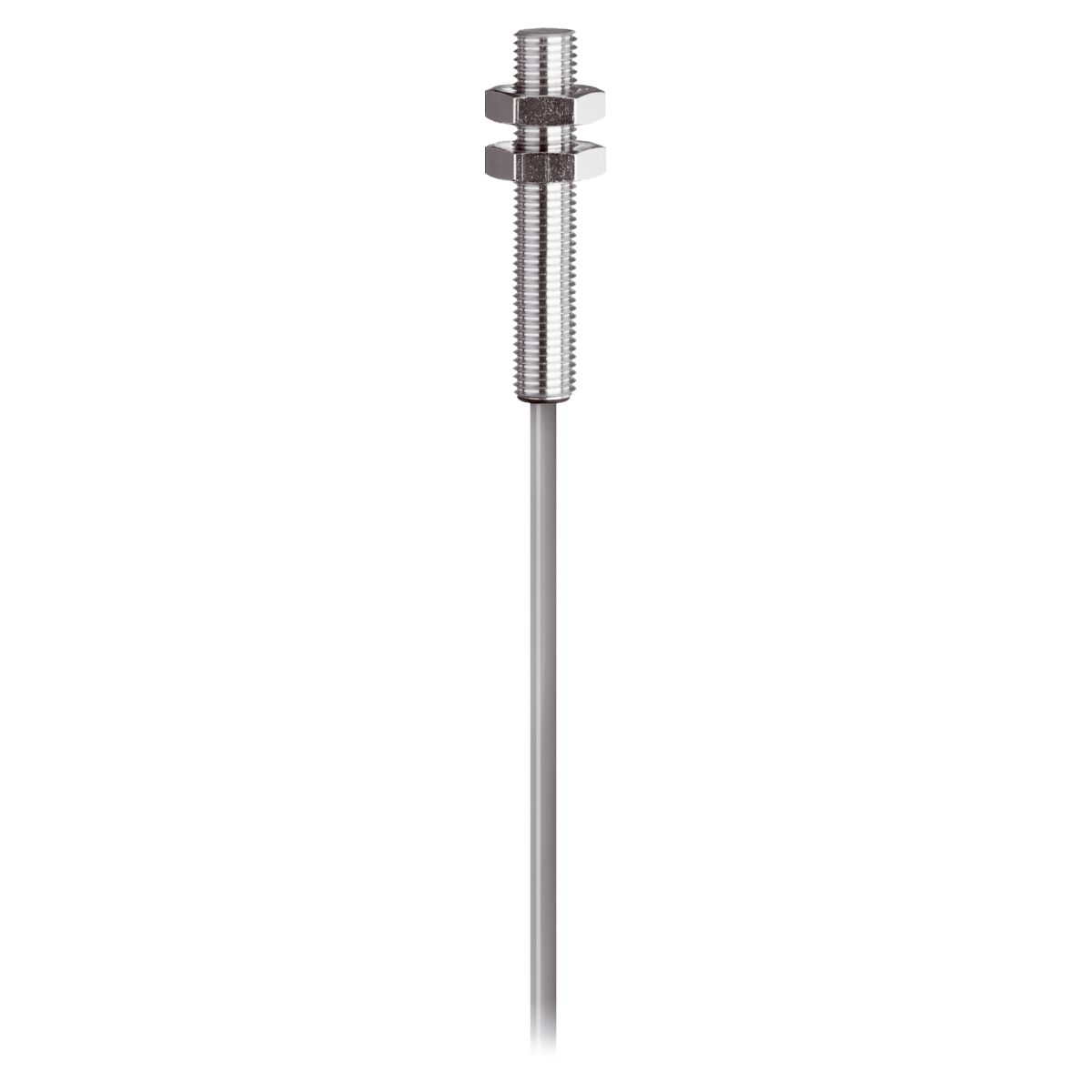

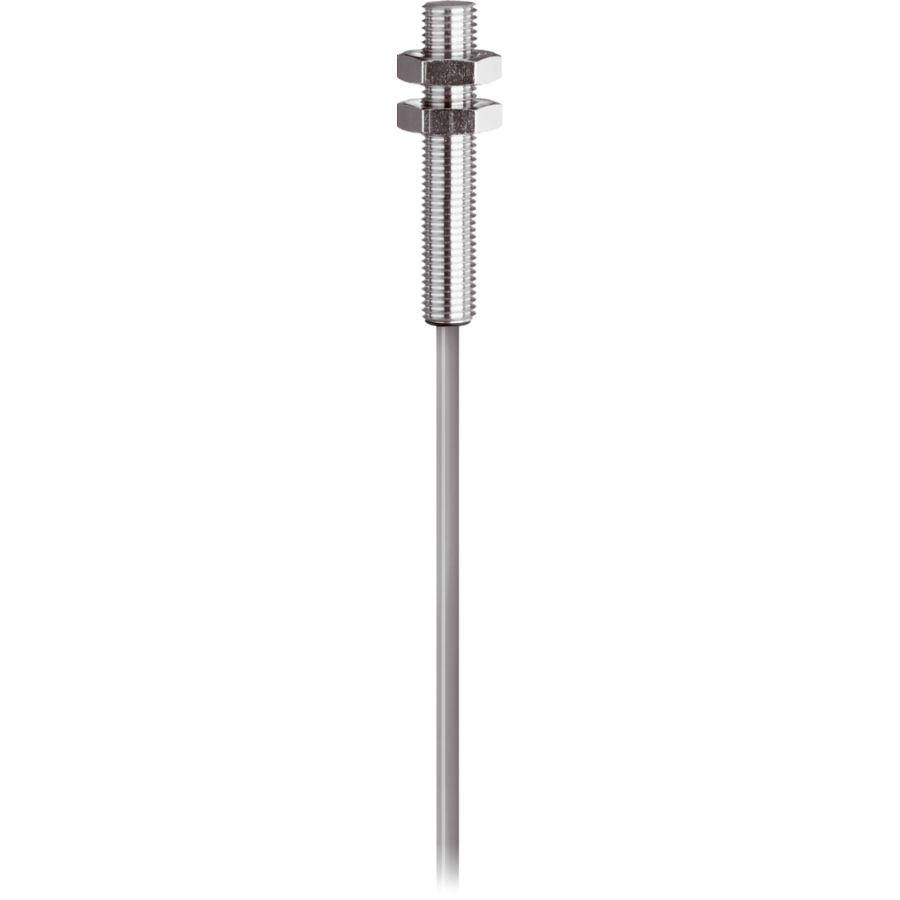

Inductive Proximity Sensor - DCC 08 V 2.5 PSLK-E
Part Number: DCC 08 V 2.5 PSLK-E
Article Number: 202466
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Operating principle | inductive |
---|---|
Installation type | Flush |
Switching distance | 2,5 mm |
Service voltage | 10 … 30 V DC |
Switching output | pnp, 200 mA, NO |
No-load current (max.) | 10 mA |
Evaluation | digital |
Design | Thread |
Characteristics | < 20 bar, increased operating distance, pressure-resistant |
Housing material | Stainless steel, ZrO2 ceramic |

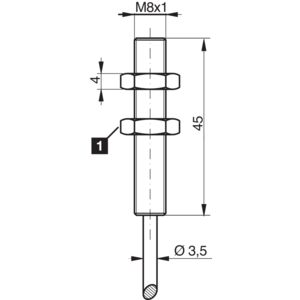

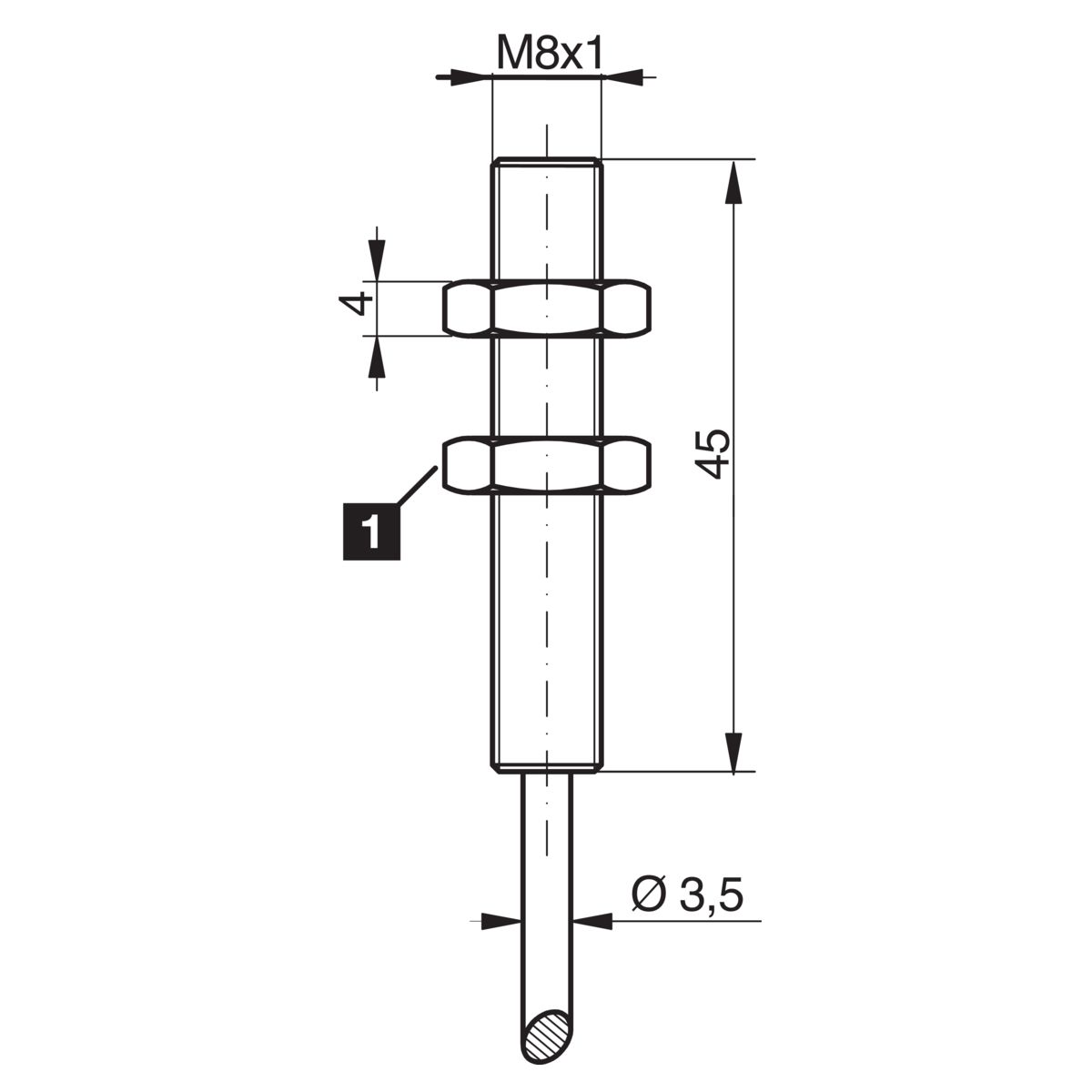

Size | M8 x 1 |
Ambient temperature during operation | -25 … +70 °C |
Protection type | IP 68 |
Connection | Cable, 2 m |
