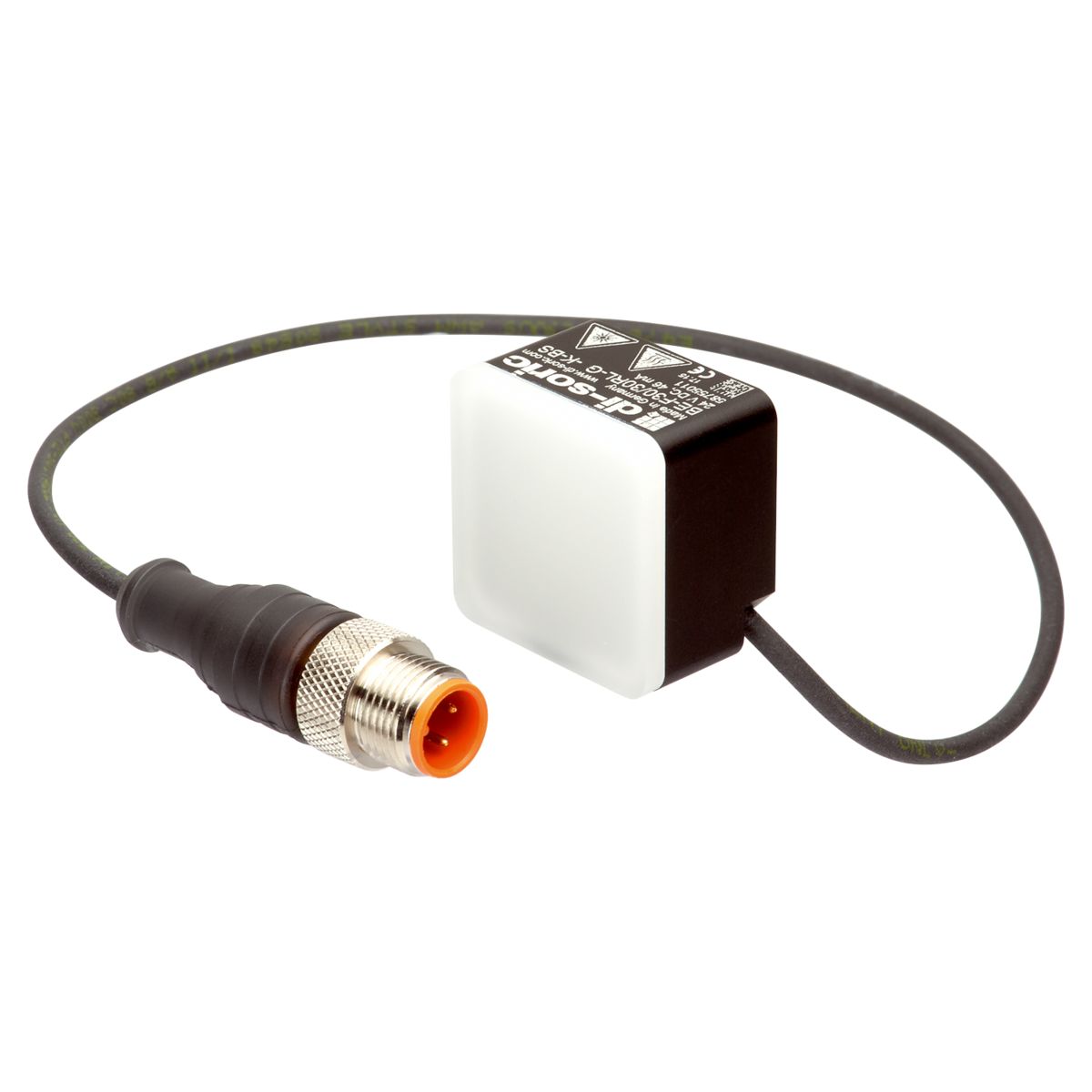

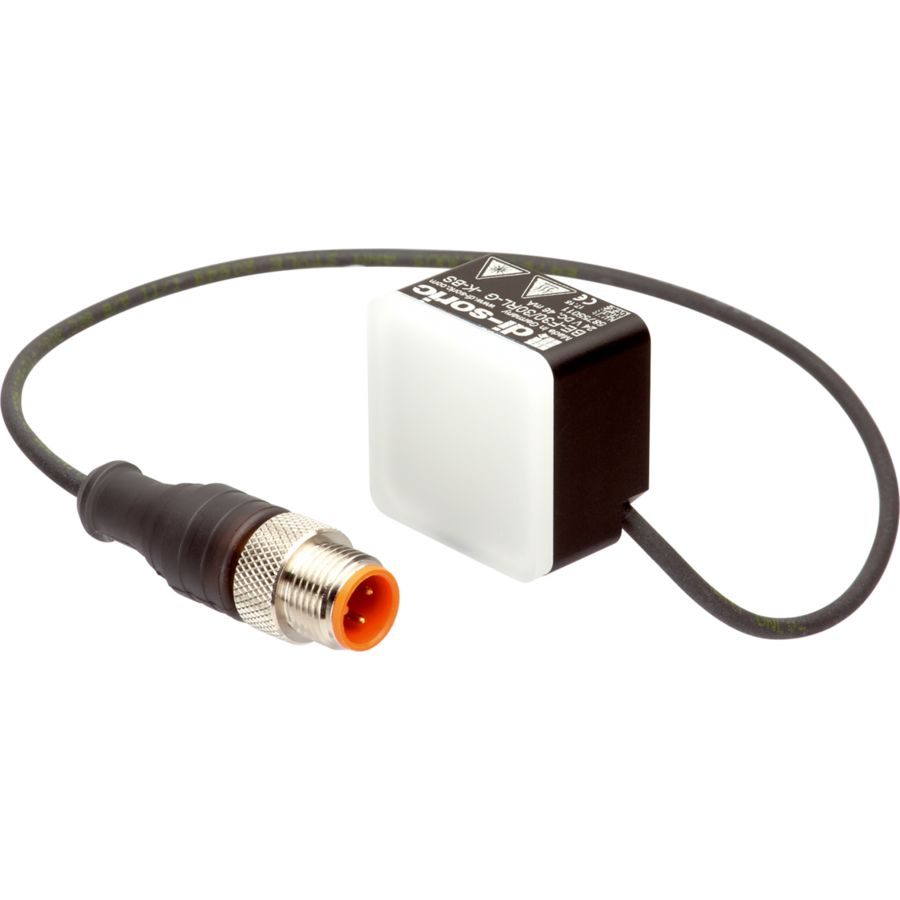

High Power Area Light - BE-F30/30RL-G1-K-BS
Part Number: BE-F30/30RL-G1-K-BS
Article Number: 209699
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Transmitter light source | LED |
|---|---|
| Lichtfarbe | red, 625 nm |
| Illuminated area | 30 x 30 mm |
| Service voltage | 24 V DC (Supply Class 2) |
| No-load current (max.) | 50 mA (24 V DC) |
| Housing material | Aluminum, Black (Anodized) |

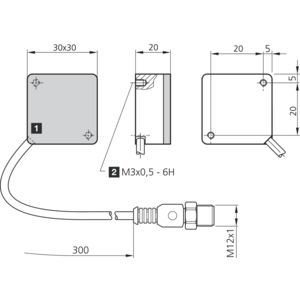

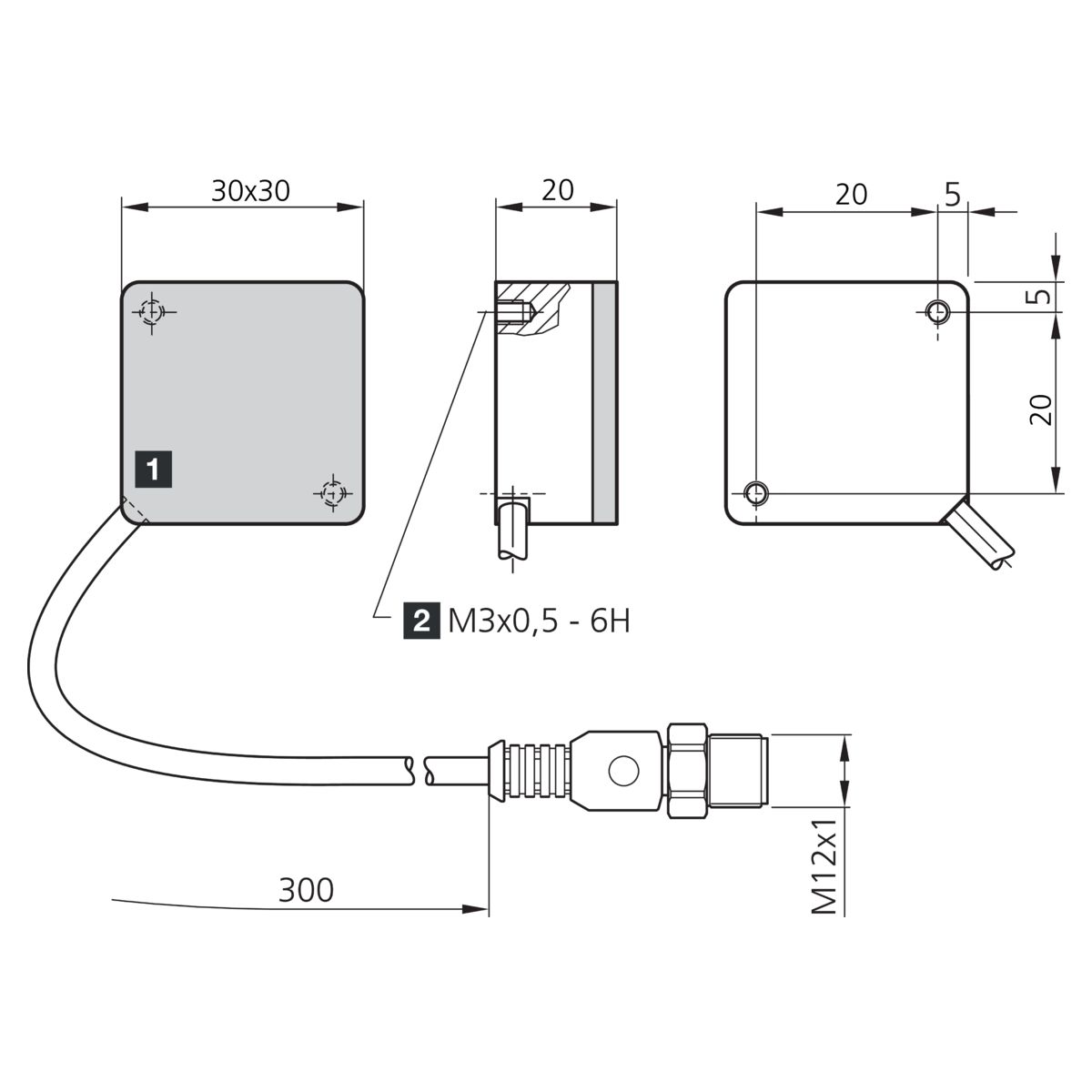

| Größe | 30 x 30 x 20 mm |
| Ambient temperature during operation | 0 … +40 °C |
| Protection type | IP 67 |
| Risk group (DIN EN 62471) | Free group |
| Protection class | III, operation on protective low voltage |

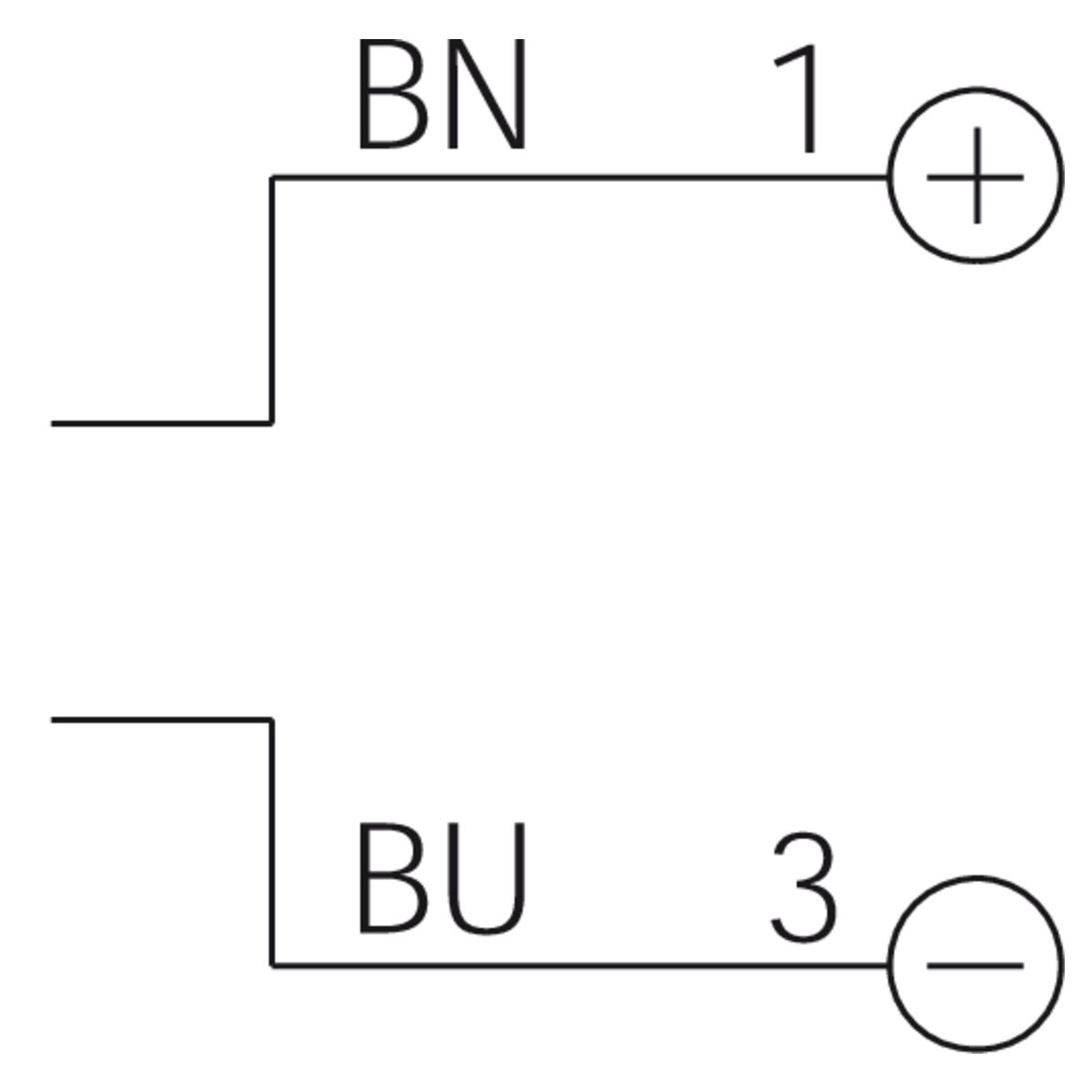

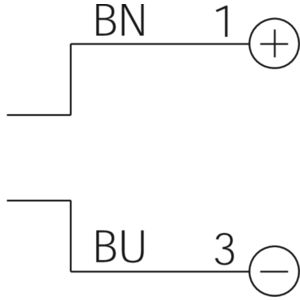

| Anschluss | Cable/connector, 0,3 m, M12, 3-pin |
