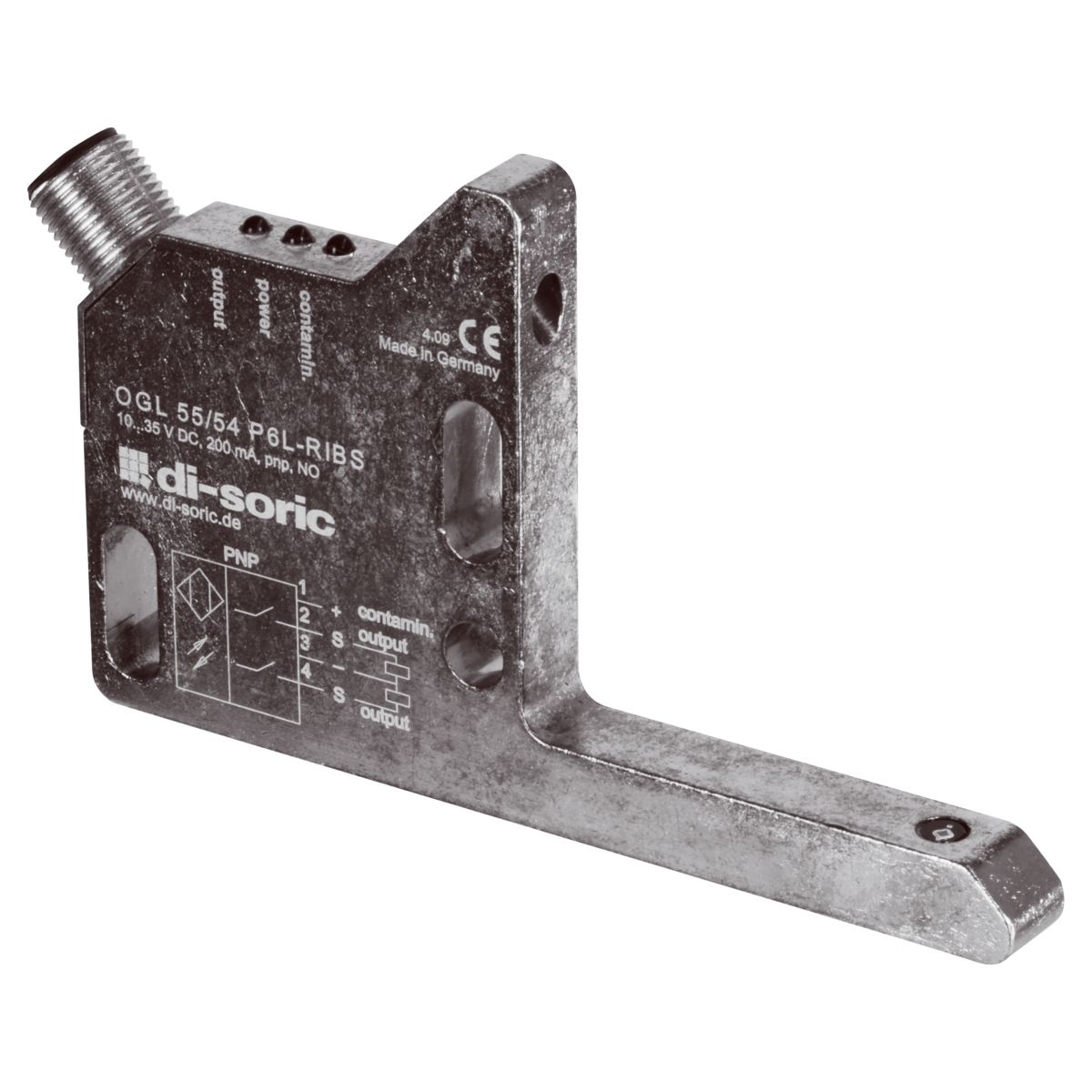

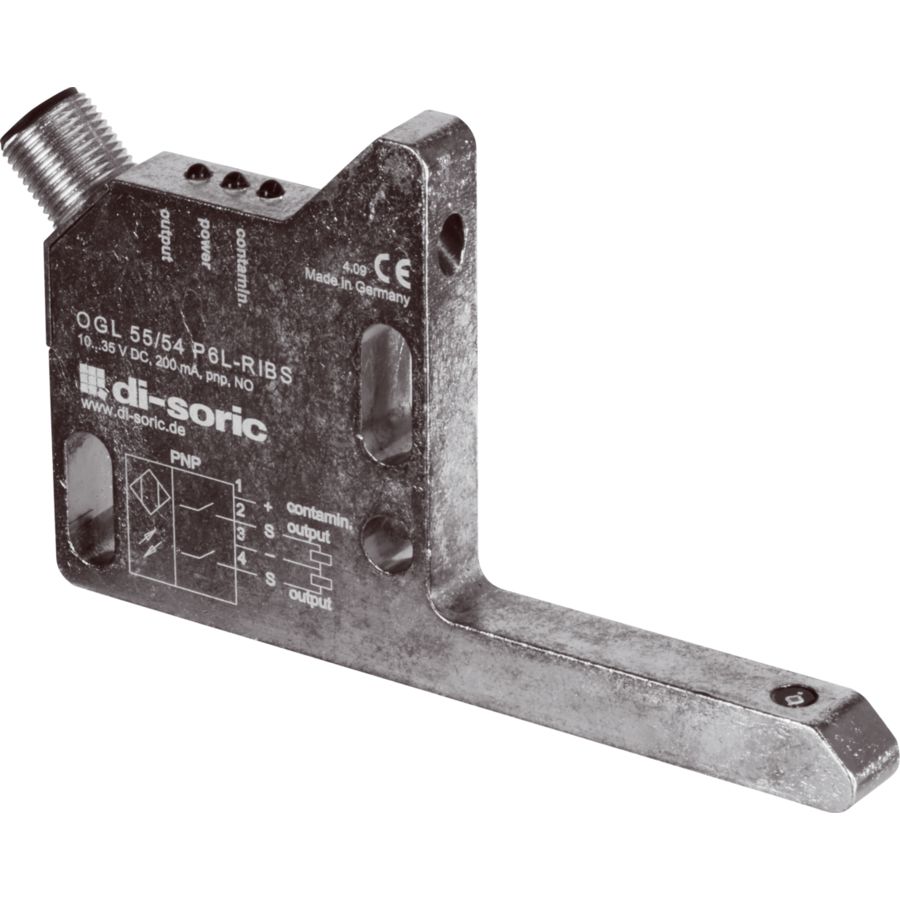

High-performance Angled Light Barrier - OGL 55/54 P6L-RIBS

Part Number: OGL 55/54 P6L-RIBS

Article Number: 204195

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Optical
Transmitter light source LED
Light color red / 660 nm
Leg length internal 55 mm, 54 mm
Service voltage 10 … 35 V DC (Supply Class 2)
No-load current (max.) 45 mA

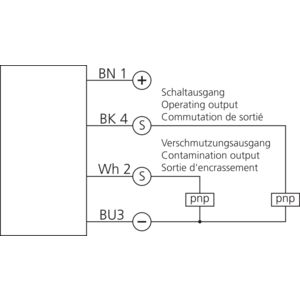

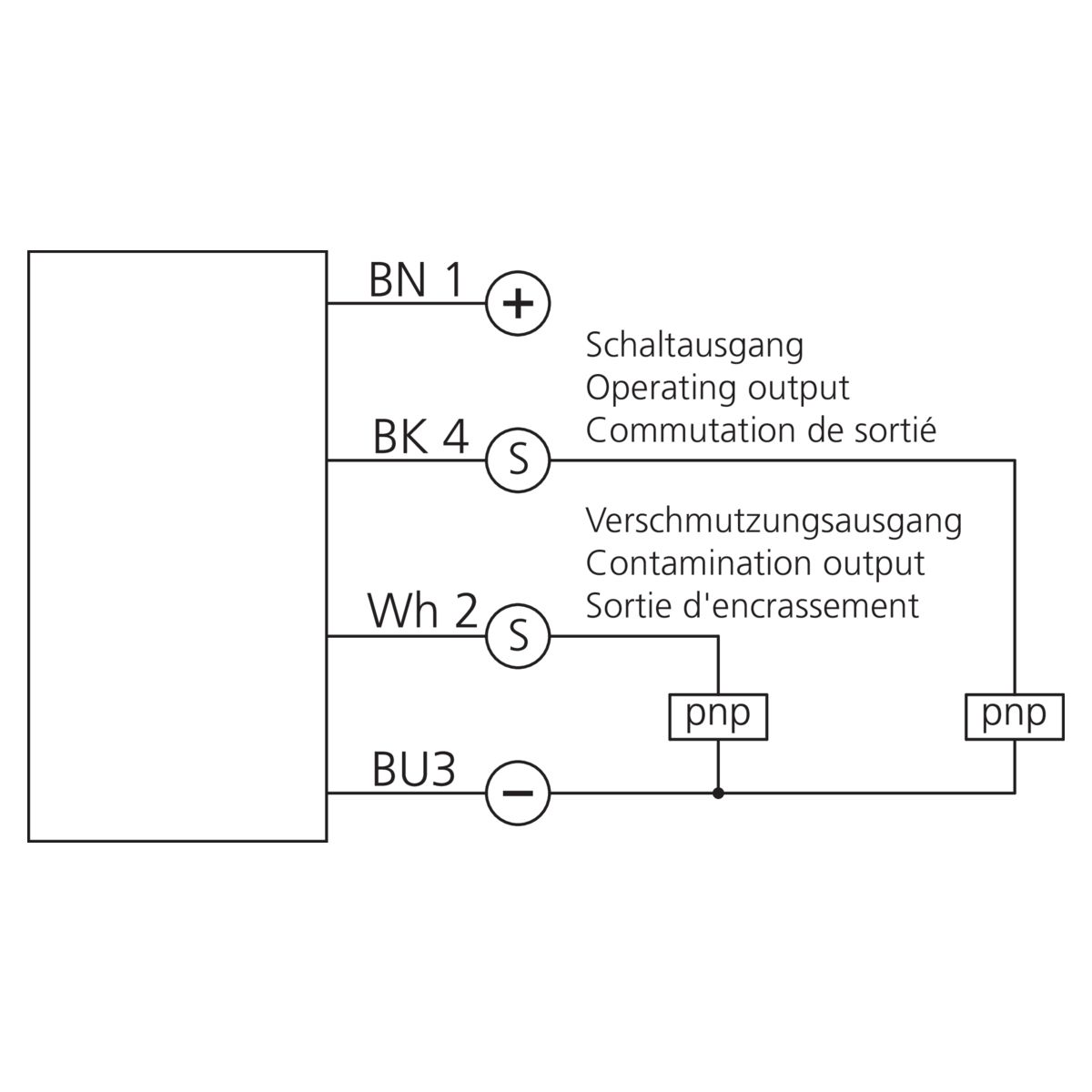

Switching output (pnp), 200 mA, NO
Housing material Die-cast zinc

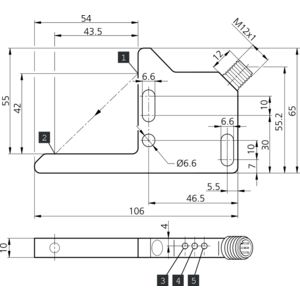

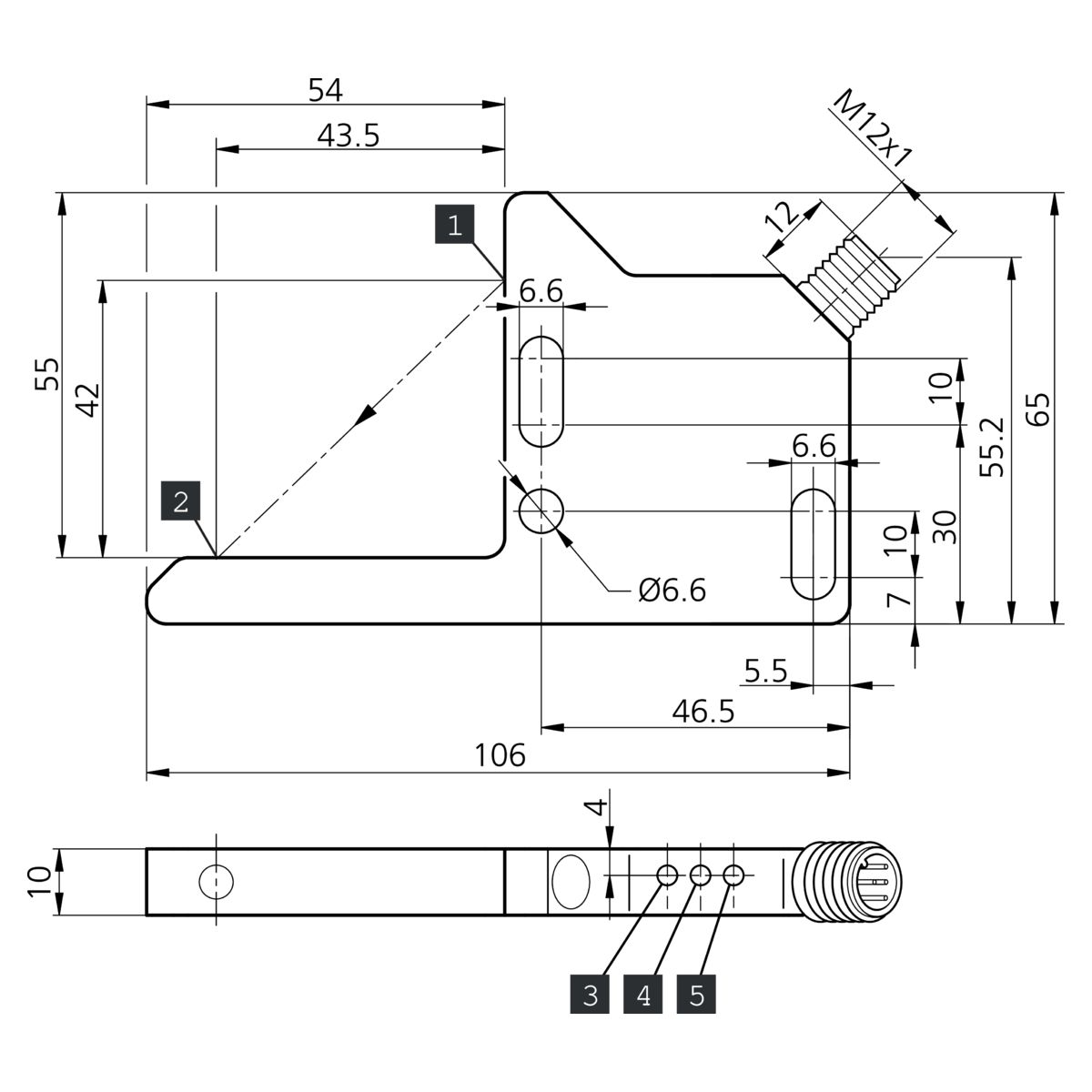

Size 65 x 106 x 10 mm
Ambient temperature during operation -10 … +60 °C
Protection type IP 67
Connection Connector, M12, 4-pin
