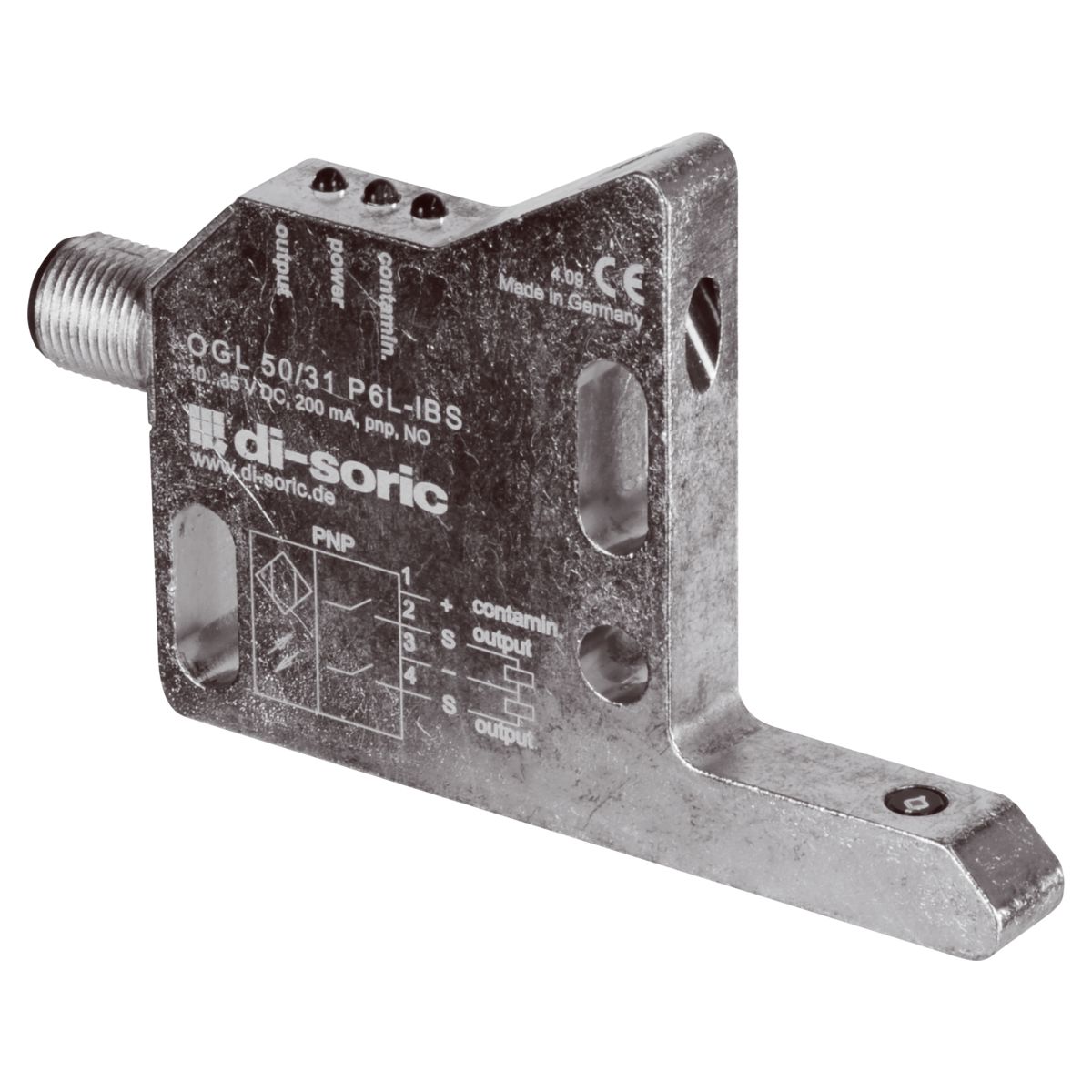

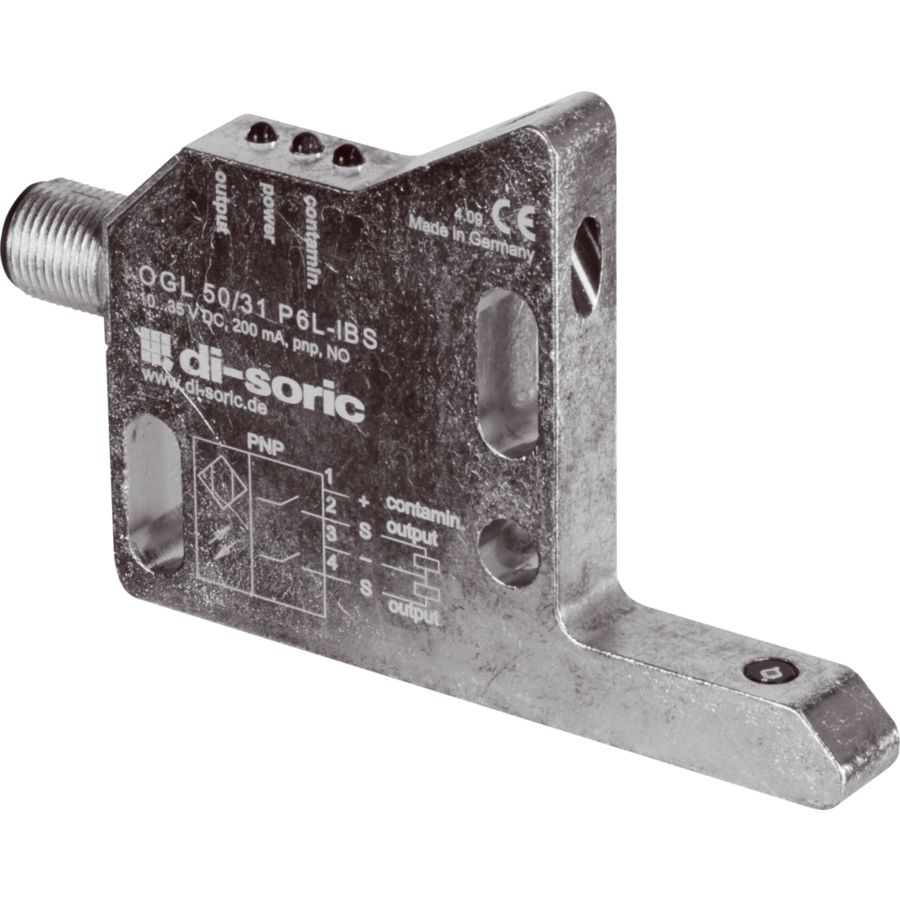

High-performance Angled Light Barrier - OGL 50/31-0 P6L-IBS

Part Number: OGL 50/31-0 P6L-IBS

Article Number: 205018

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Optical
Transmitter light source LED
Light color Infrared
Leg length internal 50 mm, 31 mm
Service voltage 10 … 35 V DC (Supply Class 2)
No-load current (max.) 45 mA

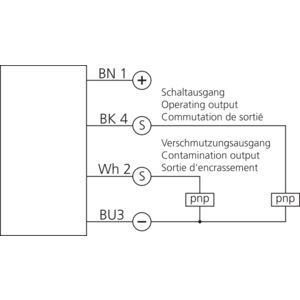

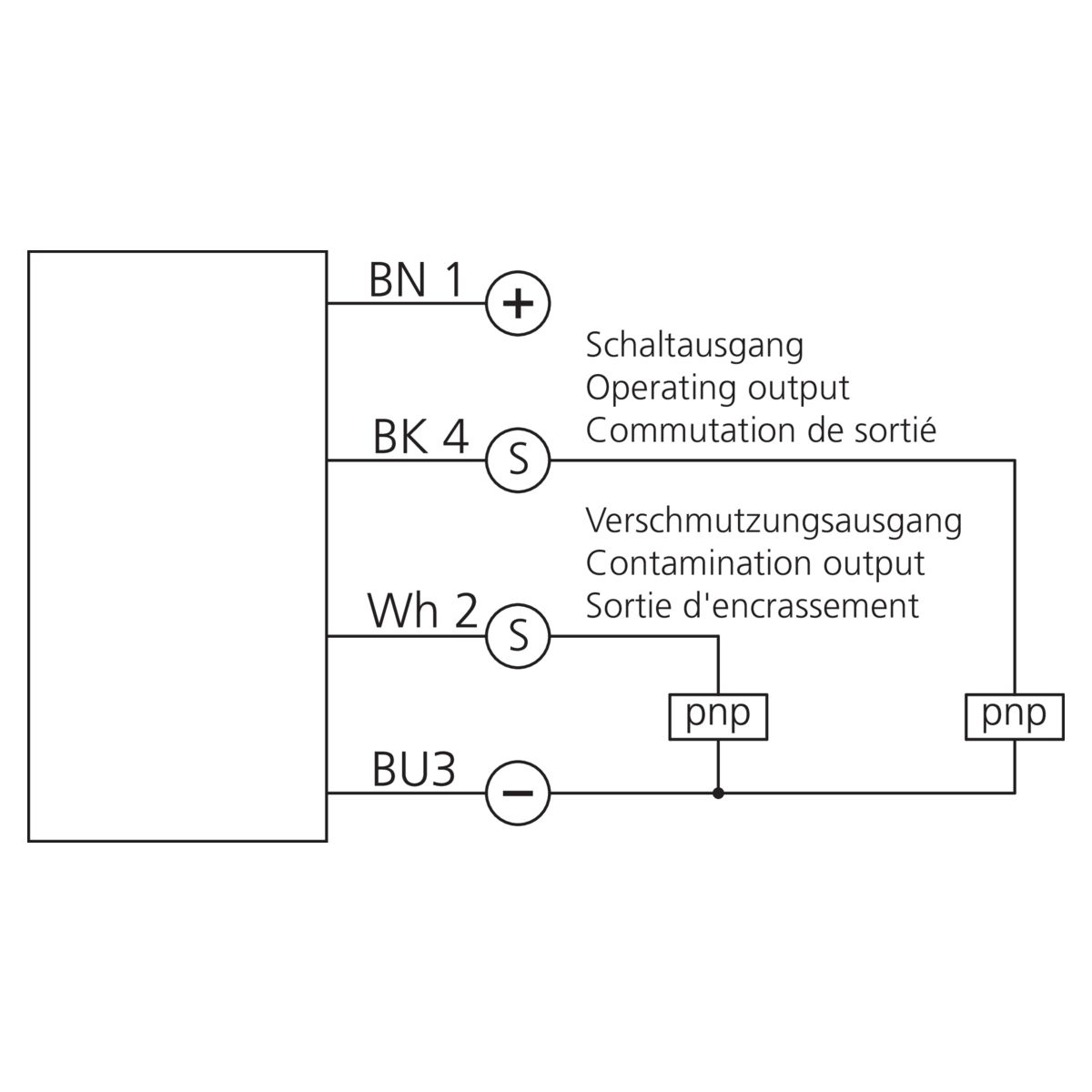

Switching output (pnp), 200 mA, NO
Housing material Die-cast zinc

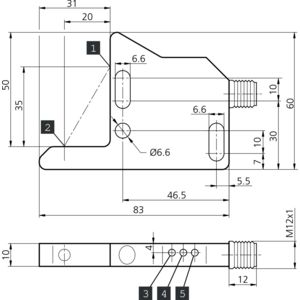

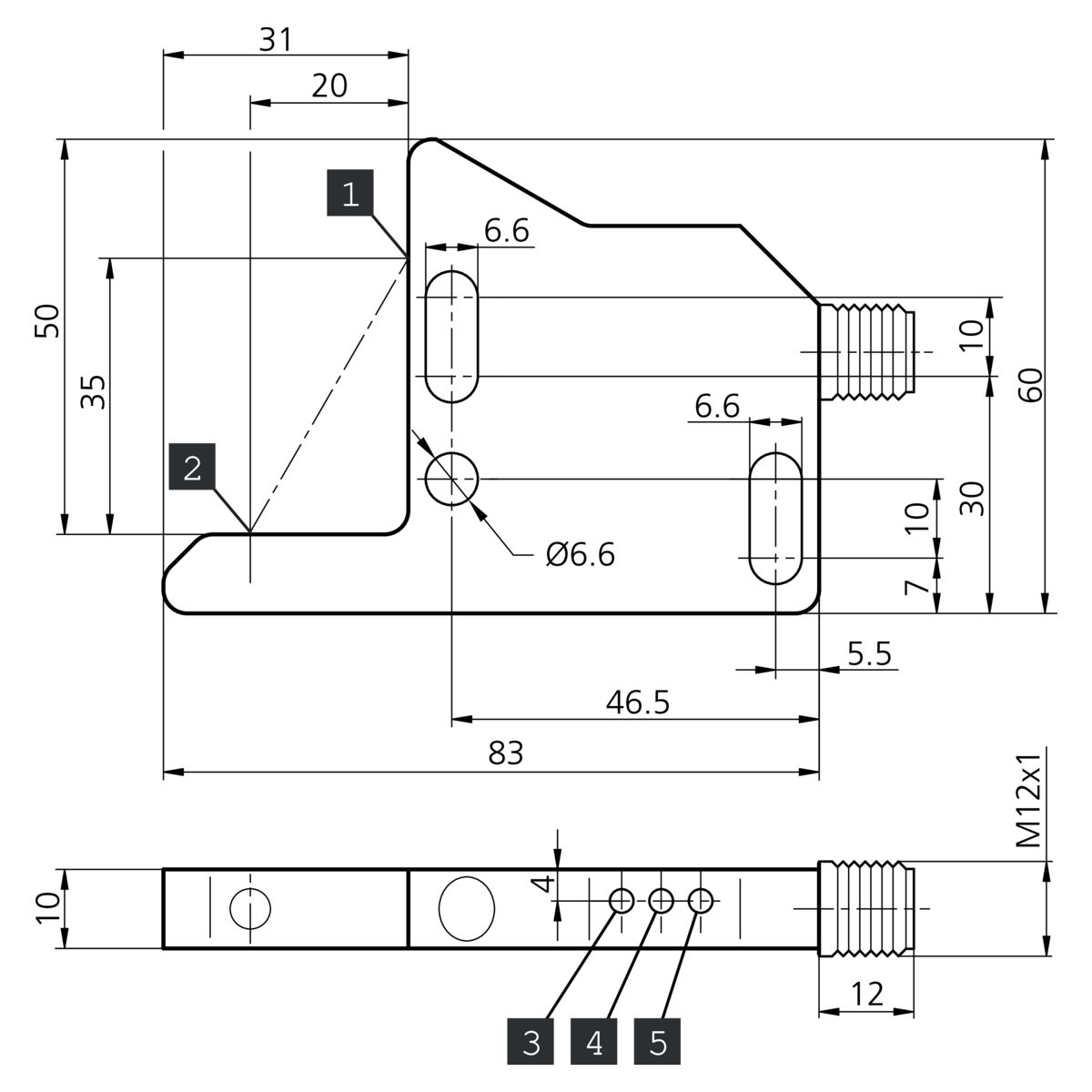

Size 60 x 83 x 10 mm
Ambient temperature during operation -10 … +60 °C
Protection type IP 67
Connection Connector, M12, 4-pin
