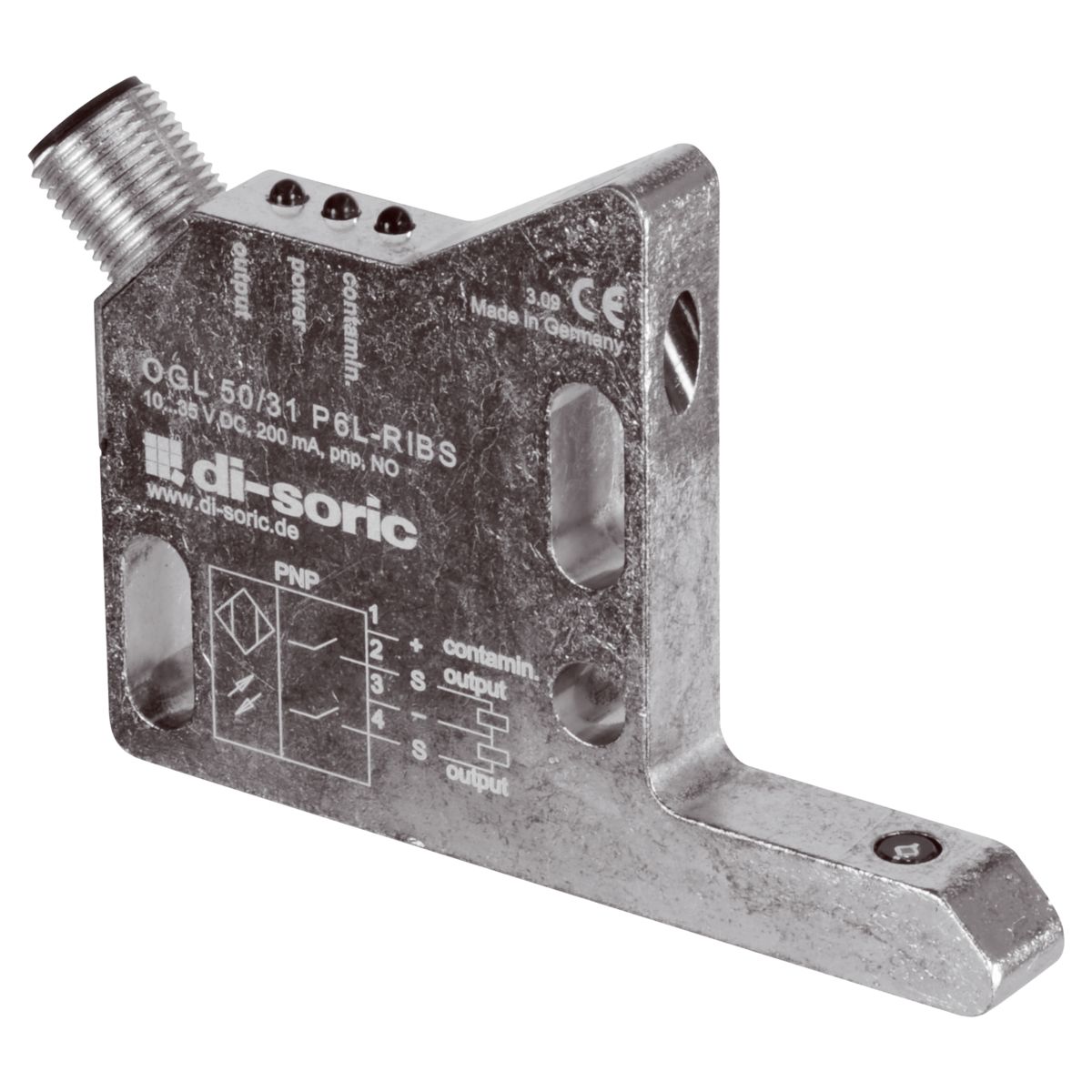

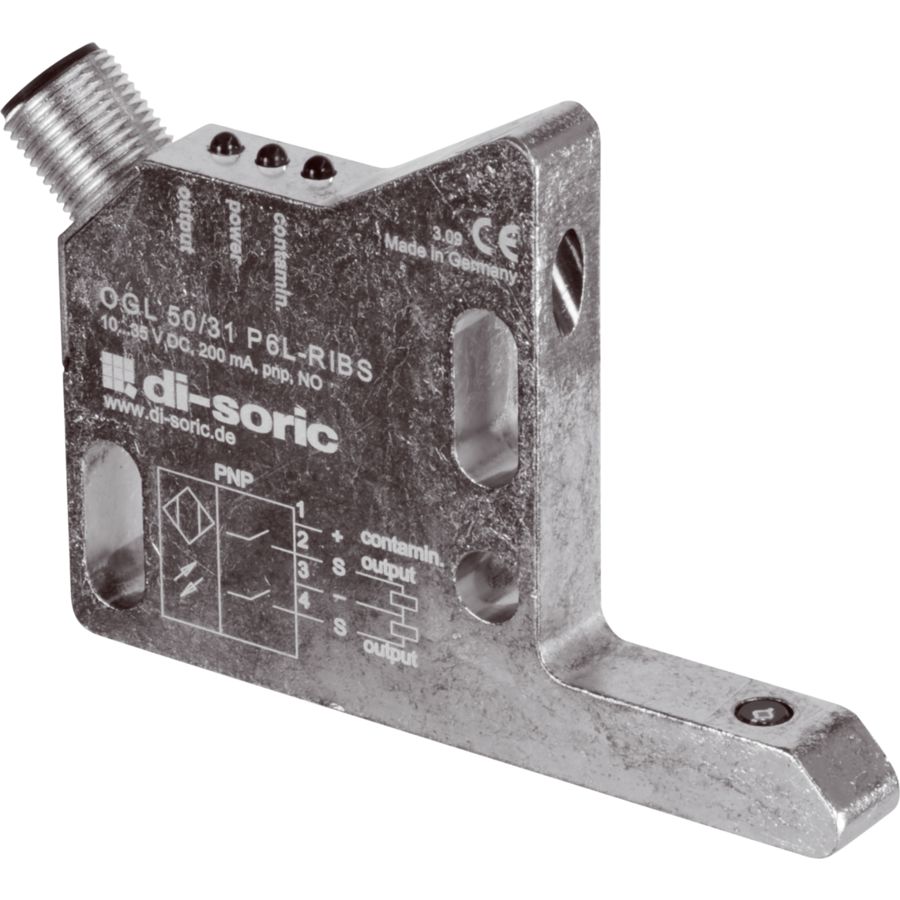

High-performance Angled Light Barrier - OGL 50/31-0 P2K-RIBS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	LED
Light color	Infrared
Leg length internal	50 mm, 31 mm
Service voltage	10 … 35 V DC (Supply Class 2)
No-load current (max.)	20 mA
Switching output	(pnp), 200 mA, NO
Housing material	Die-cast zinc

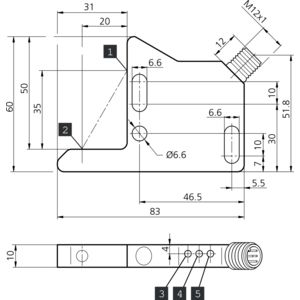

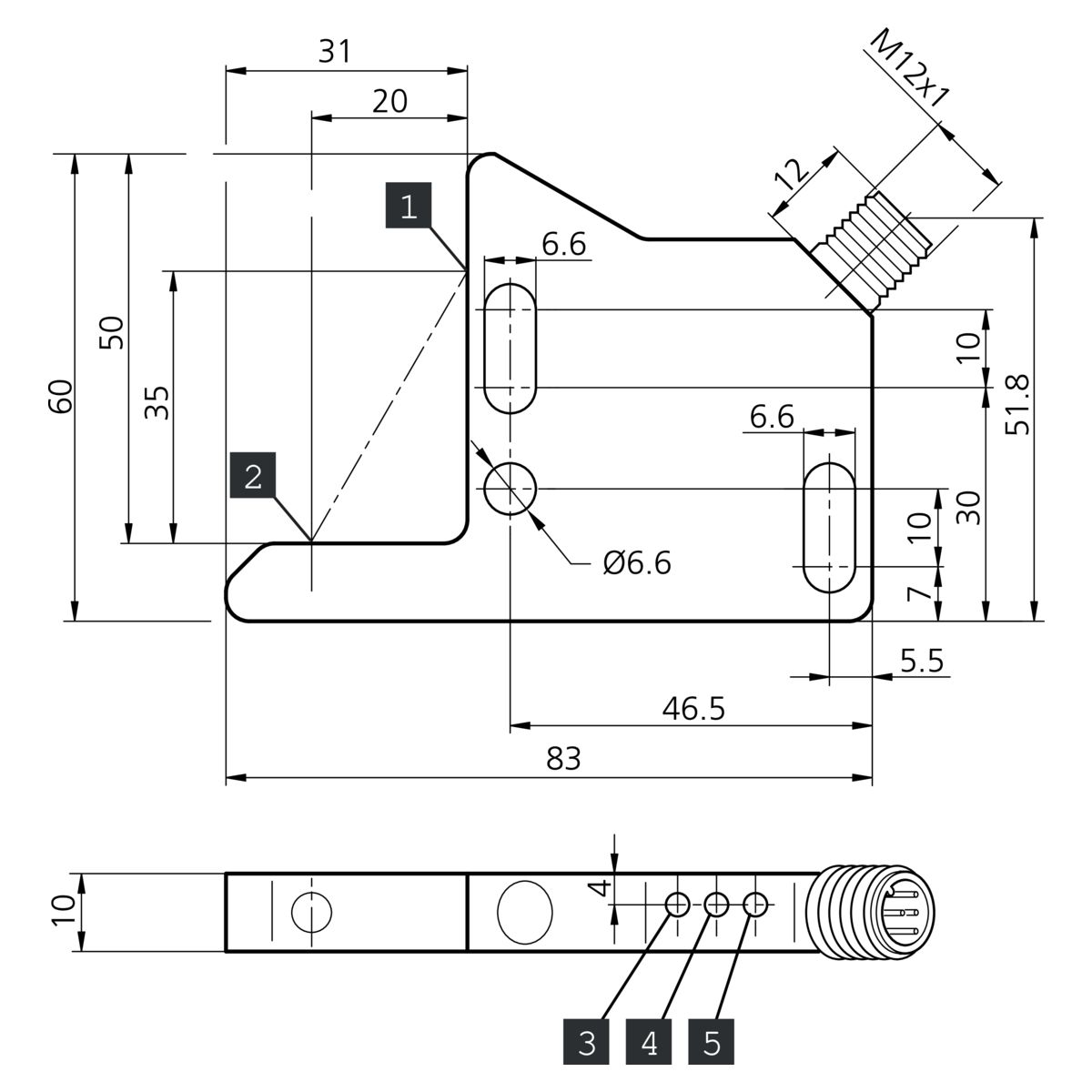

Size	60 x 83 x 10 mm
Ambient temperature during operation	-10 … +60 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin
