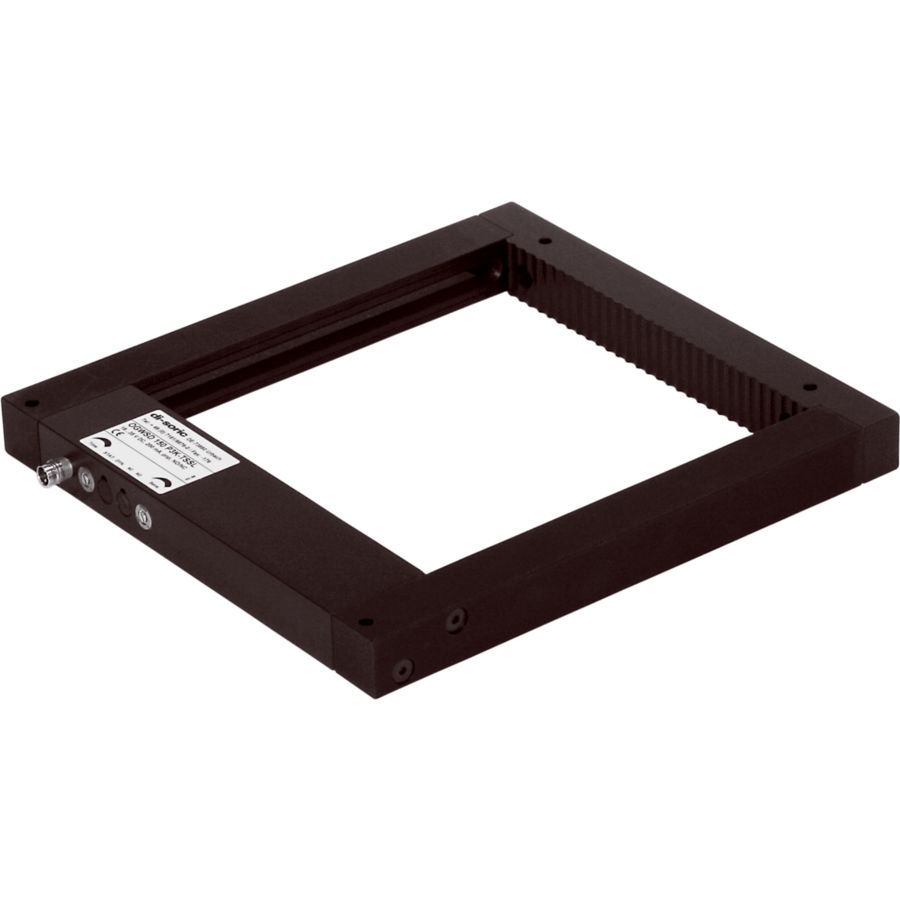

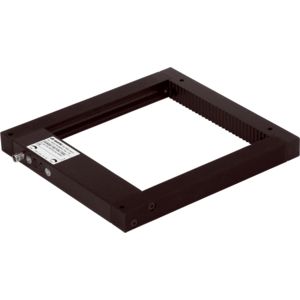

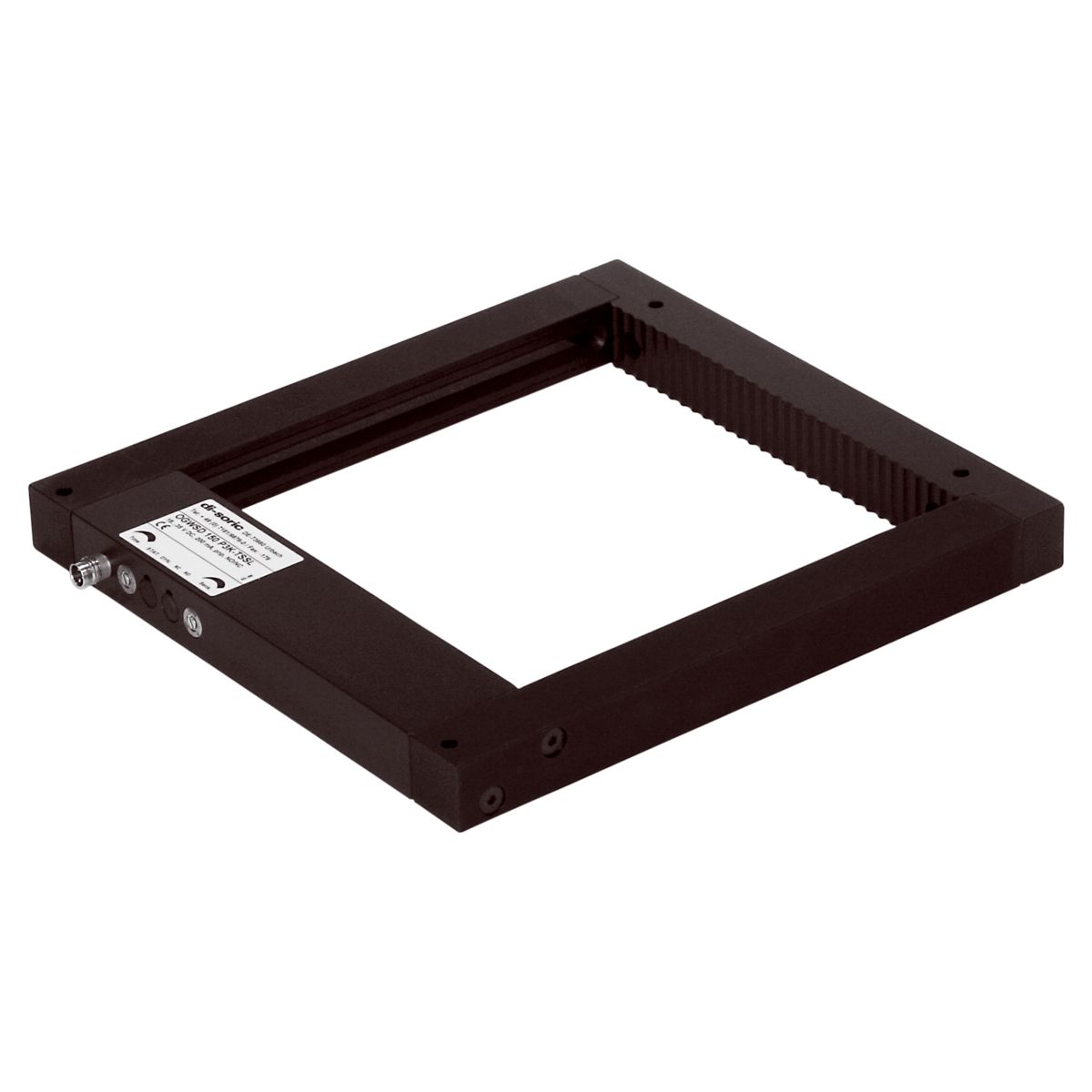

Frame Light Barrier - OGWSD 150 P3K-TSSL

Part Number: OGWSD 150 P3K-TSSL

Article Number: 201405

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Dynamic/static switchable
Transmitter light source LED
Light color Infrared / 940 nm
Detection range 150, 142 mm
Service voltage 18 … 35 V DC
Switching output pnp, 200 mA, NO/NC
Housing material Aluminum, Black (Anodized)
Connection Connector, M8, 3-pin
